12V/24V to 5V 20A DC DC Step Down Converter Buck PCB Board Module Power Supply for P10 Car LED Screen Display Panel
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (62149450101):
Product Overview
Description
12V/24V to 5V 20A DC DC Step Down Converter Buck PCB Board Module Power Supply for P10 Car LED Screen Display Panel
Product Description
Product Name | Fulree DC DC Converter 12V24V to 5V 20A 100W | |
Brand | Fulree | |
Model No. | 12240520 | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 12V 24V | |
Input Voltage Range | DC 10-35V | |
Output | ||
Output Voltage | DC 5V | |
Output Current | 20A | |
Output Power | 100W | |
Conversion Efficiency | 95% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 100mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | No | |
Protection | Over-current protection | |
Over-voltage protection | ||
Overheat protection | ||
Short-circuit protection | ||
Application | Car LED Display Screen | |
Certification | CE/RoHS/FCC | |
Case Material | no case | |
Product Size (L x W x H) | 111*60*17.5mm | |
Product Weight | 90g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

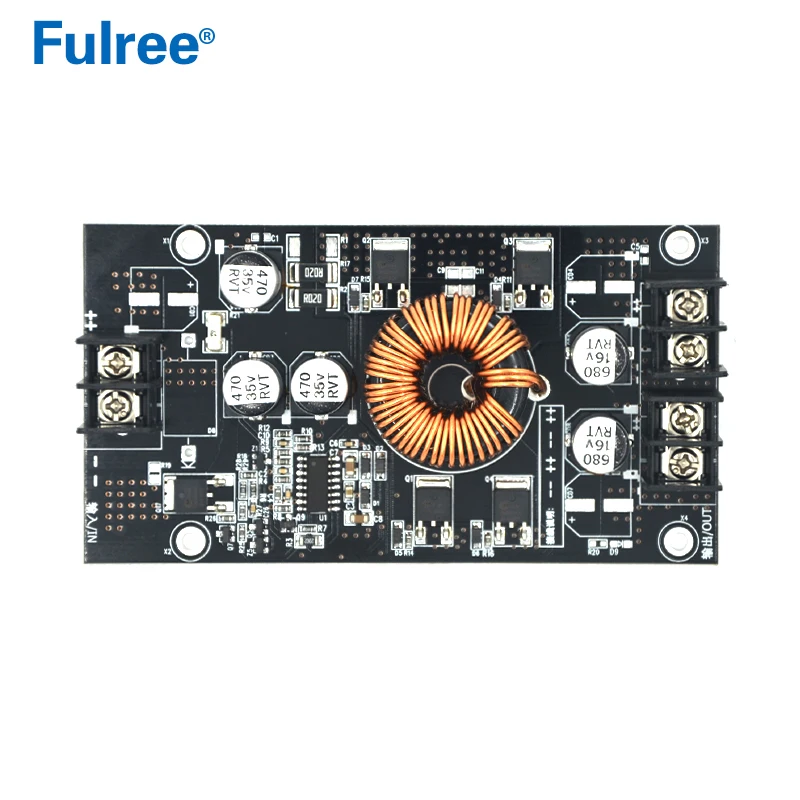

Product Picture
Option A:input 7.62 screw connector, output 7.62 screw connector
Option B:input 7.62 screw connector, output 7.62 screw connector*2
