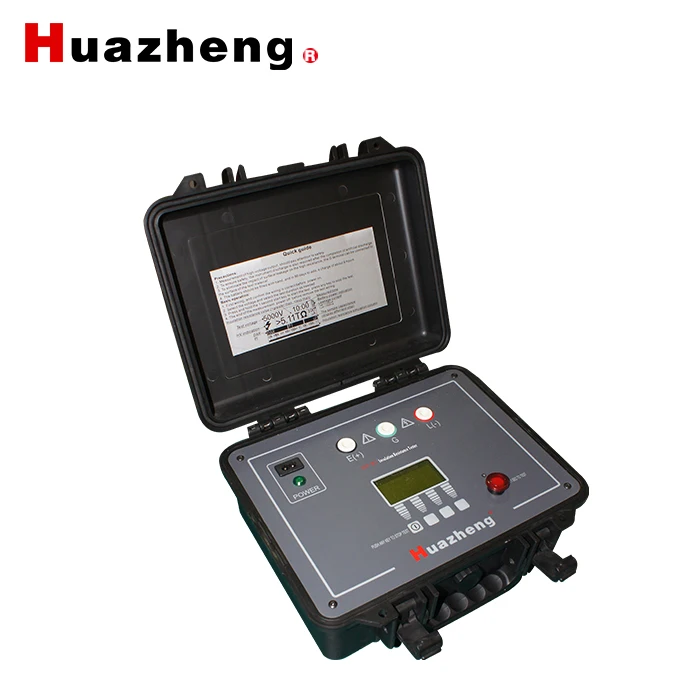

Huazheng Электрический высоковольтный тестер сопротивления изоляции 5KV Magger 1T Ohm

MODLEHZJY-5K-I are high voltage insulation resistance testers with 5-range(HZJY-5K-I)for measuring insulation resistance.

1. Designed to meet the following safety standards:

IEC 61010-1,-2-30 (CAT III 600V/CAT IV 300V Pollution degree 2)

IEC 61010-031 (Requirements for hand-held probes)

2. With auto-discharge function

When an insulation resistance like a capacitive load is measured, electric charges stored in capacitive circuits are automatically discharged after the measurement. Discharge can be checked on the voltage monitor.

3. Backlight function to facilitate working at dimly illuminated location or at nighttime work.

4. Bar graph display

5. Audible and visible LIVE circuit warning

6.With  Auto-power off function

The instrument automatically will turn itself off if there is no function change or button press for 10 min to conserve battery power.

7. Auto-measurement and display of PI (Polarization Index), DAR(Dielectric Absorption Ratio)

Voltage monitor for insulation resistance range

  MODLEHZJY-5K-II:30 – 6000V (resolution 10 V): ±10%rdg±20V

 This monitor is used to check whether electric charges stored no the equipment under test are discharged or not. The voltage value measured and displayed on the LCD is a reference value. Please note that the indicated value, when an external AC voltage is applied to the instrument, is not a correct value.

Huazheng Electric Manufacturing (Baoding) Co.,Ltd Established in March 2008. We are located in Baoding near Beijing and have convenient transportation access.

Huazheng Electric is a professional manufacturer engaged in the research, development, production, sale and service of electric power systems. our products are extensively used in power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment. In addition, we have attained CE ISO9001 certificates.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
