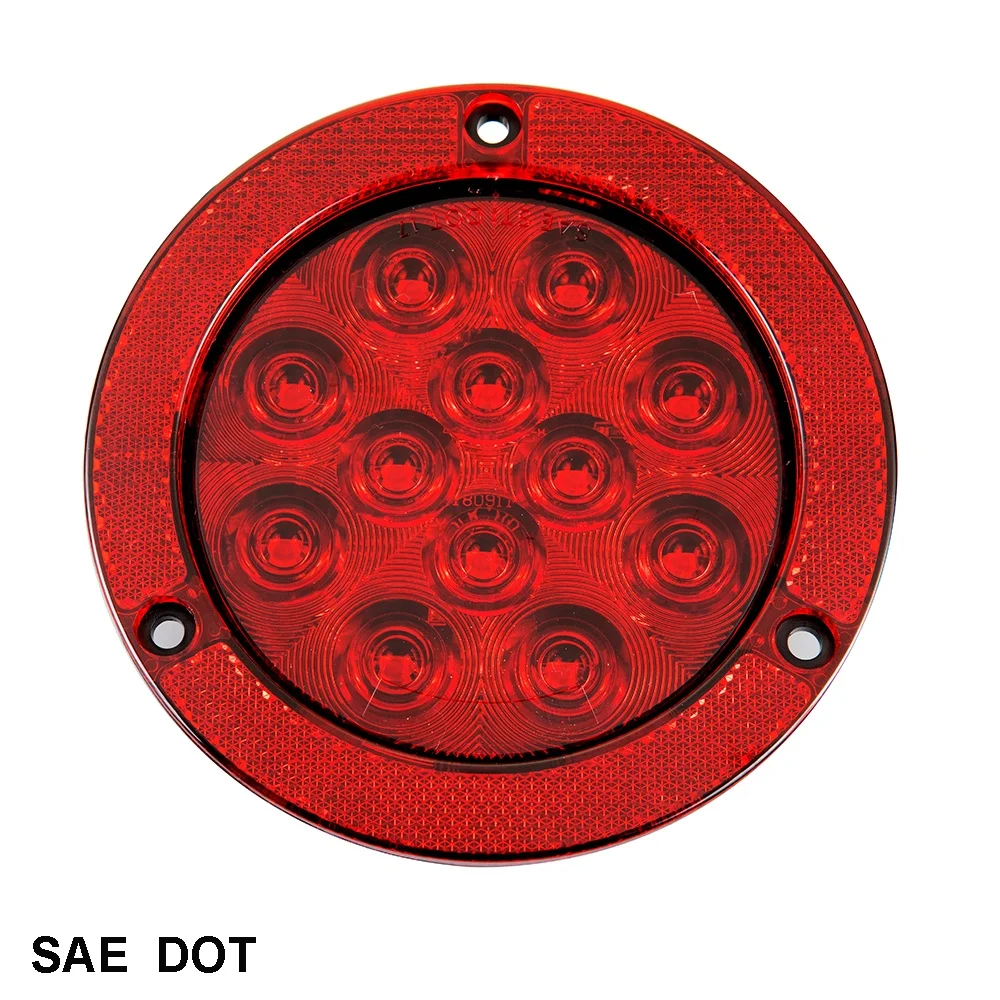

4 inch Round LED Light Stop/Tail/Turn, Flange Mount w/Reflex Ring round led tail light
- Category: Auto Lighting Systems >>>
- Supplier: Yuyao HOJA Lighting Products Co. Ltd.
Share on (62149490727):
Product Overview
Description
4 inch Round LED Light Stop/Tail/Turn, Flange Mount w/Reflex Ring round led tail light
DESCRIPTION:
- Flange mount with reflex ring or plain (w/o reflex ring)
- Choice of 12 LEDs or 7 LEDs versions; super bright SMD LEDs
- Stop, Turn, Tail functions combined.
- Engineered lens optics
- PC lens and housing welded together to ensure a permanent and water proof seal.
- LED circuit board coated with conformal coating for excellent moisture and environmental protection
- Right angle 3-prong plug assembly
- Super long life span up to 100,000 hours
- Meets DOT FMVSS 108/SAE requirements except amber and white colors of 7 LED version
- Rated for 12V, tested to 13.8V
- Also available in multi-voltage 10~30V operating range or 24V by special order only
SPECIFICATION:
Part No. | Description | Input Voltage | Nos. of LEDs | LED Type | Lighting Color | Current Draw (mA) at 13.8V | |

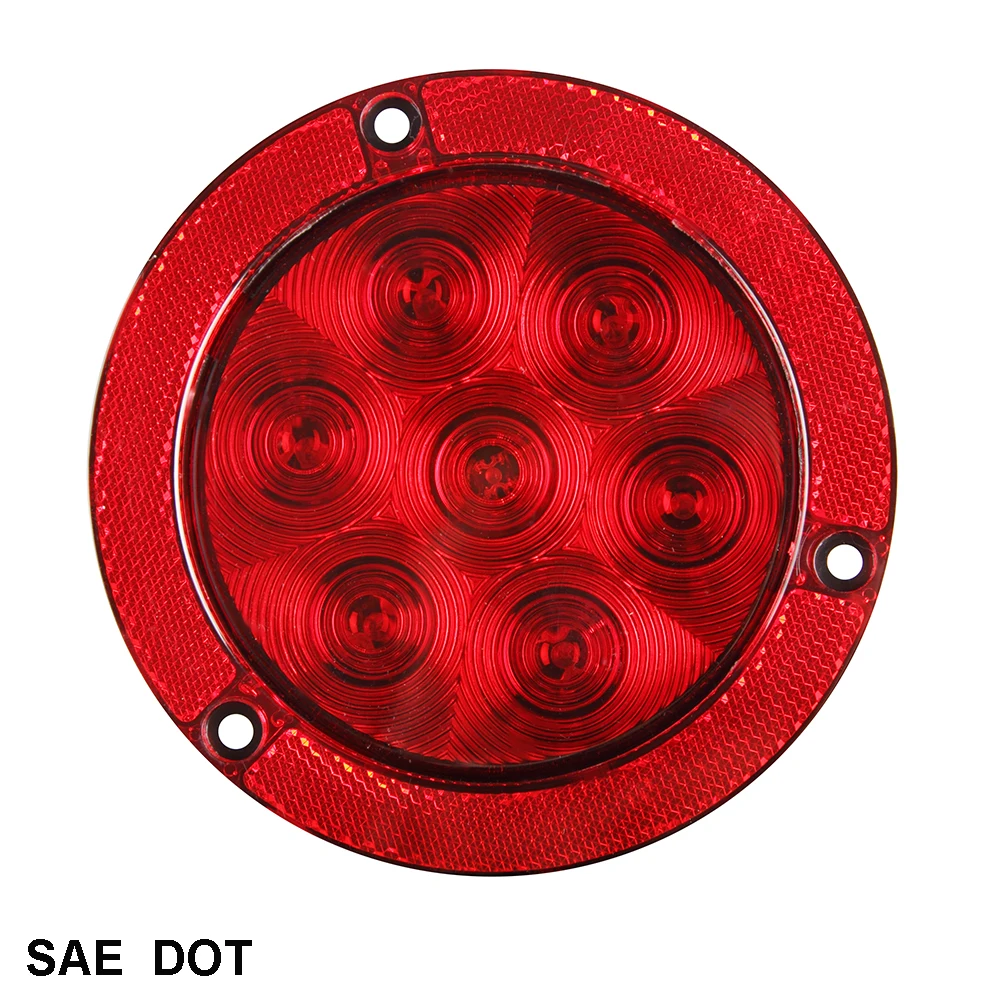

104307R | Flange Mount w/ Reflex Ring | 12 V | 7 | SMD | Red | 15/150 mA | |
104312R | Flange Mount w/ Reflex Ring | 12 V | 12 | SMD | Red | 20/200 mA | |
104312A | Flange Mount w/ Reflex Ring | 12 V | 12 | SMD | Amber | 200 mA | |
104312C | Flange Mount w/ Reflex Ring | 12 V | 12 | SMD | White | 200 mA | |
104307RM | Flange Mount w/ Reflex Ring | 12~24 V | 7 | SMD | Red | 10/100 mA | |
104307AM | Flange Mount w/ Reflex Ring | 12~24 V | 7 | SMD | Amber | 100 mA | |
104307CM | Flange Mount w/ Reflex Ring | 12~24 V | 7 | SMD | White | 100 mA | |
104312RM | Flange Mount w/ Reflex Ring | 12~24 V | 12 | SMD | Red | 15/150 mA | |
104312AM | Flange Mount w/ Reflex Ring | 12~24 V | 12 | SMD | Amber | 150 mA | |
104312CM | Flange Mount w/ Reflex Ring | 12~24 V | 12 | SMD | White | 150 mA | |

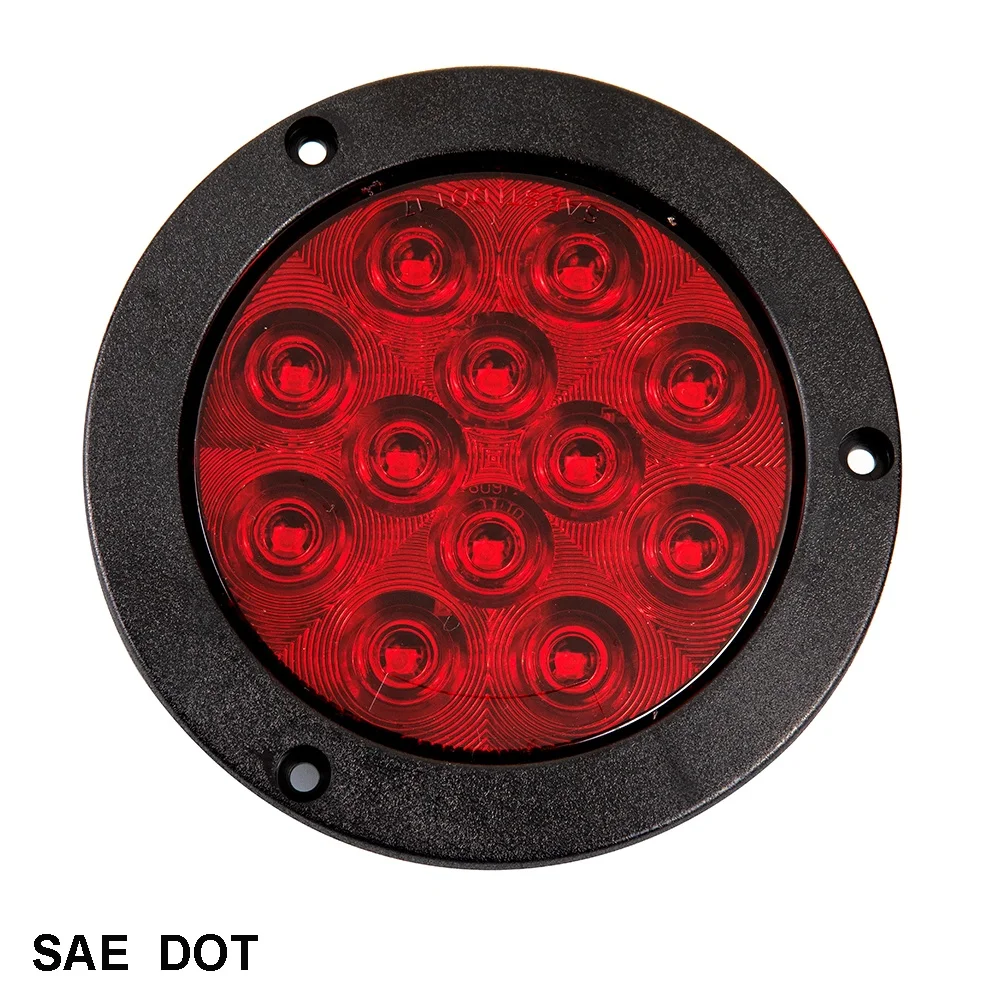

104607R | Flange Mount Plain | 12 V | 7 | SMD | Red | 15/150 mA | |
104612R | Flange Mount Plain | 12 V | 12 | SMD | Red | 20/200 mA | |
104612A | Flange Mount Plain | 12 V | 12 | SMD | Amber | 200 mA | |
104612C | Flange Mount Plain | 12 V | 12 | SMD | White | 200 mA | |
104607RM | Flange Mount Plain | 12~24 V | 7 | SMD | Red | 10/100 mA | |
104607AM | Flange Mount Plain | 12~24 V | 7 | SMD | Amber | 100 mA | |
104607CM | Flange Mount Plain | 12~24 V | 7 | SMD | White | 100 mA | |
104612RM | Flange Mount Plain | 12~24 V | 12 | SMD | Red | 15/150 mA | |
104612AM | Flange Mount Plain | 12~24 V | 12 | SMD | Amber | 150 mA | |
104612CM | Flange Mount Plain | 12~24 V | 12 | SMD | White | 150 mA | |
906403P | Right Angle 3 Prong Plug for 4” Round Light |
| |||||
104300FL | Flange Mount Bracket with Reflex Ring only |
| |||||
MORE LED LIGHTS INFORMATION PLEASE CLICK HERE
