Type of CHA-A Automatice paintball production line is used for producing Paintball and bath beads. the output is 10000 pec of per hour. this machine is easy to operate, well-kint structure , less land occupation, convenient installation.
Main Feature
1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure double crank to control the die opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Application
Paintball Machine
This machine is producing Paintball for CS game. it can produce 20000 unit per hour. the size of paintball can be 0.36" or as you need.
Detailed Images

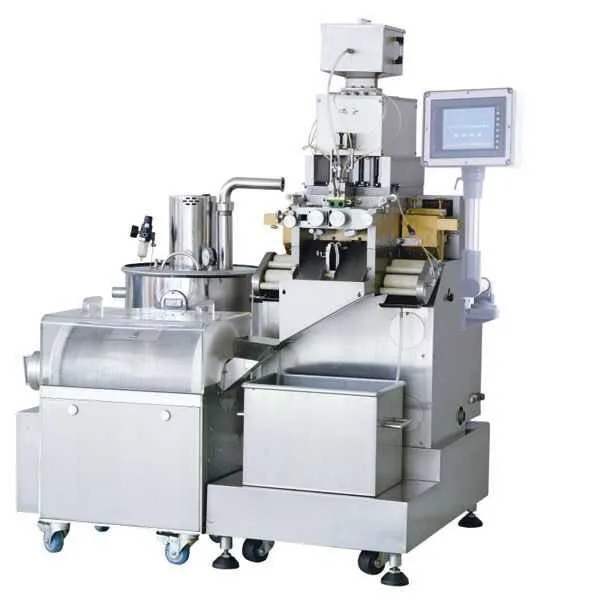

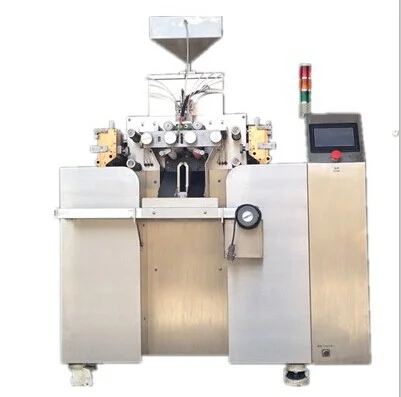

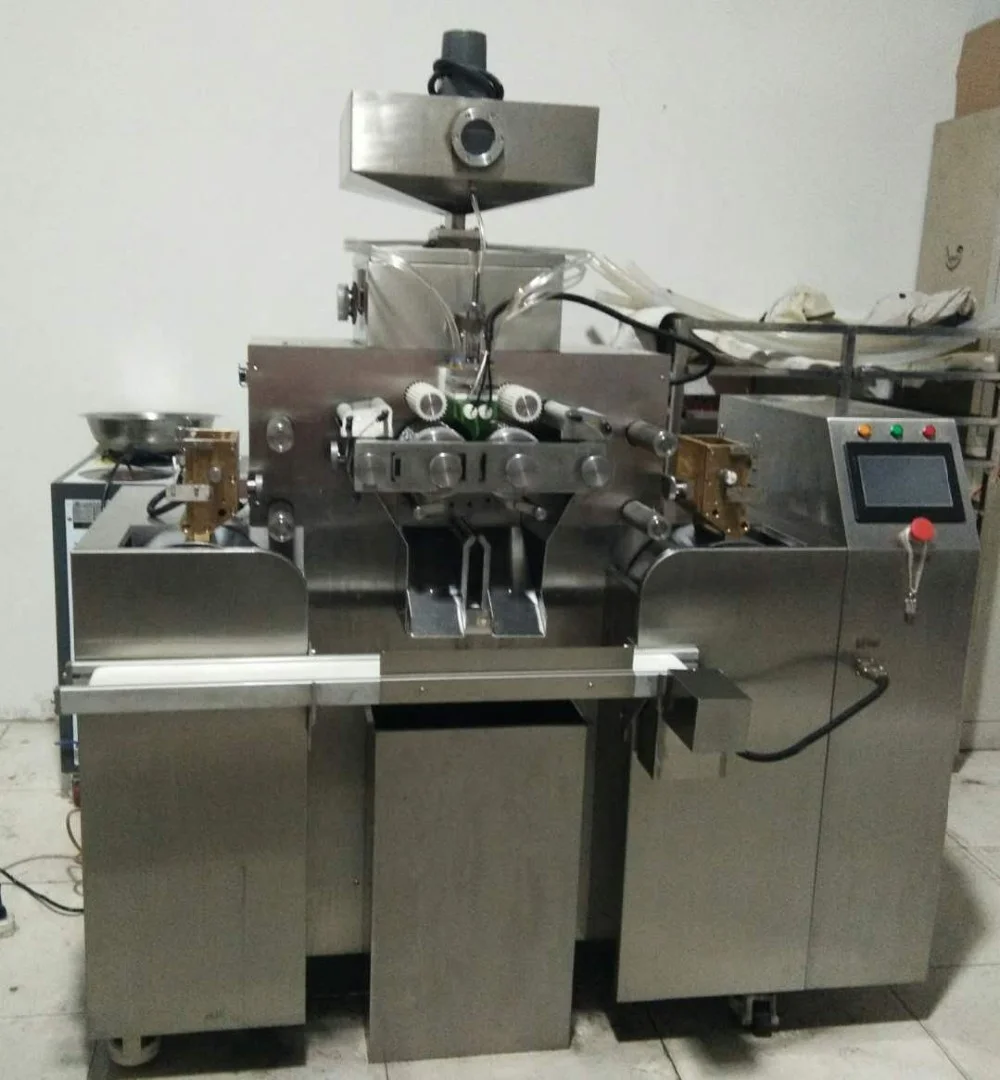

Main Part of Machine
Die roll size 64mm X 125mm Speed 0-44 RPM Piston 4 Ea Loading Tolerance: +/- 0.5% Feeding of each Pistion: 0-2 Ml Electric Spec 220 V / 380 V Required power 3 Kw Dimension 1380mm X 915mm X 1582mm Material SUS 304 for contact area Control PLC + Touch Screen

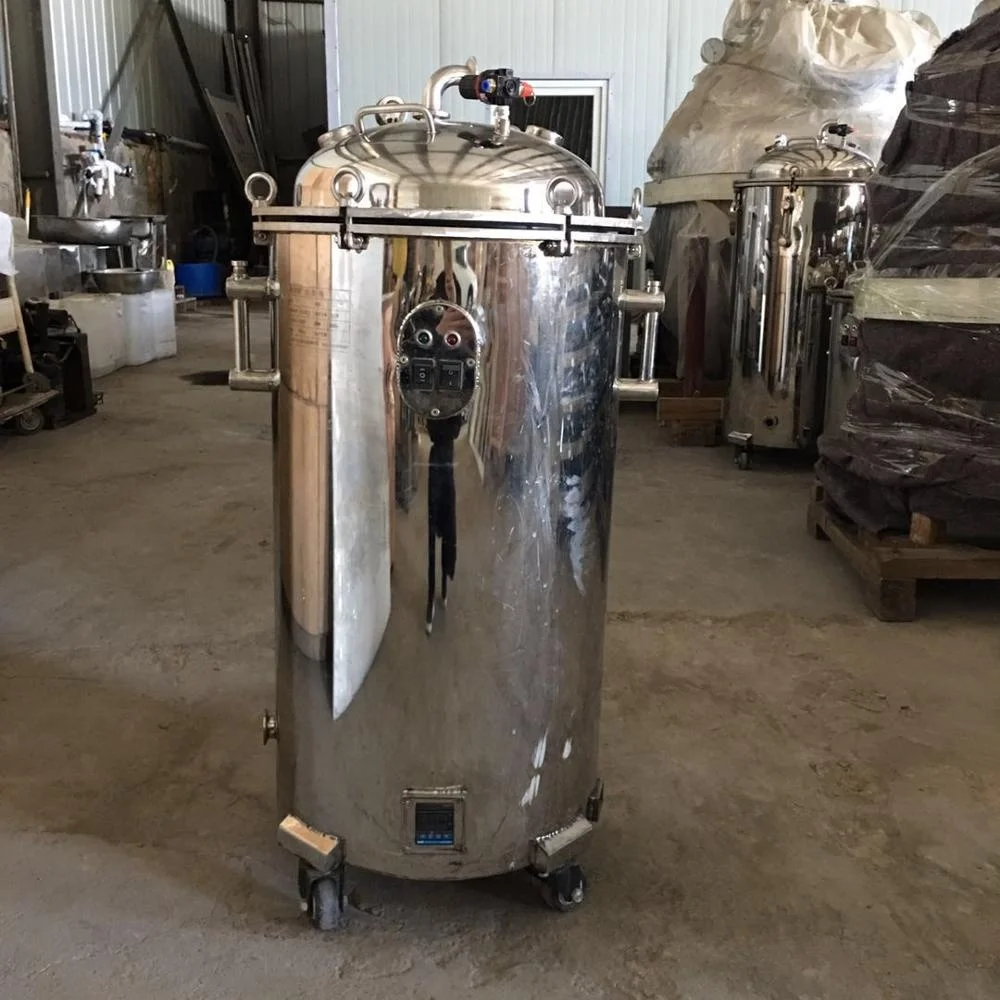

Gelatin Melting Tank
Material SUS 304
Dimension Φ350mm X 1000mm Weight 90 Kg Power 1.5 Kw Voltage 220V / 380 V / 440 V Max rate 40 rpm fixed Max temp 50--100℃ Max capa 60 liter *1 tan
Burdening Tin ( PLG-40)
Material SUS 304 Dimension Φ500mm X 600mm Weight 80 Kg Power consumption 2 Kw Voltage 220 V / 380V / 440 V Volume 40 L

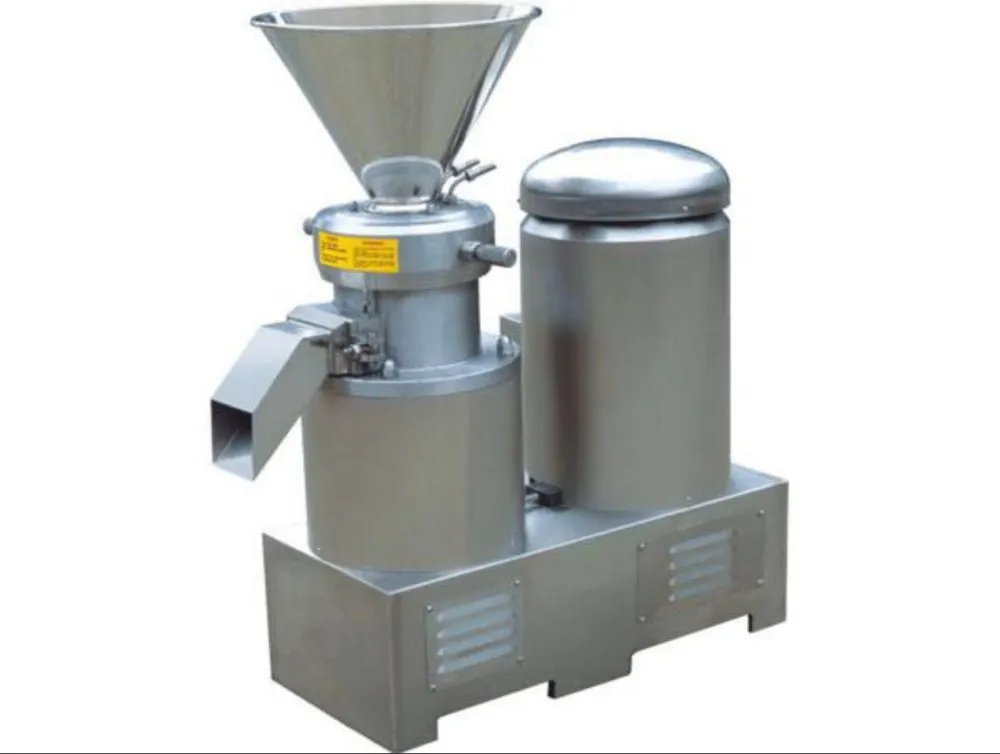

Colloid Mill
Material SUS 304 Production capablity 40 Kg/ h Processing fineness 2--70 um Unloaded speed 3000+/- 10 R/Min Dimension 320mm X 320mm X 760mm Weight 30 Kg

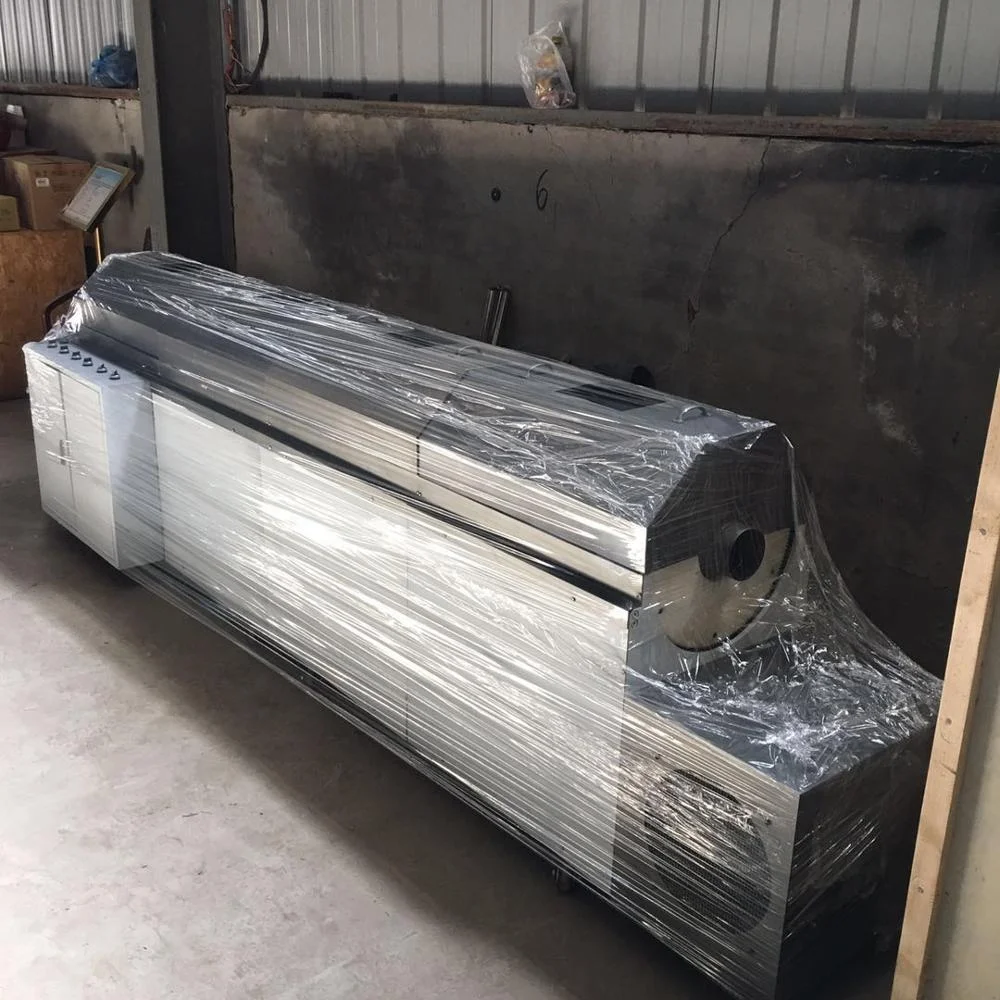

Dryer Tumble
Basket Size Φ320mm x 450mm Control Central control system Electric spes 200V /50HZ/50HZ 1 PH Required power 0.8 Kw Main Motor 0.2Kw X 2 motors Pan Motor 0.2 Kw X 2 Fans Dimension 1550mm X 400mm X 760mm Weight 100 Kg Material SUS 304 for control area
Dry Tray and Tralier
Material SUS 304 Dimension 750mm X 480mm X 55mm Capacity 2500 capslue
Tralier
Dimension 775mm X 510mm X 115mm Four casters Equipped on the bottom Weight 80 Kg
FAQ
About our Factory
Q: Are you a factory or a trading company A: We are a factory manufacturer for pharmaceutical equipment and soft capsule making machine we provide prefect OEM and after service.
Q: Where is you factory ? How can i visit your factory A: Our factory is located in Beijing City, near the airport, we are warmly welcome you visit our factory, we can pick you up as Beijing International Airport .
Q: How can I know the machine is designed for my product? A; If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: what if there are some complicate problems about machines after buying them? A: contact with us by email or telephone, even we can go to visit you with our technician if it necessary.
Q: How can I trust you for the first time business? A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.
Q: How about your after sales service A: First, before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning
Packing & Delivery
Our Service
Before Transportation
Before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning
After Transportation
We will take video and clearer picture for you. If chance, we can take video online and show you.Online video service ,24 hour technology support by mail or online.if you need we can sent our engineer to your palace.
