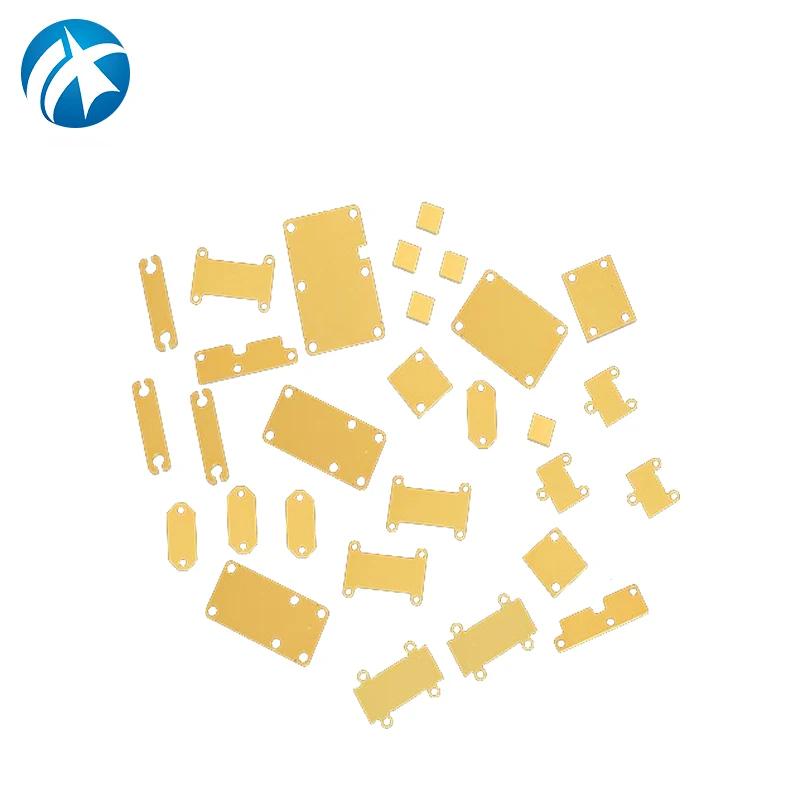

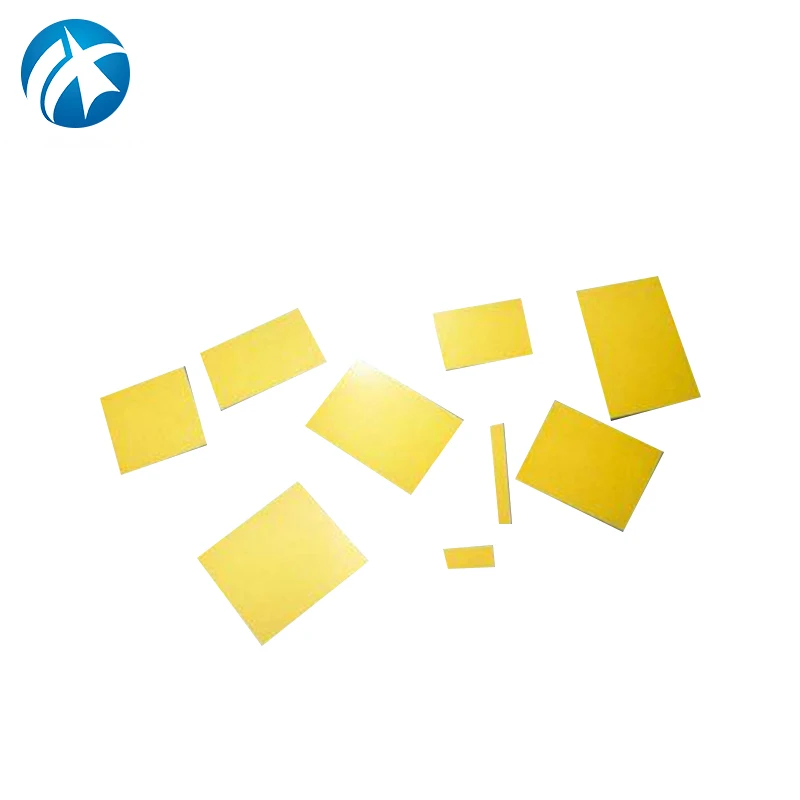

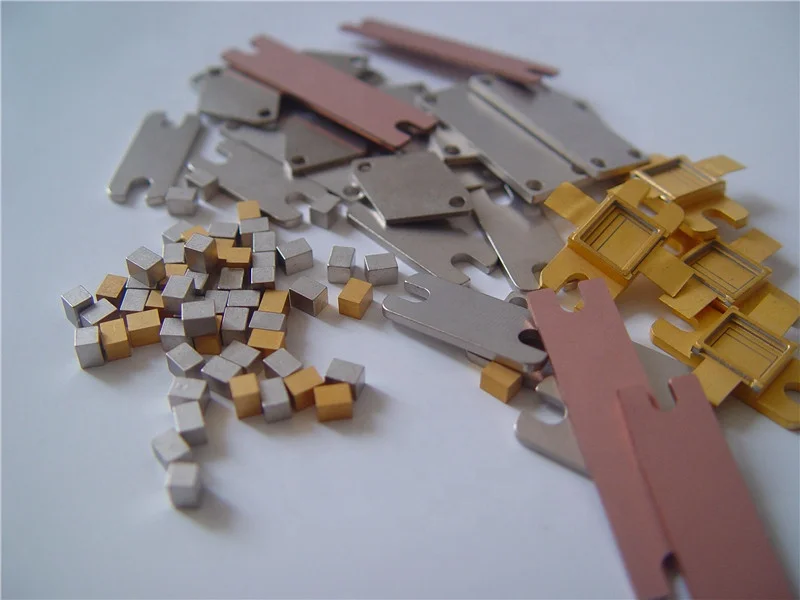

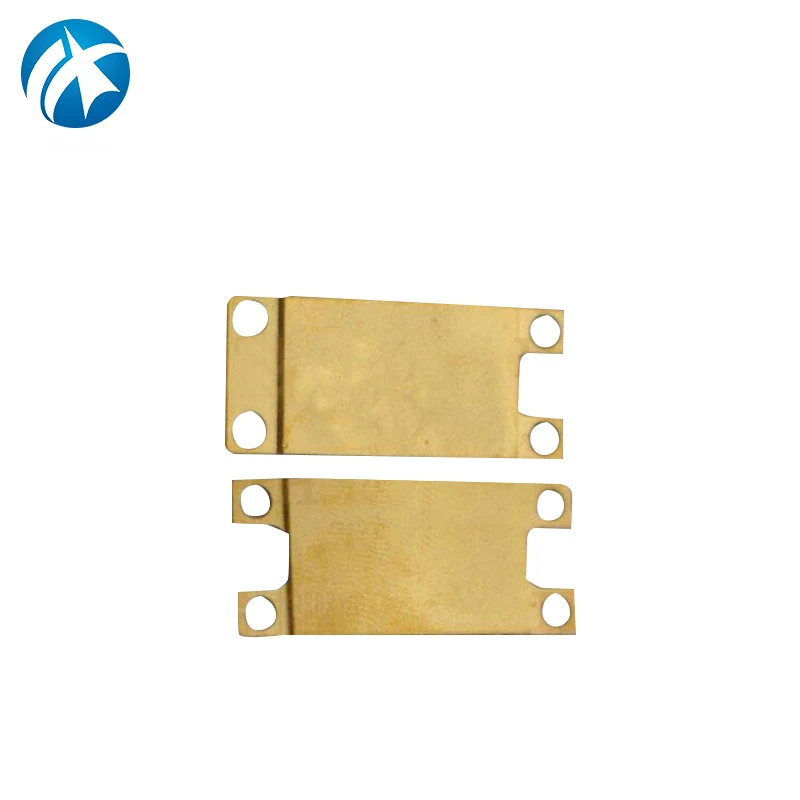

Eco friendly Manufacturer direct supply WCu CuW MoCu CuMo Cu / Mo / Cu CMC CPC base flanges CUMOCU Materials
- Category: >>>
- Supplier: Yuxiang Advanced Technology & Materials Co. Ltd.
Share on (62149579892):
Product Overview
Description
Product Description

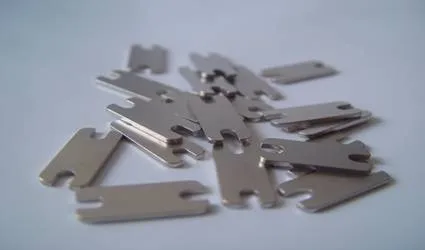

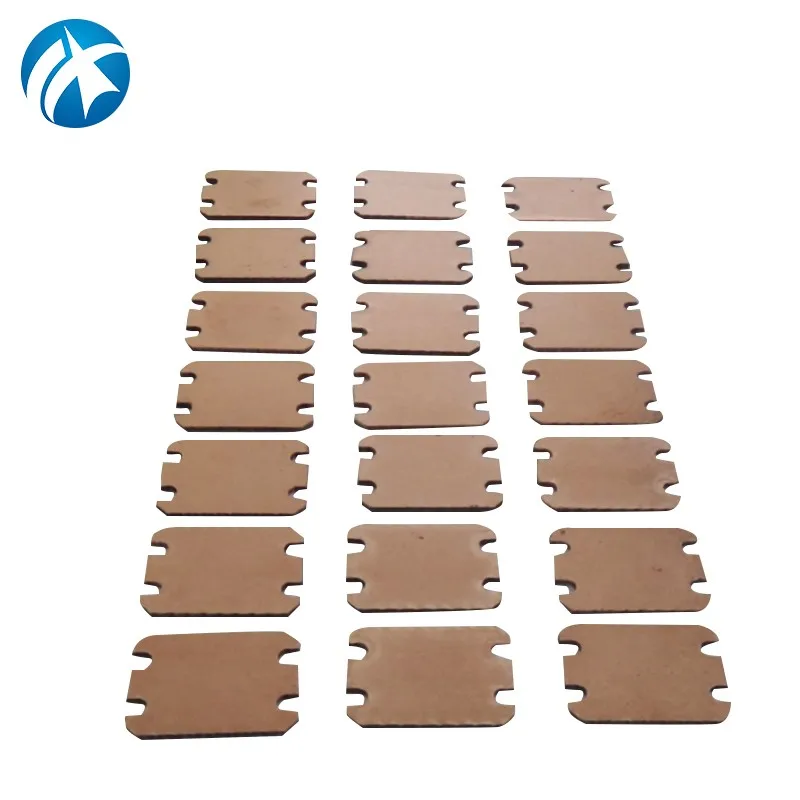

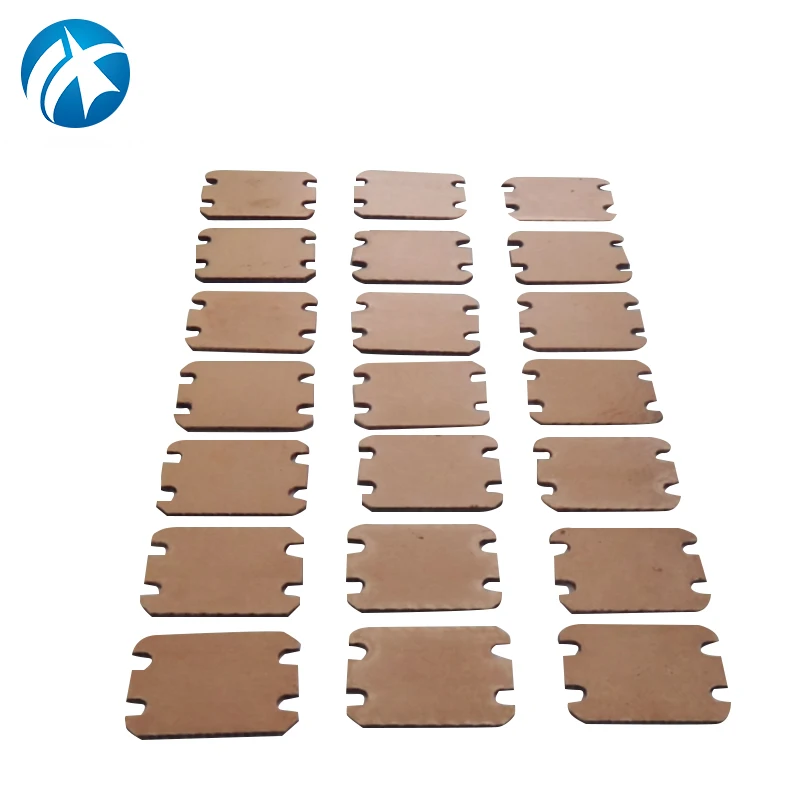

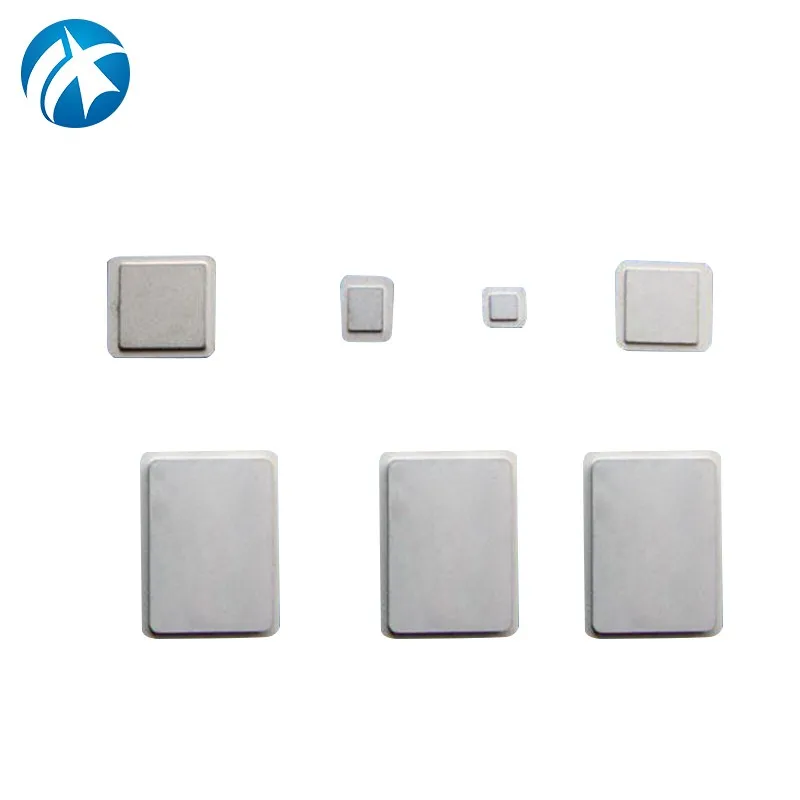

Cu/Mo/Cu (CMC) is a sandwich composite including a molybdenum core layer and two copper clad layers. It has tailorable CTE, high thermal conductivity and high strength. All types of Cu/Mo/Cu sheets can be stamped into components.
Features
Large sized sheets available (length up to 400mm, width up to 200mm)
Can be stamped into components
Very strong interface bonding which can repeatedly resist 850℃ heat shock
Tailorable CTE matching that of semiconductor and ceramic materials
High thermal conductivity
No magnetism
Production information
Cu/Mo/Cu | Density g/cm3 | CTE ppm/K | TC, W/m·K | |
In-plane | Thru-thickness | |||
13:74:13 | 9.88 | 5.6 | 200 | 170 |
1: 4:1 | 9.75 | 6.0 | 220 | 180 |
1:3:1 | 9.66 | 6.8 | 244 | 190 |
1:2:1 | 9.54 | 7.8 | 260 | 210 |
1:1:1 | 9.32 | 8.8 | 305 | 250 |
Packaging & Shipping
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory of tungsten and molybdenum items
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
