AISI 4340/4140/42CrMo4/SCM440/alloy steel forging part
- Category: >>>
- Supplier: Jiangyin Golden Machinery Equipment Co. Ltd.
Share on (62149836097):
Product Overview
Description
Our Advantage:
- We have our own factory and 12 cooperative factories, so supply the best quality mechanical products with the most competitive prices.
- All our factories are ISO 9001 certified. Some of them were awarded by ISO/TS16949, PED, etc. We also could provide RT, UT, MPI, WPS&PQR, etc. as per request.
- We will not only manufacture and source products for our customers, but also provide technical support, production all-time supervision and quality track service. Special request products available upon request
Product Description
Japanese brand: SCM440
German brand: 42CrMo4
US brand: 4140
British BS 708M40/708A42/709M40
France NF 40CD4/42CD4
China GB 42crmo
| Chemical composition | Mechanical properties |
(C)0.38~0.45 (Si)0.17~0.37 (Mn)0.50~0.80 (P)≤0.035 (S)≤0.035 (Cr)0.9~1.20 (Ni)≤0.30 (Mo)0.15~0.25 (Cu)≤0.30 | σb (MPa):≥1080(110 σs (MPa):≥930(95) δ5 (%):≥12 ψ (%):≥45 Akv (J):≥63 αkv (J/cm2):≥78(8) Hardness :≤217HB |
4140 steel, this steel has good processability, small processing deformation, quite good fatigue resistance, belongs to medium and other hardenability steel, 4140 good strength and good comprehensive mechanical properties after heat treatment, good manufacturability, high yield. The maximum operating temperature is 427 degrees Celsius. 4140 strength, high hardenability, good toughness, small deformation during quenching, high creep strength and lasting strength at high temperature. It is used to manufacture forgings with higher strength and larger quenching and tempering section than 35crmo steel, such as gear wheel for locomotive traction, supercharger transmission gear, a rear axle, connecting rod and spring clip with great load, it can also be used for drilling pipe joints and fishing tools in oil deep wells below 2000m, and can also be used for bending machine dies, etc.

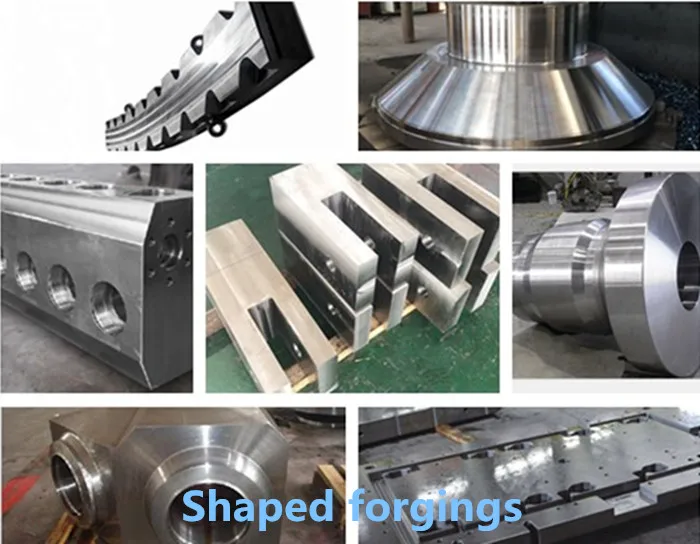

Company product
The company provides OEM/ODM services
The company mainly produces forgings in the following fields: petroleum equipment, hydraulic machinery, machine tool equipment, engineering machinery, mining machinery, shaft, flange, valve body, etc

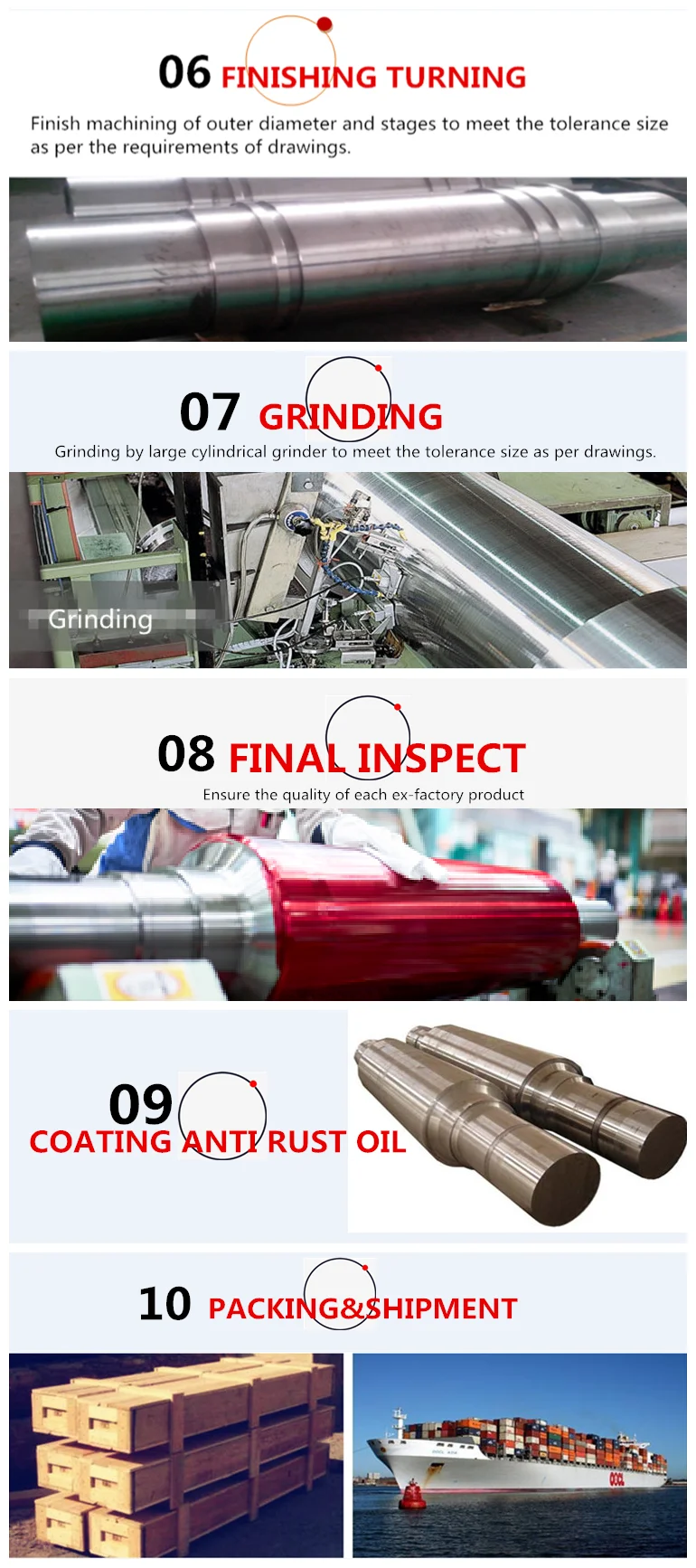

Production Process
Exhibition
Market and partners
Jiangyin Golden Machinery Equipment Co.,Ltd.
The main equipment is: 12000T free forging hydraulic press, one set of 130T full hydraulic linkage forging operation machine, one set of 4000T free forging hydraulic machine, and one set of 35T full hydraulic linkage forging operation machine. The above equipment can be used for upsetting and forging 100T steel ingots (short shafts, squares, cakes, etc.), and long-forging 150T steel ingots (long strips, slender shafts, etc.). 1 set of 160T/32t forging special driving, 2 sets of 100T/50t transportation, 1 set of 100T/20t transportation, 2 sets of 80T/20t transportation, 1 set of 50T/10t forging, 32T/10t special-purpose driving 1 set. The regenerative computer controls 8 large-scale trolley-type natural gas heating furnaces, 8 regenerative forging heat treatment furnaces, 3 chamber-type tempering heat treatment furnaces, and 1 Φ3×12M well-type quenching furnace. Ensure that the processing, circulation and inspection of all types of forgings are strictly implemented in accordance with relevant standards and regulations.
Contact us
Email:infoa)goldenforging.com
For more information about our products, please visit our website:https://goldenforging.en.alibaba.com
