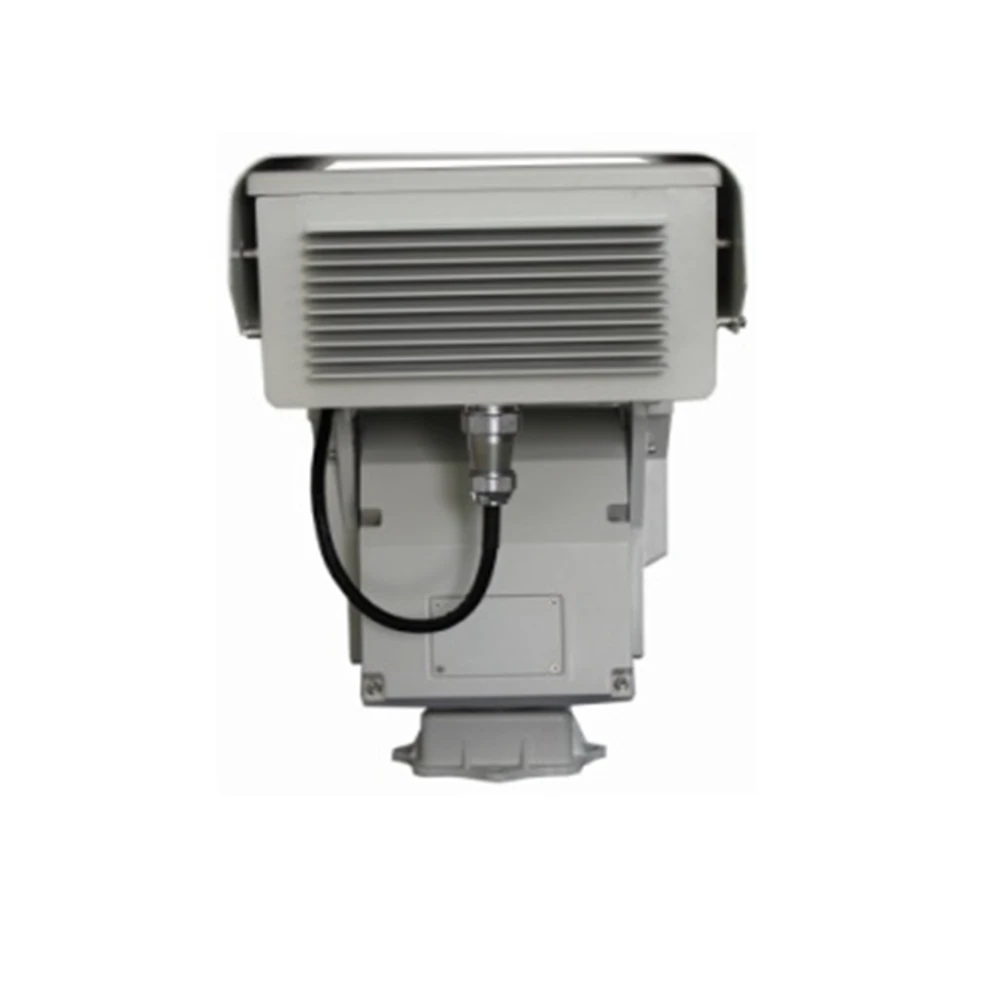

2km Night Vision High Sensitive Laser IP Camera for City Safe
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (62149997385):
Product Overview
Description

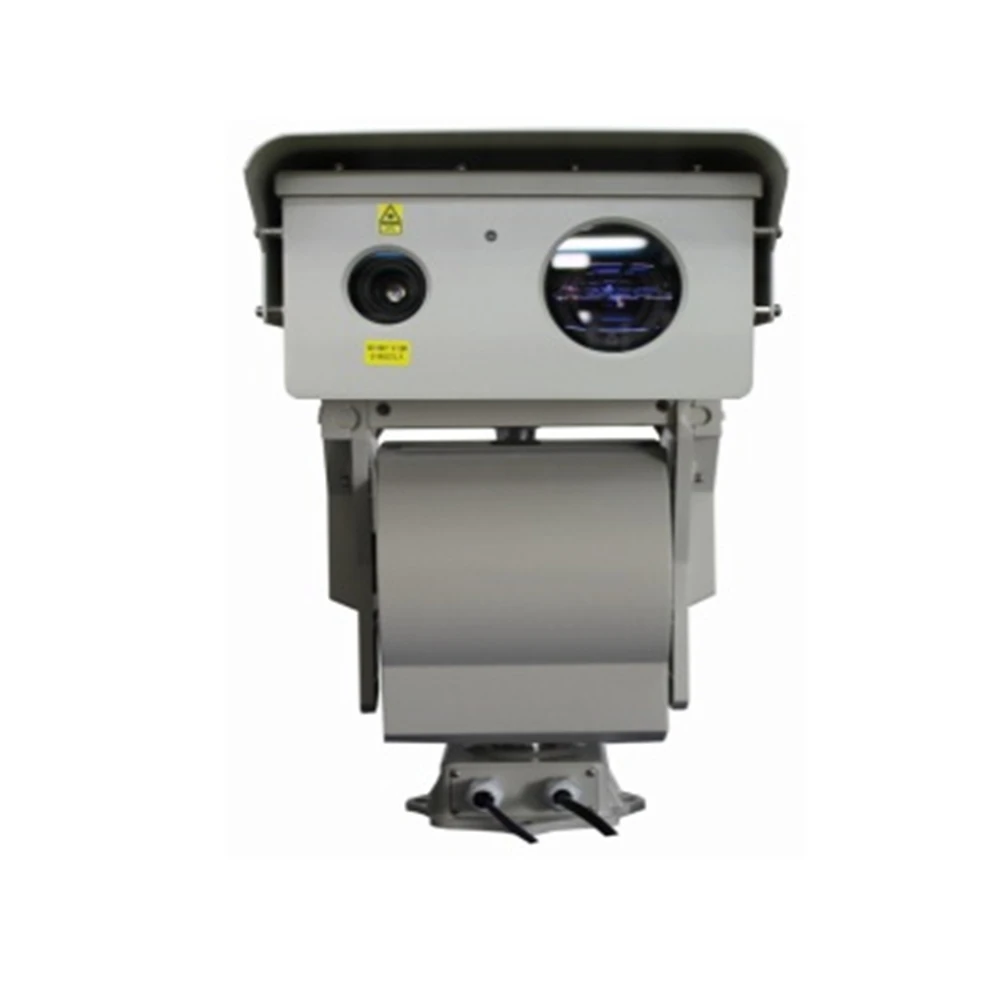

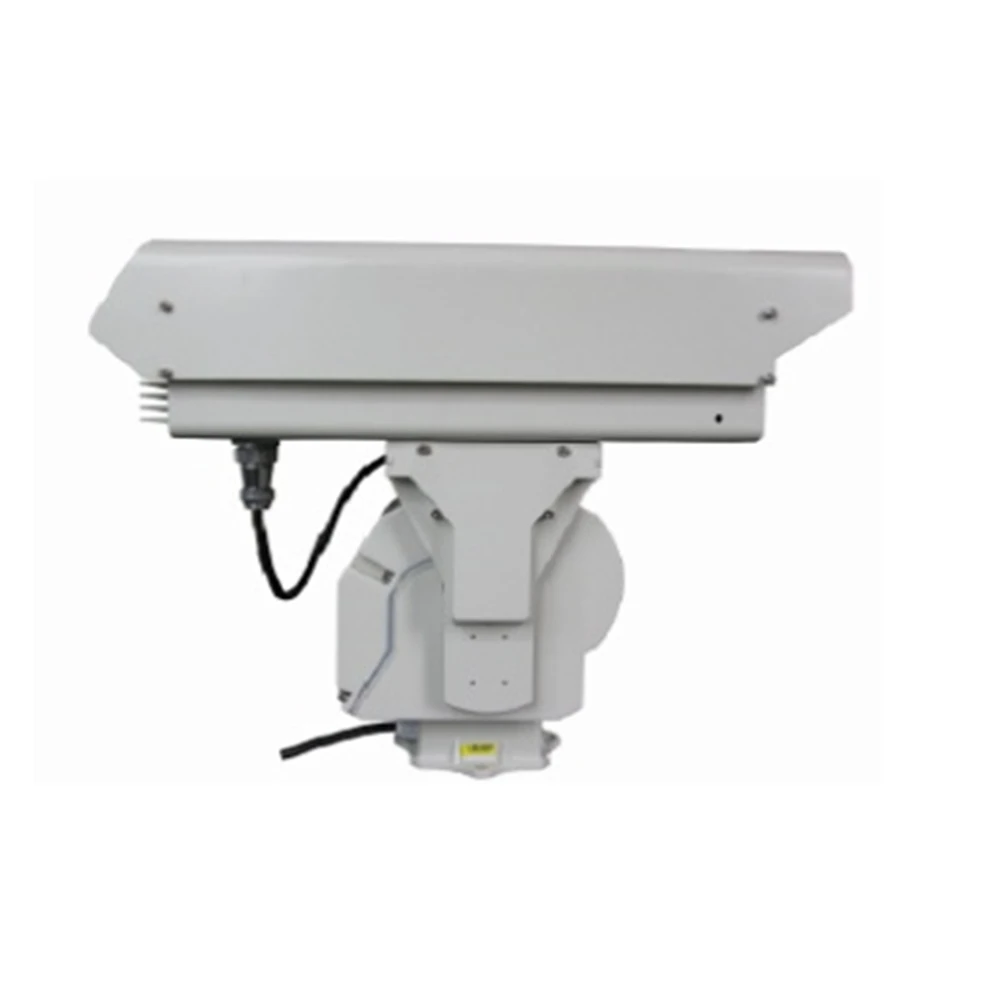

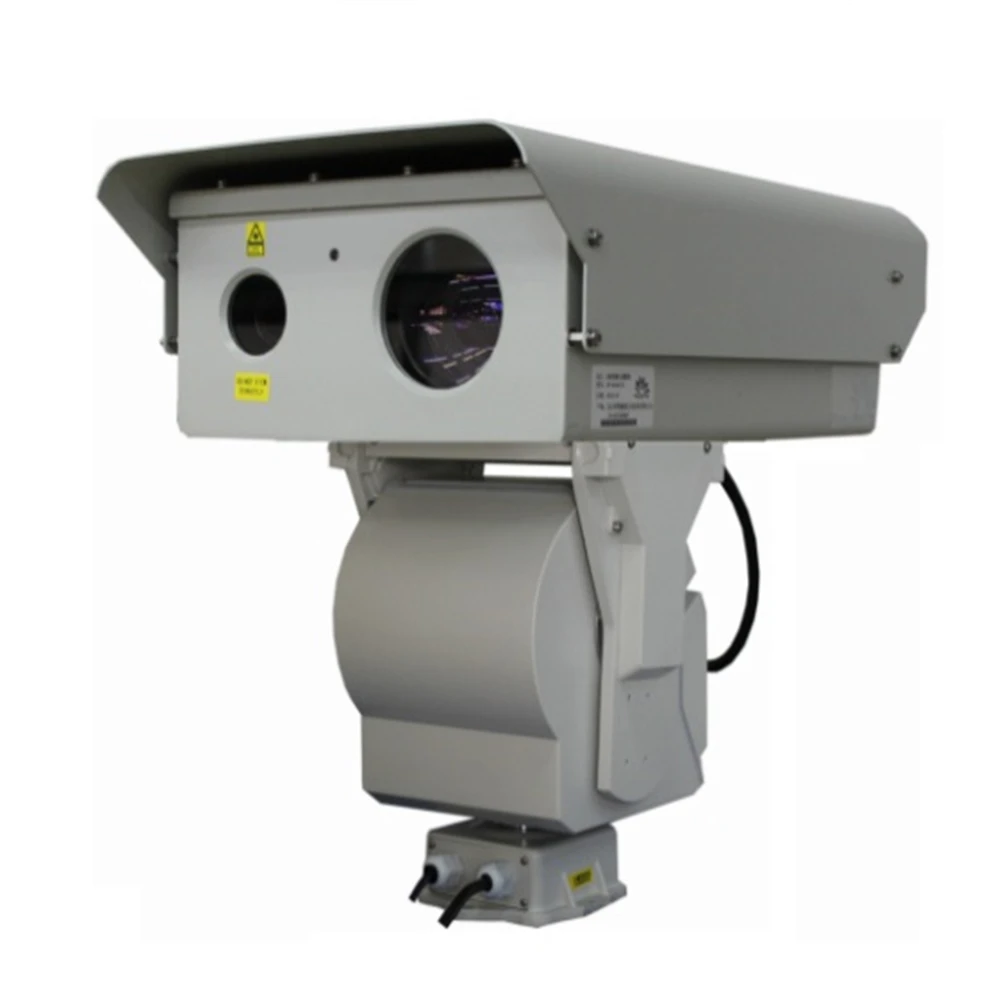

RC20 series long-range HD infrared laser imaging camera
RC20 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night. Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Feature
1. DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
2. GHT super homogenizing and power consumption control of NIR laser ensure a better effect.
3. Independent laser photo cell.
4. 360° continuously rotation PT, rotation stably.
5. One integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.
Application
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.
Technical Specification
Model | RC2055 |
Detection | Day: 3km; |
Night: 1.5km | |
Consumption | 12W,808nm ,military NIR |
Laser angle | 0.7°~20° |
Angle and distance matching | 1.DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming |
2.GHT-II super homogenizing HD illumination technology | |
3.0.01°SLM optical axis aiming and locking | |
Camera
| 1/1.8''CMOS |
0.0002lux high sensitive color to B/W CCD | |
2MP, 1920*1080,Automatic ICR switch | |
H.264/MPEG4/MIPEG video format, support dual stream | |
Video Bitrate 32Kbps~16Mbps,60Hz30 frame/S | |
Support SD storage | |
Support fog penetration, avoid strong light,128dB WDR, 3D denoise, anti-shake DSP, auto back focus adjustment | |
Lens | 15~528mm |
MOD:3M | |
105mm super caliber | |
motorized /manual zoom, DC 8~12V, auto IRIS,DC5V | |
Penetrate fog | AFR, optional for fog filter |
LPR (optional) | Avoid strong light automatically, license plate recognition |
Housing | 1. Material: integral aluminum alloy housing,sealed and waterproof |
2.Structure: double window design (wiper for option) | |
3.Surface spraying :PTA three-resistance coating, anti corrosion(optional) | |
4.Weather proof: IP66, waterproof, dustproof | |
5.Connector:Aviation Water-Proof Connector | |
PT
| 50kg |
Pan: 360°continuously,Tilt: +45°~-45° | |
Pan: 0.01~30°/S,Tilt: 0.01~15°/S | |
Preset:80 (245 for option) with patrol and scan function | |
Interface | 1*RJ45,1*AC/DC 24V |
Reserve RC422/485 and analog video output, connect with radar, GIS or others | |
Military aviation Water-Proof Connector | |
Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP and so on Support Onvif 2.0 Pelco-P,Pelco-D, baud rate 2400,4800,9600,19200 (optional) |
Power supply | AC/DC 24V±10%,50Hz,150W, AC220V->AC24V adapter (DC12V for option) |
1.Working temperature: -25℃~+55℃ (-40℃ optional) 2.Storage temperature:-35℃~+65℃ 3.Humidity:<90% 4.Anti-Shake 5.Anti-shock 6.IP66 ingress protection | |
Weight | ≤40kg |
* The detection distance is related to the object and environment etc. Please contact with us for further information.

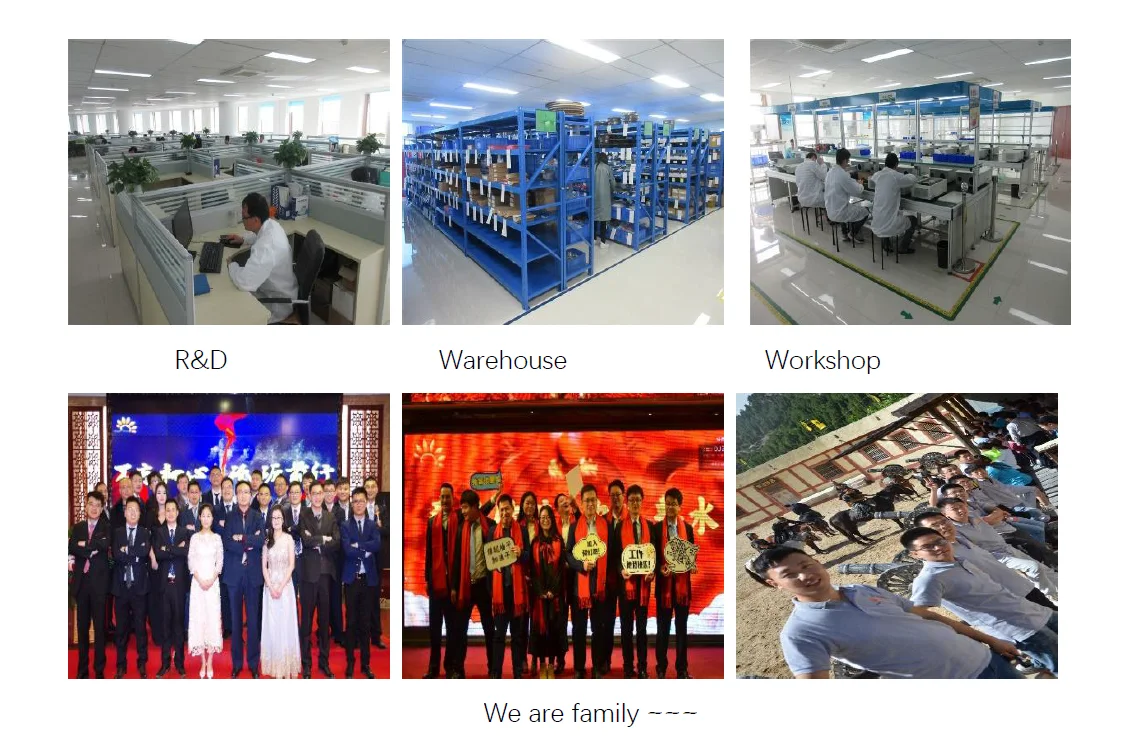

Factory & Office
Certification
Exhibition
Paking & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, factory address is Jinan city, Shandong province, hope you can have a visit when you in China.
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock, or it is 15~20 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample , but need some deposit before shipping.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment
