Hanging chain type shot blasting machine in foundry industry

Product Overview

Description

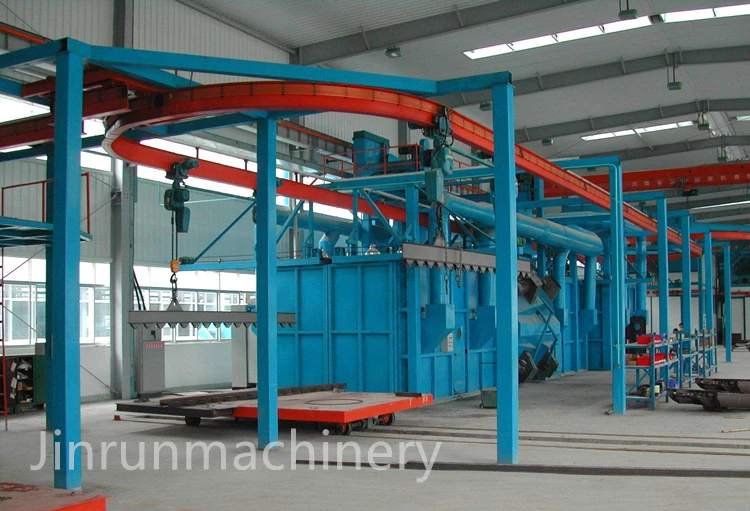

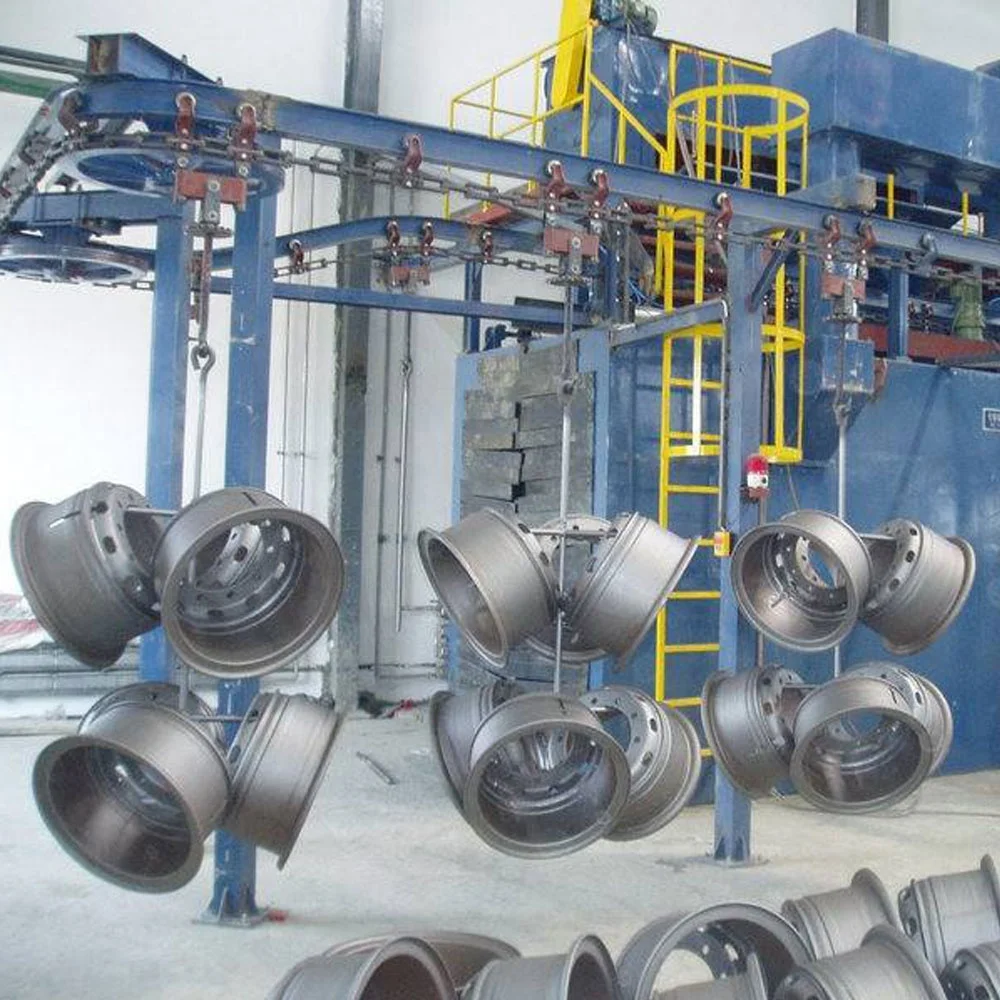

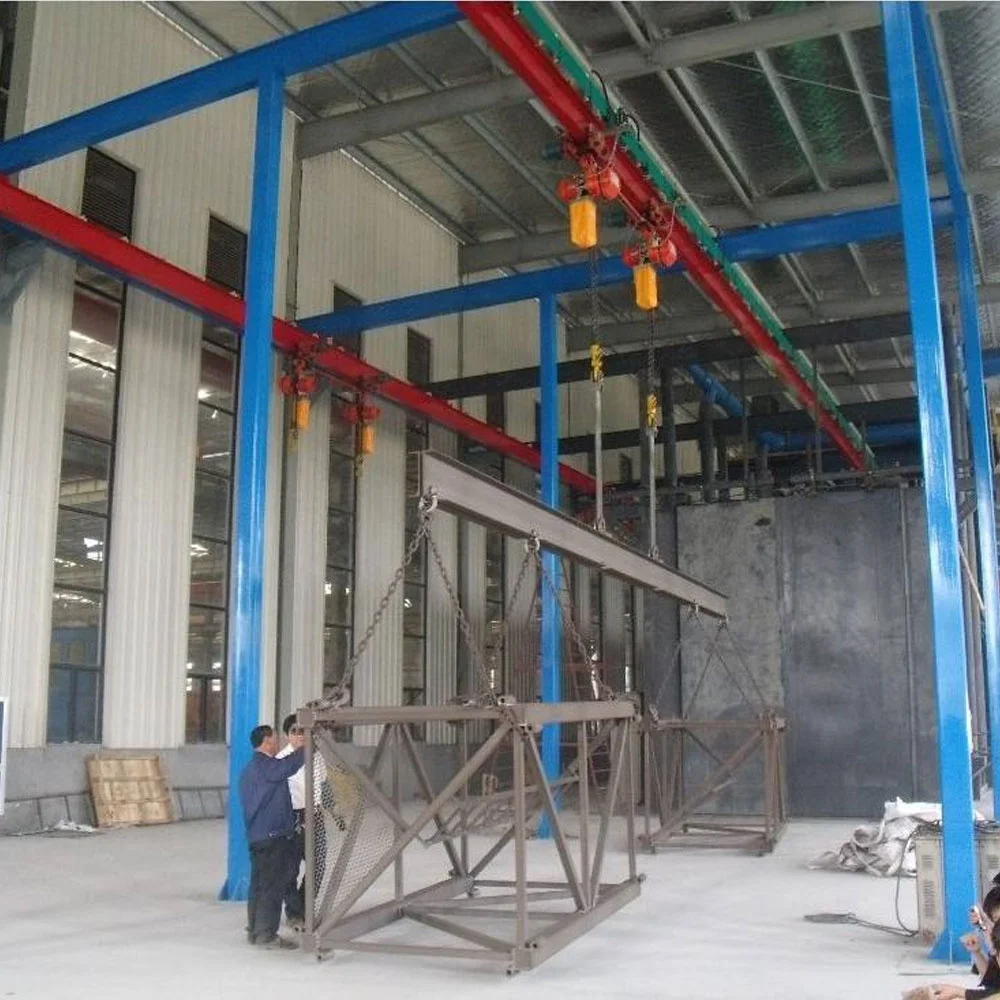

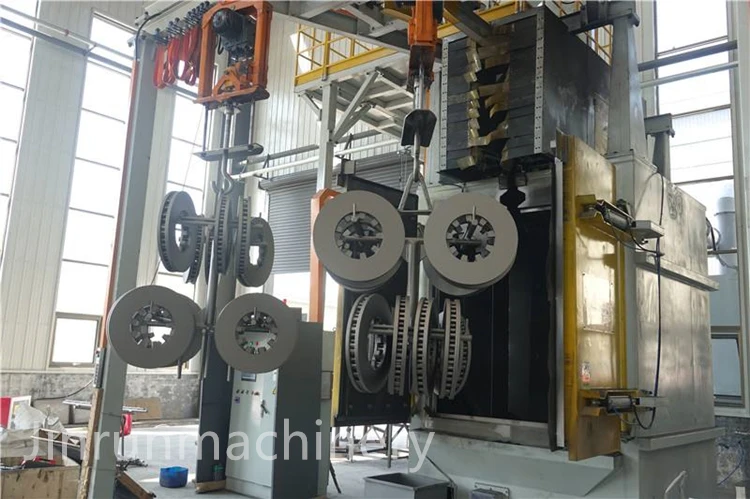

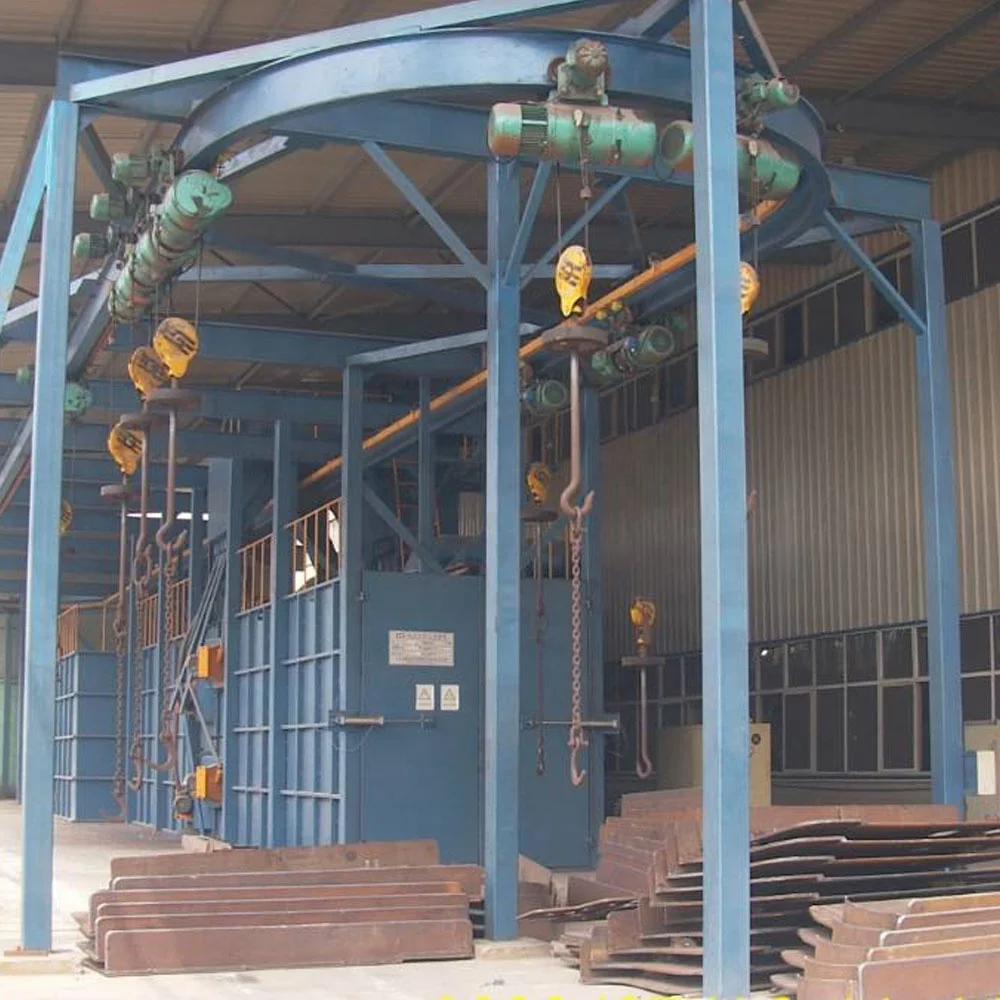

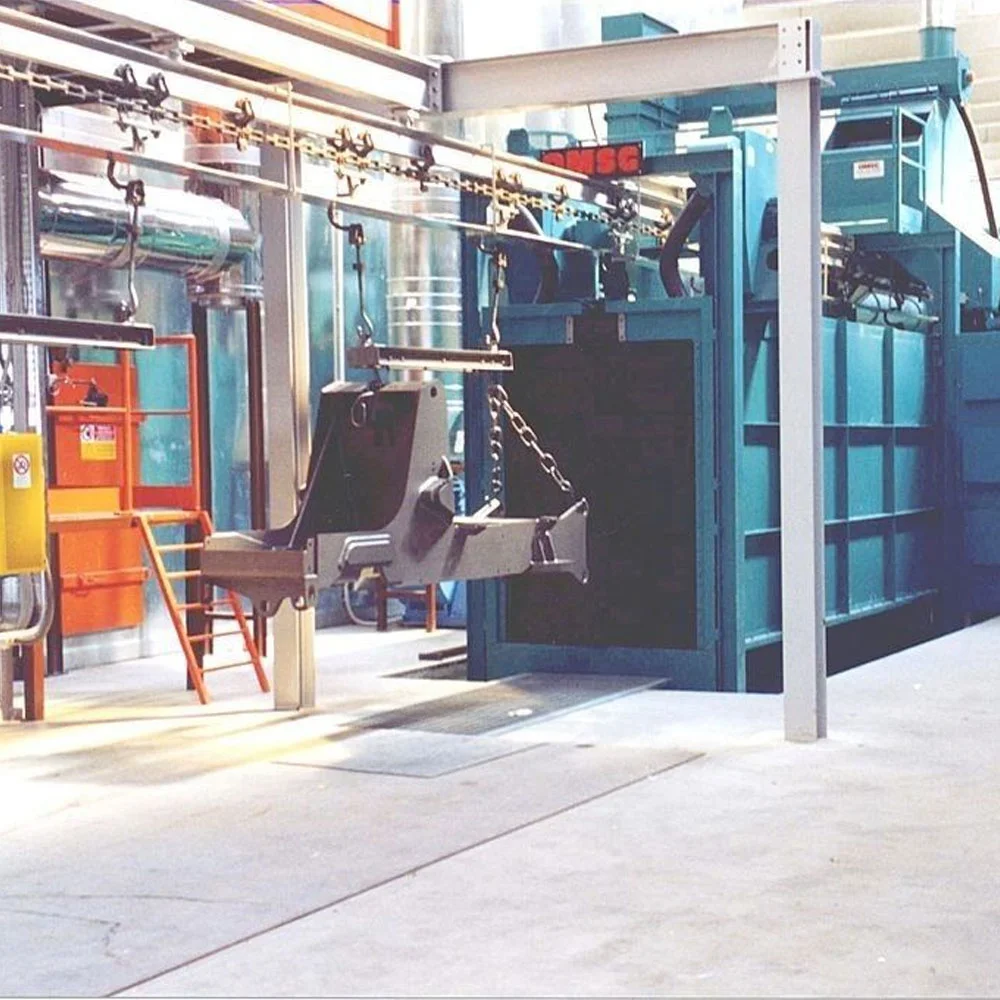

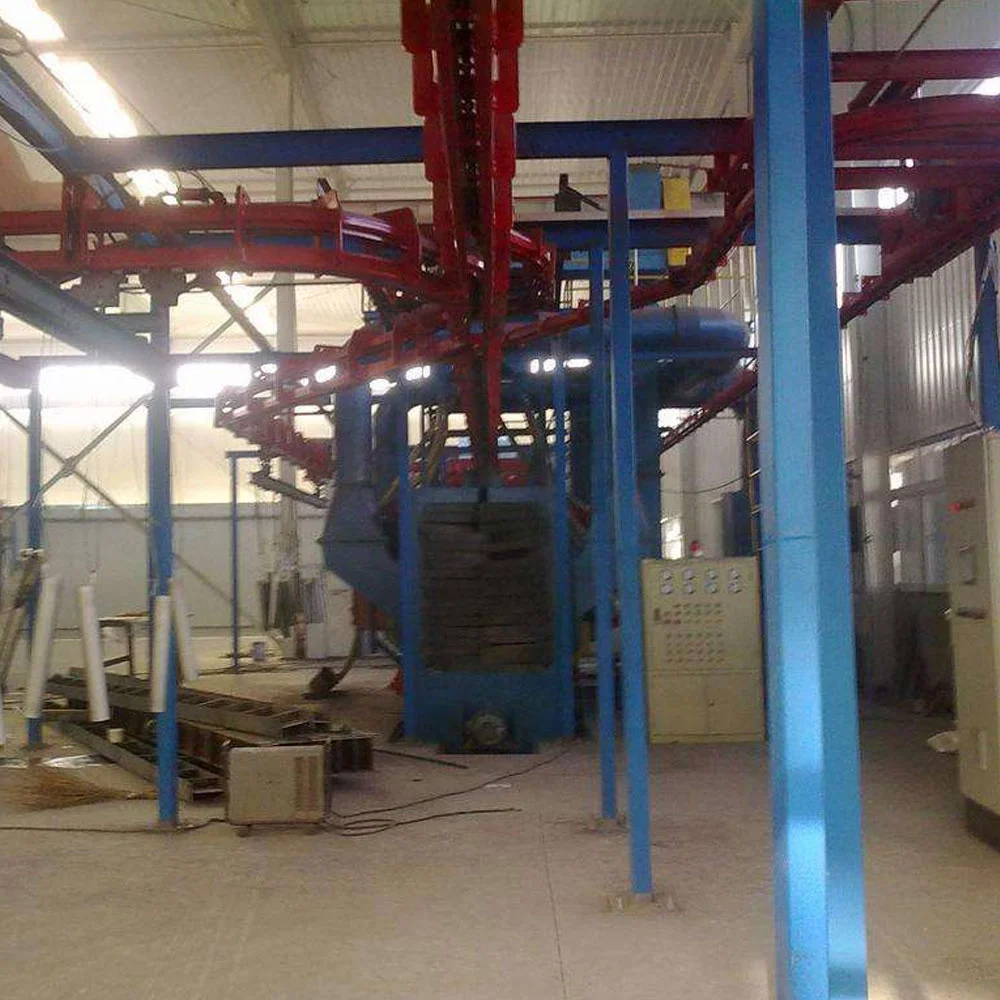

Q48 Q58 series hanging chain type shot blast machinery has three types: continuous mix, step-by step and accumulating roller conveyor,Q38 Q48 cleaning machines are suitable for processing large bathes middle-and small-size work pieces.The workpieces, along with the pendent chain, move continuously or step by step,or by accumulating roller conveyor transportation.They can stop at given position and shot-blasting room. It is very easy and exact to finish the static loading/unloading and shot blasting works,the single hook can load capacity of 50-2000kg, accumulating roller chains have unique advantages: high efficiency and reliable operation.



Main Features
This series machine uses the method of multistage fixed-point rotation blasting and cleaning, removing the sand and oxide skin on the casting surface ,to reappear metal color. It is mainly used in car accessories and bolster, side frame, coupling, and frame of trail hook vehicle parts, at the same time also can clean the casting and small batch workpiece with similar size.



 Parameter:

Category	Model	Single Workpieces Max. Weight (kg)	Workpiece Size (mm)	Blasting Capacity (kg/min)	Productivity (hooks/h)	Chainn Speed (m/min)	Chains Distance (mm)	Ventilation Capacity (m³/h)	Power (Excluding Dedusting) (Kw)
Stepping Hanging Chain	Q483	300	Φ1000*1400	2*250	30-50	2.44	2560	6000	38.75
	Q485	500	Φ1200*1700	3*250	30-50	7.34	2560	10000	58.43
	Q4810	800	Φ700*2400	6*360	30-50	2.44	2560	25000	85
Continuous Hanging Chain	Q583	300	Φ1000*1500	4*250	30-60	frequency conversion	1000	18000	127.25
	Q5810	1000	Φ750*2400	6*360	50	frequency conversion	2560	25000	160





Qingdao JinRun Machinery Co., Ltd. is located in Qingdao West Coast Economic New Zone (formerly Jiaonan City). The company has convenient transportation and strong production strength. It is a high-tech industrialized entity integrating casting machinery, surface cleaning, sand treatment, coating production line and automation equipment research, development, production, operation, export and service. The company has strong research and development strength, advanced production technology, perfect testing methods, scientific management system, as a professional manufacturer of foundry machinery industry, ranked high-end level in the technical, quality and automation. Welcome customers from all over the world to visit and discuss cooperation.



1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. ODM&OEM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 10 years, competitive with good quantity.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products be finished in high quality and stable feature.



a.       How many days do you need to produce this machine?

It depends on your specific requirement. Some general equipment, we usually have stock. For other customized machines, it needs about 15 to 50 days from engineers designing to production completion.



b.       What does your factory do regarding quality control?

 We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before delivery. We try our best to ensure each machine is in good operation to our customers.



c.       What’s your machine quality guarantee?

 Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.



d.       Could you give installation and commissioning overseas? How long will it take?

 Yes, we supply overseas service, but customers need to pay for the engineers flight tickets, and hotel, food., etc.

Small machines usually takes 5 days, while large machines usually takes about 15 to 20 days.



e.       How can I trust you to deliver the right machine as I ordered?

 We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
