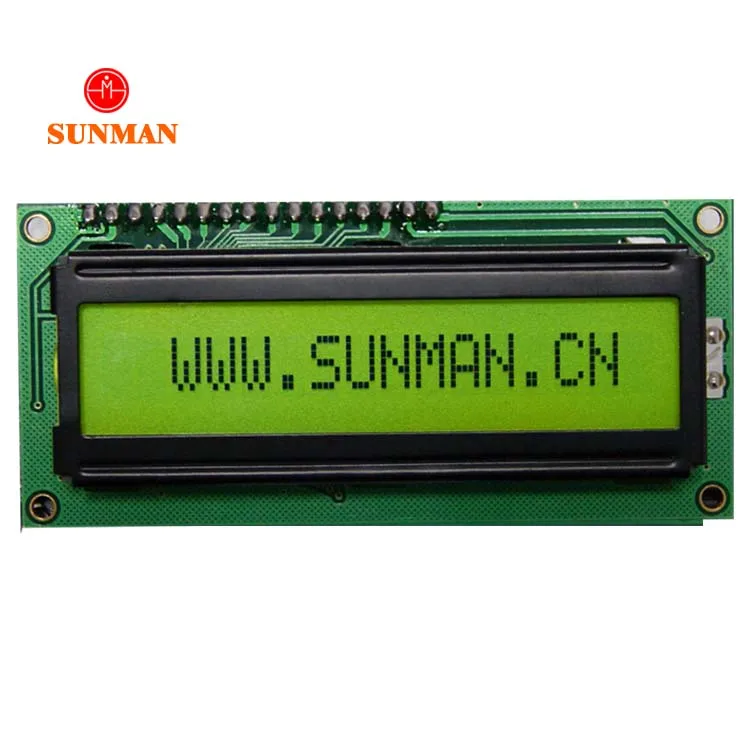

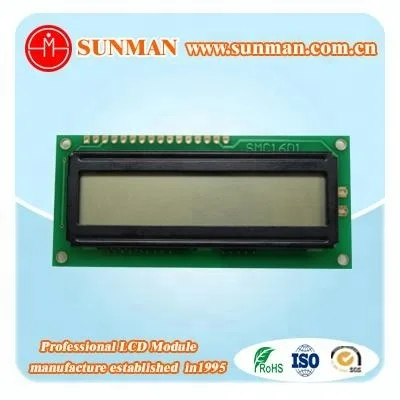

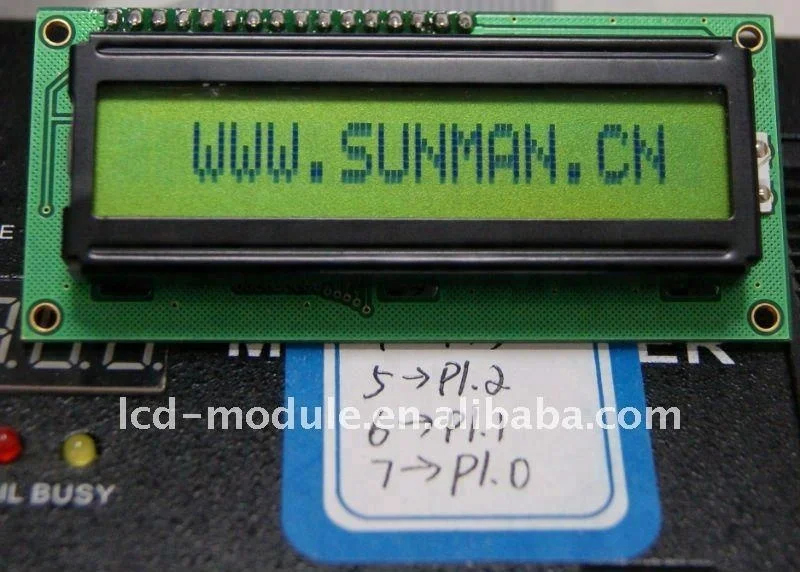

16x1 1x16 1601 lcd character display screen module with module size 80*36mm
- Category: Character Display >>>
- Supplier: Changsha Sunman Electronics Co. Ltd.
Share on (62150176883):
Product Overview
Description
16x1 1x16 1601 lcd character display screen module with module size 80*36mm
Product Description
Product Description
Applicaion | 3D printer,FAX,epuipment display and so on |
| Backlihgtlight | yellow green |
| Interface | Parallel |
| Controller | KS0066 or compatible |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |
Mechanical Demesion
Pin Assignment
| Pin NO. | Pin Name | Pin Description |
| 1 | VSS | Negative power supply |
| 2 | VDD | Positive power supply |
| 3 | VL | Lcd driving voltage input |
| 4 | RS | Command/data register selection |
| 5 | R/W | Read/write signal |
| 6 | E | Chip enable |
| 7-14 | D0-D7 | Data bus |
| 15 | LED- | Backlight negative power supply |
| 16 | LED+ | Backlight positive power supply |
