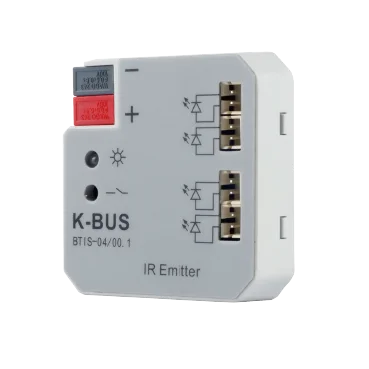

KNX/EIB GVS K bus Factory Smart Building Automatic System AC TV Control KNX IR Emitter Learner KNX IR Transmitter Home Smart

Power supply     Bus voltage           21~30V DC, via the EIB bus
                          Standby current     <8mA
                          Dynamic current    <20mA
                          Power consumption <240mW
                          Output Channel Number     4 Channels
                          Max. transmitting distance  2m
                          IR wavelength                     940nm
                          IR emission&receiving angle        <45°

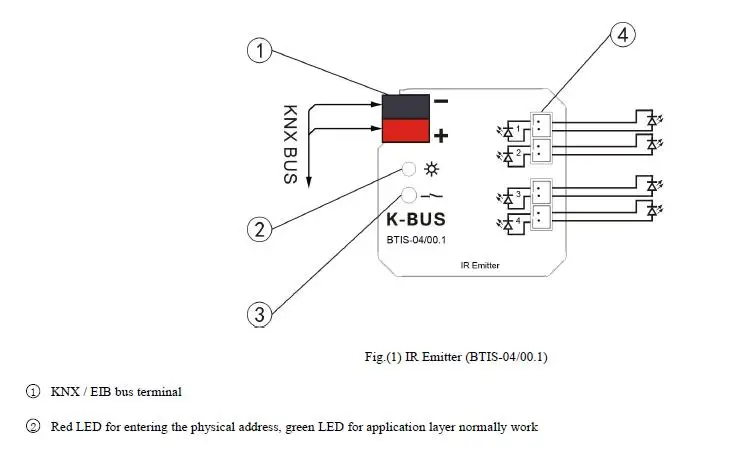

Operating and display  Red LED and button For assignment of the physical address
                                     Green LED flashing Indicate the device running normally (OK)
Connections                 EIB/KNX Bus connecting terminal (black/red)

                                     Infrared emitter cable <10m
Temperature range
Operation                     – 5 °C ... 45 °C
Storage                        – 25 °C ... 55 °C
Transport                      – 25 °C ... 70 °C
Mounting                      Flush mounted In wiring box, 60mm*60mm or 86mm*86mm

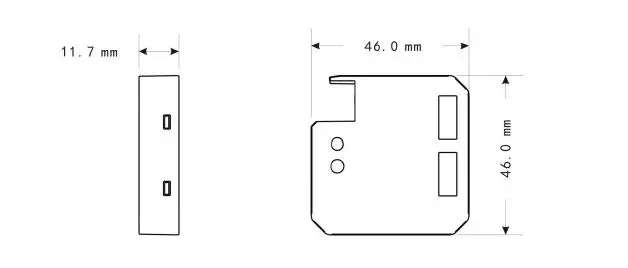

Dimensions                  the IR Emitter 46mm*46mm*11.7mm
                                     the IR Learner 52.5 mm*18.1mm*9.3mm

KNX/EIB GVS K-bus Factory Smart Building Automatic System AC TV Control KNX IR Emitter Learner KNX IR Transmitter Home Smart

Attention: the Infrared emitter of the IR Emitter must be installed in range that the IR device can detect normally, to avoid no action.

4 channels
Learning and storing up to 64 different IR functional control codes for each channel
sending time and sending delay can be set for each control codes
each main function can include 5 slave functions, this way is suitable for controlling several functions via one object at a time
You can set the emittion times and the delay time before sending for each function code.
A channel can link up to 16 group addresses
The IR functional control codes can be assigned to 1bit or 1byte type of object
1bit object can recall the control codes from all channels
1byte object can recall the control codes from its own channel
The IR Learner uses a common USB port to communicate, it is easy to learn the functional control codes of the IR remote controller and store the codes to the database of the PC Software
Can learn more than 95% of remote controllers in the market
Each channel can take over all of the functions described above.

GVS, Professional manufacturer since 1999, specilizing in KNX/EIB Smart Home/Office/Hotel/Building Solution and KNX Products.

As for KNX system, it is international smart home system, originated in Europe since 1999, it is the only Open protocol for home and building intelligent system. It is green and enviremental friendly and safe (low volatage).

It can control lights, dimming light, RGB light, curtains, AC, TV, and it can intergrate other system, such as video intercom system, background music, intelligent door lock, projector and so on. And it can control via mobile phone/tablet.

Application: Smart home, Villa, office, hotel, Airport, Museum, Metro, shopping mall and so on.

Is it easy to learn?

Yes, however firstly you need have a basic course of it for 5 days to learn the basic knowledge of it and how to programme it on ETS software (the common software for KNX system) on PC.
