Product Overview

Description

10000 litres per hour industrial reverse osmosis system 10 m3 ro

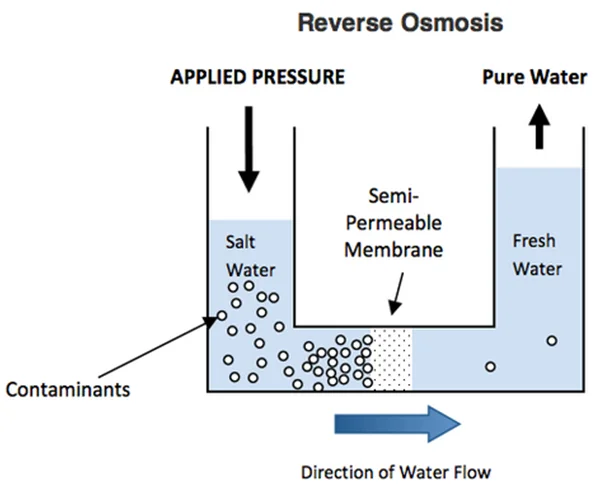

What's reverse osmosis system?

RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure

pump, increasing pressure to raw water, then force raw water penetrating through reverse

osmosis membrane under the pressure. Only water molecules and solvent less than microns

can pass through the RO membrane.

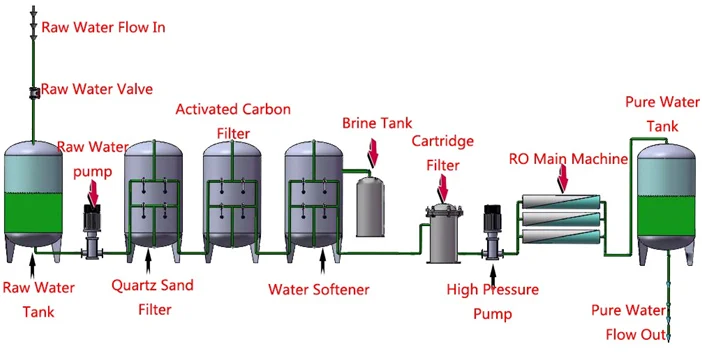

Technological process of RO system:

Raw water(raw water tank)→Water Resources Pump → Quartz sand filter→ activated carbon filter

→ water softener → precision filter → High pressure pump→ RO system→(pure water tank)







Every part and function of filter for RO system



NO.	Commodity name	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump(booster pump)	Provide needed pressure for every pretreatment filter	We can provide  pumps or Grundfos pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Water softener, demineralizer(Na+ exchanger)	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm
7	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	pump, Grundfos optional
8	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA Filmtec



Feature and advantages

1. System can produce water continuously and high degree automation.

  2.No need chemical to regenerate, easy operation and maintenance.

  3.Core components of ro system are imported USA membranes.

  4.Automatic switch on when low water level, and switch off when high water level

  5.System flushes RO membranes automatically, reducing membranes polluted speed.

  6.Water shortage protection for multi-stage pump

 7.Product water conductivity meter can monitor water quality online continuously.

  8.Low operation cost and long life span









We are GZ Chenxing Environmental Protection Technology Co., Ltd is a professional engaged

in water treatment equipment, liquid filling filtering equipment and related products of environmental

protection high-tech enterprises, mainly exporte to southeast Asia, the Middle East, Europe and the

United States and other countries and regions
