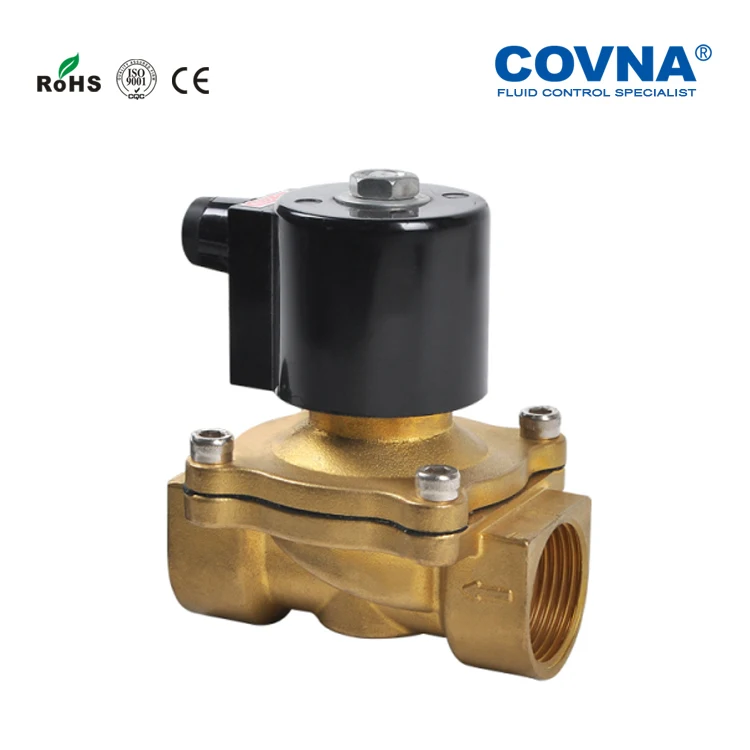

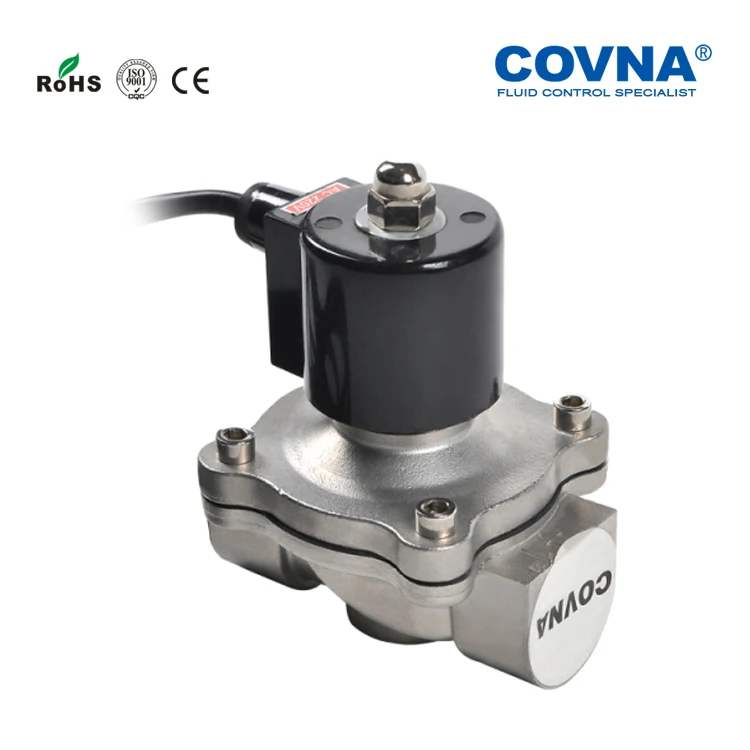

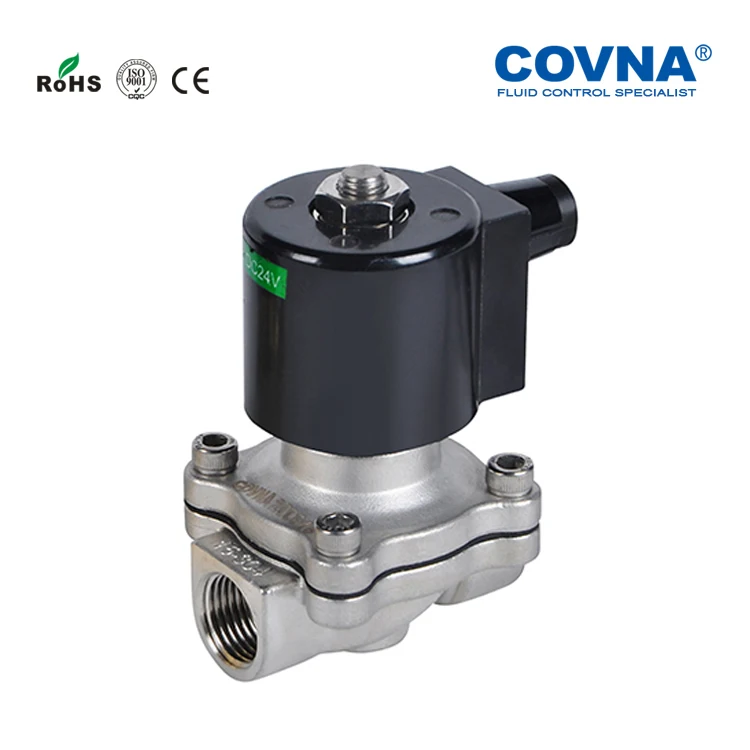

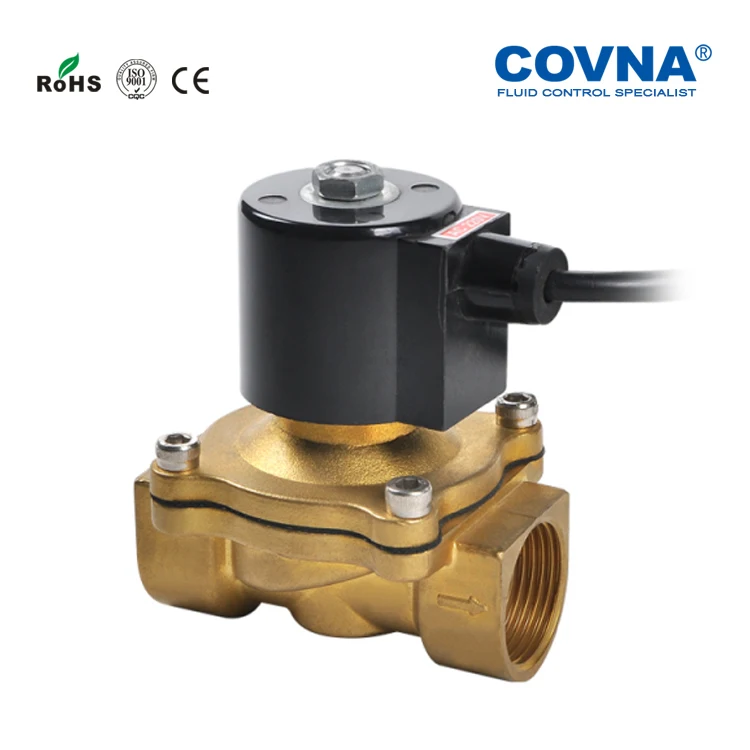

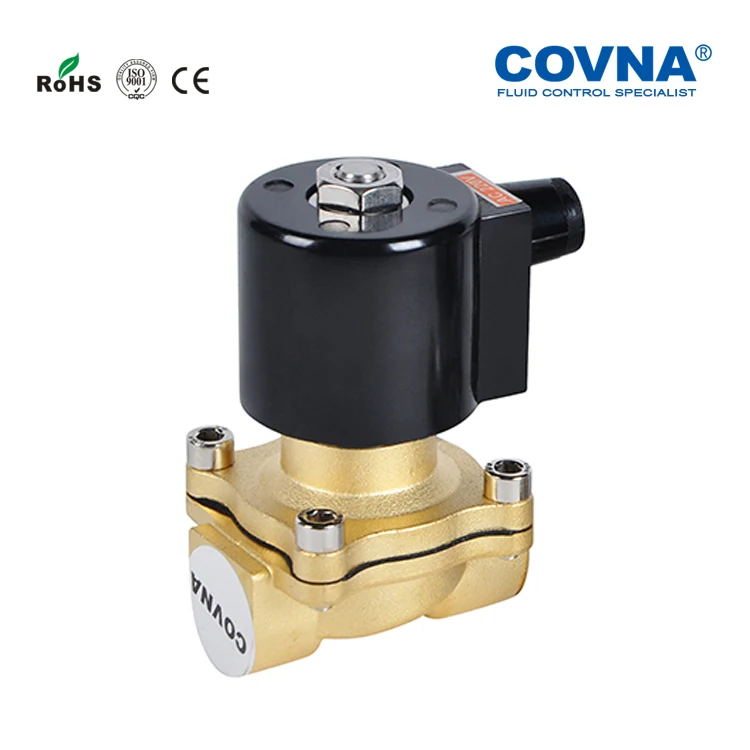

IP68 Underwater Plastic 12V Solenoid Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (62150832236):
Product Overview
Description
Specification
IP68 Underwater Plastic 12V Solenoid Valve
1. HKP, with diaphragm construction for fountain use matched with waterlight coil
2. Opening speed at 10 times per second
COMPACT STRUCTURE | HIGH ACCURACY | WATER-PROOF | LONG SERVICE LIFE |

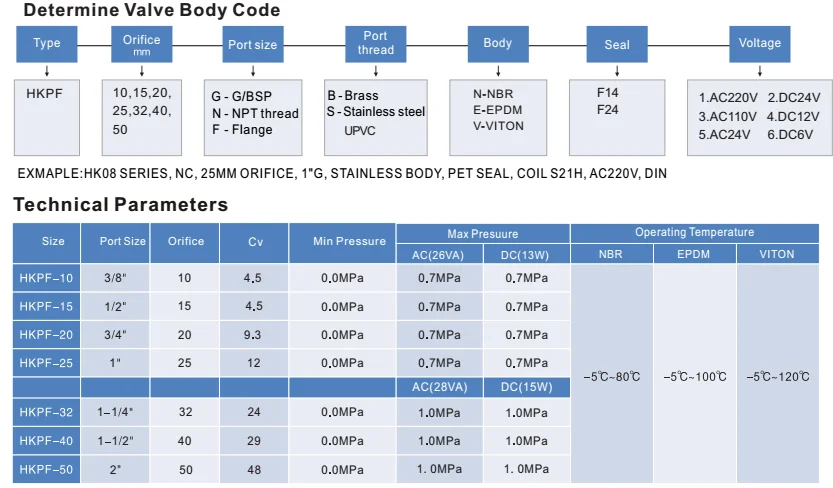

Item | IP68 Underwater Plastic 12V Solenoid Valve | ||||
Size Range | DN15 to DN50, 1/2" to 2" | ||||
Operating Pressure | Low Pressure, 0 to 1.0MPa (0 to 150PSI) | ||||
Number of Ways | 2/2 Valve, Two Ways Two Positions | ||||
Valve Operation Type | Normally Closed (NC), Opens When Energized | ||||
Body Material | Brass, Stainless Steel and Plastic are Available | ||||
Sealing Material | NBR, EPDM, FKM (VITON), PTFE (TEFLON) | ||||
Structure | Direct Acting | ||||
End Connection | Female Thread | ||||
Coil Voltage | DC12V 24V (±10%), AC110-220V, 50/60Hz | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -10 to +80°C (14 to 176°F) with NBR Sealing | ||||
Ambient Temp. | Range from -20 to +60°C (-4 to 140°F) | ||||
Protection Class | IP67, Explosion-protected Construction are Available | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Company Profile
● Solenoid valve
● Electric actuator valve
● Pneumatic actuator valve
● Ball valve/Butterfly valve
● Check valve/Gate valve/Globe valve
As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies. 20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Consult us and we are willing to help you resove the problem!
Company Profile
● Solenoid valve
● Electric actuator valve
● Pneumatic actuator valve
● Ball valve/Butterfly valve
● Check valve/Gate valve/Globe valve
As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies. 20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Consult us and we are willing to help you resove the problem!
