JX 9114DP 2HD MI DP Audio 4K LCD controller board support 4K lcd eDP 8 lan screen with 1920*1080~ 3840*2160 resolution
- Category: >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (62151000376):
Product Overview
Description
2HD MI+edp+DP+Audio 4K LCD controller board support eDP 4K lcd screen with 3840*2160 lcd controller board
Product Description
Specifications of the 4K lcd controller Board:
Model: | JX-M9114 |
Size : | 108x114.5mm |
Amplifer: | 8W |
Screen Voltage: | 3.3V/5V |
Key function: | power/menu/source/up/down/left/right |
HD MI: | Input |
VGA: | Input |
Resolution: | 3840*2160 |
GND: | Ground |
Working voltage: | 8~15Vdc |
Standby voltage: | 4.75~5.6V |
Standby current: | 10-40mA |
Storage temerature: | -40~85°C |
Working humidity: | 40-95% |
Storage Humidity: | 40-95% |
Brand: | JX//OEM/ODM |
2.General description
The product targets the high-end EDP 4K@60Hz HD MONITOR solution, using MSTAR single-chip TV processing IC.
With good picture quality, many functions, rich interfaces, mature system, etc., it supports 2K/4K EDP screen, mainly for 32”
And the following size monitoring / portable product design.Only thickness 6mm
4 split screen function, the same screen, display 4 channels of video signals at the same time.
Support 3 channels of HD MI2.0
DP input. VGA input function.
8lane edp output.
Analog audio amplifier: Maximum output power 2X1W (8 ohms).
Support screen resolution, 1920x1080@144MHZ, 3840x2160@60MHZ, EDP signal output driver screen.Multi-national OSD menu language.
The product targets the high-end EDP 4K@60Hz HD MONITOR solution, using MSTAR single-chip TV processing IC.
With good picture quality, many functions, rich interfaces, mature system, etc., it supports 2K/4K EDP screen, mainly for 32”
And the following size monitoring / portable product design.Only thickness 6mm
4 split screen function, the same screen, display 4 channels of video signals at the same time.
Support 3 channels of HD MI2.0
DP input. VGA input function.
8lane edp output.
Analog audio amplifier: Maximum output power 2X1W (8 ohms).
Support screen resolution, 1920x1080@144MHZ, 3840x2160@60MHZ, EDP signal output driver screen.Multi-national OSD menu language.

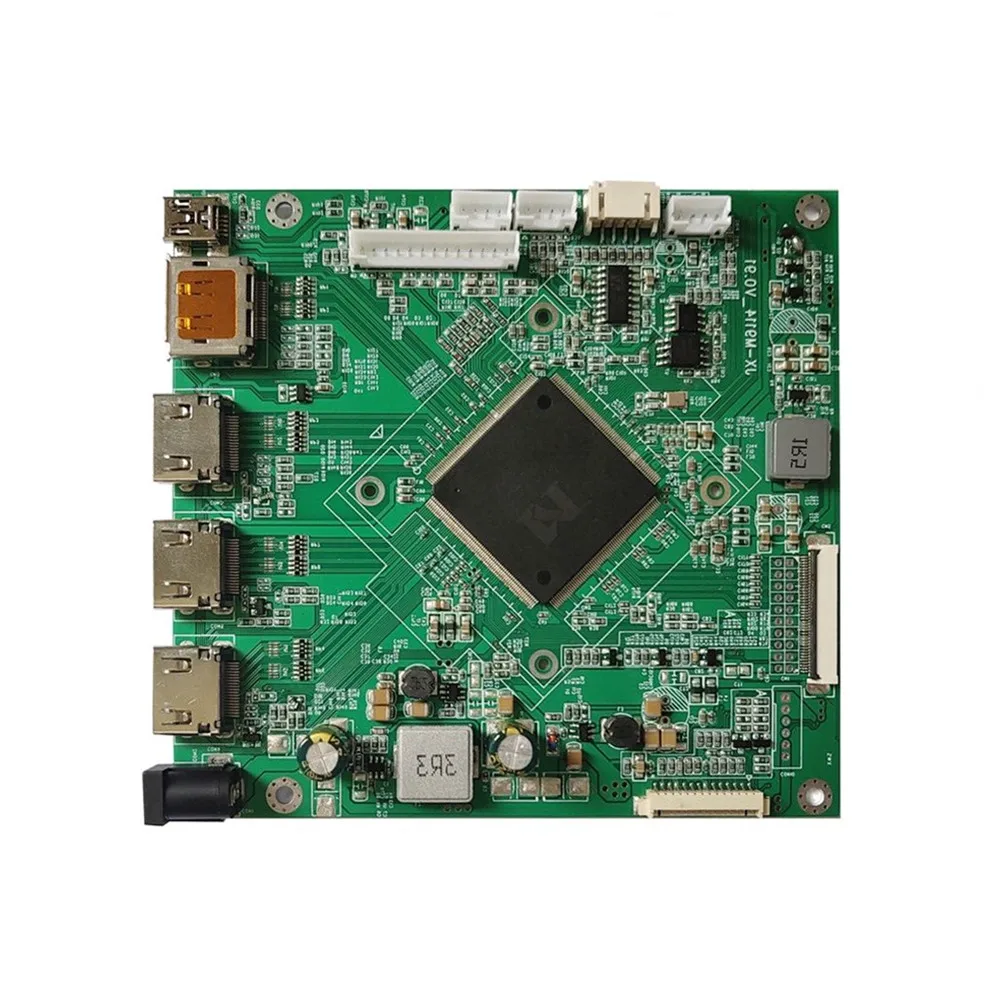

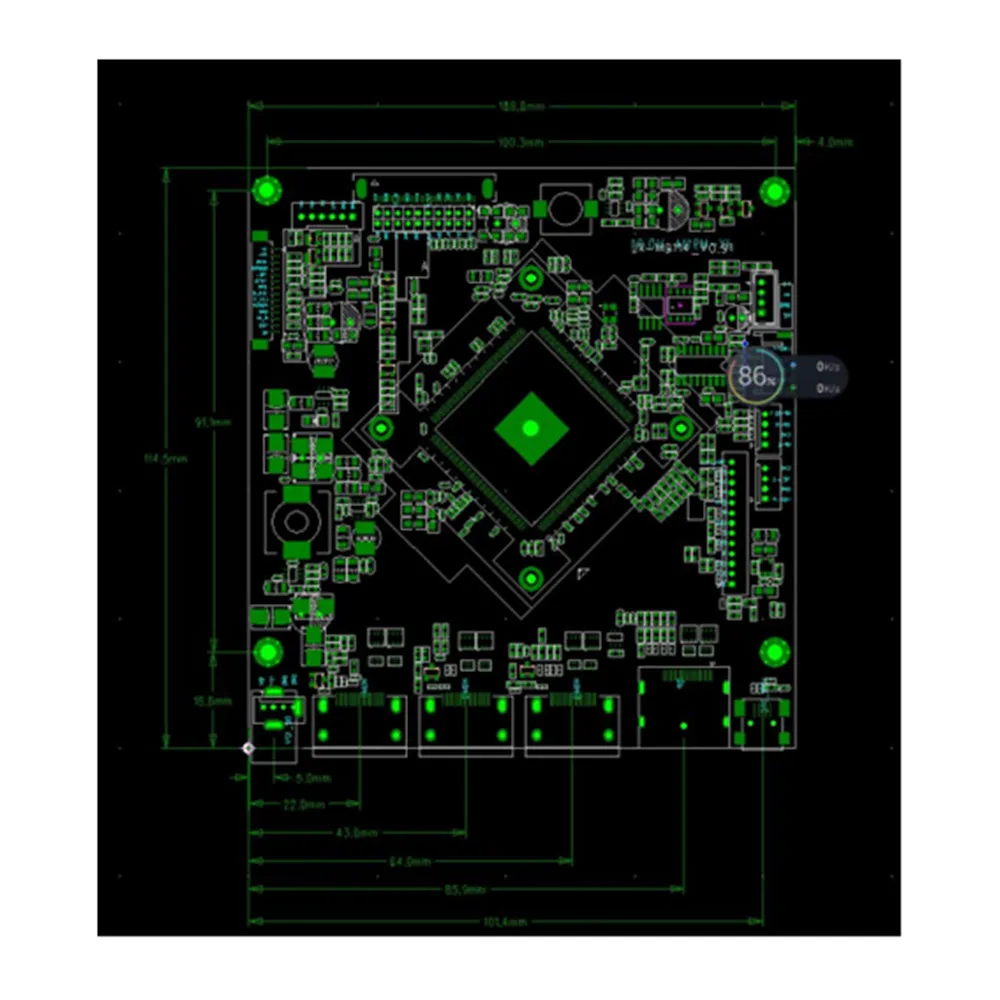

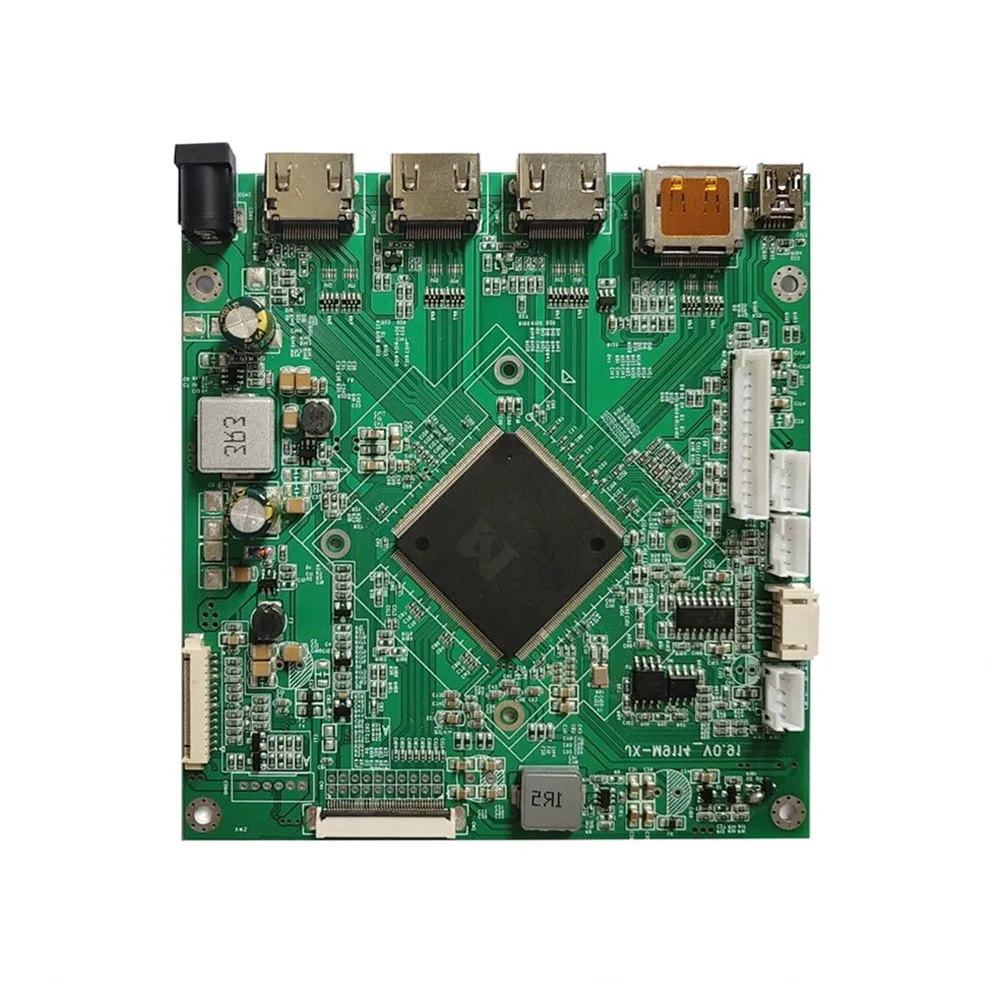

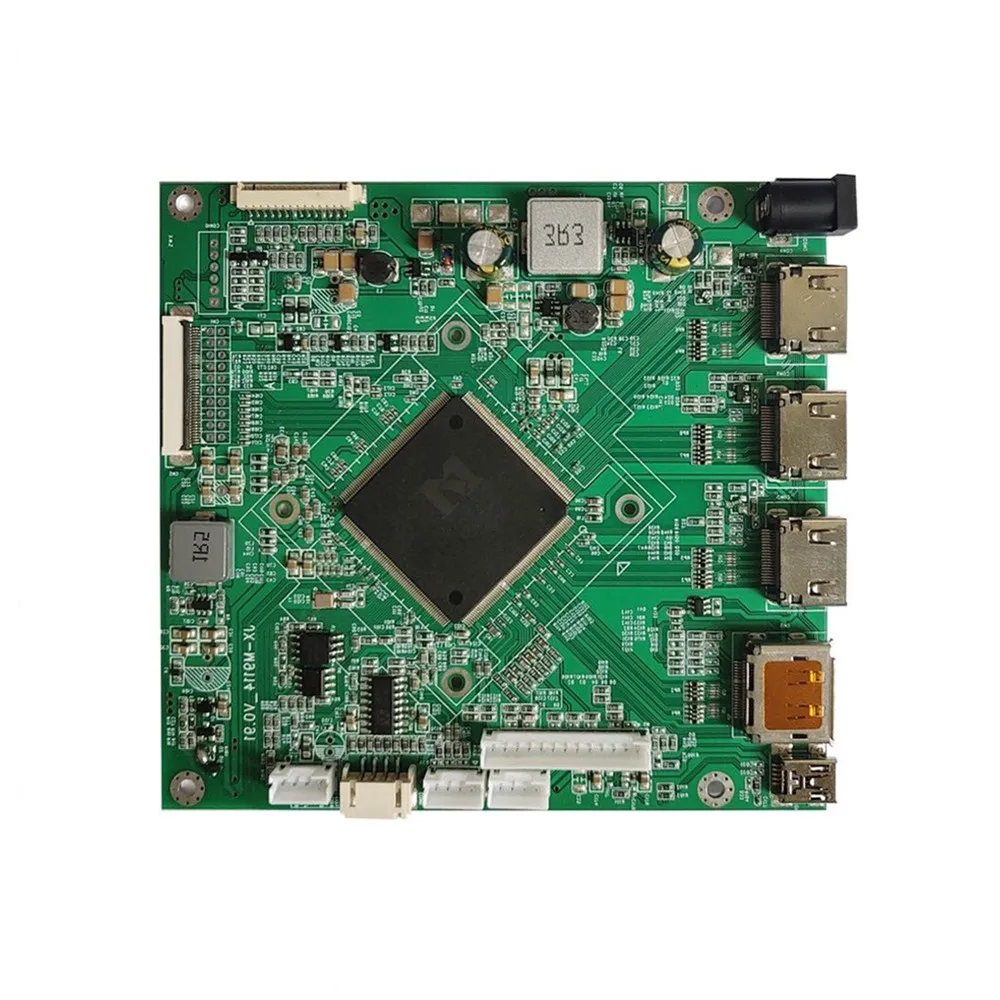

3.Appearance picture

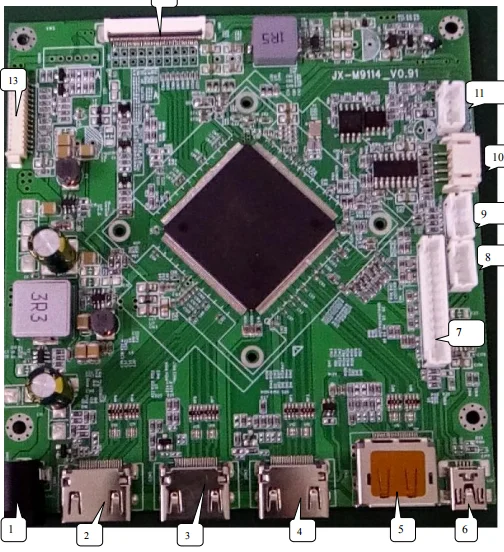

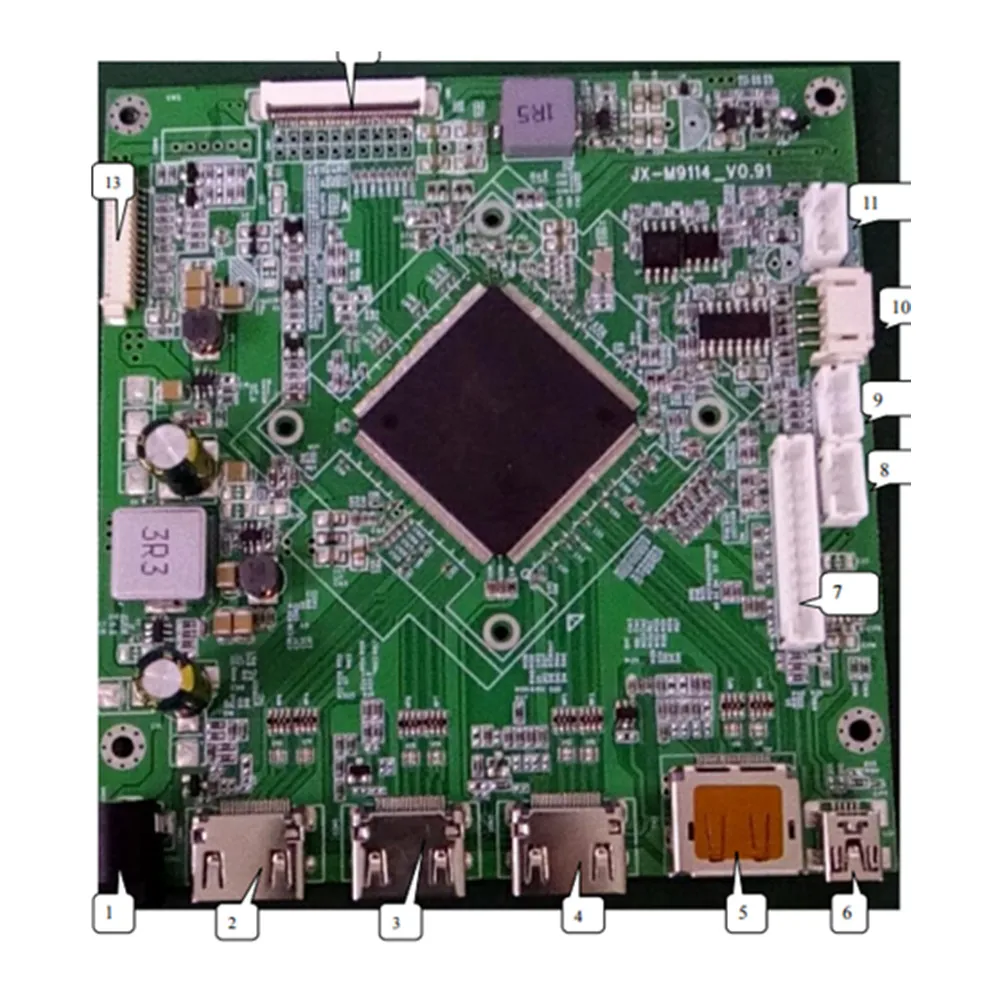

4,Main interface definitions
No. | describtion | No. | describtion |
1 | DC12V power input | 2 | HD MI input |
3 | HD MI input | 4 | HD MI input |
5 | DP input connector | 6 | USB |
7 | VGA signal input connector | 8 | Audio input connector |
9 | Headphone output | 10 | Speaker output |
11 | UART connector | 12 | EDP input interface |
13 | Key board connector |
|
|
|
|
|
