W1 4000 Type ACB air circuit breaker 3600A 4000A

Product Overview

Description

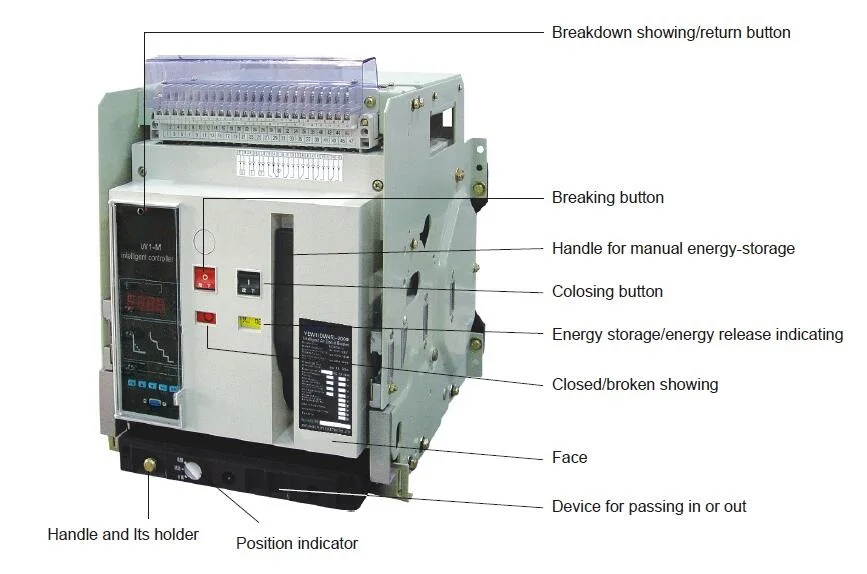

W1-4000 Type ACB air circuit breaker 3600A 4000A

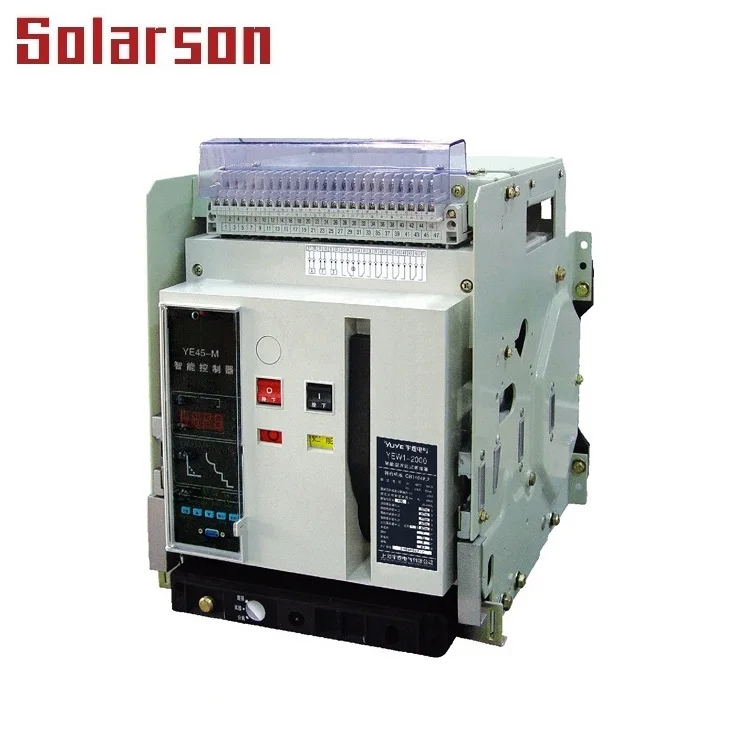

China Aidun Electrical produce “SOLARSON” brand Intelligent type universal air circuit breaker ACB air circuit breaker



Technical data

Type:W1-4000

Rated current In(A):3200A 3600A 4000A



W1 series intelligent breaker is applicable in the distribution network of AC 50Hz, rated voltage of 400V and 690V and rated current from 630A~6300A, to distribute electric energy protection circuit and prevent power equipments from harm of overload, under-voltage,short circuit and single-phase earthing etc.
Provided with intelligent protecting function and precise selective protection, breaker can enhance the dependability of power supply and avoid the unexpected power cut.
This product accords with the standard of IEC60947-2.

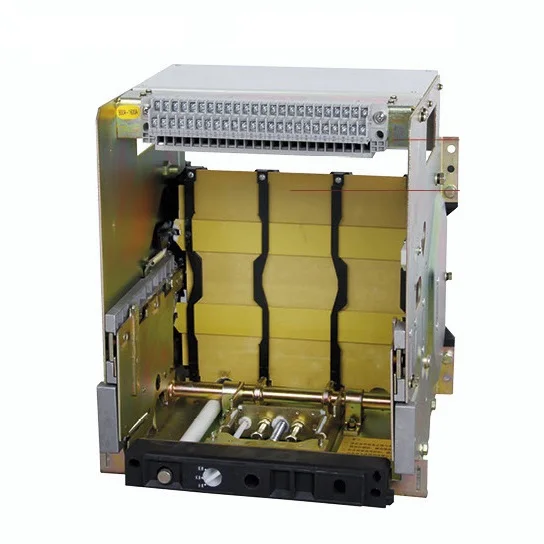

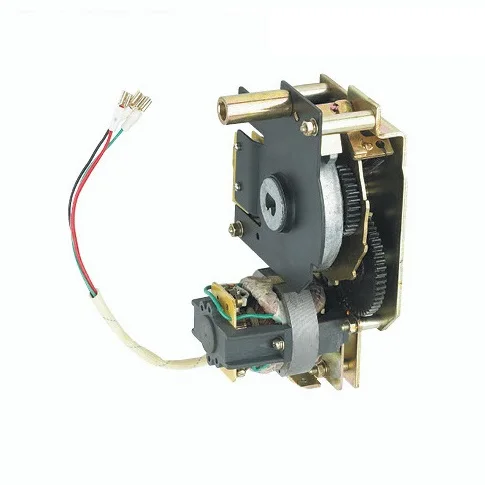

Keyword:3P, 4P, small volume, FH:Fixed type, DH:drawable type, Electric and manual operation,

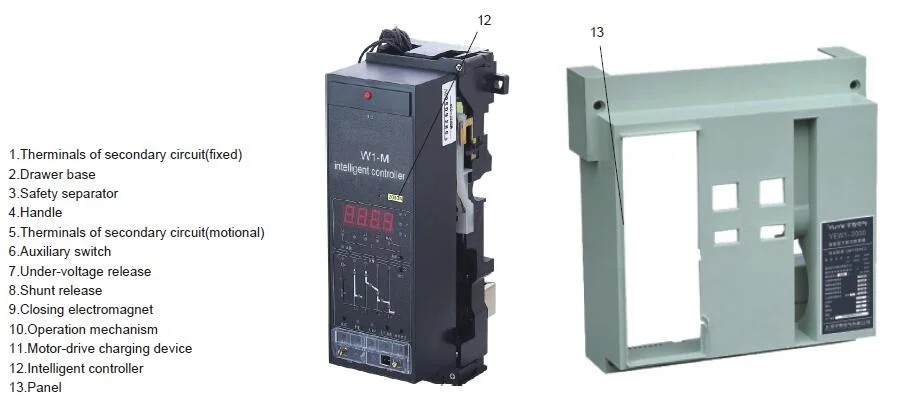

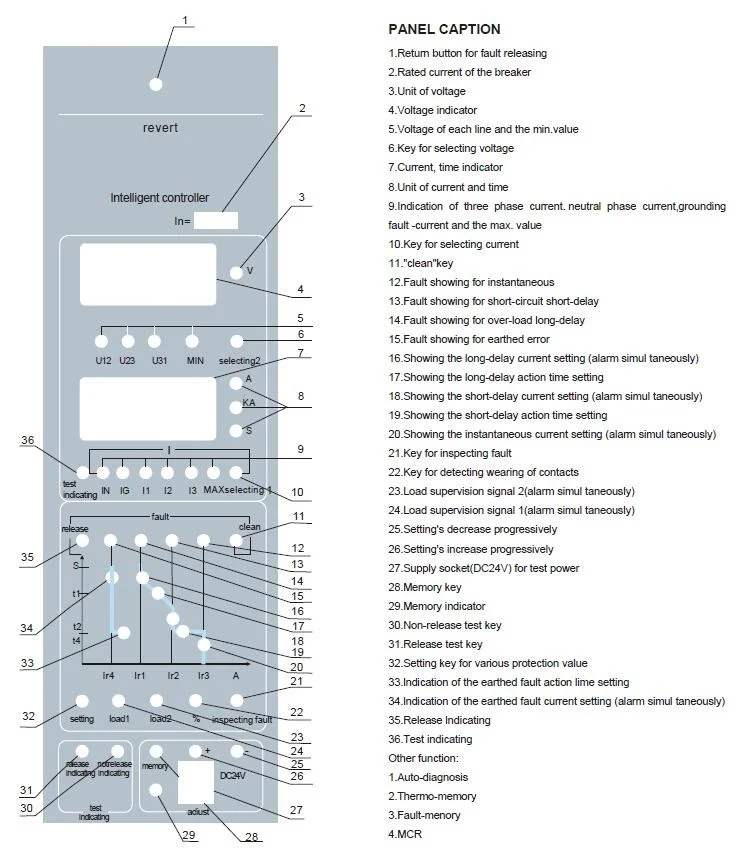

Intelligent controller:L,M,H, under voltage instantaneous(delay) release, and shunt release
