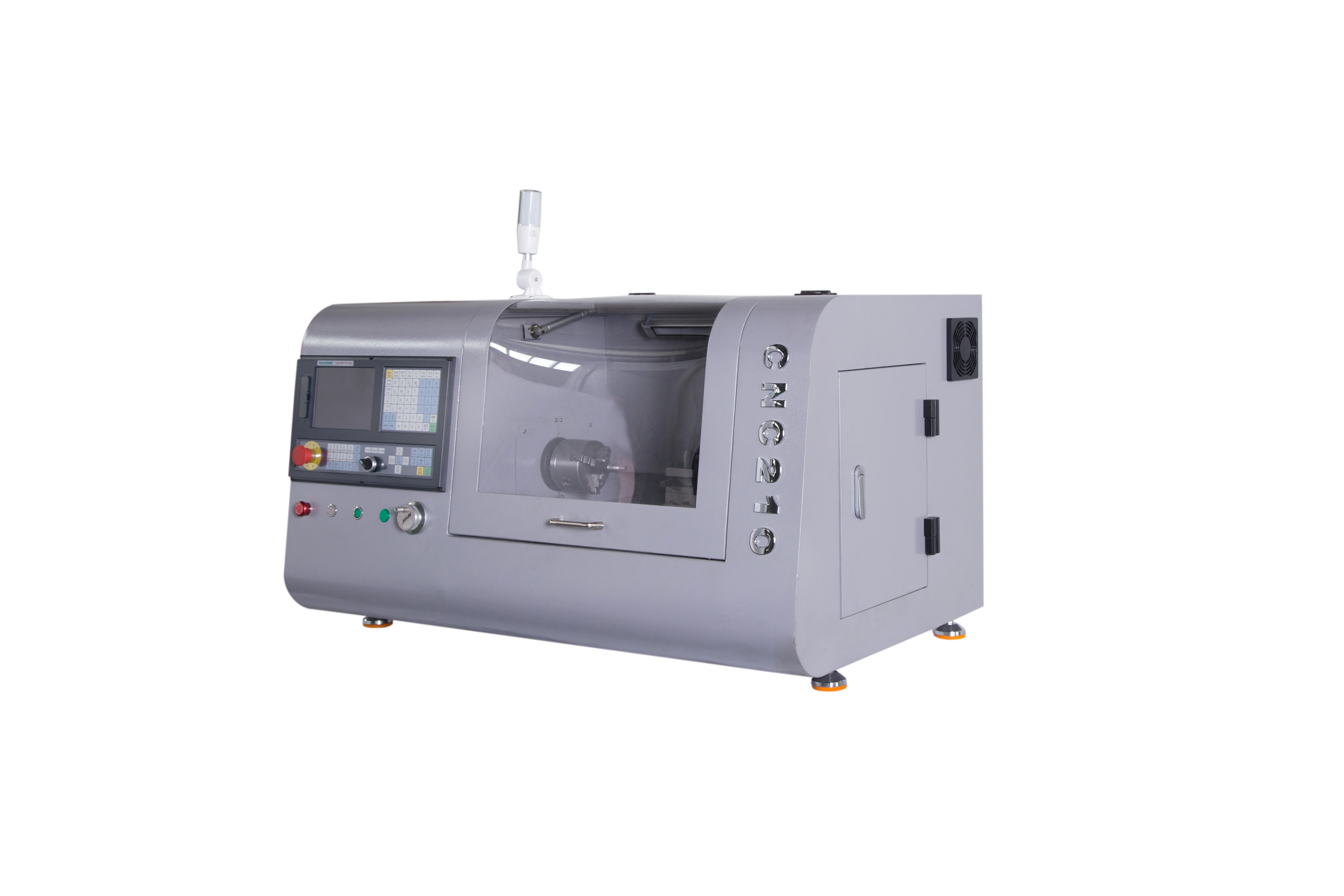

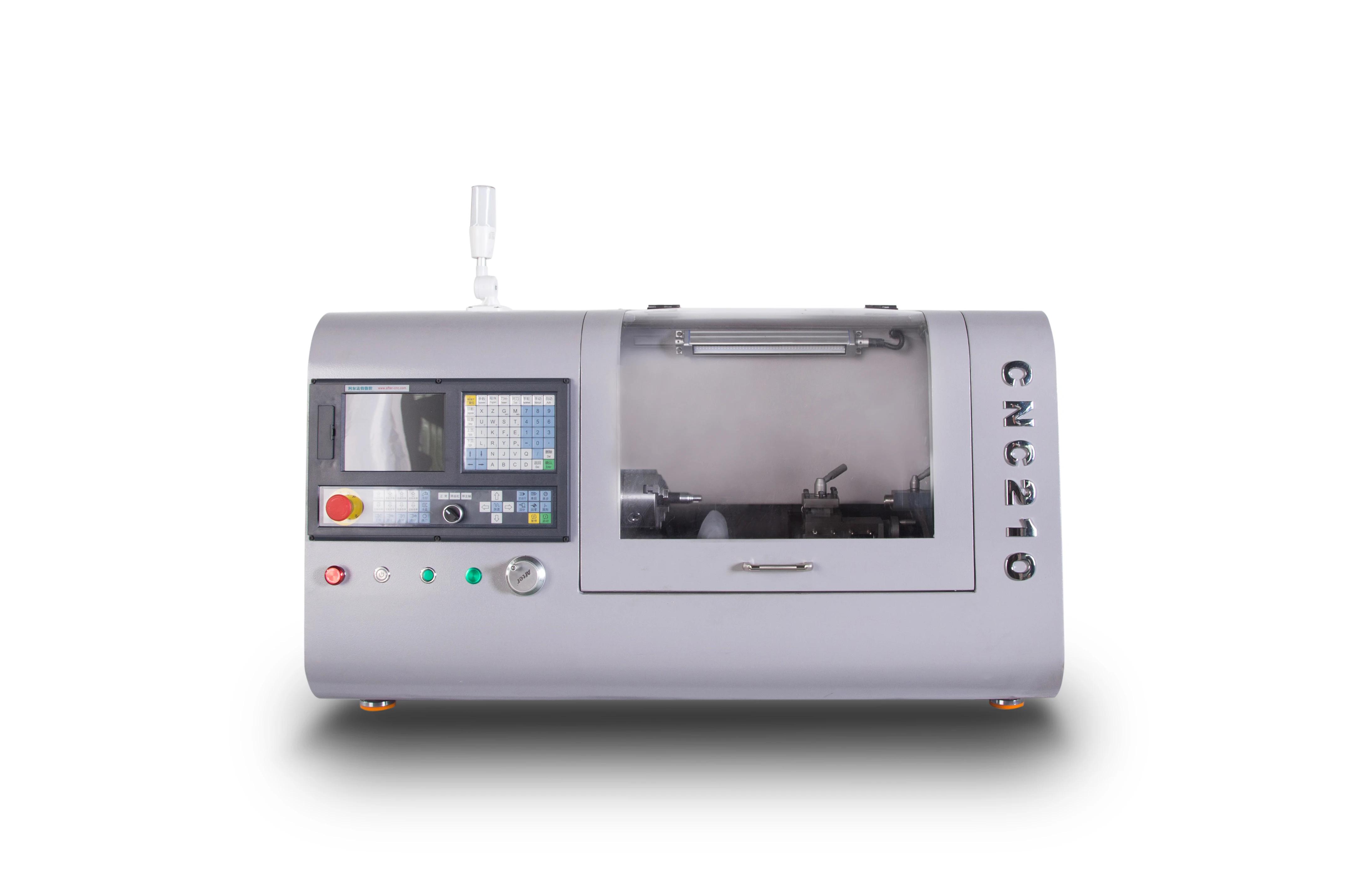

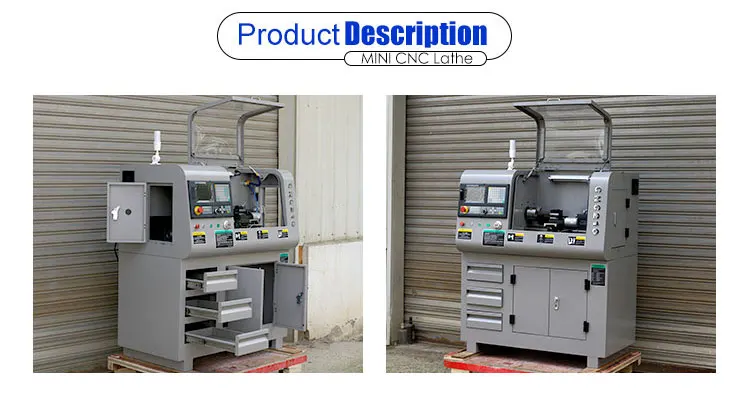

CNC210 mini CNC lathe for hobby and school education 1 buyer
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62151197466):
Product Overview
Description
Features:
1.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.

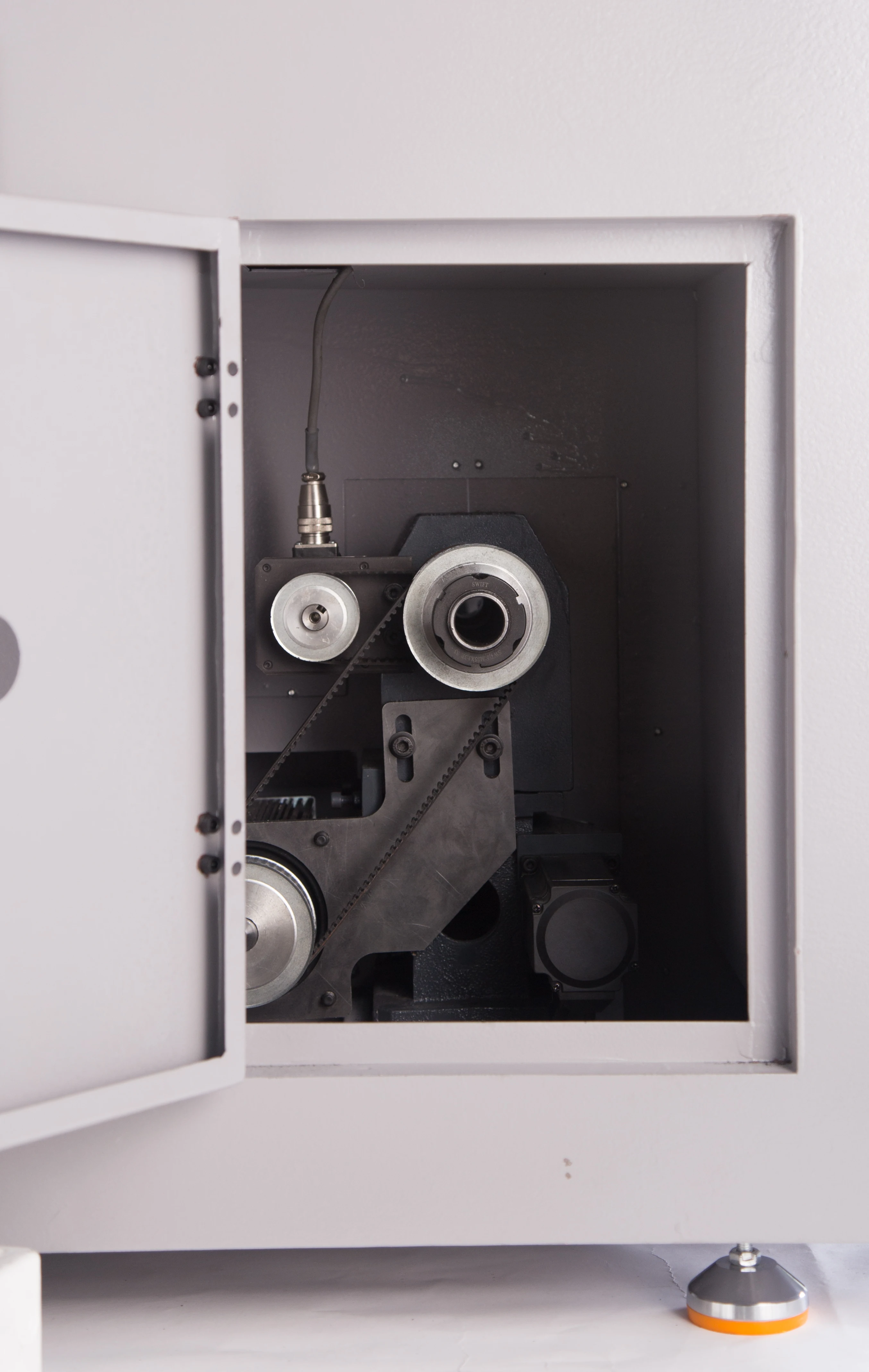

2.DC brushless spindle motor
3.Small occuping,lower energy consumption,easy operation,suitable for small processing
4,High-quality spindle by high-precision grinding and support by Angular contact bearin
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
2.DC brushless spindle motor
3.Small occuping,lower energy consumption,easy operation,suitable for small processing
4,High-quality spindle by high-precision grinding and support by Angular contact bearin
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
Specification | CNC210 |
Max. swing over bed | 210mm |
Distance between centers | 400mm |
Spindle bore dia. | 26mm |
Spindle taper | MT4 |
Spindle speed | 3000rpm |

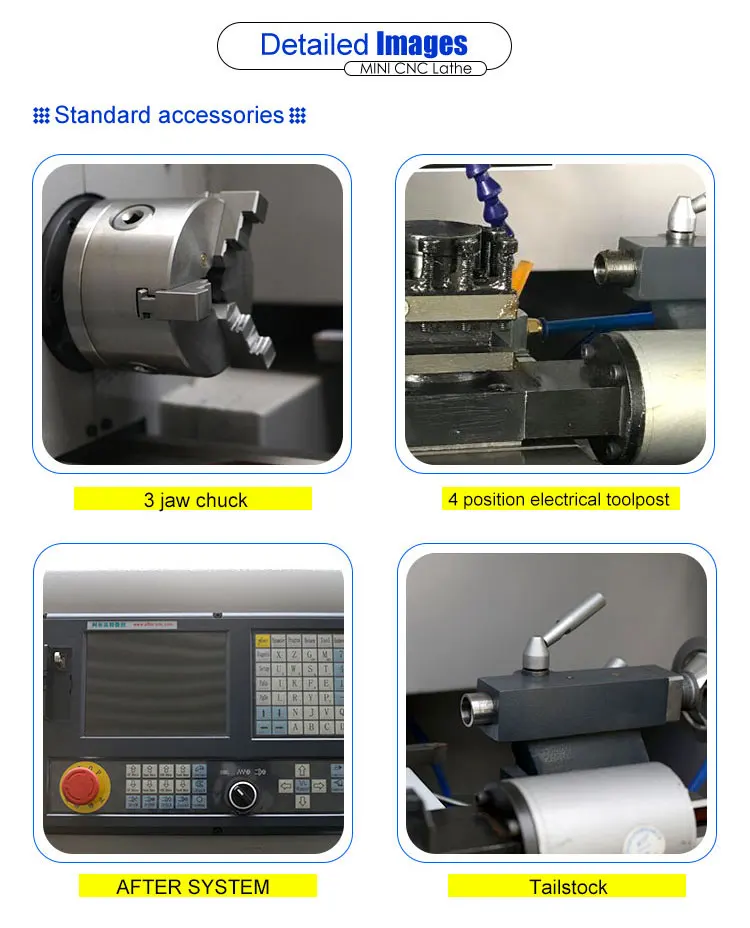

Tool post | 4-position |
Gangtool bar size | 12mm |
X-axis travel | 90mm |
Z -axis travel | 300mm |
X moving speed | 2000mm/min |
Z moving speed | 2000mm/min |
Spindle motor power | 1.2kw |
X motor torque | 3N.m |
Z motor torque | 3N.m |
Min. setting unit | 0.001mm |
Tailstock dia. | 22m |
Tailstock tavel | 50mm |
Tailstock taper | MT2 |
Machine size without Stand | 1170X700X860mm |
N.W | 200kgs |
