mobile movable safe platform and ladder for tanker truck sampling and inspection
- Category: Ladders >>>
- Supplier: Lianyungang Saiweite Fluid Equipment Co. Ltd.
Share on (62151559522):
Product Overview
Description
Product Description

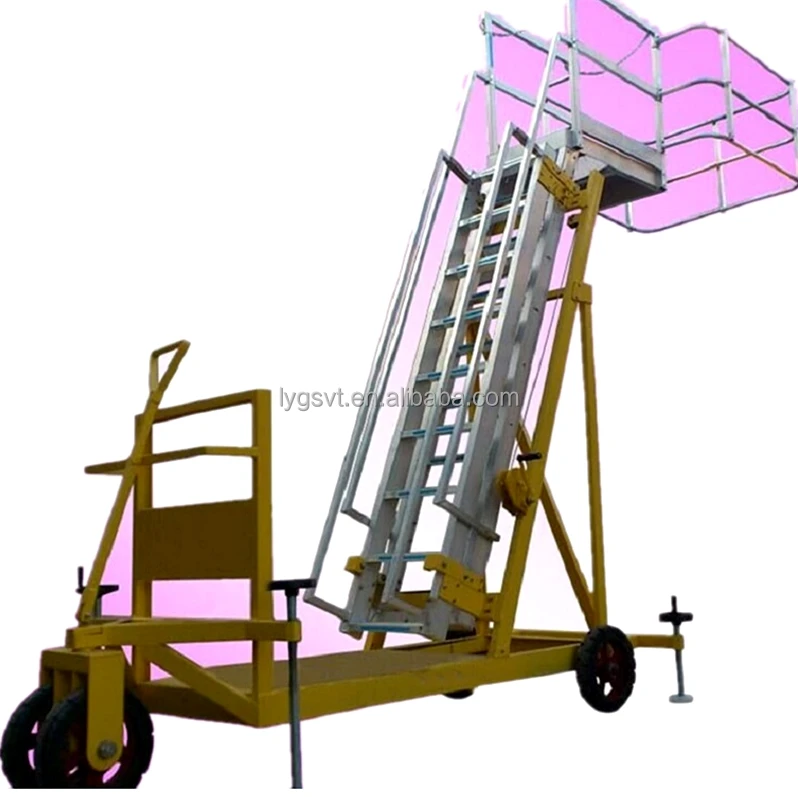

Mobile Tanker Platform Ladder
The chassis of the main structure is made of carbon steel or stainless steel, the surface of carbon steel is electrostatic sprayed with baking paint, and the components of ladder are made of high-strength aluminum alloy.
The bottom is equipped with 4 16" solid casters, which is durable, labor-saving and easy to pass through the pit.

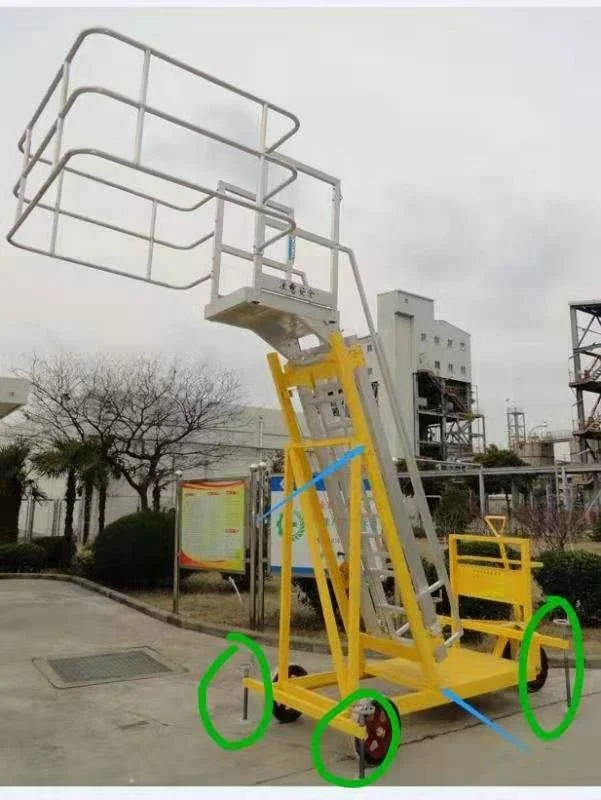

The bottom of the mobile tanker platform ladder is equipped with four adjusting supporting legs, which can adjust and fix the ground, and the overall stability is better.
The main body is not easy to be loosened and welded.
Compared with similar products, it has the characteristics of light weight, good stability and convenient use.
It can be operated by one person and the height can be raised and lowered freely.
It can be customized.

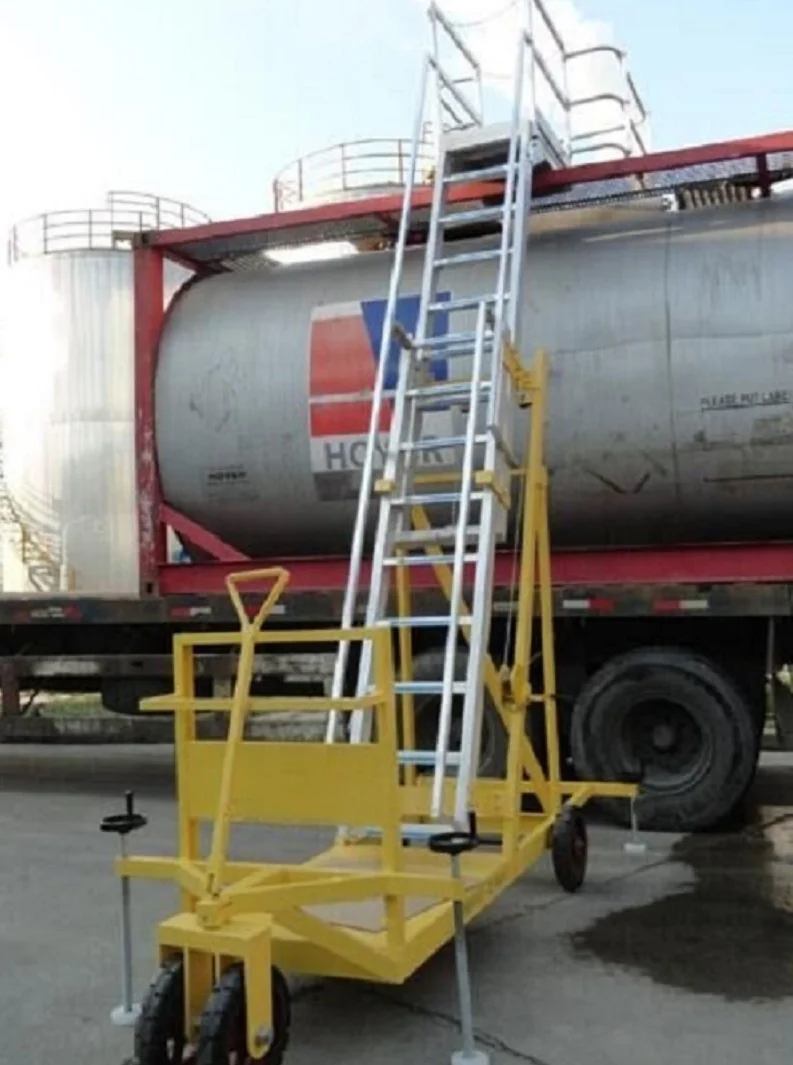

Scope of application: tank car sampling for petrochemical, coking crude benzene, medicine, food, etc., tank body welding seam observation, equipment maintenance, etc.

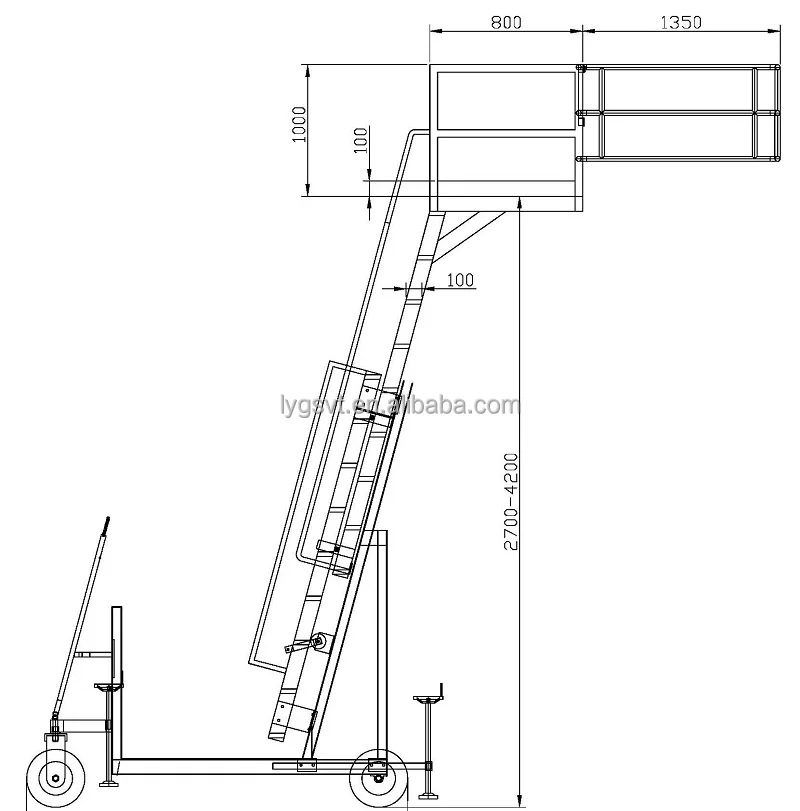

Product Paramenters
Type | Length | Width | Max Length | Length of folding | Stepping Width | Weight | Weight of loading |
MP-350 | 2400mm | 800mm | 3500mm | 2300mm | 100mm | 330 KG | 150KG |
MP-400 | 2500mm | 800mm | 4000mm | 2600mm | 100mm | 360 KG | 150KG |
MP-450 | 2680mm | 800mm | 4500mm | 3000mm | 100mm | 380 KG | 150KG |
MP- 500 | 2800mm | 800mm | 5000mm | 3500mm | 100mm | 405 KG | 150KG |
Detailed Images
Related Products

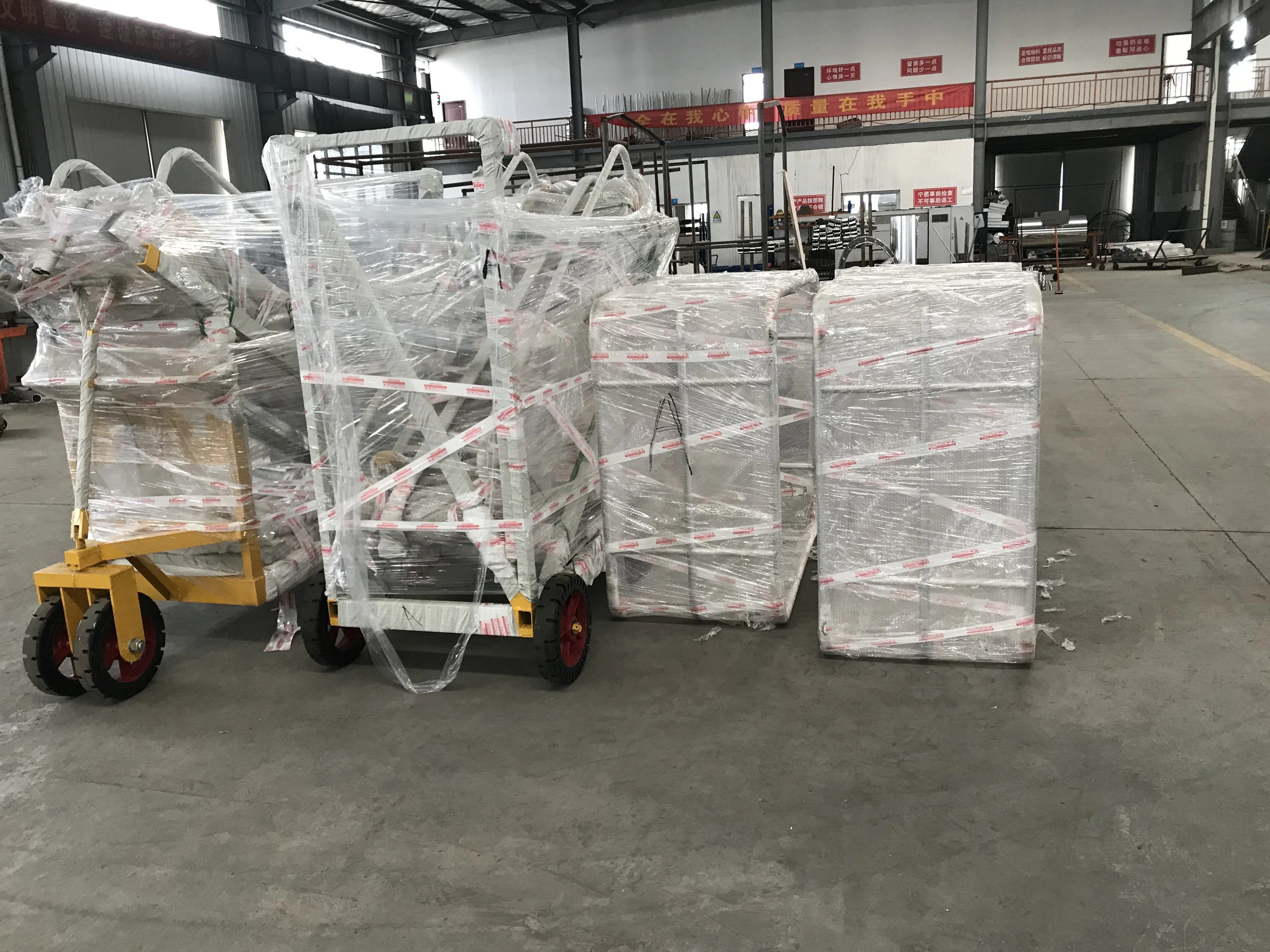

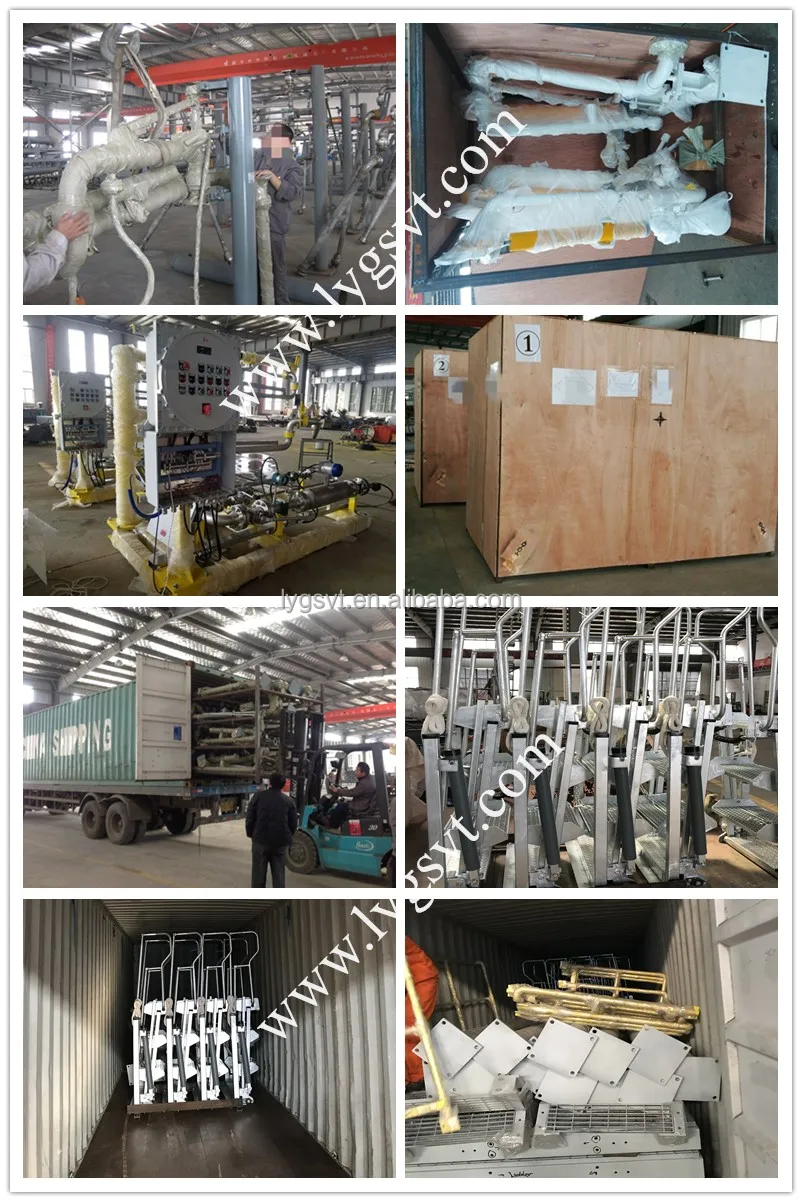

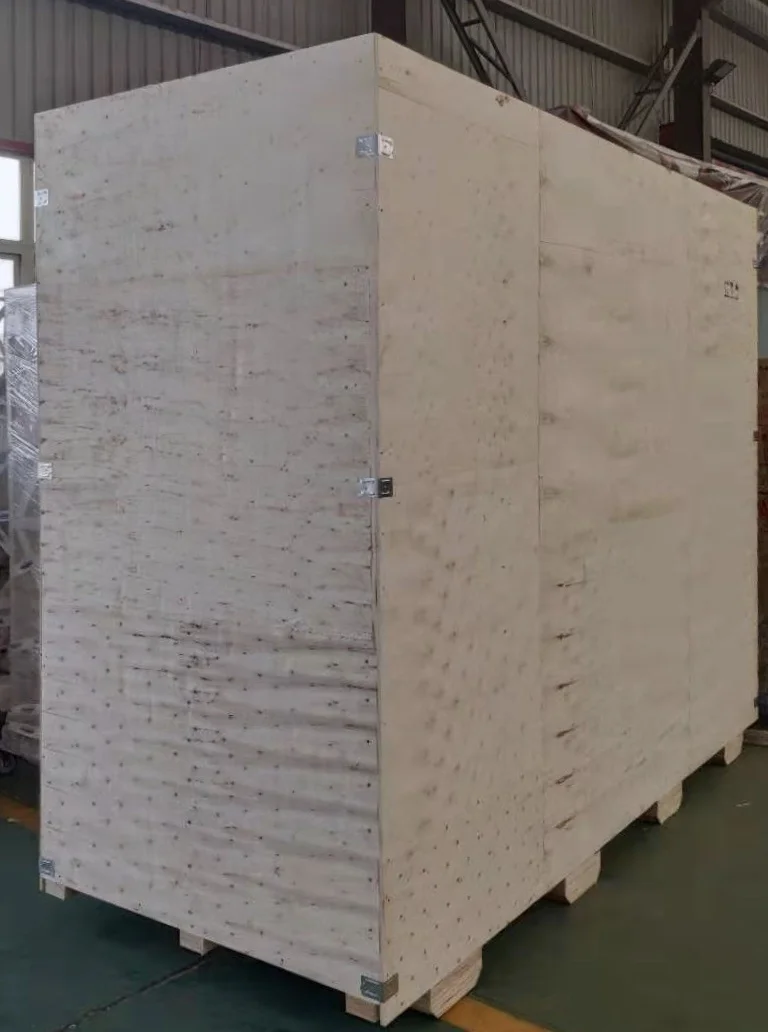

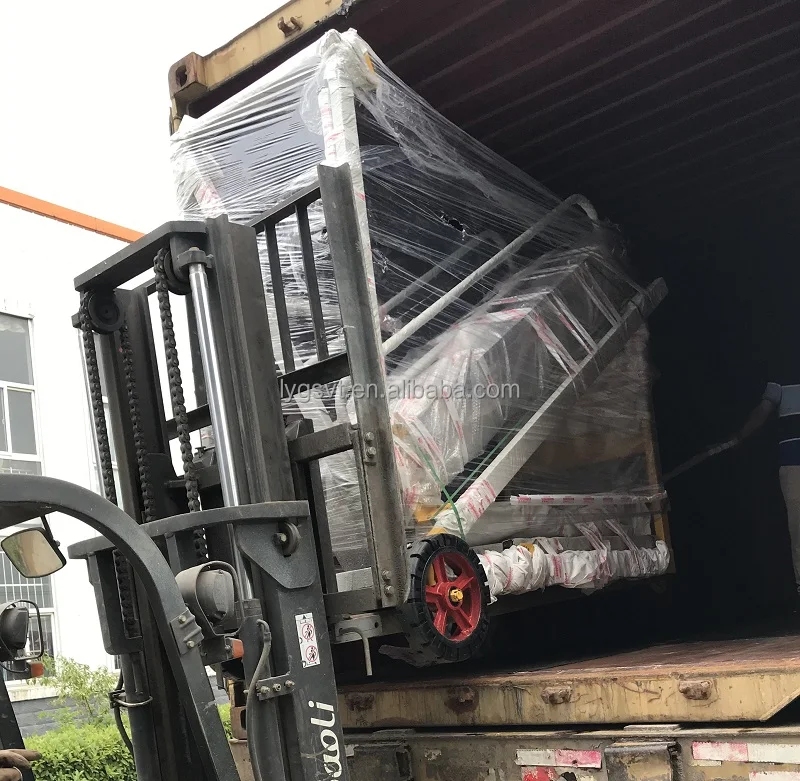

Packing&Shipping
After Sales Service
LYGSVT provide On-site Service and After-sales Service for installation, commissioning, maintenance for all our products.
The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
