The biggest two platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine
The biggest two-platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine

The biggest two platen IMM manufacturer in China, Candas best sele BU2500 plastic septic tank injection molding machine

Share on (62151638889):


Price:$180,000.00 - $220,000.00

Quantity:


Product Overview

Description


Product Description
\t
DESCRIPTION OF BU2500    29500/2500
\t
International Class NO. UNIT
\t
29500/2500
\t
INJECTION UNIT
\t
Screw Diameter
\t
mm
\t
170
\t
Shot Volume
\t
cm³
\t
21336
\t
Shot Weight(PS)
\t
g
\t
19416
\t
Shot Weight(PS)
\t
OZ
\t
685
\t
Injection Pressure
\t
MPa
\t
139
\t
Screw L/D Ratio
\t
L/d
\t
20
\t
Injection Stroke
\t
mm
\t
940
\t
Screw Rotary Speed max
\t
rpm/min
\t
71
\t
Nozzle Contact Force
\t
KN
\t
290
\t
Nozzle Stroke
\t
mm
\t
1065
\t
CLAMPING UNIT
\t
\t
\t
Clamping Force
\t
KN
\t
25000
\t
Opening Stroke
\t
mm
\t
2800
\t
Platen Size
\t
mm*mm
\t
2740*2540
\t
Space btw. Tie Bars
\t
mm*mm
\t
1950*1750
\t
Daylight max
\t
mm
\t
3600
\t
Mold Thickness(min-max)
\t
mm
\t
800-1700
\t
Ejection Stroke
\t
mm
\t
450
\t
Ejector Force
\t
KN
\t
390
\t
Ejector Pin
\t
unit
\t
8+8+8+1
\t
POWER UNIT
\t
\t
\t
System Pressure
\t
Mpa
\t
17.5
\t
Pump Motor
\t
KW
\t
45*3+30
\t
Heating Capacity
\t
KW
\t
97
\t
No. of Heater Zones
\t
unit
\t
9
\t
GENERAL UNIT
\t
\t
\t
Oil Tank Capacity
\t
L
\t
2700
\t
Machine Dimensions
\t
m*m*m
\t
15.3*4.3*3.9
\t
Machine Weight
\t
KG
\t
148000

Machine Features
Injection Unit
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Electric and control part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage
Certifications
Detailed Images

MOVING PLATEN CLAMPING

.1-Tie bars move across clamping cylinder, no touch with
seals, lessen pressing leakage; Module type clamping
cylinder, can be assembled and disassembled together,
easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast
and precise locking.
3-Clamping cylinder assembled in the moving platen can
balance the load of mold, avoiding mold forward, improve
stability of moud open and clamping movement.

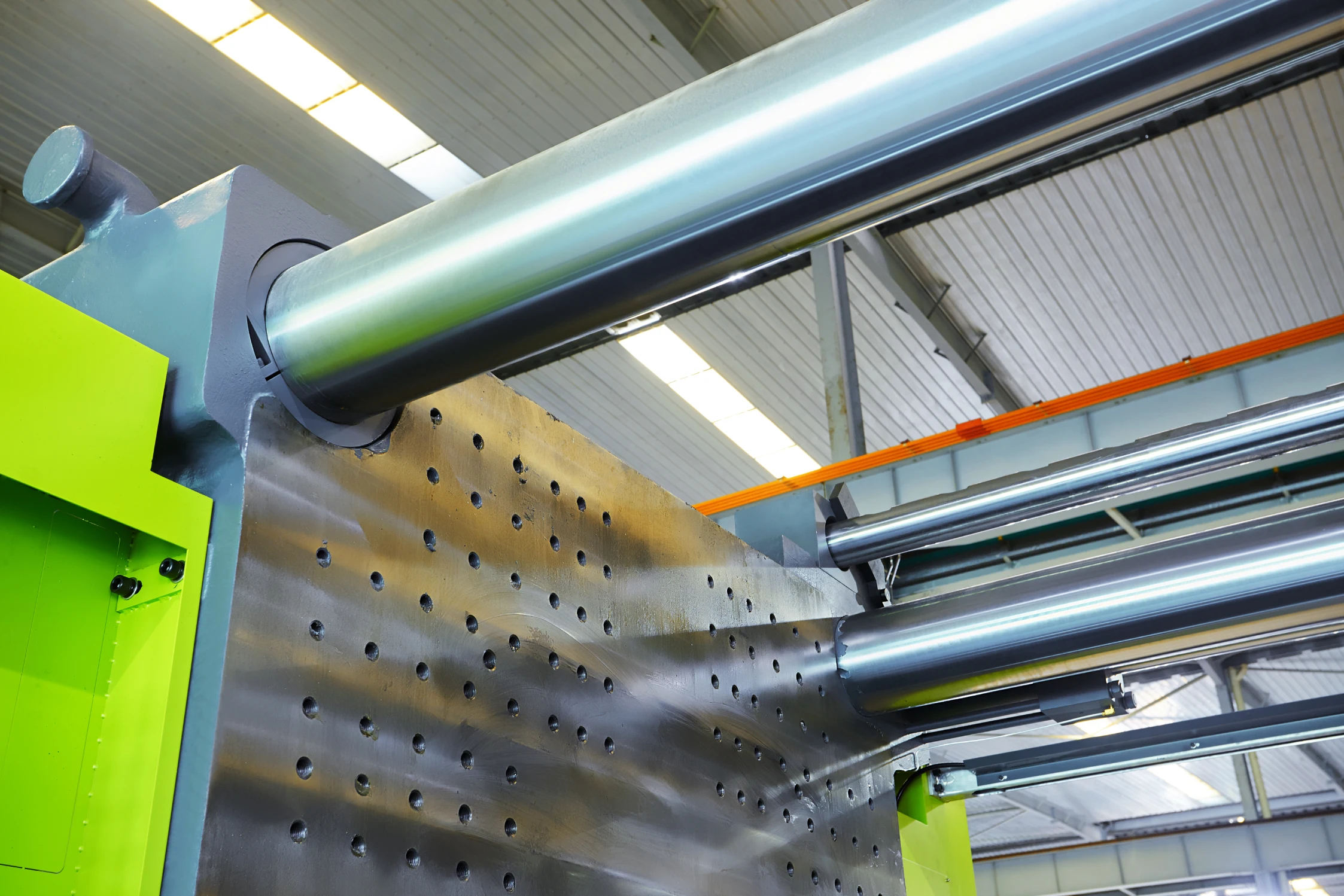

SUPER LONG LASTING TIE BAR

During high pressure locking, four tie bars under equal
force, no unbalance loading occured, avoiding tie bar
broken theoretically.

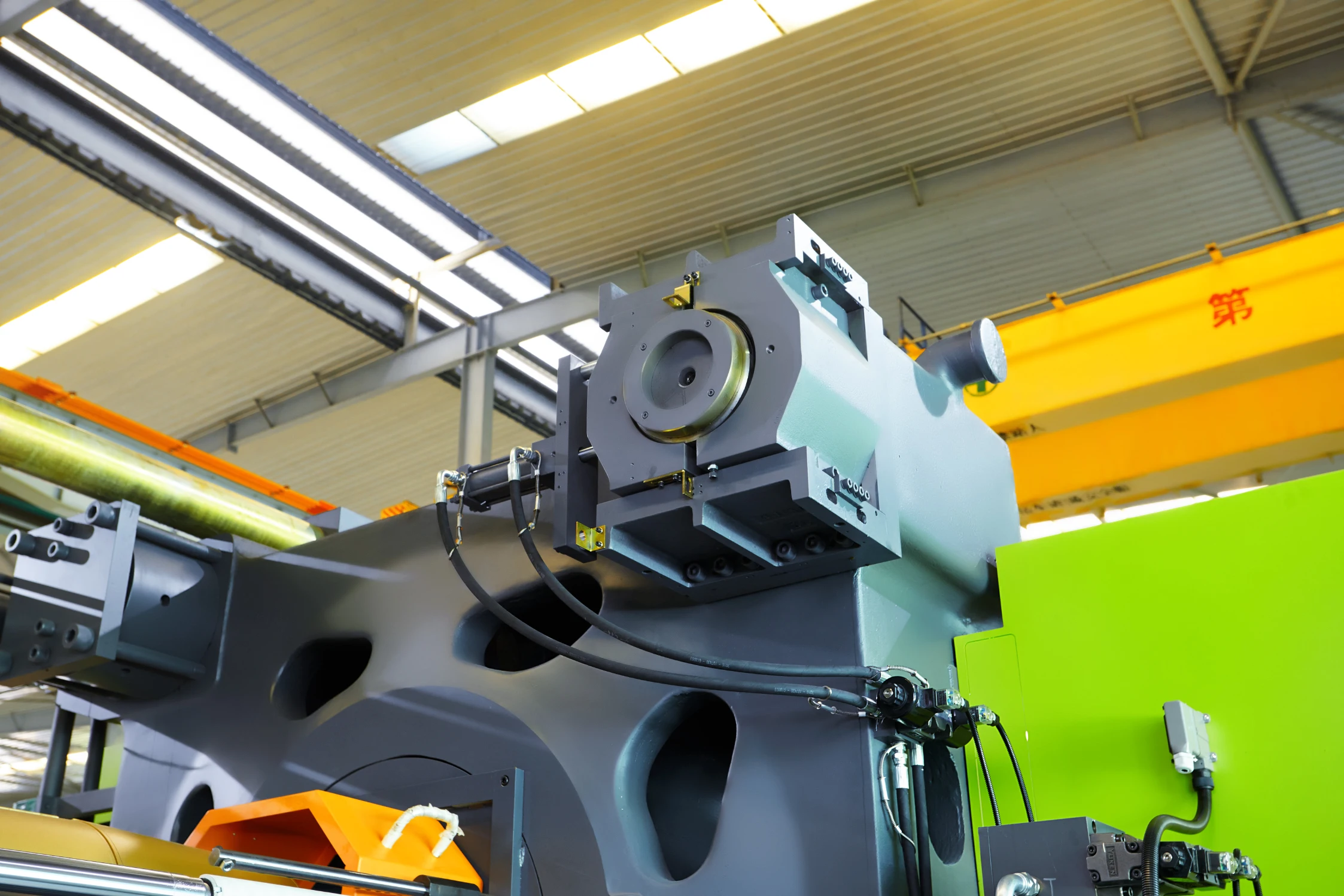

INNOVATED INJECTION STRUCTURE

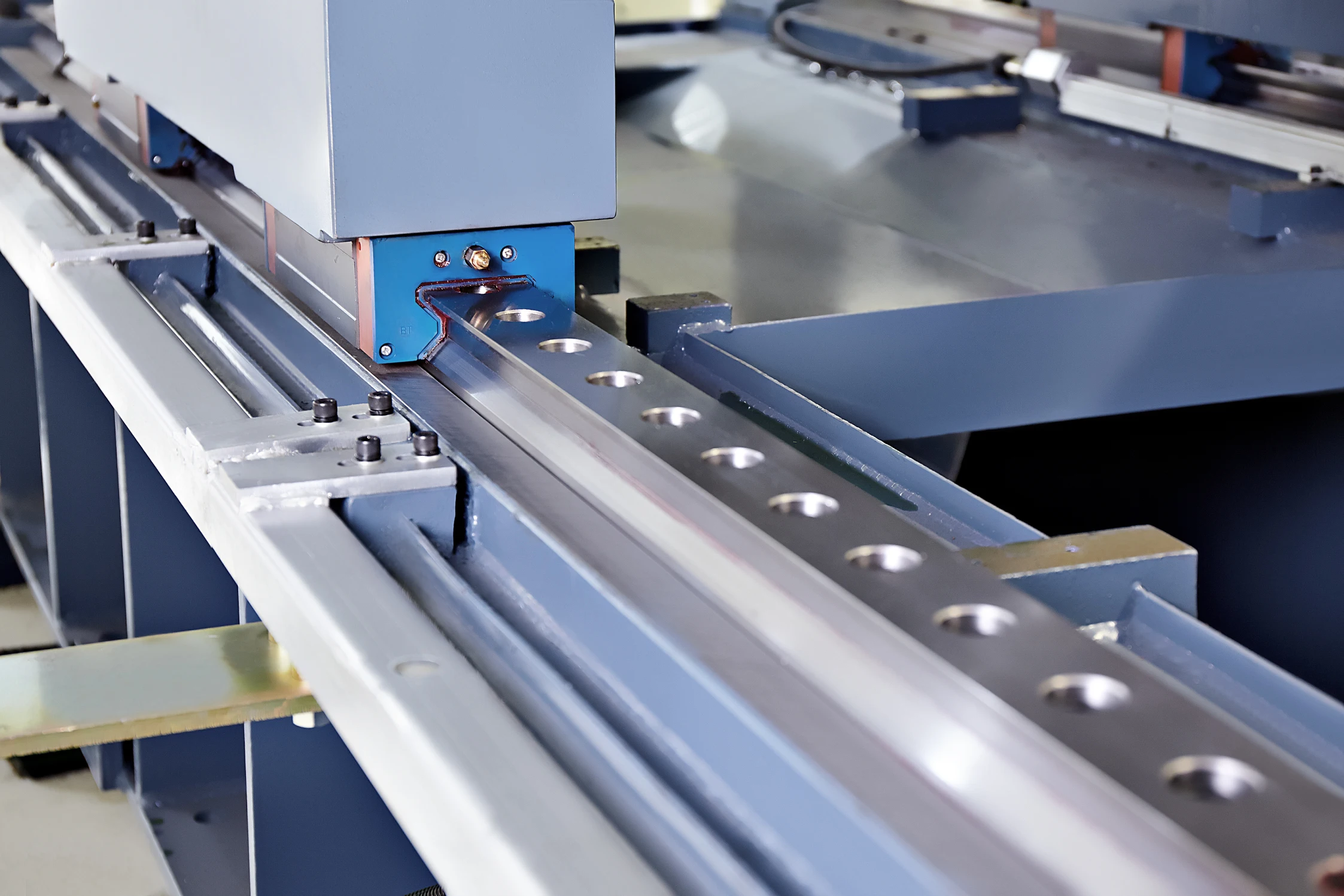

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection
supporting made by one piece casting, is rigid and
compact.
2-Double carriage cylinder insures injection unit better
centering, and movement stable.






                                       Mold platen Drawing


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

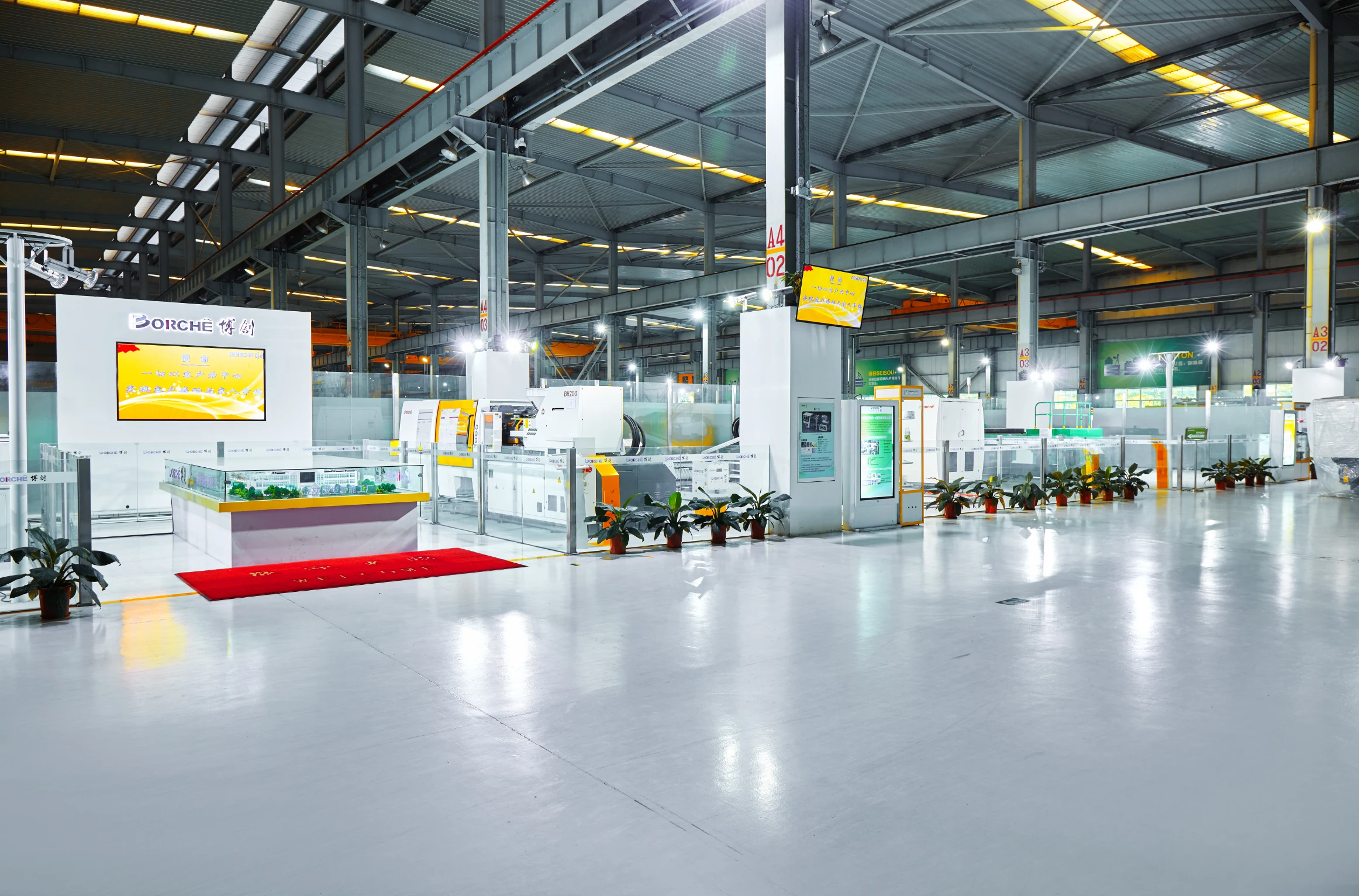

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
710×240×210
\t
Weight
\t
1.9 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
710×240×210
\t
Weight
\t
1.9 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Municipal Engineering & Environmental Protection Industry

Machine Model: BU4000
Molding Technique: Compression Injection Molding
Product: Filter Plate
Size: 2000mm×2000mm×50mm
Weight: 165kg
Raw Material: PP+6%GF


The product is heavy weight and with big projected area,
requires precise dimension and small deformation. Low
MFI sticky compound needs 8000 ton clamping force to make the products under general molding condition. With compression molding it can be realized with 4000ton.
Note: Compression molding is an improved molding
method which can increase flow length ratio, allow
smaller clamping force, lessen internal stresses, and
increase production efficiency.

Auto Parts

Machine Model: BU3300
Molding Technique:
      Charging during mold open
      Core out/Ejection forward during mold open
      Core in/Ejection backward during mold open

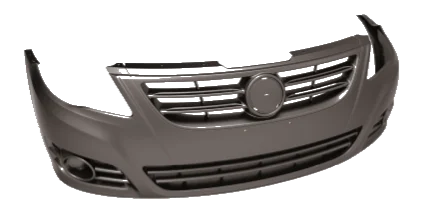

Product: Bumper
Weight: 4.5kg
Material: Modified PP


Adopted servo chraging, BU3300 realized three parallel
movements, lessen dry cycle time. Cycle can be reduced more if mold cooling time less. Servo valve used for
injection increases shot repeatability, meets the high
precision and efficiency requirement of auto part molding.


Household Appliance

Machine Model: BU1200
Molding Technique: Big Mold Opening Stroke
Product: Washing Machine Barrel
Weight: 3.2kg
Material: PP

Think wall and complicated shape pro-duct, needs good plasticizing, high
shot speed and stable injection end
position. Special designed BU1200
can meet all the position requirements of household appliance industry.

New Rural Construction Products

Machine Model: BU2500
Molding Technique: Enlarge Injection Weight
Product: Septic Tank
Weight: 22.5kg
Material: PE

Super large injection unit of Borche
BU2500, and equal force of clamping,
makes the parts molding easily and
efficiently.

Logistics

Machine Model: BU1800
Molding Technique: Deep Cavity
products/High pressure mold open
Product: 250L trash
Weight: 11.5kg
Material: PP/PE

Borce BU machine has super mold
opening stroke, and strong opening
force, which is perfect to make deep
cavity products.
