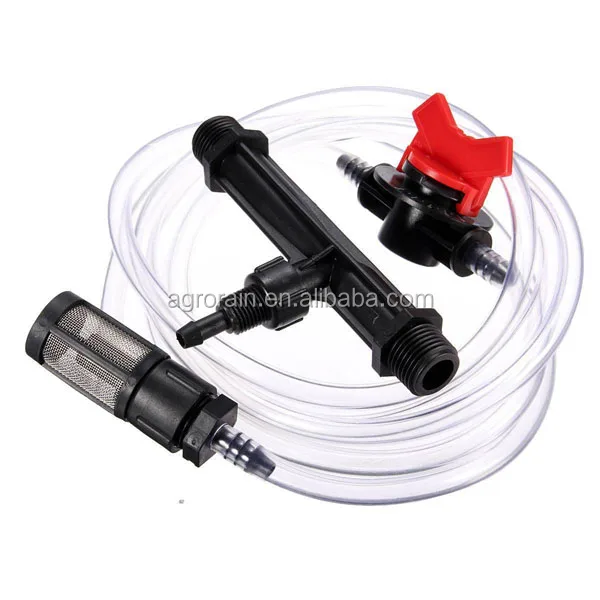

2 inch venturi injector complete set fertilizer mixer VI0250

Product Overview

Description

Product details:

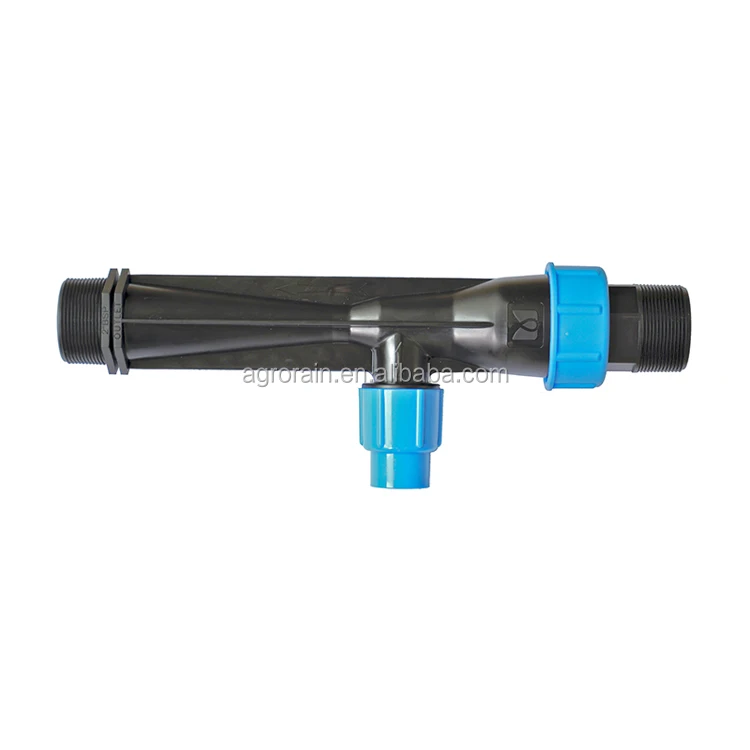

Model	VI0250
Des.	Venturi Injector
Inlet Size	2" BSP or NPT
Flow	11.58- 20m3/h @0.7-9.5bar
Suction Capacity	110 - 1200L/h







A venturi fertilizer injector, water driven by the pressure of the main irrigation pipe line. Excellent chemical resistance to most of the chemicals, highly efficient and compact differential pressure injection device, Economical and low cost option.



Applications:

1. It is important to choose the model size carefully; too large and the unit will not draw the fertilizer at all, too small and you will restrict the flow of the system.

2. If in doubt always choose a smaller size, put it on a bypass assembly which allows you to adjust the flow through the venturi injector and does not restrict the flow as much.



Benefits:

1. Commercial grade one with no moving parts.

2. It works by suction and will draw liquid fertilizer out of almost any container you provide.

3. Can be plumbed on a bypass for less restriction (the preferred method), or directly into a main water line.

4. All sizes have Male Pipe threads on the inlet and outlet, which are easily adapted to hose threads.



FAQ:

What is a Venturi Fertilizer Injectors?

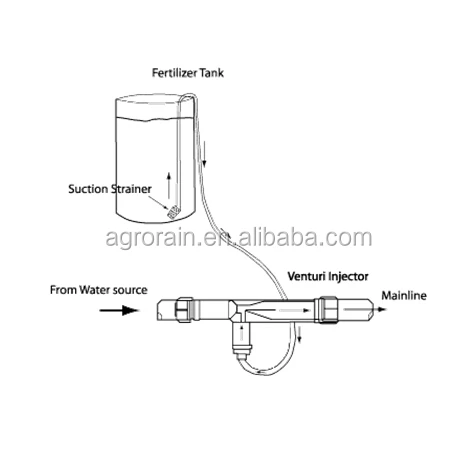

A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.

How to work a Venturi?

Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.

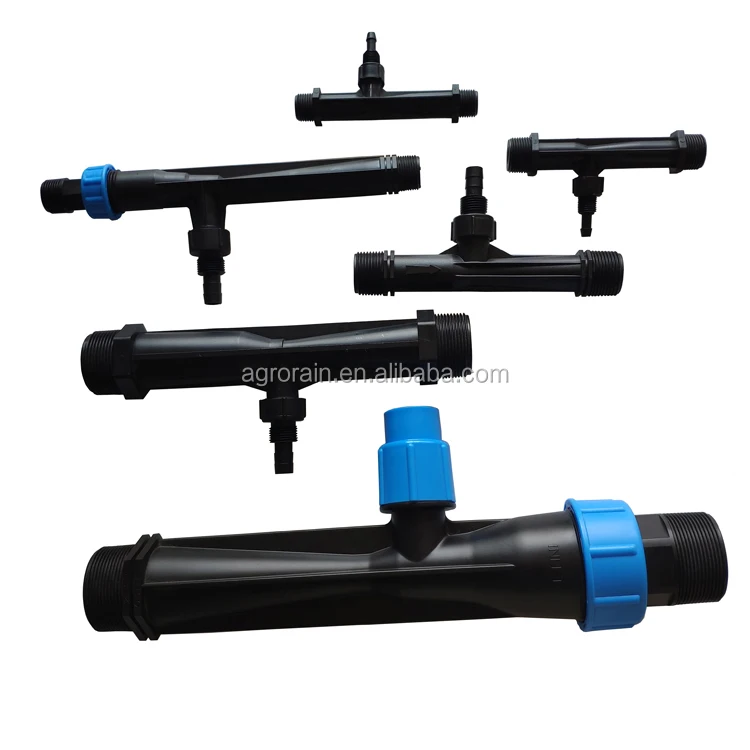

Venturi Family:

Packaging & shipping:







Our service:





Company information:

Agro Rain Irrigation Systems Co., Ltd., one professional irrigation systems manufacturer and distributor in China, offering tailor-made drip irrigation and micro sprinkler irrigation solutions to growers in the world. Irrigation products include drip tapes, drip line, filters, hose, tubing, sprinklers, sprayers, valves, hydraulic control valve, irrigation system kit, and accessories for irrigation systems, which can help grower better manage resources, grow more consistent crops, increase yields. Products are applied in Open Field Crop, Greenhouse Project, Landscape, Mining, Orchard, Nursery, Shade House and so on.
