20L backpack power sprayer with TU 26 engine for agriculture use
- Category: >>>
- Supplier: Kaxifa Plant Protection Machinery (Taizhou) Co. Ltd.
Share on (62151850272):
Product Overview
Description

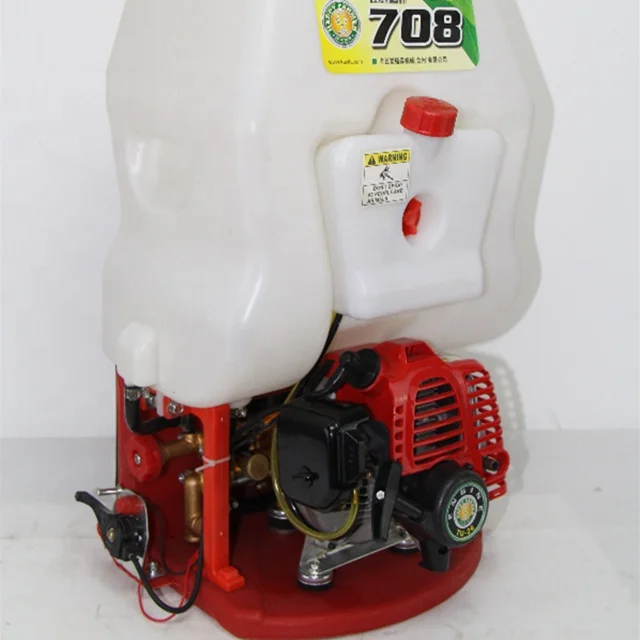

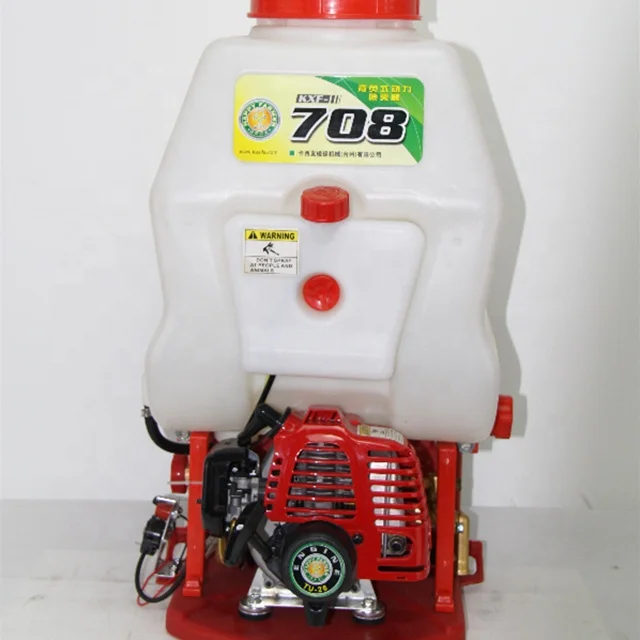

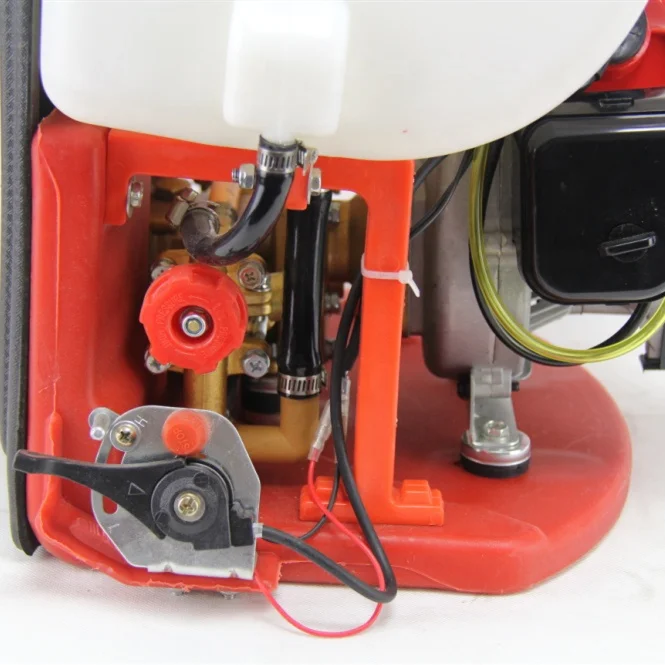

20L Knapsack Power Sprayer KXF-708
Product Description
Engine: TU-26
Rated power: 0.7KW
Rotating:6500R
Displacement: 26cc
Main Features:
simple installation
easy start & operation
high efficiency, low wearing parts
brass/aluminium pump optional
Specifications:
KXF-708 Main technical data | Indicators |
Packing size (cm) | 42*33*65 |
Net weight/ gross weight(kg) | 8.5/9.5 ± 0.5 |
Container Capacity(L) | 20 |
Oil Tank Capacity(L) | 0.9 |
Matched power/power | TU-26 |
Pump | Horizontal gear driving |
Commonly used pressure (MPa) | 1.5-2.5 |
Fuel mixing ratio | 25—30:1 |
Rated Power/ Rotating (kw/r/min) | ≥0.7/6500 |
Output (L/Min) | 8L/Min |
Cylinder | 2(Copper product) |
Plunger | 1Branch (Two-way operation) |
Plunger Diameter (mm) | 18 |
Trip (mm) | 8 |
Diameter of Cylinder (mm) | 33 |
Displacement(cc) | 26 |
Ignition system | Electronic ignition |
Starting system | Pull start type |
Stop mode | A line of short circuit(Button) |
Details:
COMPANY PROFILE :
Located in the coastal area of southeast China of Zhejiang, our company specializes in power sprayer, mist duster sprayer, motor sprayer, electric and manual sprayer, etc. With solid quality, fine craftmanship and good service, our products are exported tovarious countries in South-East Asia, Africa, Europe, etc.
