Heltec 868MHZ 915 MHz WiFI Lora/for Arduino lora SX1276 ESP32 LoraTransmitter Receiver module
- Category: >>>
- Supplier: Chengdu Heltec Automation Technology Co. Ltd.
Share on (62152008367):
Product Overview
Description
Heltec
MCU | ESP32-PICO |
Chip | SX1276 |
Type | LoRa module |
LoRa Module

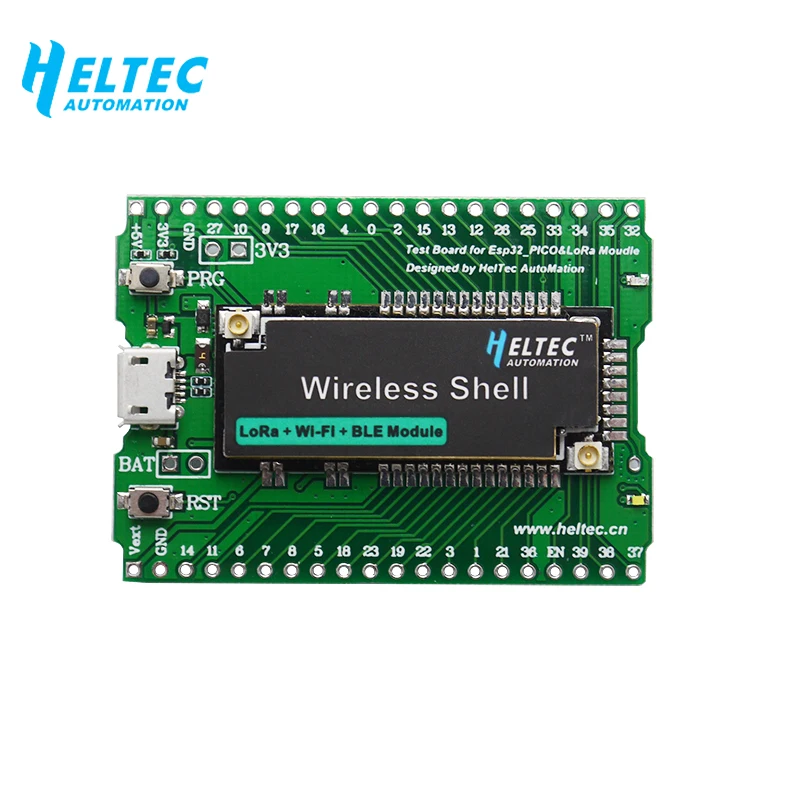

Wireless Shell

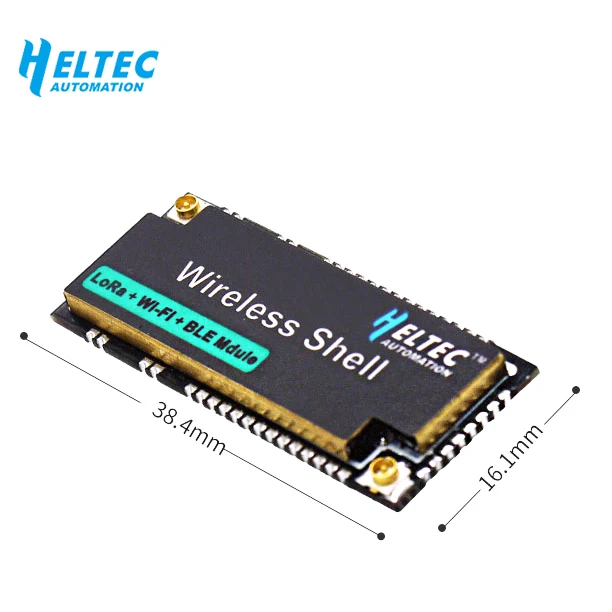

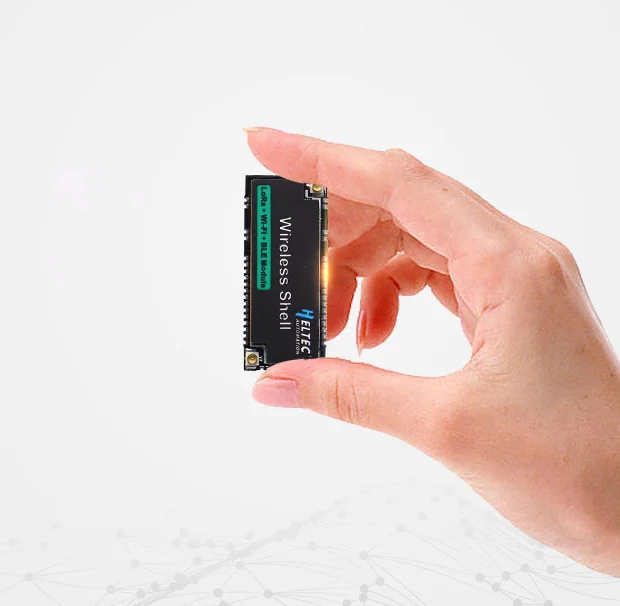

“Wireless Shell” is an ESP32-PICO + SX1276 module. provide Wi-Fi, BLE and LoRa solution. You can regard it is the module version “ Wireless Stick Lite” with better low power feature(10uA in deep sleep). 38.4 x 16.1 x 3.2(mm) size with 1.27mm stamp holes package makes it’s can be assembled into your PCB or products directly.
Classic loT LoRa Module
Network Connection: WiFi LoRa BLE
Network Connection: WiFi LoRa BLE
Four Bands Option:
433 MHz 470-510MHz 868-870MHz 902-928MHz

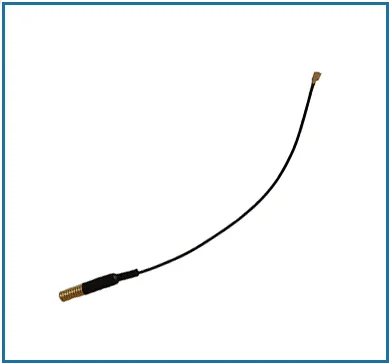

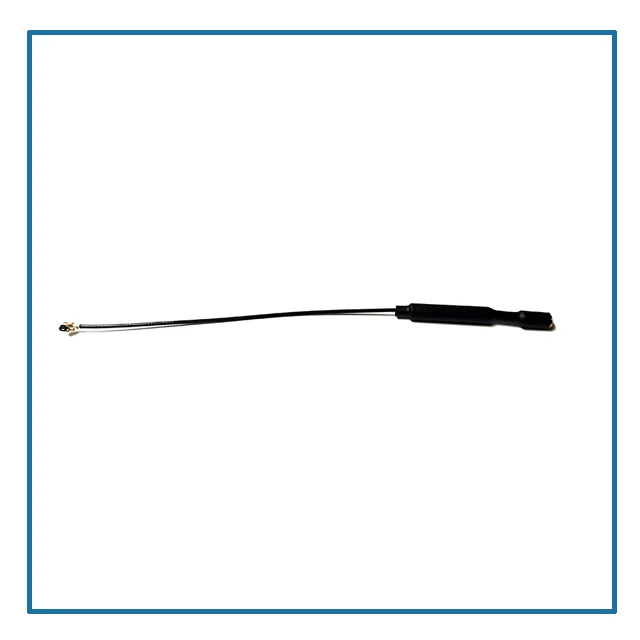

Two kinds of Antenna Option:
Reasonable strucure and stable performance.
High density, strong signal.
Technical Parameters

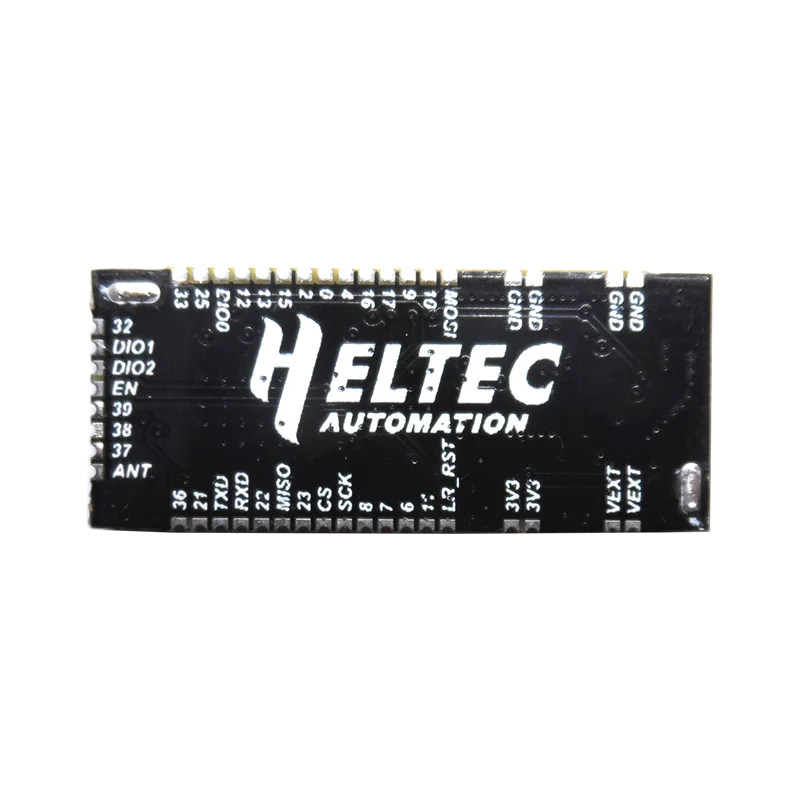

source | parameter |
MCU | ESP32-PICO-D4( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth) |
LoRa chip | SX1276 (868 and 915 version); SX1278 (433 and 470 version) |
LoRa bands | EU_433, CN_470_510, EU_863_870, US_902_928 four bands optional |
LoRa maximum output power | 18dB ± 2dB |
Hardware resources | UART x 3; SPI x 2; I2C x 2; I2S x 1 |
12 – bits ADC; 8 – bits DAC | |
44 general GPIO | |
FLASH | internal 4MB(32M-bits) SPI FLASH |
interface | LoRa antenna (IPEX) x 1; Wi-Fi / BLE antenna (IPEX) x 1 |
Size | 38.4 x 16.1mm |
External device power control（Vext） | √ |
Low power design | deep sleep mode 10uA |
Electrical Characteristics
Electrical characteristics | condition | Minimum | Typical | Maximum |
Power Supply | 3.3V power supply(≥500mA) | 2.7V | 3.3V | 3.5V |
Power consumption(mA) | WIFI scan | 115mA | ||
WIFI AP | 135mA | |||
LoRa 10dB emission | 100mA | |||
LoRa 12dB emission | 105mA | |||
LoRa 15dB emission | 120mA | |||
LoRa 20dB emission | 145mA | |||
Output | External device power control (Vext 3.3V） | 350mA |
``Wireless Shell`` is a module, must work with other PCB boards, it belongs to “Heltec LoRa“ series, with the following features:
》CE Certificate; | ||||||||
》Main control chip ESP32-PICO (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276; | ||||||||
》RF shielding(contain a shield shell) and other protection measures; | ||||||||
》Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket; | ||||||||
》Support the Arduino development environment; | ||||||||
》(Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried on this page); | ||||||||
》With good RF circuit design and basic low-power design (sleep current: 10uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications; | ||||||||
