Fully Automatic Iron Wire Chain Bending Machine
- Category: >>>
- Supplier: Suzhou Hanxin Machinery Equipment Co. Ltd.
Share on (62152152084):
Product Overview
Description
Fully Automatic Steel Wire O Chain Link Bending Making Iron Chain Welding Machine
Product Description
| Model | Wire diameter(mm) | The application of the chain size | Output chain links | Power(kw) | Size of machine(mm) | Net weight(kg) | |
| Inside | Outside length(mm) | ||||||
| length(mm) | |||||||
| CBM3 | 1.5-3 | 14-30 | 4-6 | 50-60 | 0.75 | 1560×880×1550 | 180 |
| CBM4 | 1.5-4.0 | 10-35 | 5-10 | 42-48 | 0.75 | 1080×1180×1480 | 200 |
| CBM6 | 2.0-6.0 | 15-45 | 5-12 | 40-45 | 1.5 | 1270×1270×1540 | 350 |
| CBM8 | 3.0-8.0 | 20-50 | 6-12 | 35-40 | 2.2 | 1300×1100×1450 | 600 |
| CBM10 | 5.0-10 | 35-55 | 10-17 | 30-40 | 3 | 1700×1380×1680 | 1300 |
| CBM12 | 6.0-12 | 42-60 | 14-21 | 25-35 | 4 | 1850×1600×1850 | 1900 |

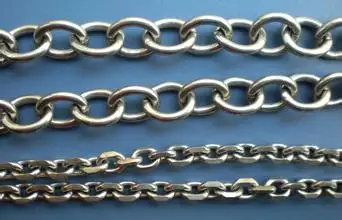

This Steel chain making machine is designed to expertly produce kinds of oval steel chains and small key chain fully automatically. It is suitable for wire size from 1.5 mm up to 4.0 mm.

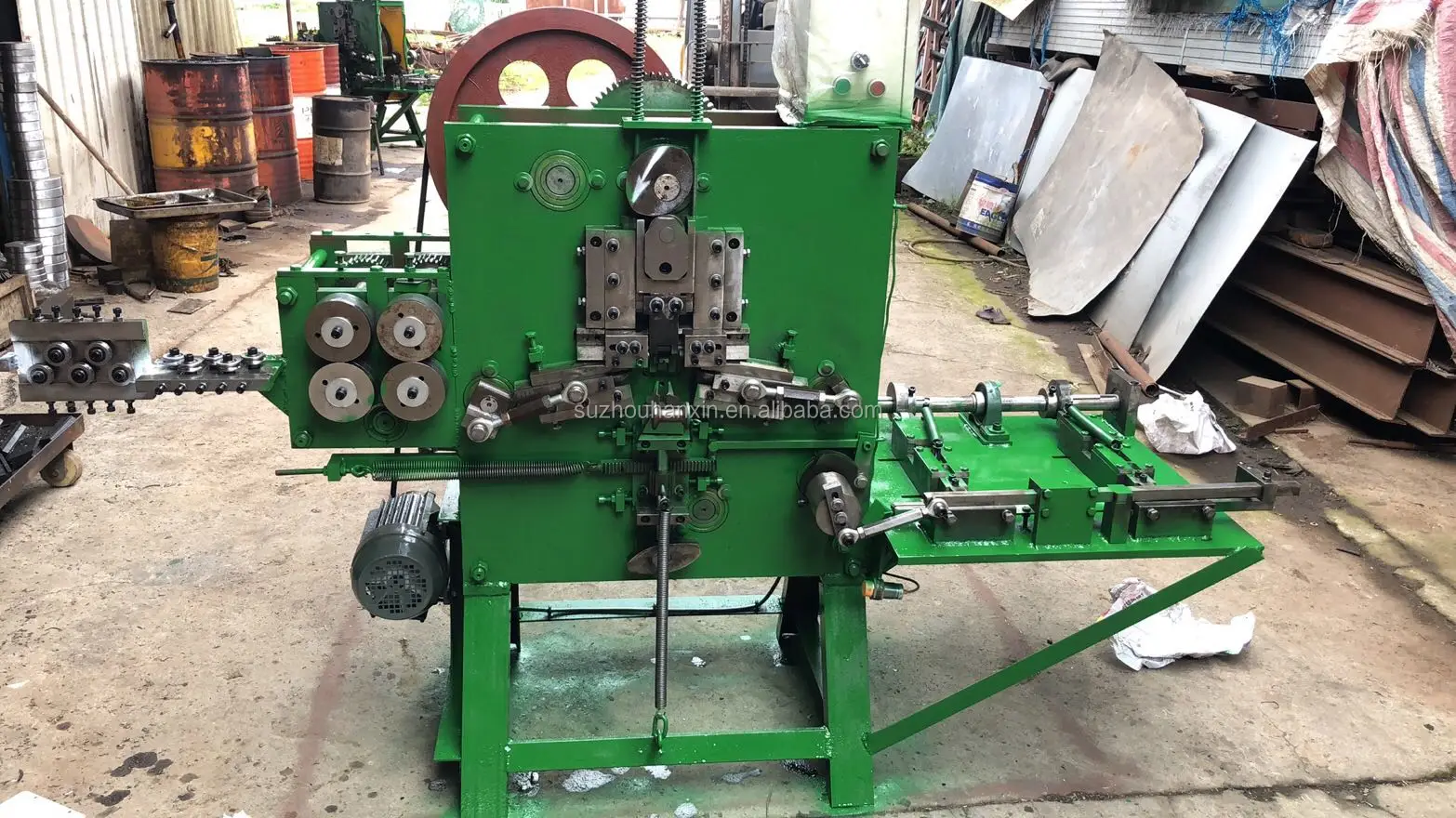

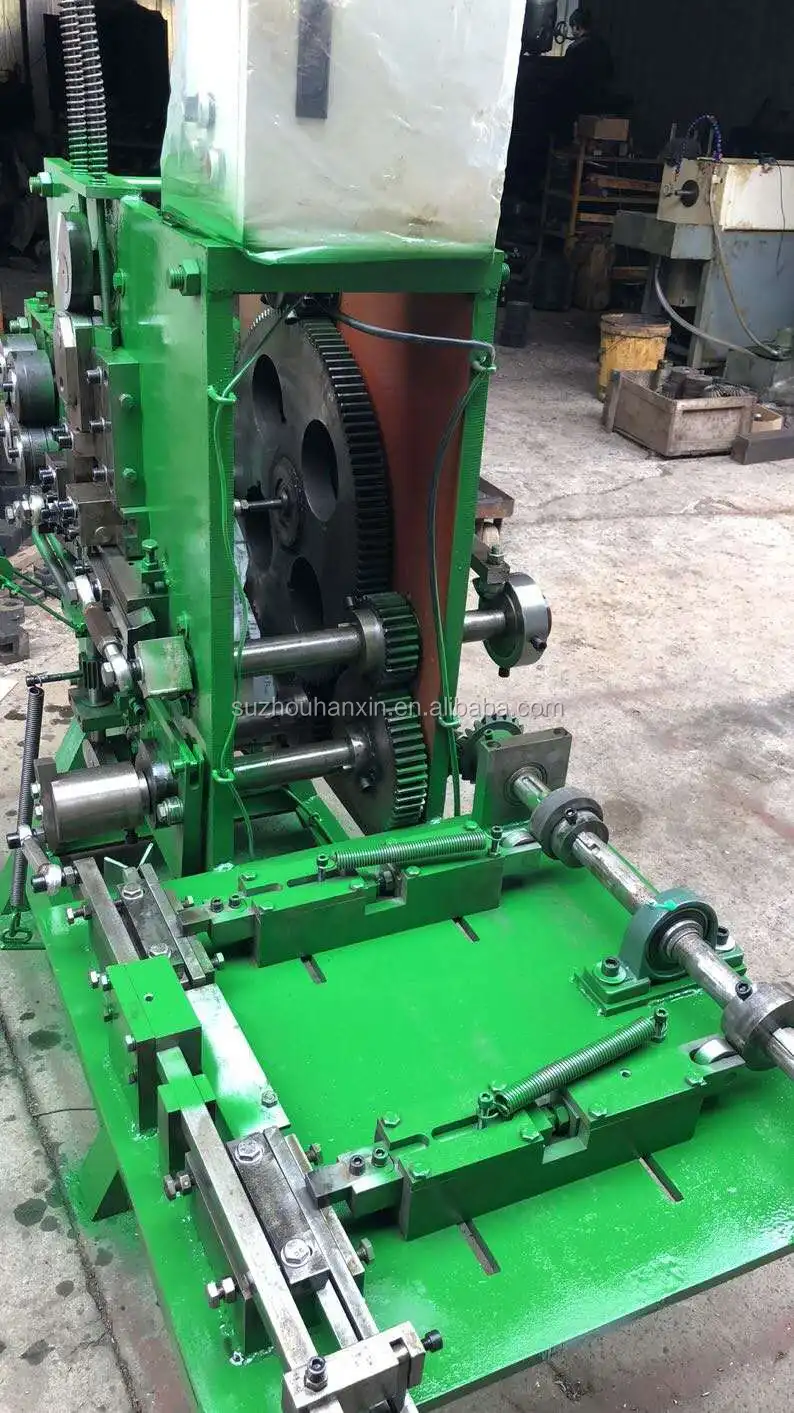

The machine 'GT-CM-4' has adopted mechanical driven system, with inching control, it can produce double hooked chain very fast and cost low consumption.
We also have other chain forming machines for oval chain and circle chain forimng. Please feel free to send your inquiry if they're interesting, Danio at your service anytime, thanks in advance.
