Rotary punching machine
US $55900
Индивидуальная профессиональная машина для производства контейнеров из алюминиевой фольги для одноразовой посуды
- Category: Punching Machines >>>
- Supplier: Shanghai Silver Engineer Industry Co. Ltd.
Share on (62152286423):
Product Overview
Description
Products Description
SEAC-63T | ||||||
Nominal Force | 630KN,C-Type | Stroke Time | 35-75 times/ min. | |||
Stroke(Optional Size ) | 200-260mm | Max. Height of Mould Installation | 450mm | |||
Work Plate Dimension(FBxLR) | 1100x9000mm | Work Plate Design | Separated two sets movable plate with Easy Access | |||
Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size
products. Lower power requested than other old model machines.
Specification:
1. Raw material: Aluminum foil; Thickness: 0.030mm~0.250mm;
Alloy: 8011, 8006, 3003, 3005 etc.;
2. Japan Inverter, PLC and 10inch touch screen control system;
3. Max. Width of Aluminum foil: 880mm;
4. Max. Diameter of Aluminum foil: 1000mm;
5. Core diameter of Aluminum foil: 76/152mm;
6. Working speed: 40-75 times/min;
7. Total Power: 11kw+2kw+2kw+1kw; 4Motor
8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9. Install dimension: 7100*2600*3500mm;
Technical Data:

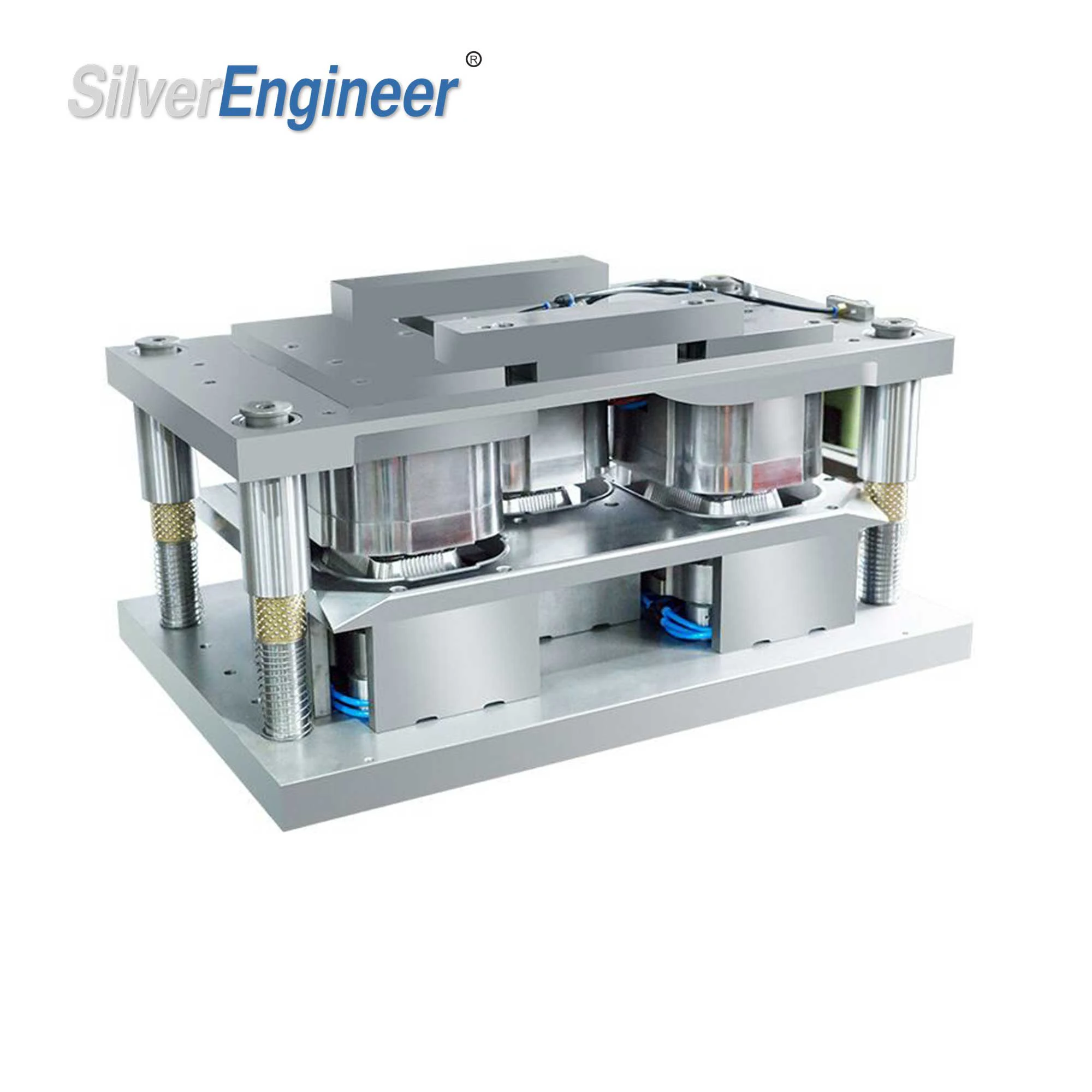

Max. Mould Size: 1100*900*450mm;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Automatic mould height adjust unit: 0.5kw;
Work plate dimension: 1100*200*300mm, separated two sets with Balls;
Tension: complete automatic adjust;
Feeding System: Servo Motor, higher precision and more power;
Auto Stacker: SMC lift for stacking system, top quality;
Power: 4P, 380V or 220V, 50Hz /60Hz;
Net weight: 9,500kg.

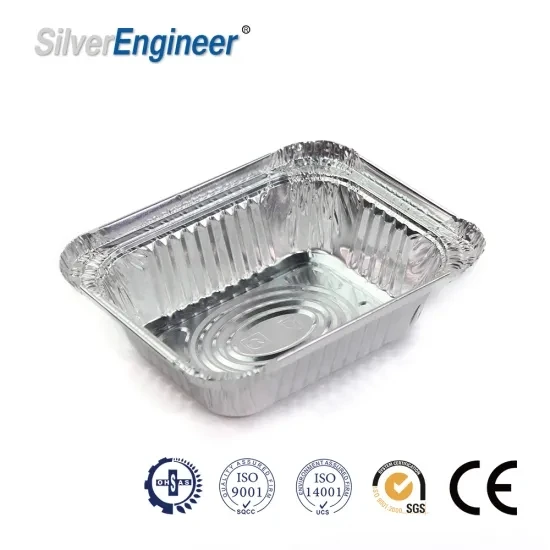

SEAC-63 is the perfect model to produce food packing containers. The container's quality accord to the International Environment
Protect Standard.
The Embossing Feeder is a nice design, it's a amphibious feeder, it could embossing the foil together feeding; And you can use it
only to feeding foil, only need to adjust the emboss unit, so easy!
Auto Stacker will help you upgrade company capacity level and save labour cost!
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size
products. Lower power requested than other old model machines.
Specification:
1. Raw material: Aluminum foil; Thickness: 0.030mm~0.250mm;
Alloy: 8011, 8006, 3003, 3005 etc.;
2. Japan Inverter, PLC and 10inch touch screen control system;
3. Max. Width of Aluminum foil: 880mm;
4. Max. Diameter of Aluminum foil: 1000mm;
5. Core diameter of Aluminum foil: 76/152mm;
6. Working speed: 40-75 times/min;
7. Total Power: 11kw+2kw+2kw+1kw; 4Motor
8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9. Install dimension: 7100*2600*3500mm;
Technical Data:
Max. Mould Size: 1100*900*450mm;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Automatic mould height adjust unit: 0.5kw;
Work plate dimension: 1100*200*300mm, separated two sets with Balls;
Tension: complete automatic adjust;
Feeding System: Servo Motor, higher precision and more power;
Auto Stacker: SMC lift for stacking system, top quality;
Power: 4P, 380V or 220V, 50Hz /60Hz;
Net weight: 9,500kg.
SEAC-63 is the perfect model to produce food packing containers. The container's quality accord to the International Environment
Protect Standard.
The Embossing Feeder is a nice design, it's a amphibious feeder, it could embossing the foil together feeding; And you can use it
only to feeding foil, only need to adjust the emboss unit, so easy!
Auto Stacker will help you upgrade company capacity level and save labour cost!
FAQ
Q:Are you manufacturer?
A:Silver Engineer established in 2007 and in leading place in Aluminum foil container industry.
Q: Do you accept customized orders?
A: Yes, you send your drawings, we provide you with excellent designed products.
About any further detail, please feel free to contact us.
Q: Is the aluminium foil container safe, any taste, clean?
A: Yes, aluminum foil container high temperature 300 degrees, and be used in traditional Oven or Microwave oven.we use aluminum
foil food grade aluminum foil, stable performance, non-toxic, safe and reliable.
Q: Is the aluminum foil container easy to break ?
A: Our aluminum foil container are well designed in structure, 20% of extra endurance compare to normal design.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on
your side if you'd like to have our samples.
A:Silver Engineer established in 2007 and in leading place in Aluminum foil container industry.
Q: Do you accept customized orders?
A: Yes, you send your drawings, we provide you with excellent designed products.
About any further detail, please feel free to contact us.
Q: Is the aluminium foil container safe, any taste, clean?
A: Yes, aluminum foil container high temperature 300 degrees, and be used in traditional Oven or Microwave oven.we use aluminum
foil food grade aluminum foil, stable performance, non-toxic, safe and reliable.
Q: Is the aluminum foil container easy to break ?
A: Our aluminum foil container are well designed in structure, 20% of extra endurance compare to normal design.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on
your side if you'd like to have our samples.
