Customized IP66 stainless steel EJB Series explosion proof control station and Junction box with CNEx ATEx IECEx certificate

Product Overview

Description

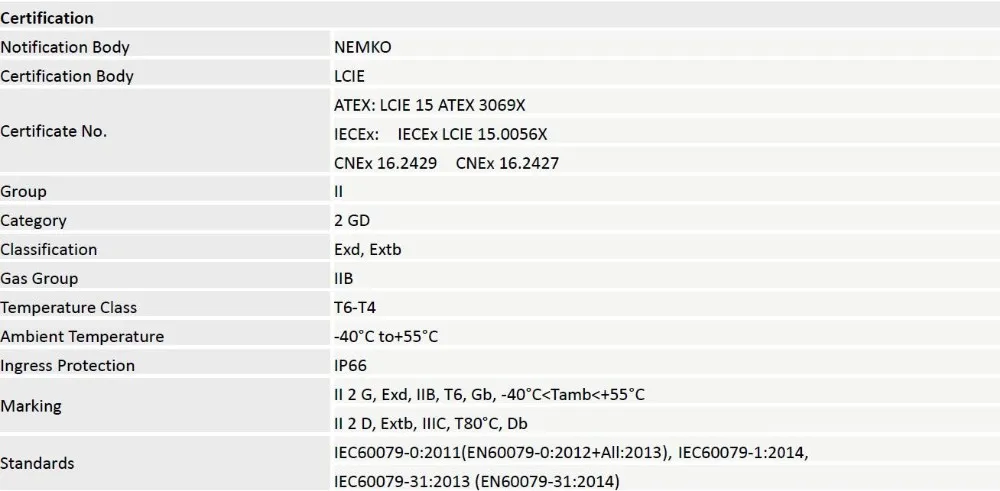

    Our certificates are true and effective. Please contact us to get more information!



The enclosures EJB serie are normally installed in the industrial plants, with potential hazardous atmospheres of gases and combustible dusts, and therefore classified as Zone 1 - 2 - 21 -22. These enclosures are primarily used with the function of:
Enclosures for terminals and bus-bars.
Enclosures for fuses, trasformers, ballast and other electrical equipment with indipendent functionality.
Control stations and monitoring units.
Distribution boards for power and lighting systems.
Motor starters in variuos configurations.





Technical Parameter

Rated values are maximum values, the actual electrical values are determined by mounted electrical apparatus.

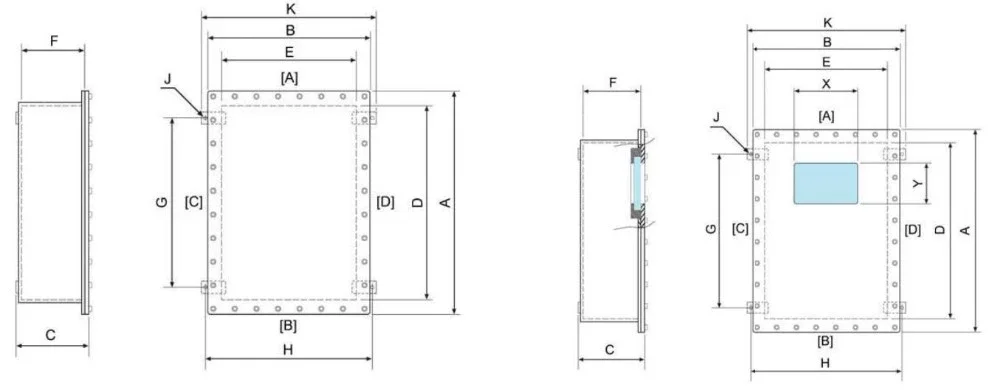

A - Maximum external dimension B - Maximum external dimension
C - C - Maximum external dimension, depth D - Internal dimension
E - Internal dimension F - Internal depth
G - Fixing holes center H - Fixing holes center
J - Fixing holes diameter
K - Maximum external dimension with mounting bracket
X - Window dimension
Y - Window dimension [A] ... [D] - Entry faces





Enclosure sizes and Maximum power



The junction boxes & control stations may also be manufactured to intermediate sizes. This assumes that anygiven dimension is not larger than the respective dimension of the largest enclosure or smaller than therespective dimension of the smallest enclosure. The power rating applied to a junction box of intermediate size isthat of the next smallest enclosure.
The terminal and components may be used in specified combinations subject to the calculation of maximumdissipated power and the conditions of certification listed. The maximum dissipated power for each enclosure isdetailed above.
The enclosures can be drilled and taped with the maximum size and maximum number of holes as specified in themanufacturer documents for the use with separately certified cable glands or blanking plugs.
Windows
According to the client request, in line with the maximum available dimensions, they are suitable a standardwindows for the various typologies of enclosures, windows for the most varied uses what visualization instruments,keyboard type "Touch screen".
X:80mm-250mm
Y:75mm-200mm
T=10mm



Order Specifications Table

 Please refer to the below table for ordering. If you need more information, please contact our sales representativefor assistance.

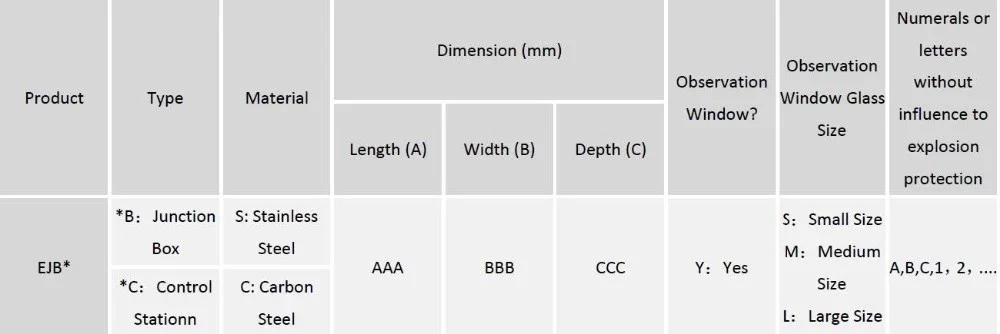

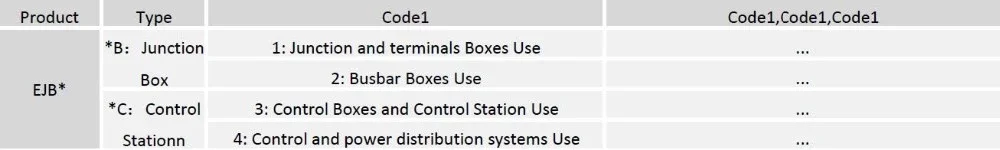

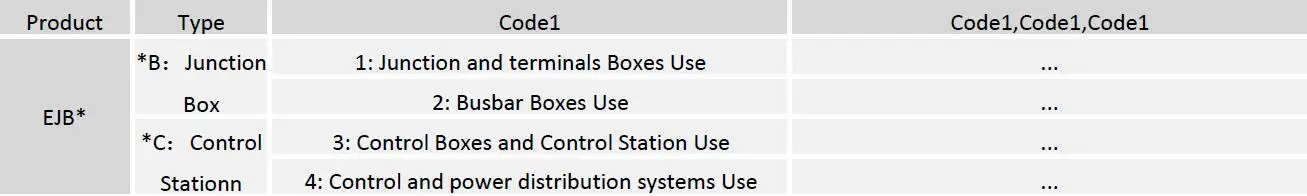

Ordering Table



Numerals or letters without influence to explosion protectionProduct Type
