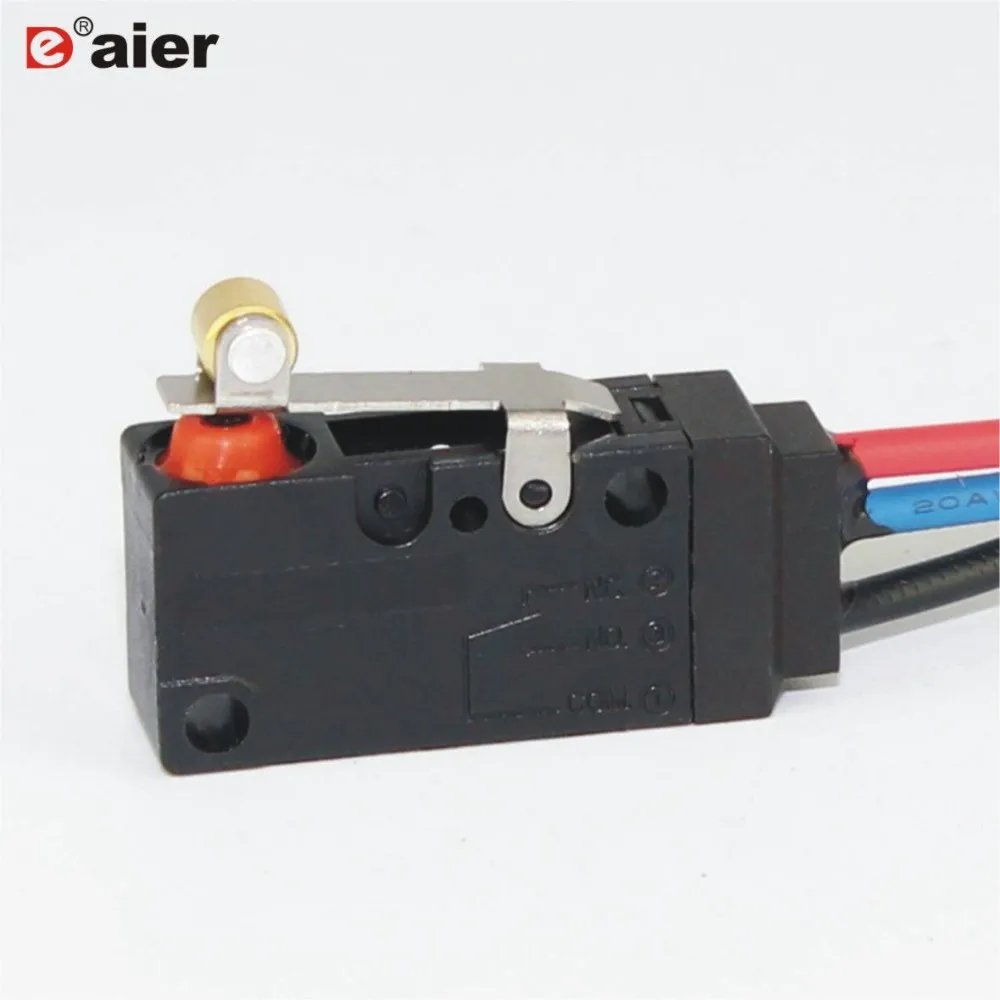

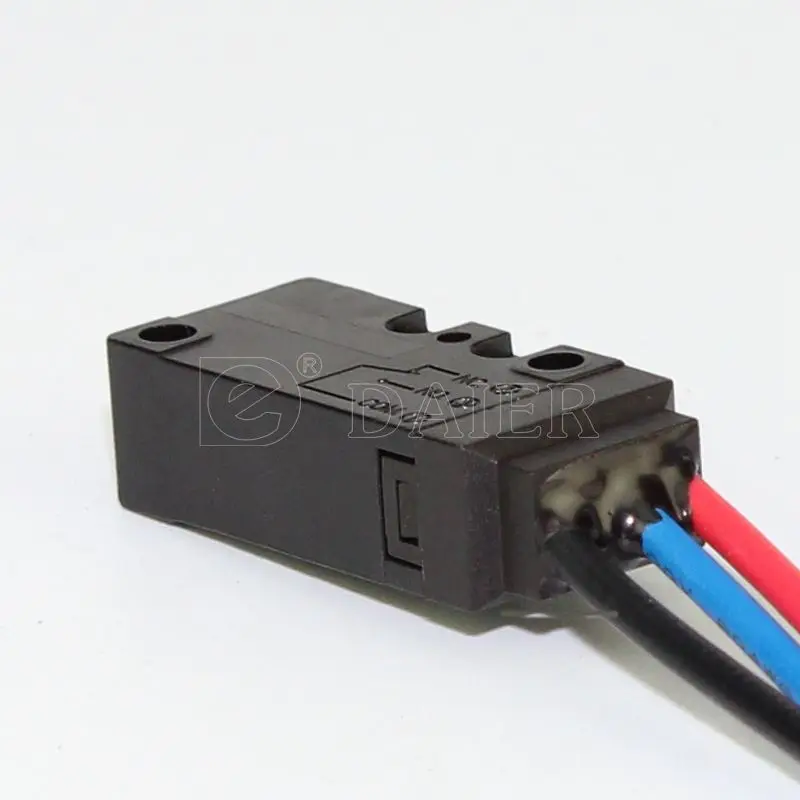

200mm Wire Lead Sealed 5A 250V Roller Lever Limit Micro Switch
200mm Wire Lead Sealed 5A 250V Roller Lever Limit Micro Switch
200mm Wire Lead Sealed 5A 250V Roller Lever Limit Micro Switch

200mm Wire Lead Sealed 5A 250V Roller Lever Limit Micro Switch

Share on (62152673532):


Price:RUB 184.03

Quantity:


Product Overview

Description

Product Description
Item
200mm Wire Lead Sealed 5A 250V Roller Lever Limit Micro Switch
Rating
5A 250VAC
Circuit
SPDT   microswitch button
Housing Color
Black
Actuator Forms
0:No Lever
A1/1:Short Lever
A2/2:Long Lever
A3/3:Middle Lever
A4/4:Short Roller
A5/5:Long Roller
A6/6:Arc Lever
Operating Force
050:0.5N
100:1N
150:1.5N
200:2N
300:3N
Note:If it is not standard operating force,indicate with the upper limit.
Electrical life
>10000 Cycles

WS2 Series Micro Switch:

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.


Mounting options include vertical, right angle, PCB and snap-in mounting.


They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
