1) With Germany EOT-3 oscillating knife, can cutting and engraving on different materials such as MDF, acrylic, wood, PVC etc. .
2) Equipped with 8 tools carousel type tools magazines, save much labor time, high efficiency working for wood furniture field.
3) HSD ATC air cooling spindle with vertical and horizontal drilling heads, help to drill holes up and down, punch holes left and right, punch holes before and after, it has saw, can cut wood over 80mm, meet your various needs.
4) All the working area and specifications can be customized according to your request.
Technical parameters:
Description
Parameter
X,Y,Z Working Area
1300*2500*300mm

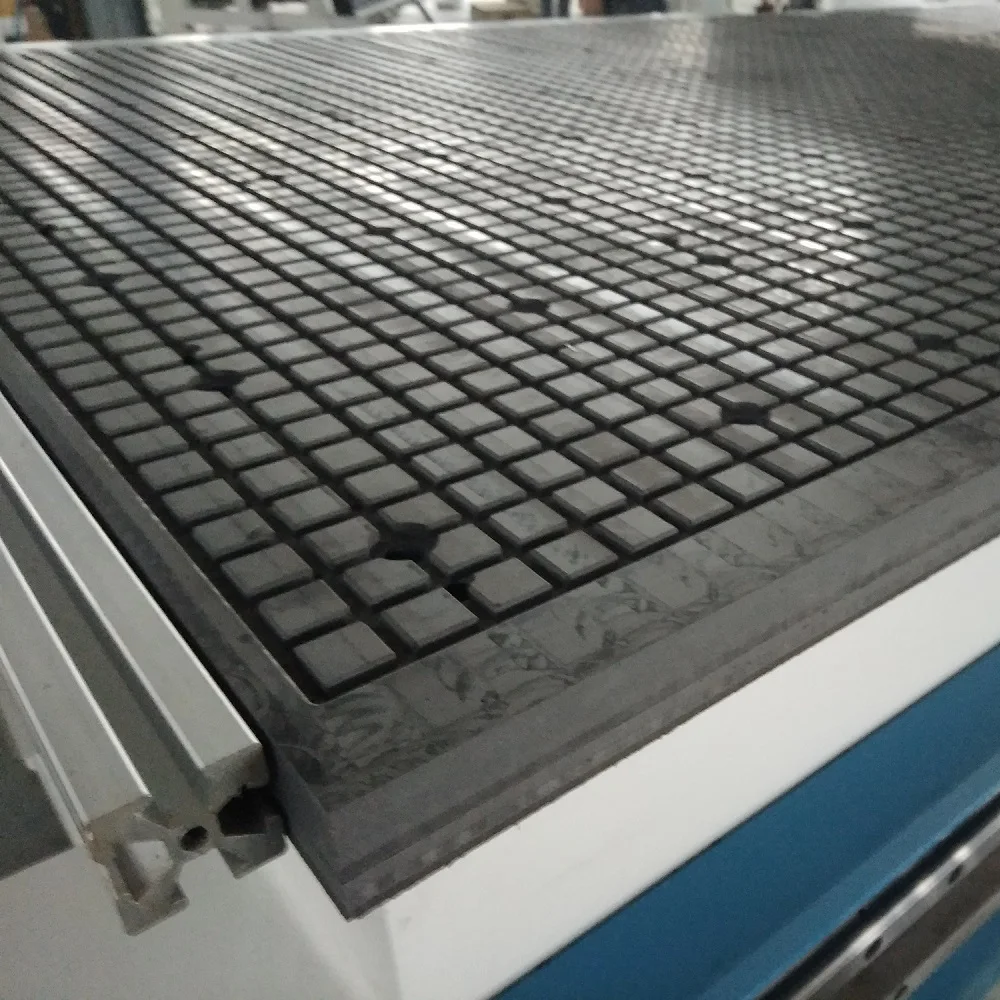

Table Surface
Full vacuum working table

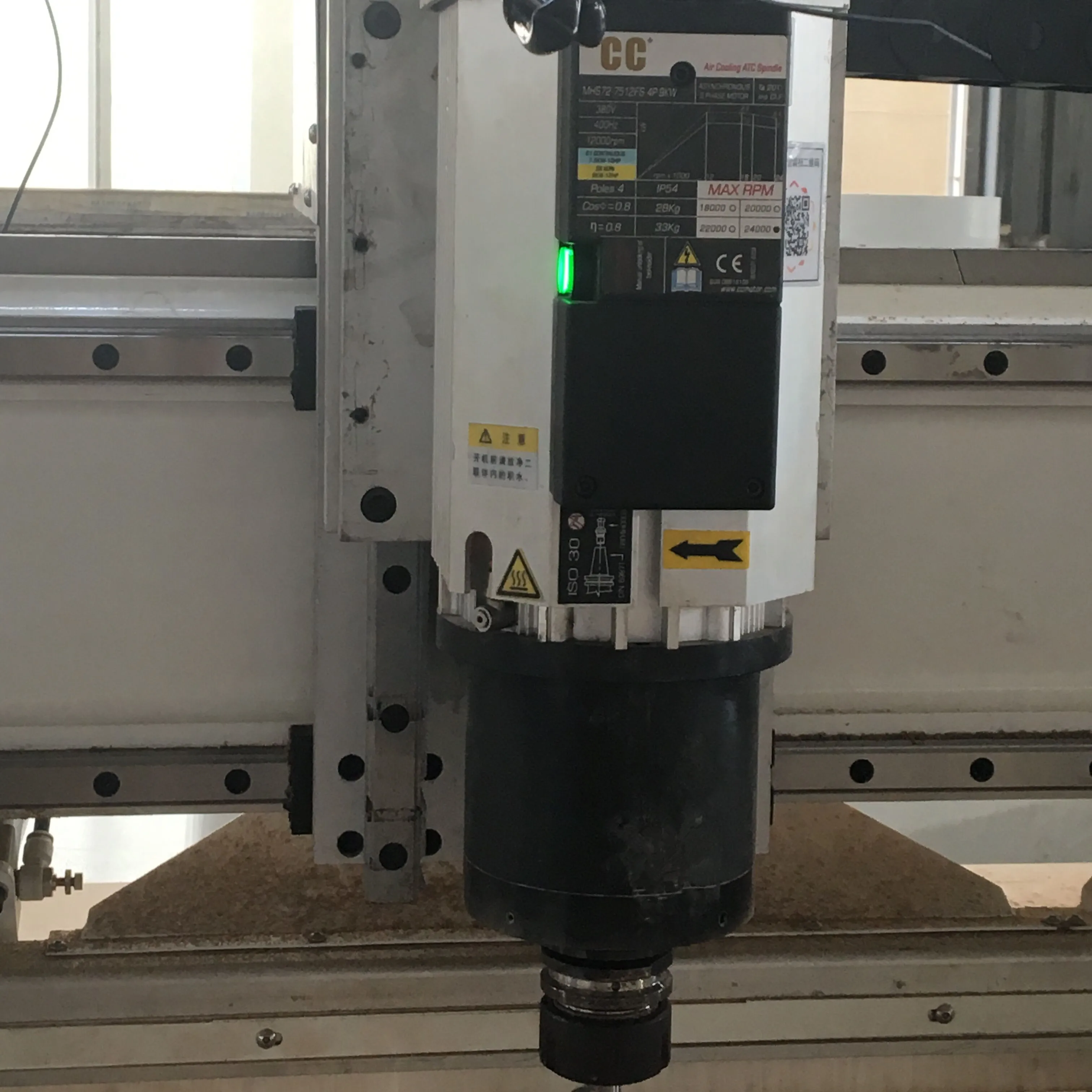

Spindle Power
9.6kw Italy HSD ATC air cooling spindle
Spindle Speed
0-24000RPM
Drive and Motor
850w Japan Yaskawa servo motor and 1000w driver
Working Voltage
380v, 3ph, 50hz
Command Language
G Code
XY axis
K&T Helical rack gears transmission on XY axis
Linear guide
Taiwan linear guide rails
Taiwan TBI ball screw transmission
Operating System
Syntec 6MB control system with MPG handwheel
Lubrication system
1.5L Auo Lubrication system
Inverter
11kw Taiwan Delta inverter
Dust collector
1.5kw new type double bag dust collector
Oscillating knife
Germany EOT-3 oscillating knife
Tool Sensor
8 carousel tool magazines with ISO30 tool holder
Samples of wood cnc router:
Company Information
Packaging & Shipping
FAQ
Q1: I need a cnc router, can you give me some suggestions?
A1:Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q2: can I process round /cylinder workpiece such as chair legs ?
A2:Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials.
Q3: Are you a factory or trading company?
A3:We are the manufacturer and we have more than 10 years factory experience.As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q4: This is my first time buy the machine, how to operate it?
A4:We have manual and operate video to teach you how to operate, any problem you can contact with us and we will teach you on line.
Q5: How should I pay for my order ? what is the procession of this purchase ?
A5:You can do 30% prepayment at first, then we will start to make production. When the machine is ready, we will take pictures to you, and then you can arrange the balance.
