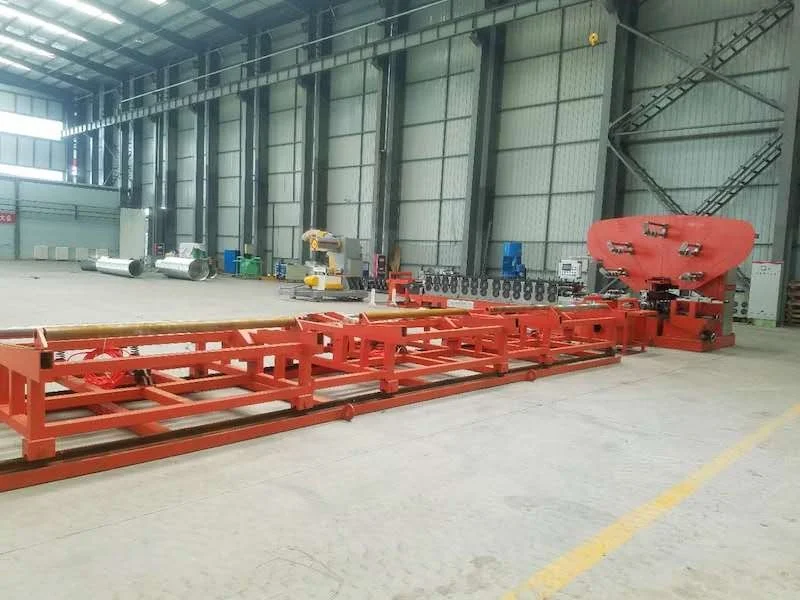

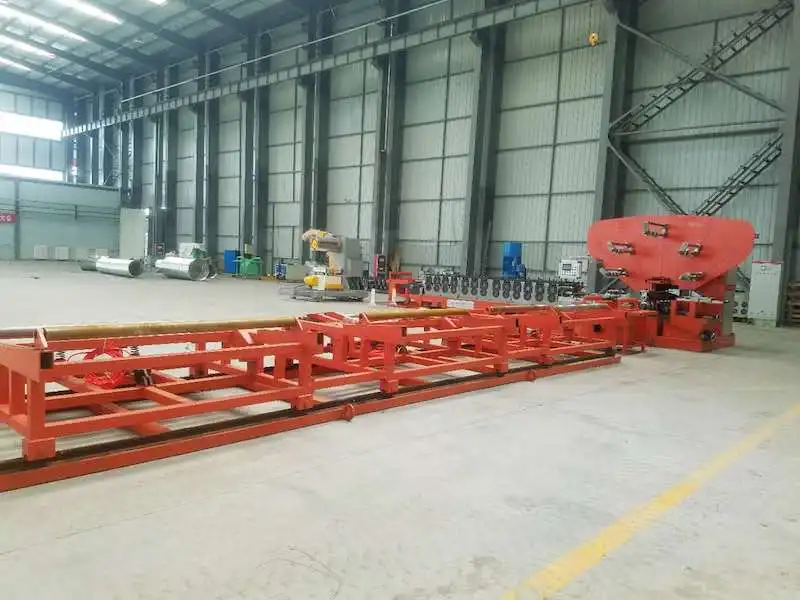

CORRUGATED STEEL PIPE MANUFACTURE LINE is a main line to produce helical corrugated steel pipe with continuous lock-seam to provide customers with the strongest and most hydraulically efficient pipe available. The available diameter ranges from φ300mm to φ3600mm and the wall thickness from 1.6mm to 4.5mm, max length 12m. It shears particular length by auto pipe cutting system according to requirement. Remote operation control is available with easy control. In addition, there are special functions such as diagnosis, programmable logic, data save and working automatically.
COMPONENTS DESCRIPTION
HYDRAULIC DECOILER
Hydraulic decoiler for holding the coil material sheet and for feeding the material into the gorrugated roller forming machine. Maximum loading weight 10T
CORRUGATE ROLL FORMING MACHINE
Corrugrate roll forming machine for feeding of sheet material, through the sections of rollers to form the corrugate sheet, maximum forming no. 9 waves.Adopt separate frame, the base adopts welded structure
Roll forming stands wall material: QT470. Main shaft material: 40Cr;
Rollers material: Cr15 with quenching and polishing treatment, hardness HRC58-62
MOVABLEPLATFORM
Movable platform for changing the feeding direction of material sheet into the spiral forming machine, in this way the corrugate wave will be changed with degrees according to the change of feeding angle.

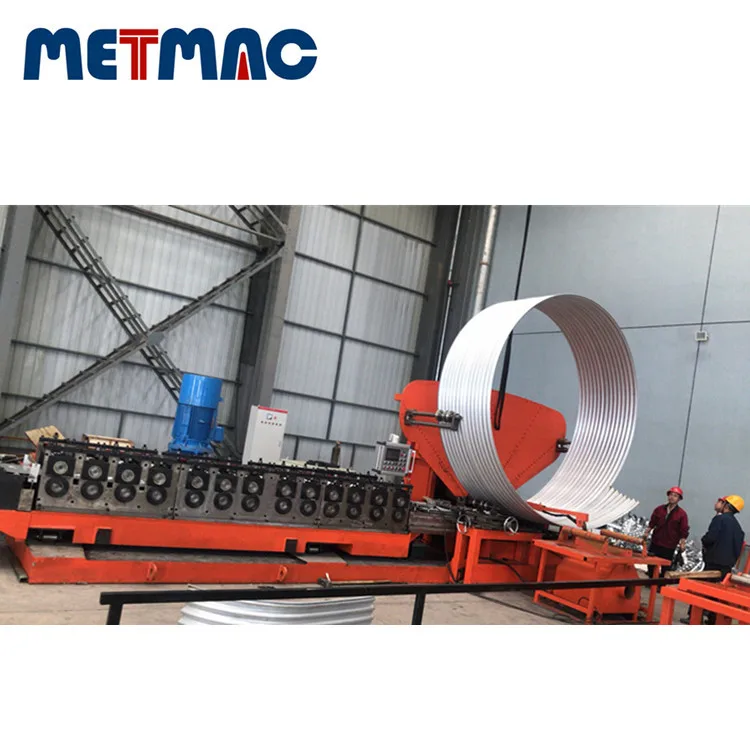

SPIRAL FORMING MACHINE
This part is for spiral forming from steel sheet corrugated to spiral pipe, various sets of forming rollers pinching the corrugate sheet to realize the working process.
Specifications
WORKING MATERIAL: COLD STEEL SHEET, GALVANIZED SHEET
MATERIAL THICKNESS: 1.6-3.0mm
MATERIAL WIDTH: 698mm
MAXIMUM GORRUGATED NO.: 9
MAXIMUM PRODUCING LENGTH: 12m
DECOILER: MAXIMUM 10T
WORKING SPEED: 0-15 m/min
MAIN POWER:120KW
DRIVE MOTOR POWER:55KW
VOLTAGE: 380V
FREQUENCY: 50/60HZ
CUTTING: PLASMA CUTTING

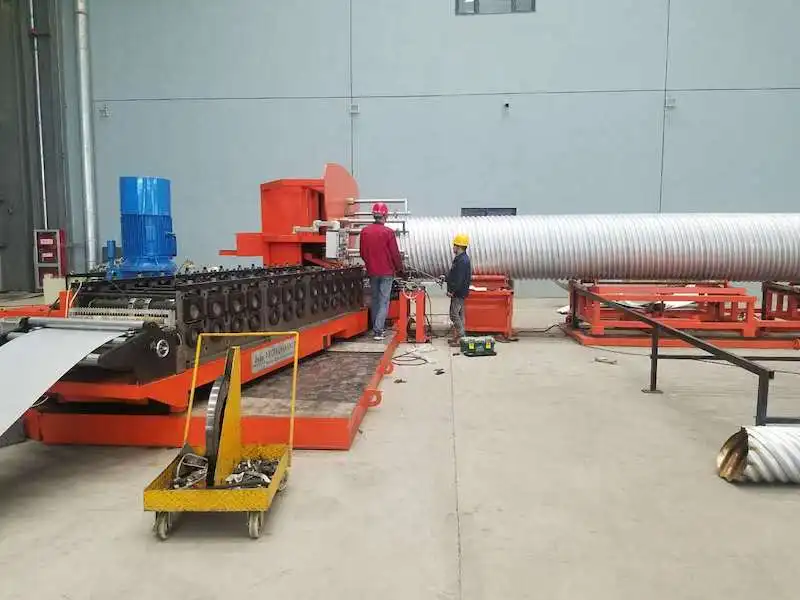

Customer's factories

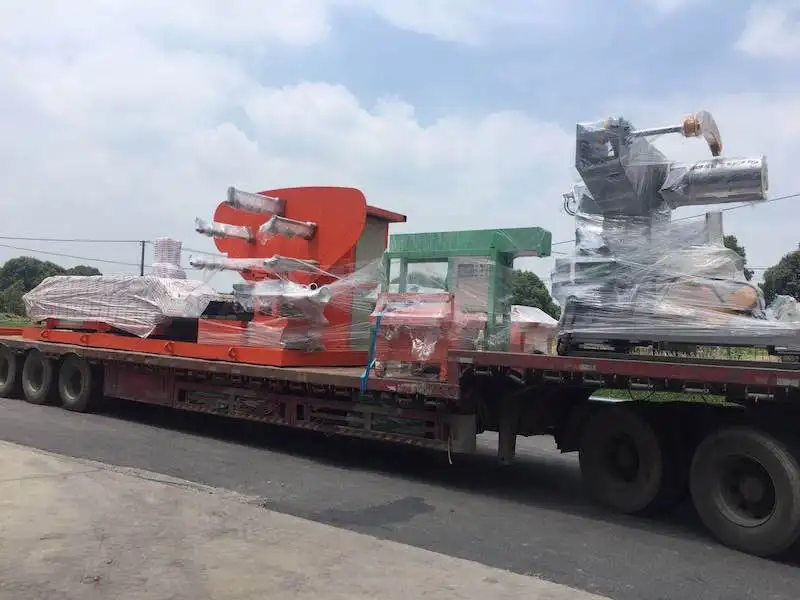

Packaging & Shipping

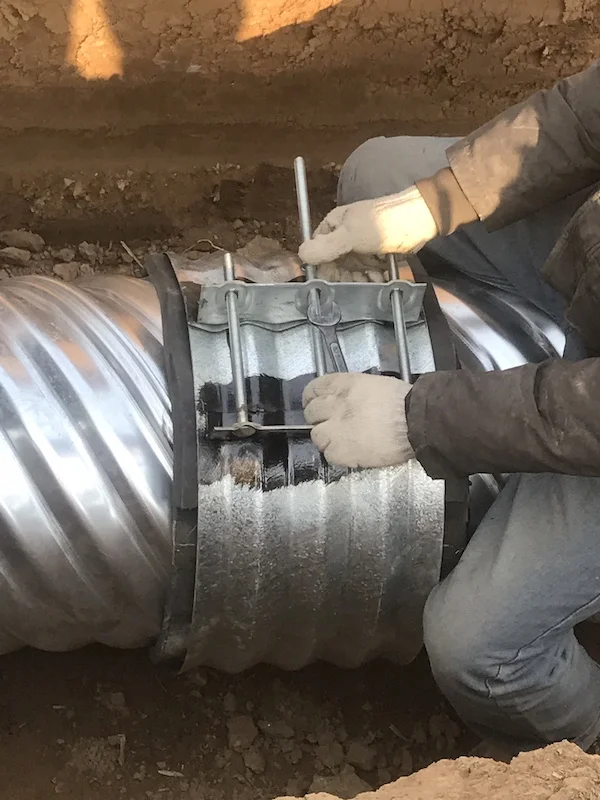

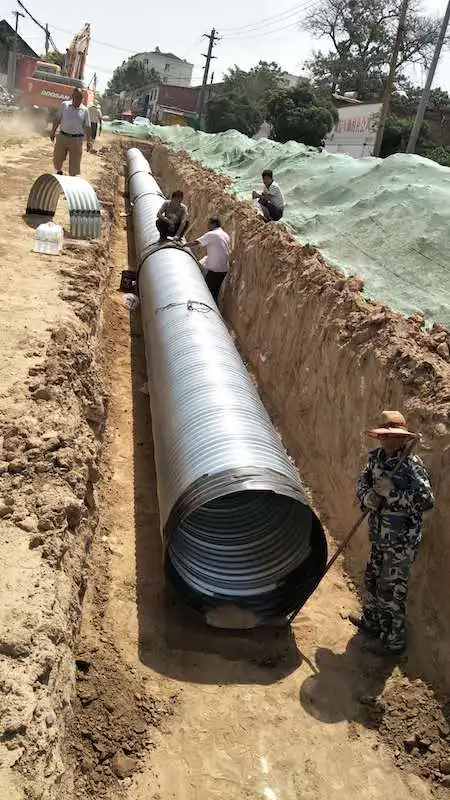

With Customers
Certifications
FAQ
1. How to get a accurate quotation from us?
Provide us the detail of the material such as metal thickness and width.
2. What’s the shipping cost from China to your country? We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB. Payment terms: 30% TT paid in advance, the balance of 70% before the shipment. Minimum order quantity: 1 set, FOB HUANGPU, CHINA. Delivery time :7 days after receipt of formal order and 30% deposit. Warranty:12 months.
4. What’s the package? Fumigation-free plywood case or without package.
5. What about commissioning service? We can offer commissioning service, the buyer need to afford air tickets.
6. What’s policy for guarantee and broken parts? Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
