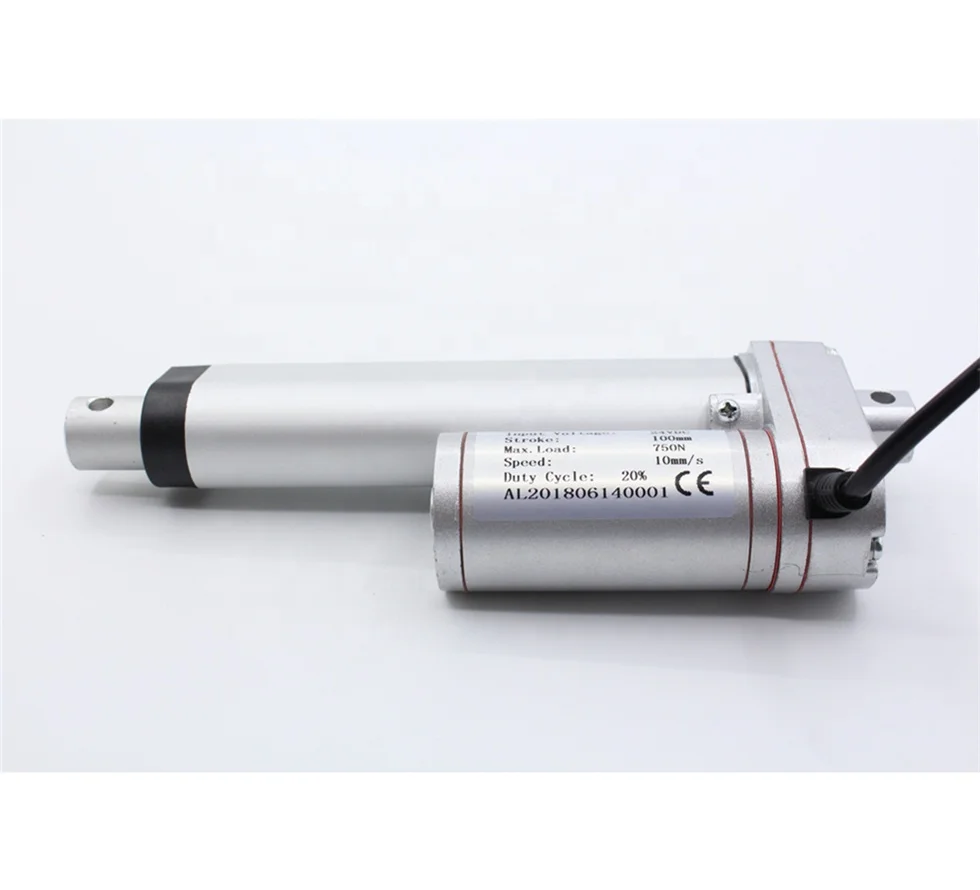

3.Standard Stroke: 10/30/50/100/150/200/250/300 mm,
4. special stroke are available according to customer‘s requirement. 5.Speed: 4-30mm/s 6.Type Of Duty: S2-10min 7.Operation Temperature: -26°C (-14.8F) to +65°C (149F) 8.Standard protection class: IP 65 9.Limit Switches: Inner 10.Min. Install Dimension: S+105mm (Option) 11.Availability in Black and White housing

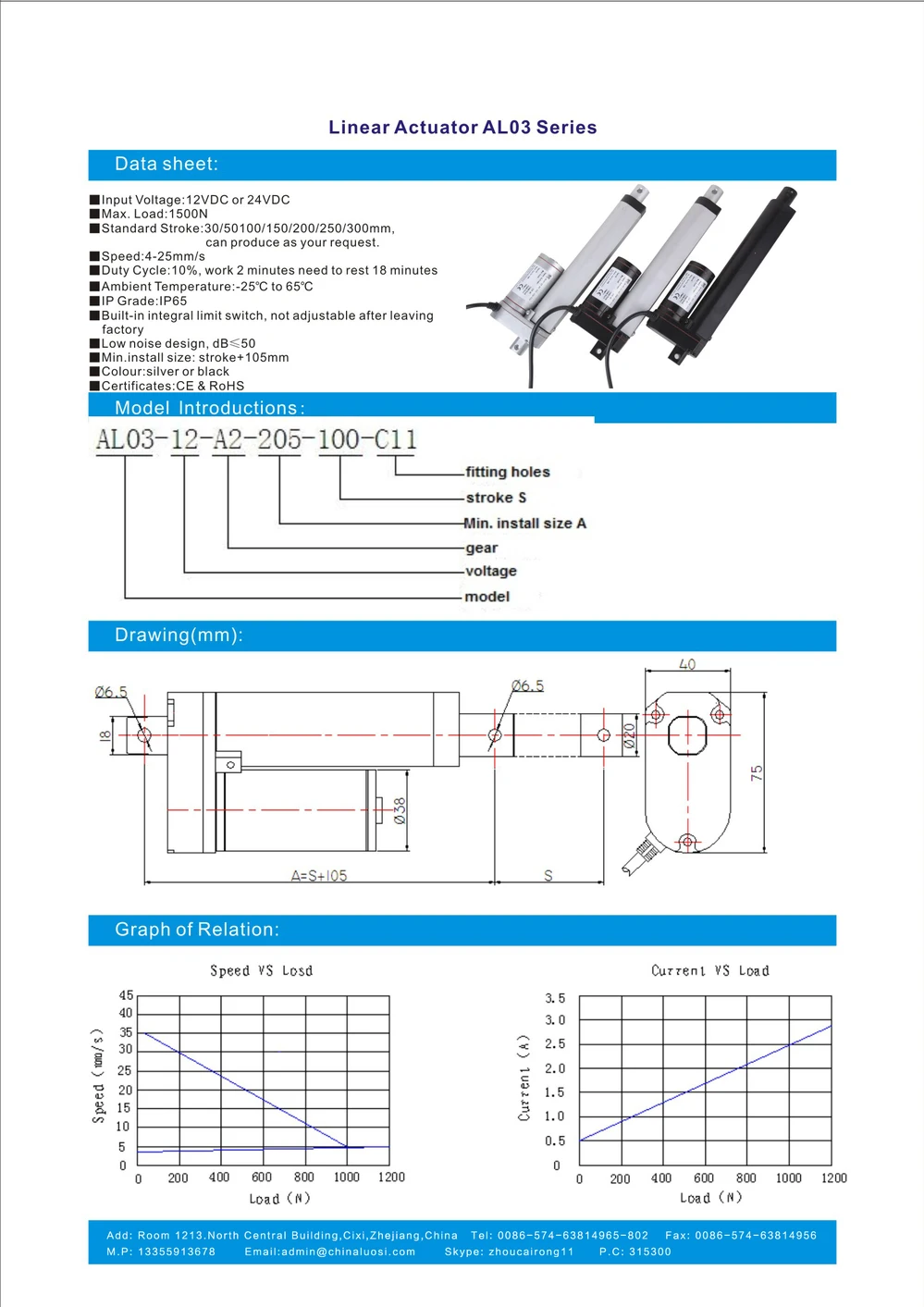

The common specification we make is as below
Max load 1500N no-load speed 4mm/s
Max load 1000N no-load speed 5mm/s
Max load 900N no-load speed 10mm/s
Max load 500N no-load speed 20mm/s
Max load 200N no-load speed 25mm/s
If you have special requirement pls freely contact us to confirm!

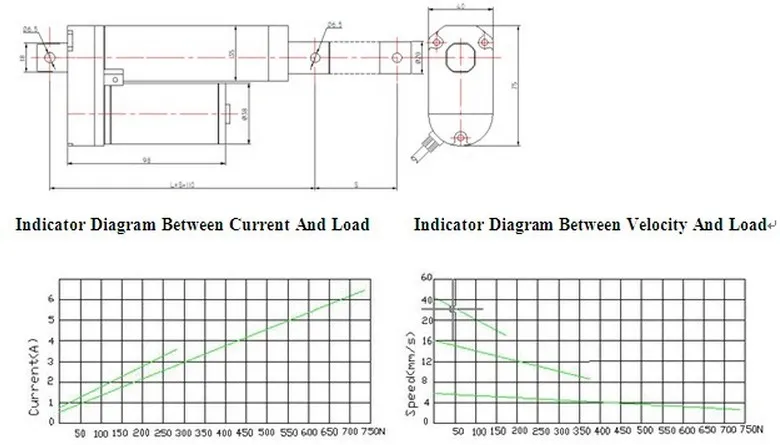

Our service purpose is” To gain your trust and support with our sincerity and excellent service, thus achieve mutual benefits and win-win business relations.
1. 24-hour Trademanager on line.
2. Professional and Patient introduction on products.
3. Quotation in time
4. fast and reliable delivery
5. sound after-service system
Company Information
We are a foreign trade company engaging in cutting-edge and high-end electronic products. Our company lies in the hometown of household appliaces--- cixi, zhejiang, China. Being the central of China's Yangtze River Delta regions, it enjoys exceptionally favourable geographic circumstances ---60 km to Ning Bo from East, 148km to Shanghai from North, 138km to Hangzhou from West.
Our main products: Multifunctional rotating bed control system, hybrid stepper motor,linear actuator, drive controller and micro motor.We are a integrated company with own R&D ,production ,sales and one- stop service.With professional automated production lines,perfect testing equipments ,experienced and qualified R&D team, our products are largely exported to European and America, and gain full recognition by mass customers around the world.
Linear actuator series products are widely used for Multifunctional rotating beds, industrial automation, Office Automation System, dental unit, massage chair, medical bed, nursing bed, eletric bed etc.
Micro motor series products are widely applicable for household appliances, such as, warm air blower, electric fan,micro-wave oven, electric baker, fireplace,etc.
