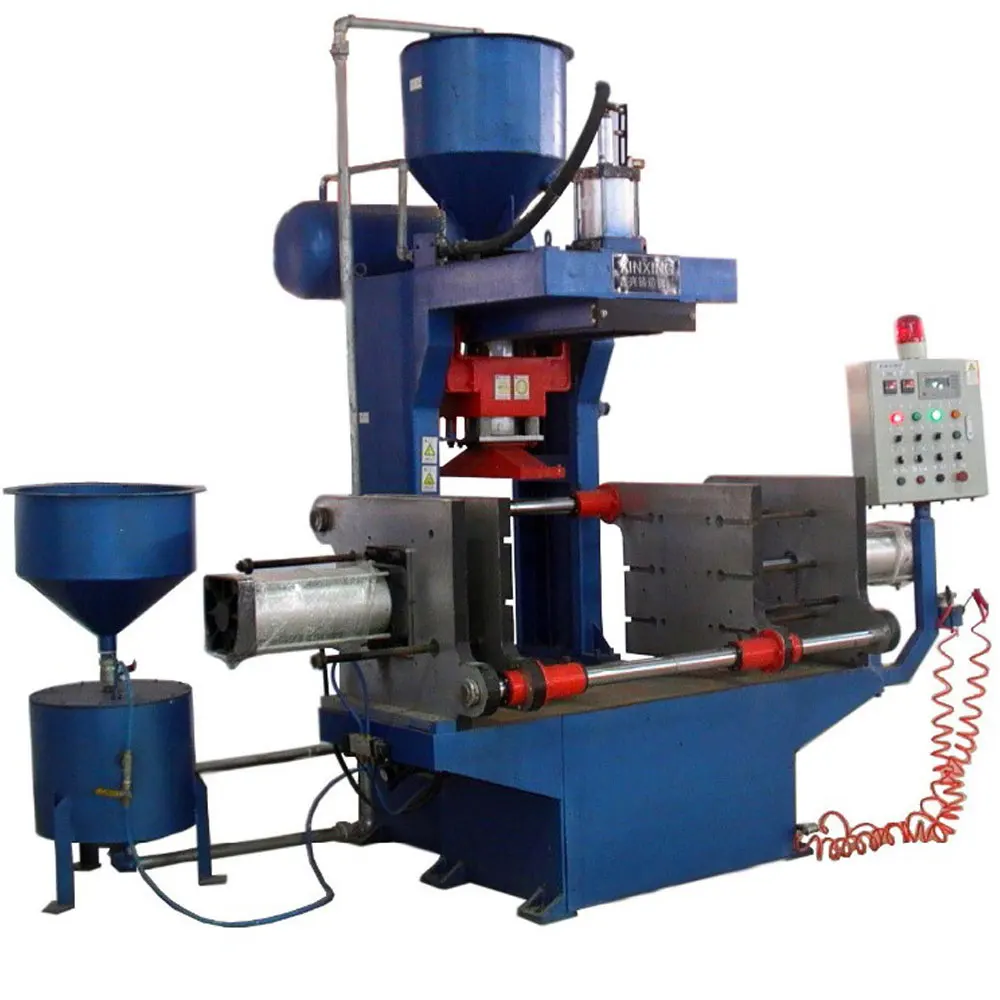

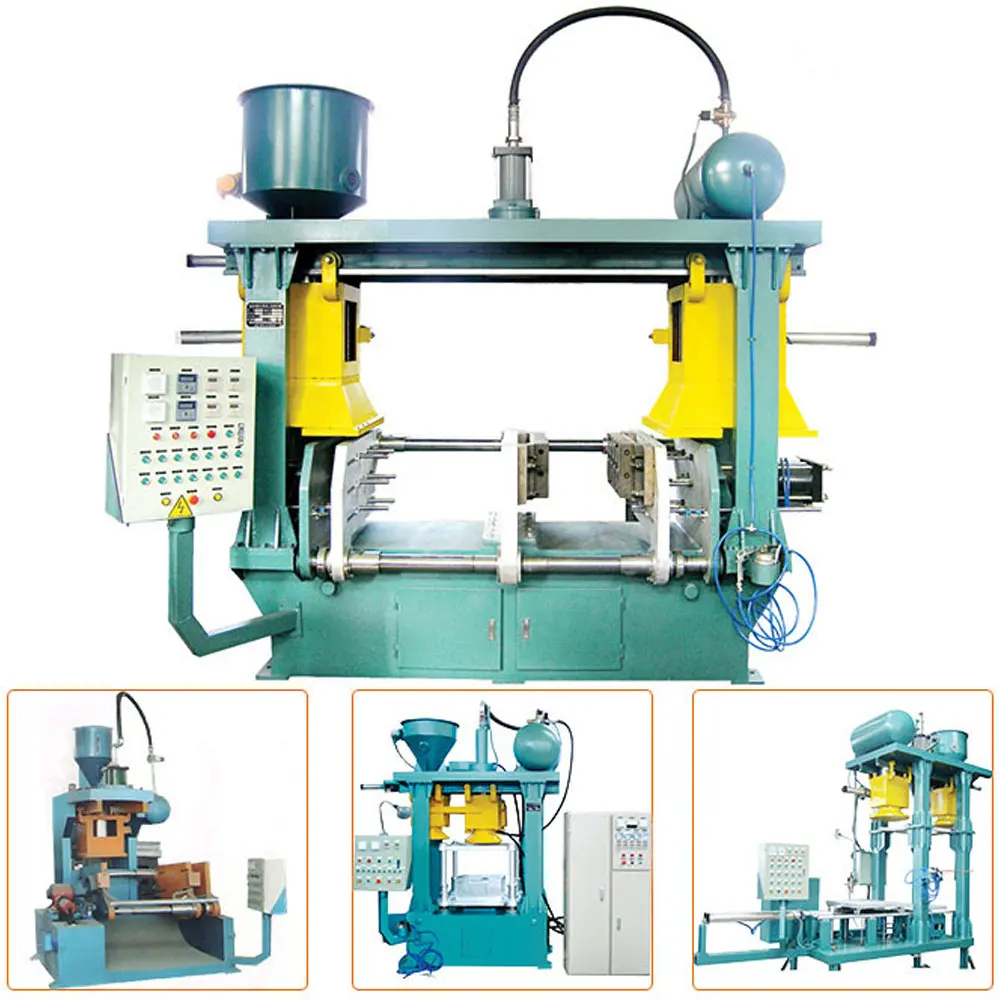

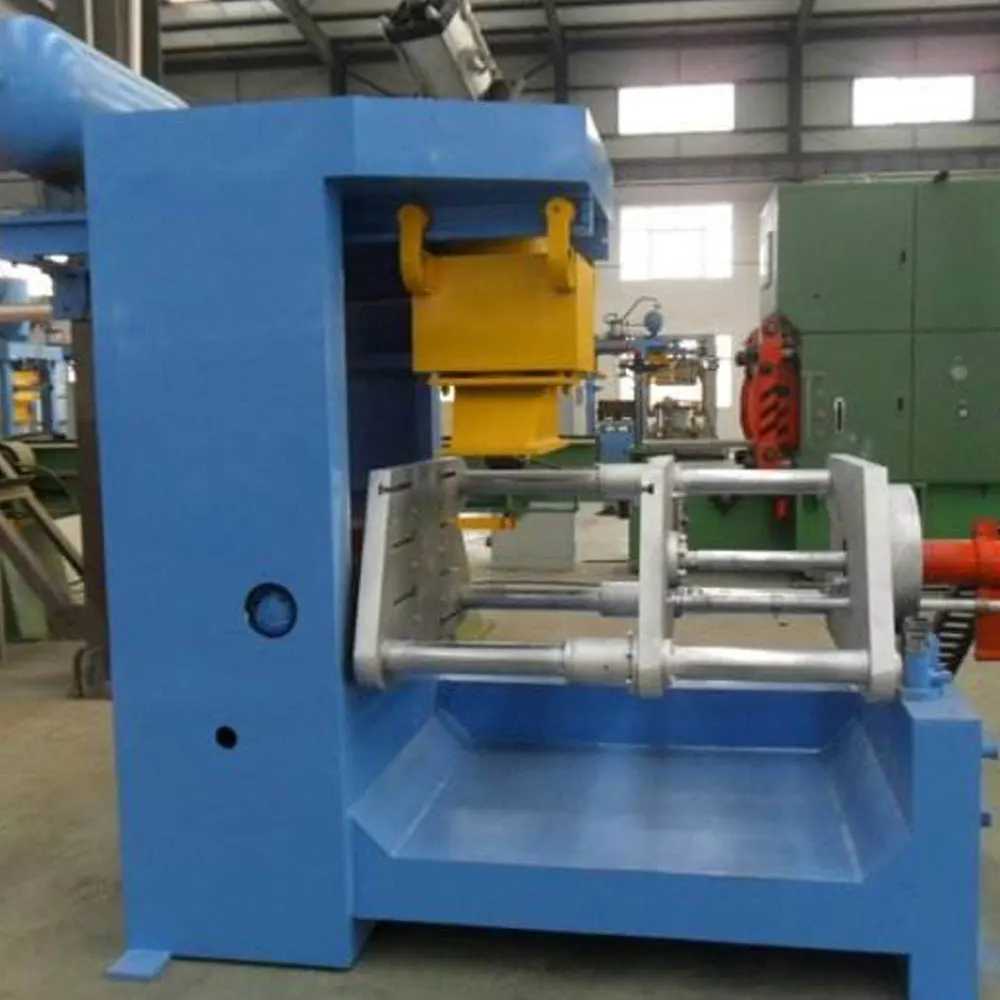

Core shooting machine, core shooter in foundry industry

Product Overview

Description

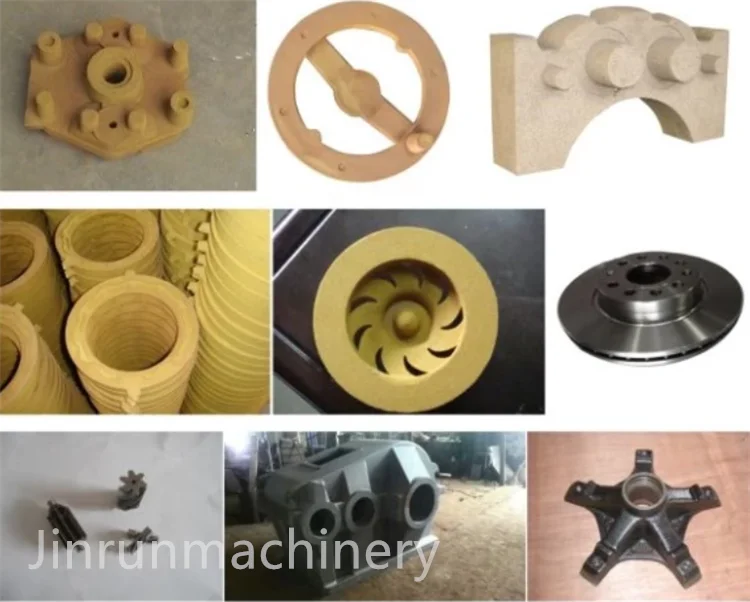

Automatic core shooter machine is used for a radio system core box automated, semi-automated core shooting device, the machine can be designed according to user's requirements of automatic, manual and semi-automatic equipment. Full-automatic equipment uses the Japanese OMRON PLC to control. Manual and semi-automatic equipment uses distributor button to control. The upper blowing device, which have function of automatic propelling, automatic clamping, automatic shooting, automatic resetting, suitable for mass production, medium size, complicated shape, as well as higher demand of the casting sand core\\'s inner chamber. The machine adopts electrical heating, automatic temperature control, which has advantage of easy operating, high productivity, low labor strength, stable operating, low energy consumption, low noise, etc..xing resin sand for foundry enterprises, a continuous operation of the core sand sand mixing machine, the machine is made of continuous mixing liquid curing agent and liquid resin or self-hardening sand core making use of resin sand mixer.





Features:

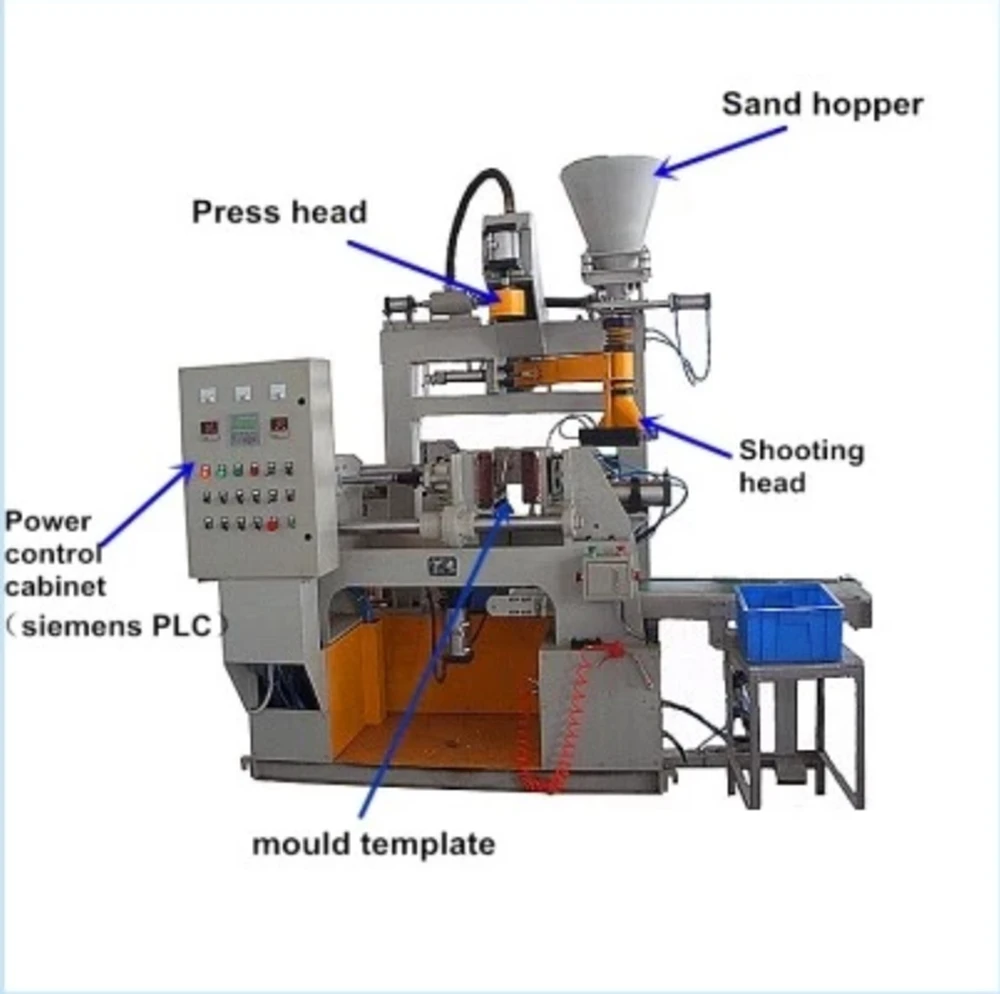

1.ZH Series Foundry Core Shooting Machine adopts programmable controller (PLC) control.
2.Each quantitative shooting, can single hole or porous sand shooting.
3.Temperature automatic digital display, high and low temperature according to the requirement of     process selection of instrument control.
4.Regulated air bag, integrated in the column, appearance.
5.Mould heating is electric heating.







Parameter:



Name	Z9404	Z9406	Z9407
Template Size(mm)	650*450	650*450	700*400
Max Weight of Shooting(kg)	27	25	25
Size of Open and Close Template(mm)	Max700,Min330	Max700,Min330	Max700,Min330
Productivity(s)	60-80s	80s	80s
System Pressure(Mpa)	0.6	0.6	0.6
Shooting Pressure(Mpa)	0.4	0.4	0.4
Heating Mode	Electrical heating
Number of Work-box	1 set	2 sets	2 sets
Sand Delivery Mode	Pneumatic convey/bucket elevator

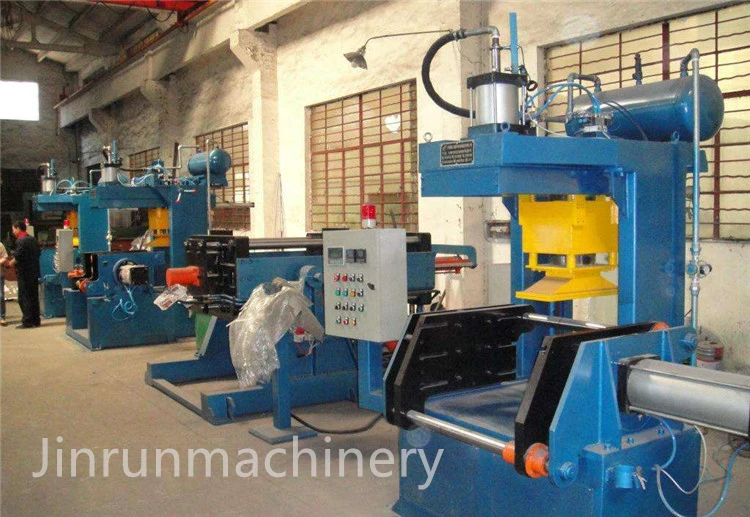

Qingdao JinRun Machinery Co., Ltd. is located in Qingdao West Coast Economic New Zone (formerly Jiaonan City). The company has convenient transportation and strong production strength. It is a high-tech industrialized entity integrating casting machinery, surface cleaning, sand treatment, coating production line and automation equipment research, development, production, operation, export and service. The company has strong research and development strength, advanced production technology, perfect testing methods, scientific management system, as a professional manufacturer of foundry machinery industry, ranked high-end level in the technical, quality and automation. Welcome customers from all over the world to visit and discuss cooperation.





1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. ODM&OEM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 10 years, competitive with good quantity.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products be finished in high quality and stable feature.



a.       How many days do you need to produce this machine?

It depends on your specific requirement. Some general equipment, we usually have stock. For other customized machines, it needs about 15 to 50 days from engineers designing to production completion.



b.       What does your factory do regarding quality control?

 We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before delivery. We try our best to ensure each machine is in good operation to our customers.



c.       What’s your machine quality guarantee?

 Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.



d.       Could you give installation and commissioning overseas? How long will it take?

 Yes, we supply overseas service, but customers need to pay for the engineers flight tickets, and hotel, food., etc.

Small machines usually takes 5 days, while large machines usually takes about 15 to 20 days.



e.       How can I trust you to deliver the right machine as I ordered?

 We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
