350 Amp DC Portable Diesel Generator Welder
- Category: >>>
- Supplier: Yancheng Talos Engine Equipment Co. Ltd.
Share on (62153129171):
Product Overview
Description
Product Description

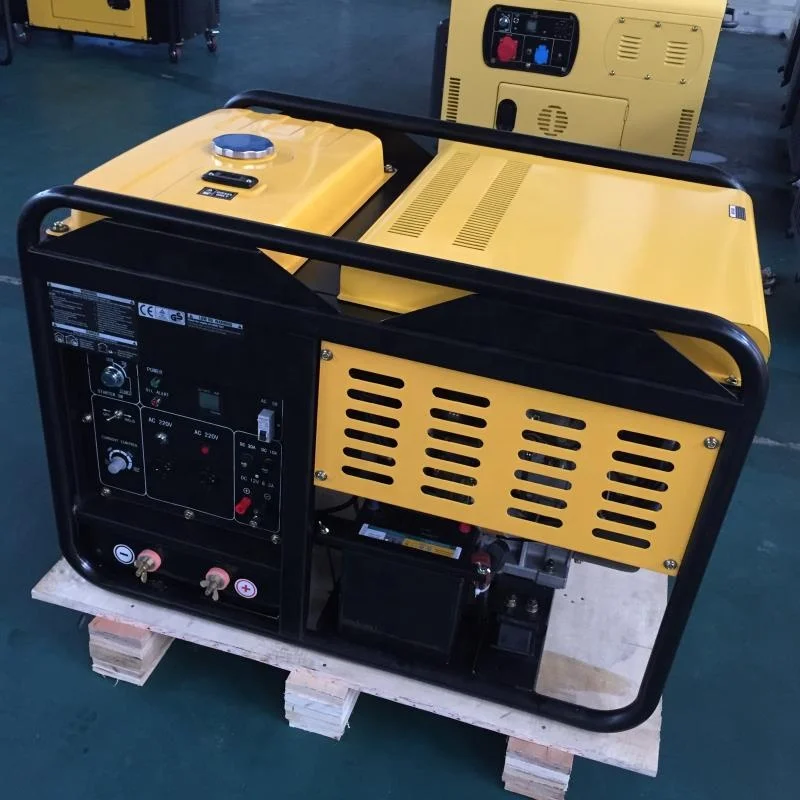

350 Amp DC Portable Diesel Generator Welder (DGW350AE)
350 Amp DC Welder/Generator has dual functions: welder and generator. It is an ideal choice for job site, maintenance and repair projects. It easily handles 2.5 - 8.0mm electrodes to weld steel and cast iron. 60% duty cycle @350 Amps, 34V. It includes two 30A, 220V AC outlet, providing ample auxiliary power for equipment and accessories or emergency backup power.
Key Specs
Model | DGW350AE | Brand | Talos Plus | ||
Product Type | Welder generator | Welding DC Current Range | 55 - 350A | ||
Welding Material | Steel, Cast Iron | Working Voltage | 28 - 34V | ||
Electrode Diameter | 2.5 - 8.0mm | Duty Cycle | 60% | ||
No-Load Voltage | 45 - 60V | Rated Watts | 3.0kW | ||
Surge Watts | 3.3kW | Frequency | 50Hz | ||
Voltage | 220V | Circuit Breakers | Yes | ||
Voltmeter | Yes | Remote Control | Option | ||
Engine Type | Air-cooled, diesel | Engine Model | TD292FE | ||
Displacement | 997cc | Low Oil Shutdown | Yes | ||
Battery Included | Yes | Fuel Tank Capacity | 25L | ||
Start Type | Electric start | Cooling System | Air cooled | ||
Weight | 220kg | Dimension(L x W x H) | 97 x 64 x 78cm | ||
Receptacles (qty.) | (2) 220V/30A, (1)12V/8.3A | ||||
Warranty | 1 year consumer/90 day commercial | ||||
Available Options | Electrode holder, earth clamp, welding cable, brush, hammer, welding mask. | ||||
Features
60% duty cycle.
Generator produces 3.3kW surge power, 3kW continuous power.
55 –350 Amp DC weld output for excellent stick welding performance.
4-cycle, 24HP air cooled, diesel engine.
25L fuel tank provides vastly superior run times.
Built-in wheels for moving easy.
Maintenance-free battery.
100% cooper wire alternator.
Detailed Images
Packing & Delivery
Durable carton box with plywood pallet or according to demand.
Package dimension(L x W x H): 97 x 64 x 78cm
Gross weight with package: 220kg.
Lead time: regular 30 days after got deposit.
