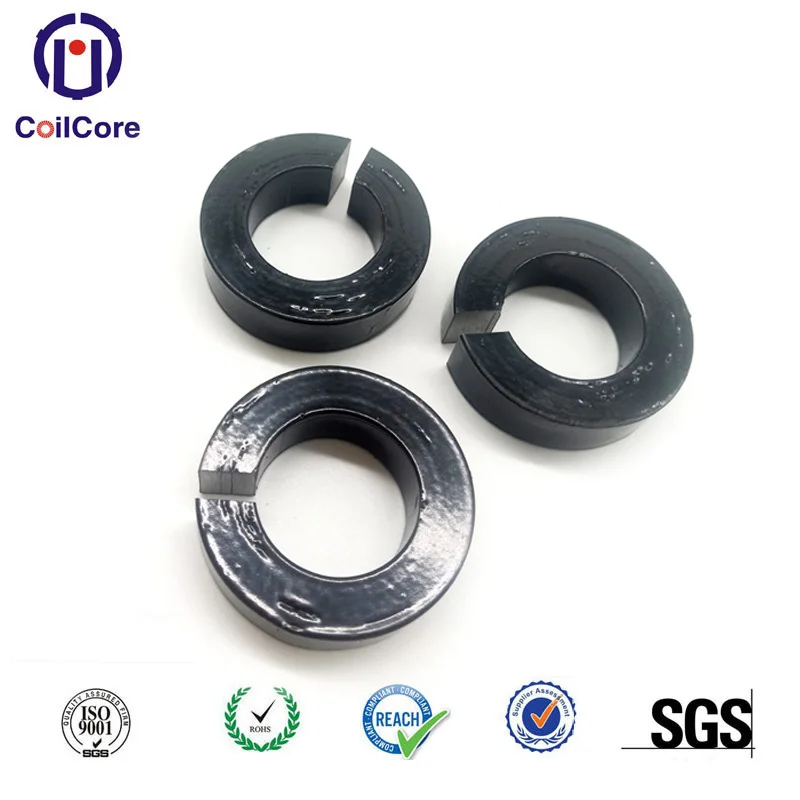

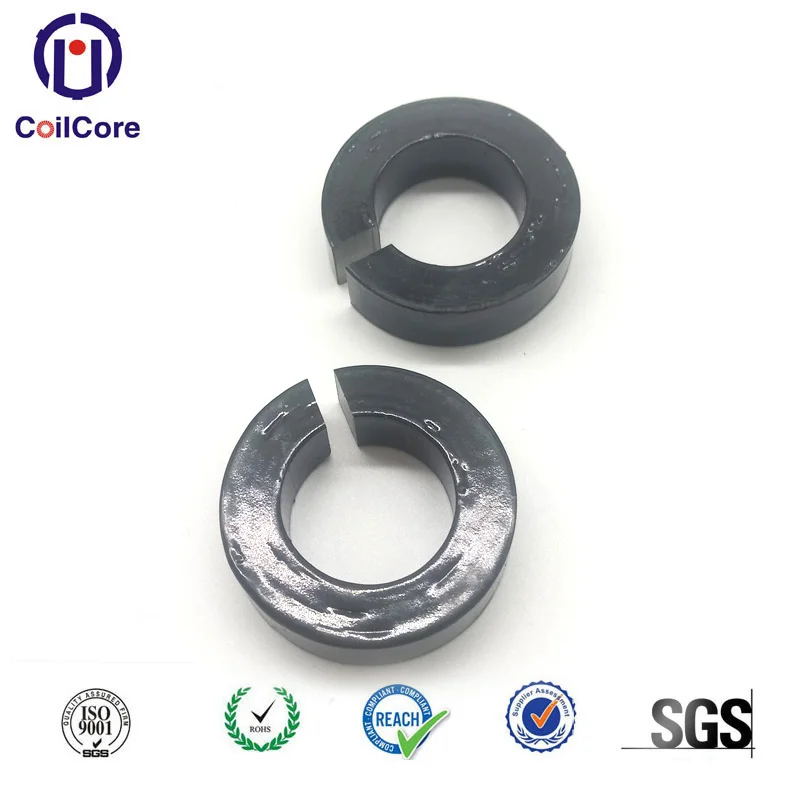

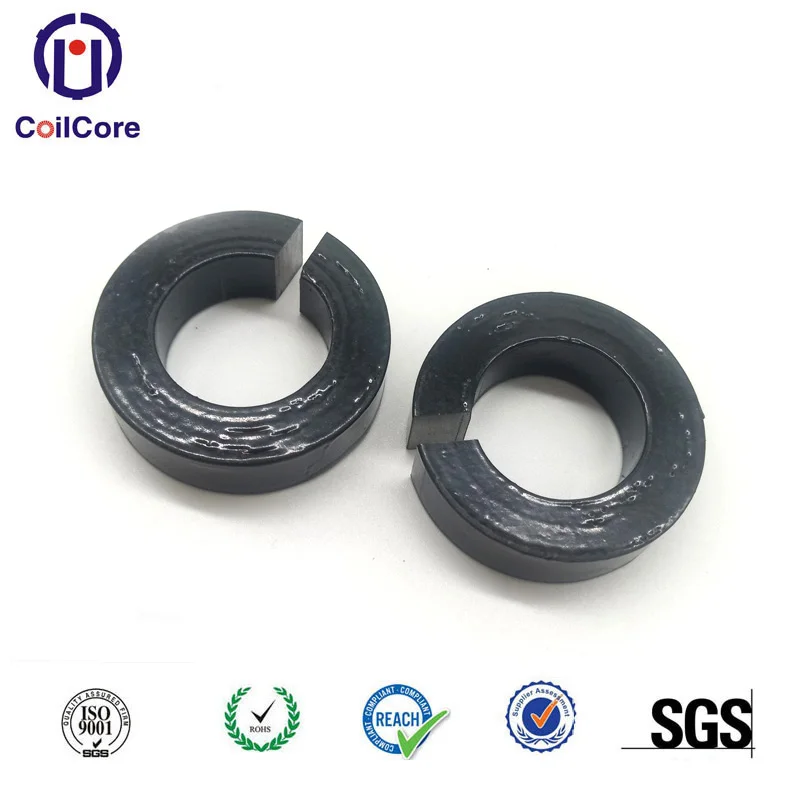

FT 3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap
FT-3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap
FT-3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap
FT-3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap
FT-3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap

FT 3 Material Powdered Toroidal Ring Core Gap Core 38x22.5x10mm with 4mm Gap

Share on (62153148770):


Price:$1.35 - $1.83

Quantity:


Product Overview

Description

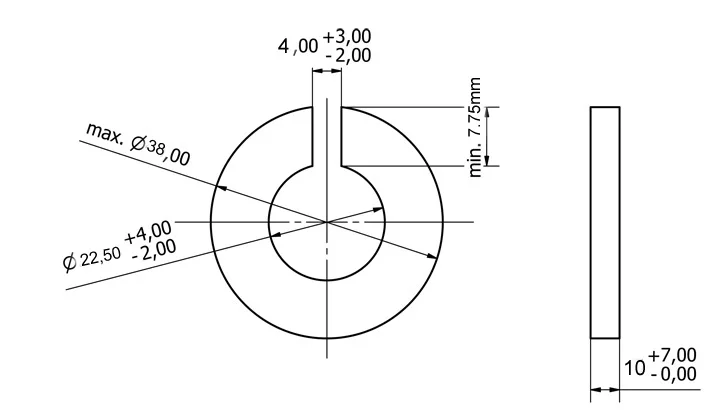

Gapped Amorphous CoreF5(0).jpg


Material: Nanocrystalline


OD38 mm x ID22.5 mm x H10 mm


Gap: 4 mm





Key Properties:












































Typical Specification







Saturated Induction Density



Bs = 1.2 T



Material Permeability



µi = 8.5x104 Gs/Oe



Rated Output



0.333Vac; 0~5AMP



Max. Primary Voltage



5000 Vac  ( Insulated Conductor)



Operating Temperature



-15 ~ 60 °C



Case Material



ABS;PBT Resin UL94V-O



Frequency Range



50Hz ~ 1KHz









Main Application:


. PFC choke coil


. Output choke coil for SMPS


. Choke coil for DC/DC Converter


. Normal mode choke coil


. Choke Coil for adapter and battery charger





Flowing Gapped Toroidal Cores  with Amorphous Material, Standard specifications and electric parameters as below. If Nanocrystalline material gapped core request, please advise in advance:


Audio Core Size


Gapped Core Size ListGap Core Testing DrawingOEM


We can design & produce goods based on specifications & drawing, specification needed including:


1. Bare core size, Size finished


2. Parameter, AL@ DC bias=0A ;  AL@ Different DC bias






Coilcore - Guangzhou Amorphous Electronic Technology Co.,ltd., established in 2009, our core competence is Nanocrystalline Core & Amorphous Core & Ferrite Core.
It has been a major manufacturer in Current Transformer & Sensor Industry. The certification to ISO9001:2015, SGS, FTA ensures that rigorous procedures are followed in all areas of operations. Like clients ABB,ALCE, ESITAS, SIGMA, RITZ, you can get our service of quickly service, stable quality, affordable cost, fast delivery.
