Talosplus® diesel engine 2V870 is low-maintenance, durable, fuel-efficient and quiet. It has widely applications, such as construction, water pump, air compressor and etc.
Other models you can get here as follows: TD173F(5HP), TD178F(7HP), TD186F(9HP), TD186FA(10HP), TD188F(12HP), TD192F(13HP).
Key Specifications
Model
2V870
Brand
Talos Plus
Bore x Stroke
88 x 72mm
Displacement
870cc
Engine Type
V-twin, diesel
Cylinder(qty.)
2
Rated Power
13.5kW(18.4hp)/3600rpm
Speed
3600RPM
Starting System
Electric start
Cooling System
Air cooled
Fuel Consumption
280g/kW.h
Fuel Tank
Option
Lube Oil Capacity
2.4L
Fuel Type
Diesel
Compression Ratio
20 : 1
Shaft Output
Horizontal
Crankshaft
Key type
Shaft Diameter
25.4mm
N.W/G.W
69/74kg
Dimension(L x W x H)
55 x 40 x 46cm
Lube Type
SAE10W30(above CC grade)
Rotation Direction
Clockwise(view from flywheel)
Application
Construction, water pump, air compressor
Available Option
PTO shaft

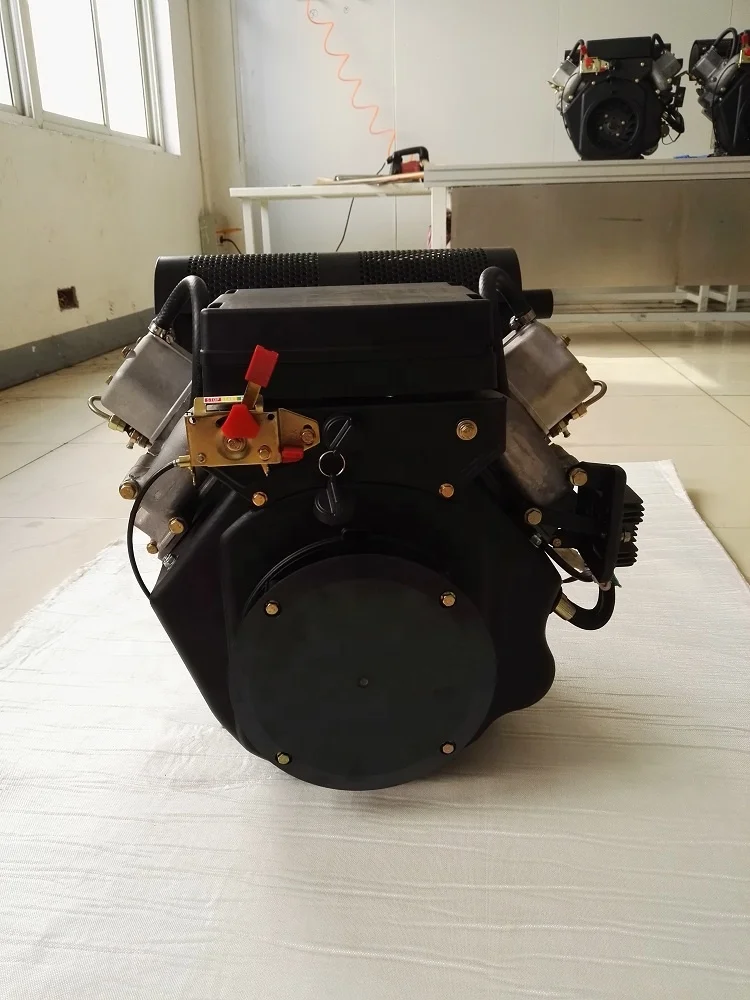

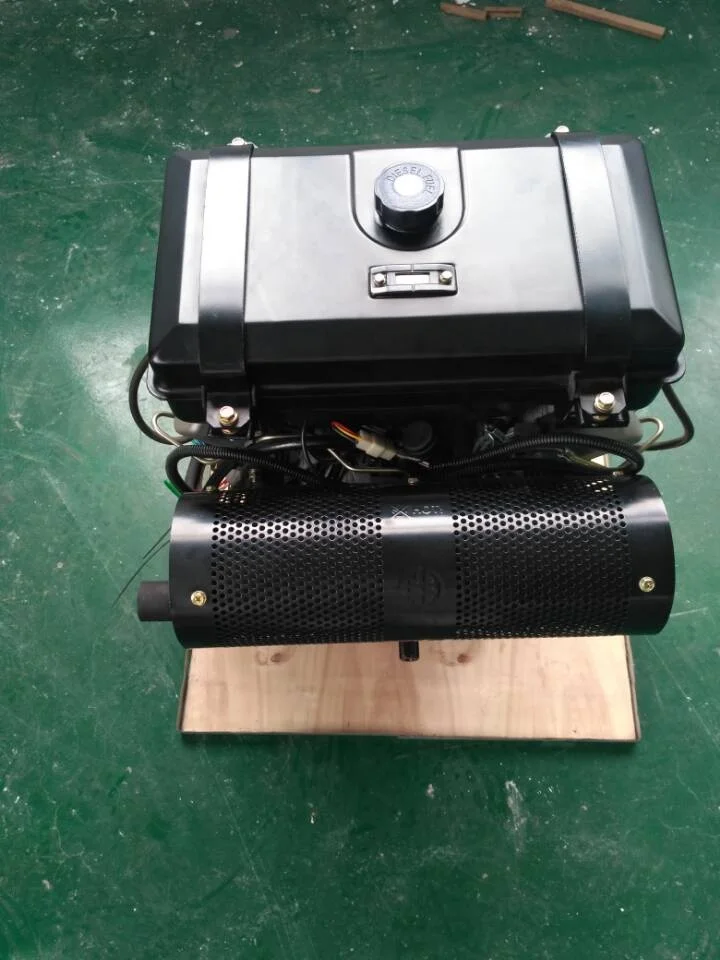

Detailed Images
Packing & Delivery
Durable carton box with foam. Gross weight with package: 74kg. Dimension(L x W x H): 55 x 40 x 46cm. Lead time: About 30 days after got deposit.
