automatic fruit and vegetable bag packing machine in China

Product Overview

Description

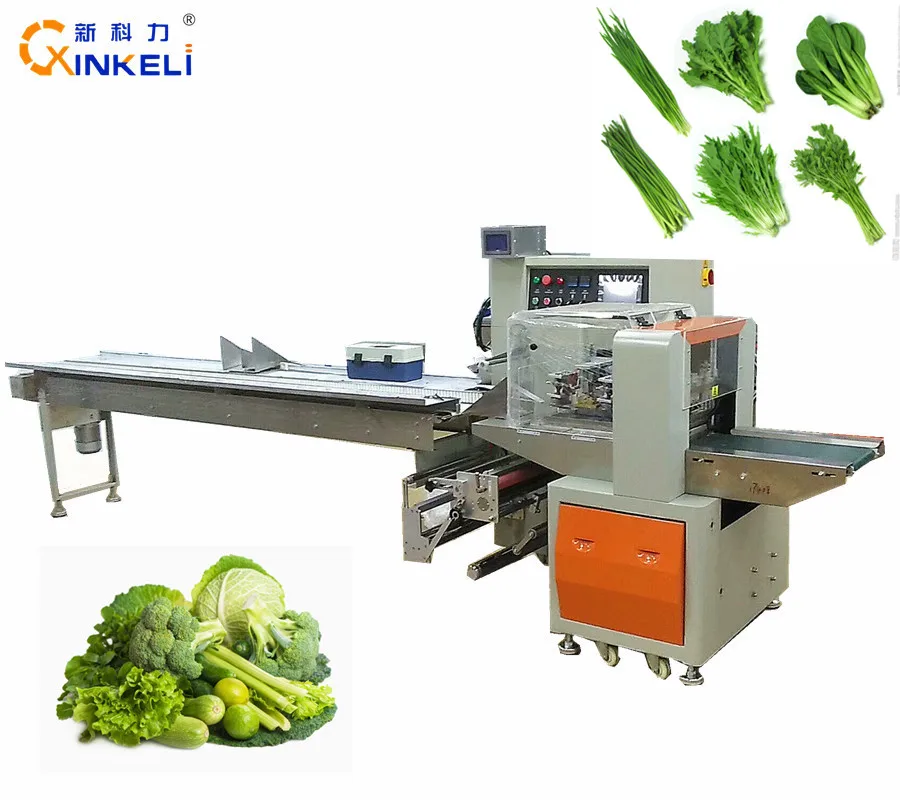

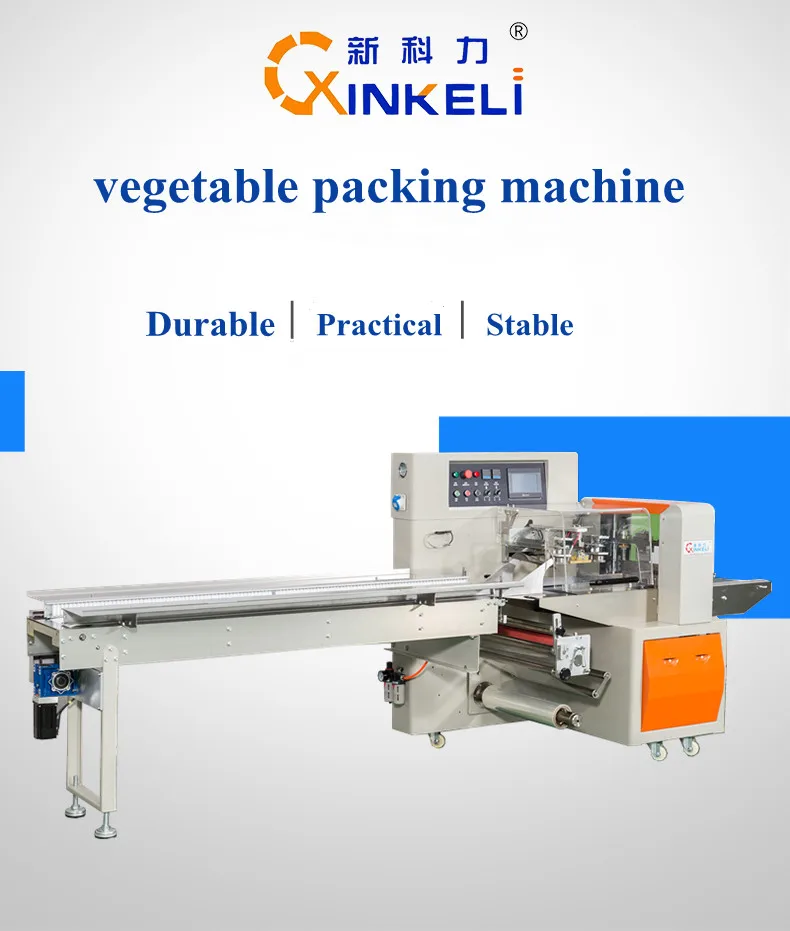

                          fresh fruit and vegetable bag packing machine

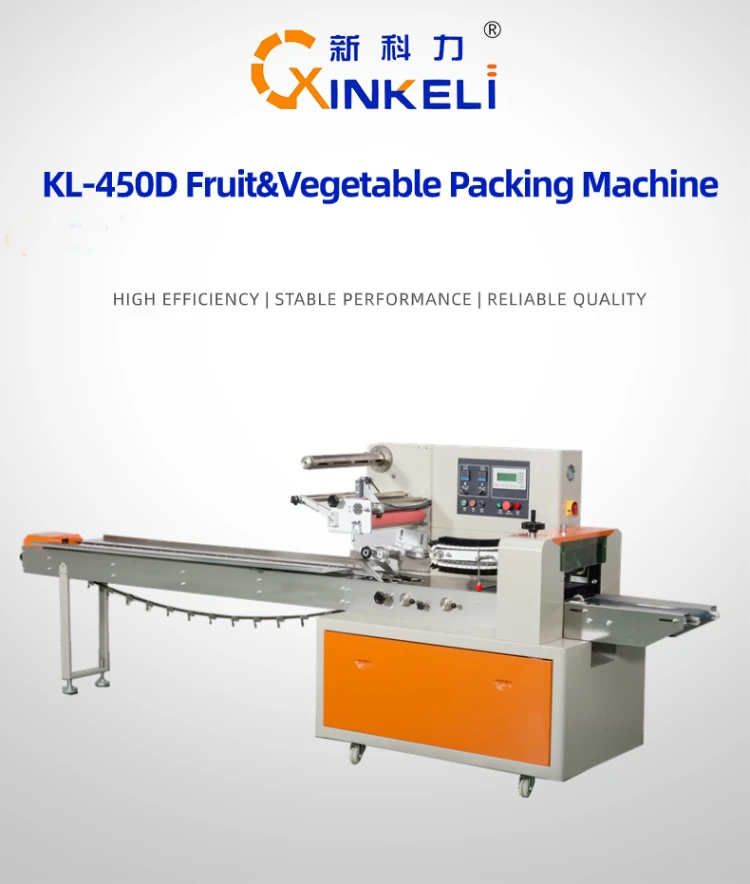

Techenical Parameters for KL-450D Semi-automatic Packing Machine PACKING WITH TRAY
Product height	Max.95mm
Roll film diameter	Max.320mm
Bag size	L: 150-500mm   W: 60-200mm
Packing speed	30-180 bags/min.
Powder	2.6KVA
Bag shape	Pillow bag / Back sealed bag / Mid sealed bag
Machine weight	600KGS
Machine body size   (L*W*H)	4020*820*1450mm

 fruit and vegetable bag packing machine with tray Features:

1. Double frequency control, bag length can be set and cutting in one step, save time and film.

2. Self diagnosis failure function, clear failure display.

3. High sensitivity photoelectric eye color tracing, accuracy cutting and sealing.

4. Temperature independent PID control, more suitable for packing different materials.

5. Positioned stop function, without sticking knife or wasting film.

  fruit and vegetable bag packing machineOptional Device:

1. Date printer

2. Air filling device

3. Gusset insert device

3. Touchable screen

4. hope punching

5.label machine

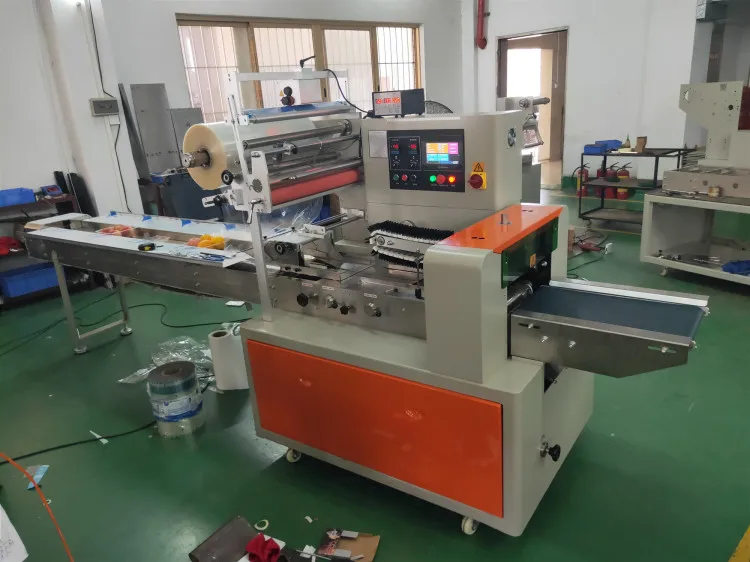

FRUIT AND VEGETABLE PACKING MACHINE TRAYLESS Specification  for KL-600XT





01. Servo control system,  flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.

02. man-machine operation, convenient parameter setting.

03. Fault self-diagnosis function, clear failure display.

04. Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

5. Temperature independent PID control, better suitable for various packaging materials.

6. Located the stop function, not stick to the knife, not waste the film.

7. The transmission system is simple,  working is more reliable, and the maintenance is more convenient.

8. All controls are implemented by software, convenient for functional adjustment and technical upgrade, and never lag behind.

9. Automatic optical scanning material length, automatic fix bag length!



 Specification

Item	KL-T600X
Film width	Max. 600mm
bag length	200-800mm
bag width	180-280mm
product height	Max.180mm
roll film	Max. 320mm
packaging speed	1-120bag/m
power	220V,50/60HZ,2.8KVA
machine size	(L)4020×(W)820×(H)1320mm
machine weight	850Kg
