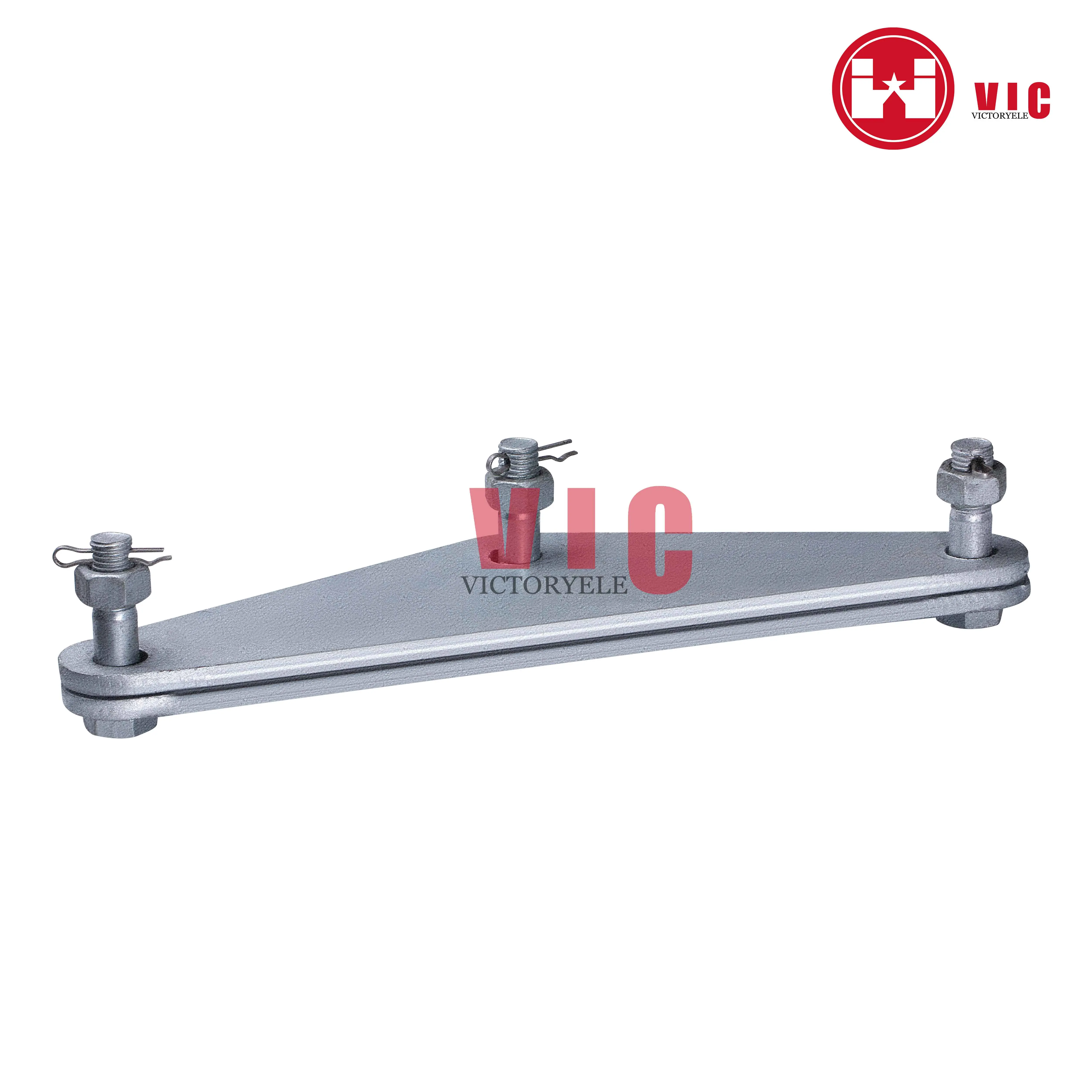

High quality hot dip galvanized steel double yoke plate

Product Overview

Description

 High quality hot dip galvanized steel double yoke plate

Description:

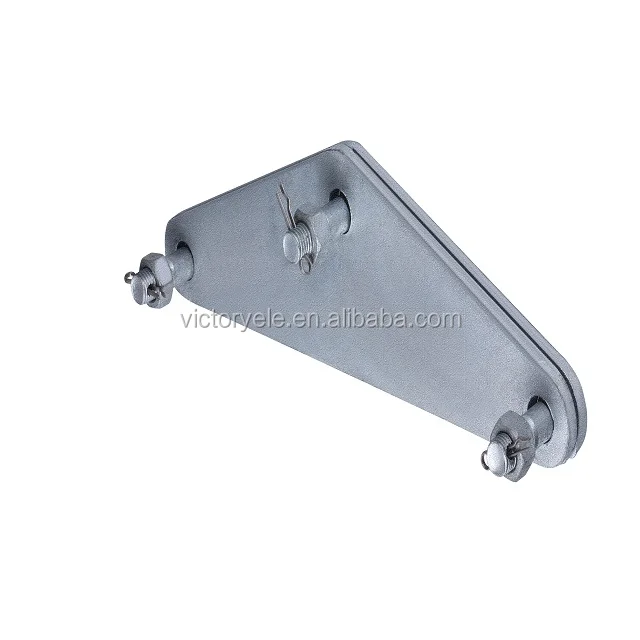

The yoke plate is made of hot-dip galvanized steel. It can be made according to the requirements of customers including shape, sizes and so on.



Application:
Used to link clamps to insulator and ground wire clamps to tower arms or subjection structures.





Specification:

Catalogue No.	Dimension Inch					Specified Failure Load(KN)	Weight(KG)
	L	H	C	M1	M2
L-1240S	400	180	18	20	16	120	6.0
L-1640S	400	100	22	24	16	160	7.3
L-2040S	400	110	26	27	18	200	8.9
L-12457S	457	80	18	20	16	120	6.4
L-16457S	457	100	22	24	16	160	7.6
L-20457S	457	110	26	27	18	200	9.4
