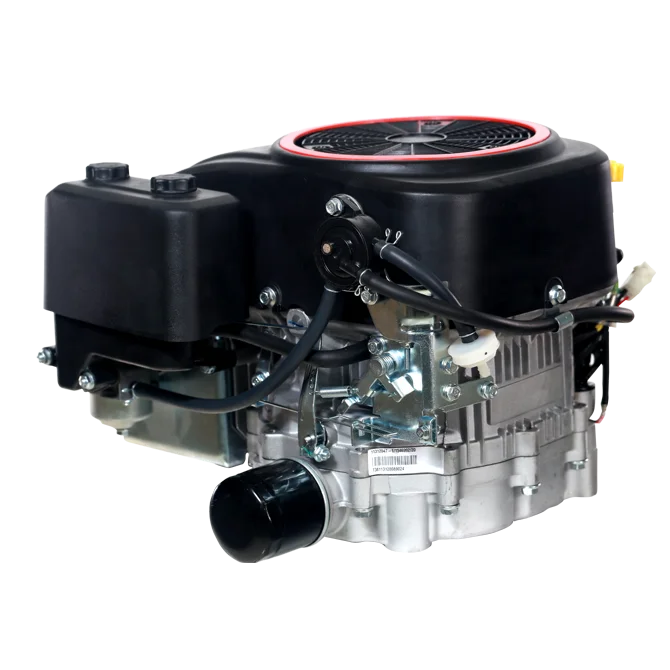

15HP Vertical Shaft Gasoline Engine for Troy-Bilt Riding Mower
The Talosplus® 452cc OHV Vertical Shaft Engine with 9.5kW(13HP)@3600RPM and 28N.m@ 2600RPM. It has enough power to run a wide range of equipment, include commercial turf equipment, lawn tractors and riding mowers.
OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life. It is reliable, easy starting and quiet running. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
Model
TV450
Engine Type
OHV, Vertical Shaft
Bore x Stroke
92 x 68mm
Displacement
452cc
Compression Ratio
8.7 : 1
Start Type
Electric Start
Net Torque
28N.m@2600RPM
Idle Speed
1850±150r/min
Speed
3600RPM
Rated Output
9.5kW@3600RPM
Maximum Output
10.5kW@3600RPM
Muffler
Yes
Crankshaft
Key type, ⌀25.4mm
Cooling System
Air cooled
Fuel Type
Gasoline
Fuel Tank
No
Low Oil Alert
Yes
Low Oil Shutdown
Yes
Oil Capacity
1.2L
Lubrication System
Splash
Net Weight
33.85kg
Gross Weight
36.5kg
Dimension(LxWxH)
480 × 470 × 430mm
CE/EPA Certificate
Yes
Available Option
PTO shaft
Warranty
1 Year
Shaft Rotation
(From PTO Shaft Side) Counterclockwise
Application
Commercial turf equipment, lawn tractors and riding mowers
Features + Benefits
OHV design for increased efficiency and optimal power transfer. High compression ratio for better fuel efficiency.
Low vibration from precision-engineered components. Cast iron cylinder sleeve.
Metal cam and forged crankshaft makes engine more reliable and durable. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Primary and Secondary oil filter system provide better lubrication.

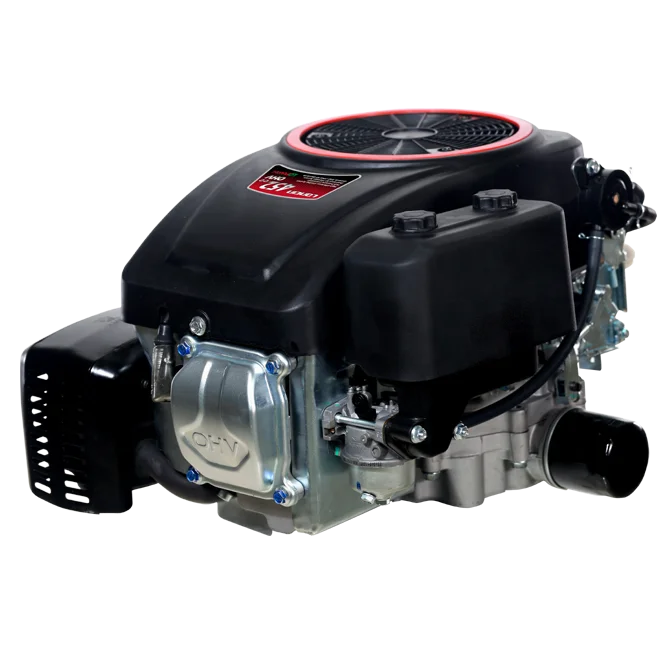

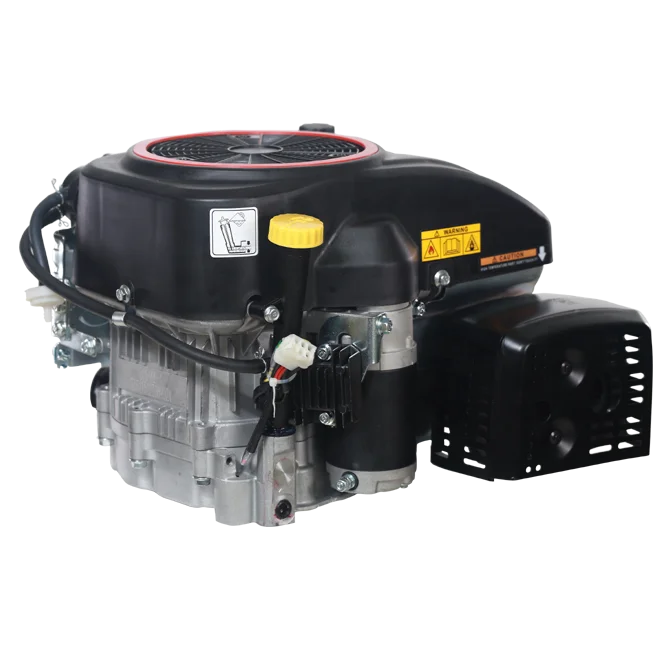

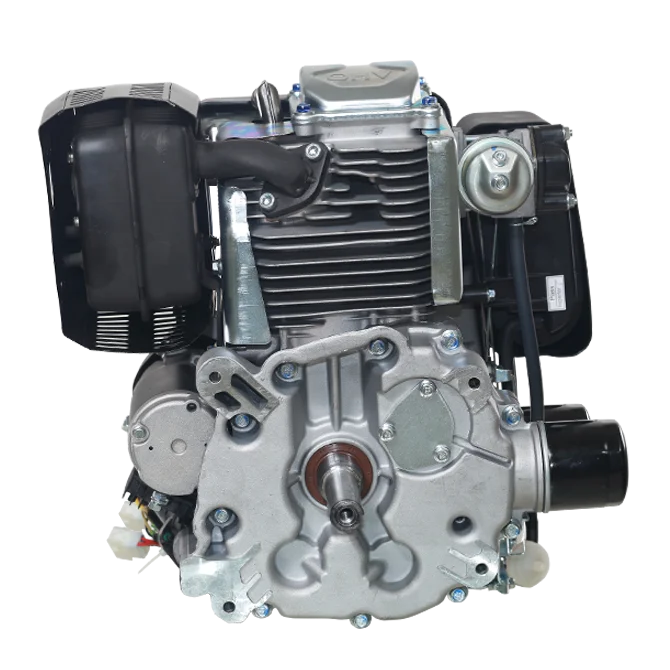

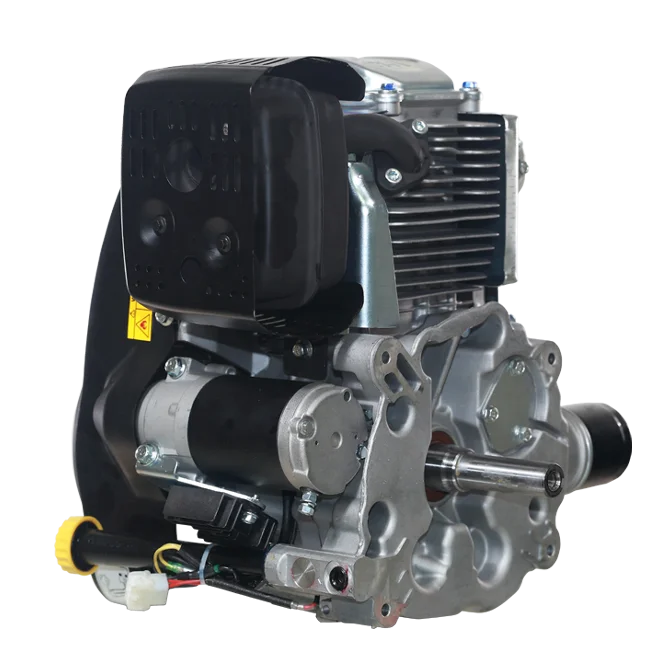

Detailed Images
Packing & Delivery
Packing & Delivery
Durable carton box or according to demand.
Package dimension(L x W x H): 480 × 470 × 430mm Gross weight with package: 36.5kg. Lead time: regular 30 days after got deposit.
