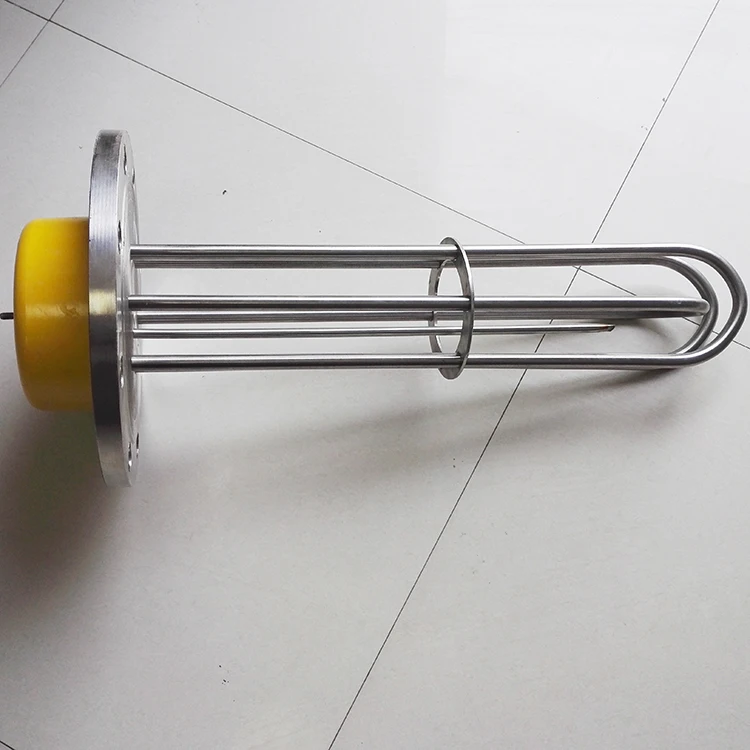

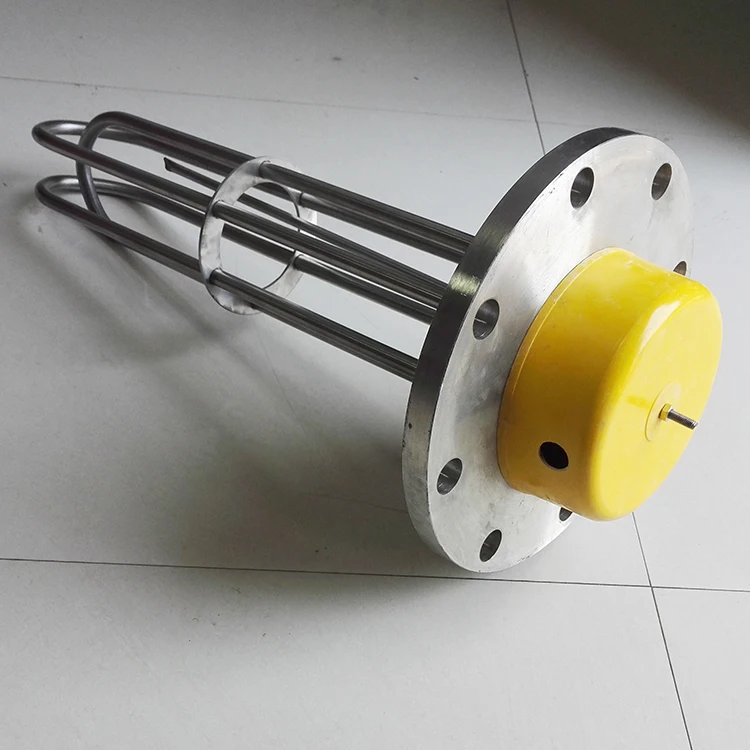

Factory Directly Supplied Titanium Heating Element heat resistant flexible pipe heater for plastic tube heater incubator parts
Product Description
Product name

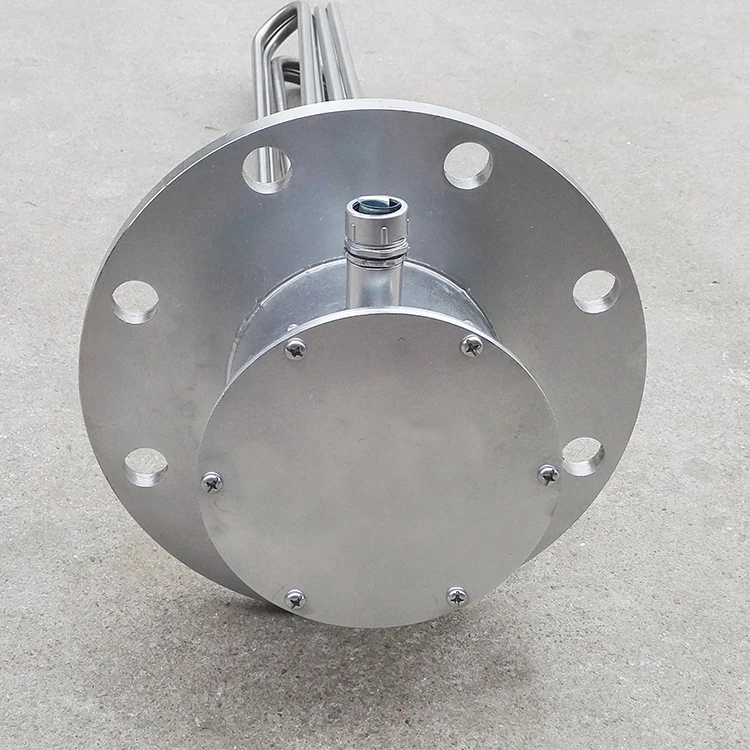

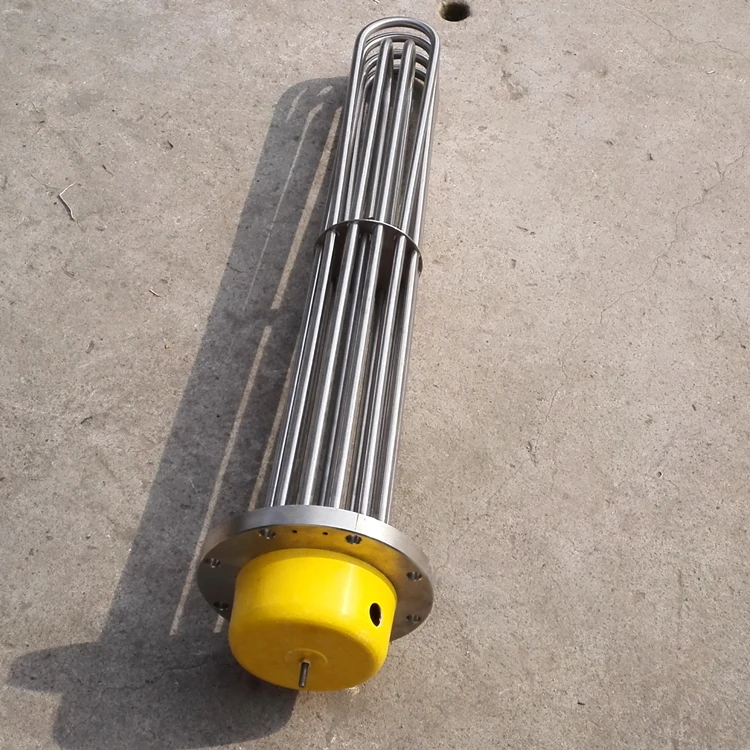

Explosion-proof heating transfer tube
Material
SUS304
Custom processing
Yes
Power
600W
Application
Liquid heating, bucket, water tank heating
Pipe diameter
8mm
Certified product
ISO9001
Voltage
200V 380V
R&D
We support customer R&D make the file or improve the design if you Need

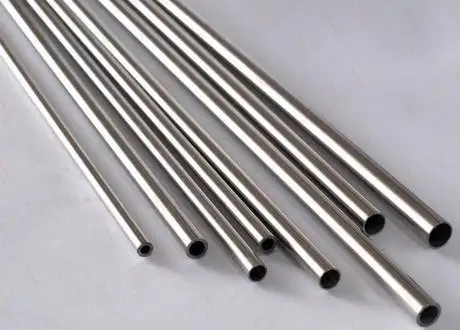

Made of high quality 304 stainless steel, resistant to high temperature and pressure, corrosive medium and chemically aggressive media such as acid, alkali and salt
Using high-quality materials -high-quality magnesium oxide powder, it has a good refractory insulation effect, and also has high refractory insulation safety performance

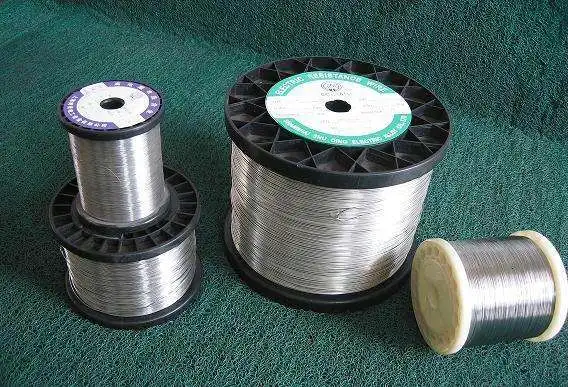

The high-quality material is used to thicken the nickel-chromium alloy wire, which has a good high temperature resistance. The temperature used below 1200 degrees is about 1250 degrees, and the heating is rapid and the efficiency is high.

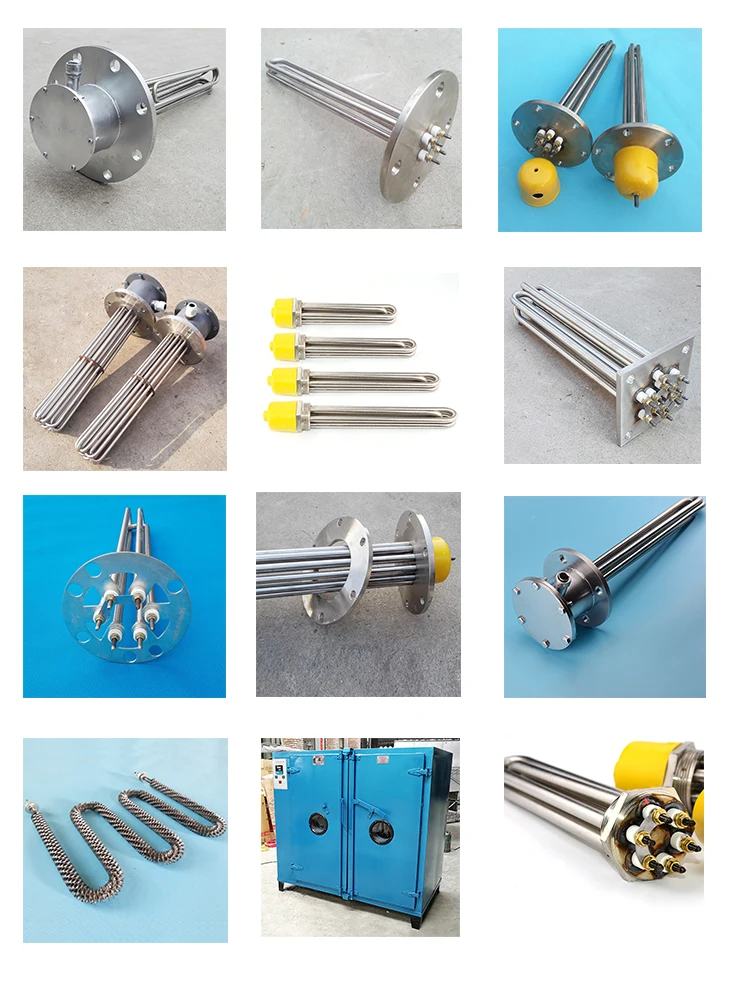

Electric heating tube application range 1. Mold heating has been accepted by a wide range of customers in modern industrial applications. 2. In the plastic mechanical heating system. 3. Pharmaceutical production line. 4. Laboratory heat treatment test. 5. Chemical industry and so on.
1. Components are allowed to work under the following conditions:
(1) The relative humidity of the air is not more than 95%;
(2) The working voltage is not more than 1.1 times the rated value, and the outer casing should be effectively grounded.

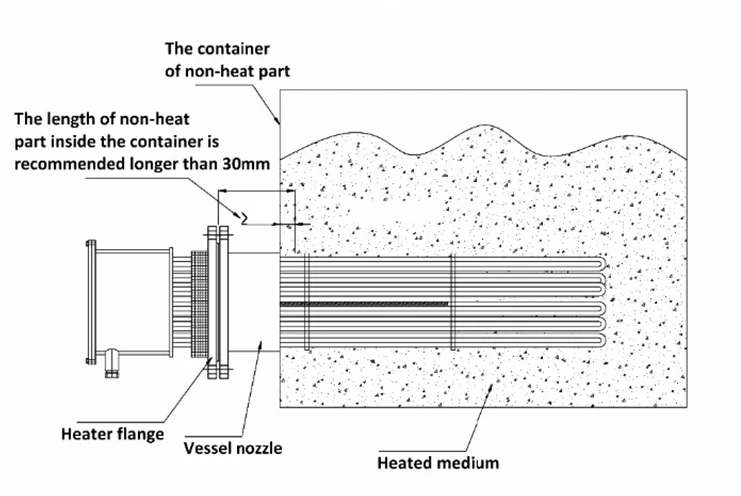

2. When the heating medium is a liquid, the effective length of the element (H1 or H2) must be completely immersed in the liquid.
3. Components that heat liquids must not be used to heat gases or solids.
4. For heating liquid components, if there is scale or charcoal on the surface of the pipe, it should be cleaned before use, so as not to affect the service life of the components and reduce the thermal efficiency.
5. When smelting light metal or nitrate salt, alkali, asphalt, paraffin, etc., it is heated when it is solid. It should be started by depressurization. After the solid heating medium is completely melted, it can rise to the rated voltage.
6. Safety measures should be taken when heating nitrate salt to prevent explosion accidents.
7. The component wiring part should be placed on the insulation layer and outside the heating room to avoid contact with corrosive and explosive gases. The outlet end must be kept dry and clean to avoid flashover or short circuit. Do not use excessive force when wiring.
8, the end of the component may overflow a small amount of paste, this is the sealing material, does not affect the use, after the power is off, the spill can be cleaned.
9. The components should be stored in a room where air circulation, relative humidity is not more than 85%, and no corrosive gas.
10. After the component has been used for a long time and is not used for a long time, when the cold insulation resistance is lower than 1 megohm, the component can be baked in a drying oven with a temperature of about 200 degrees, or the voltage can be directly heated to remove moisture. Until it returns to normal.
1. Packing Export carton packing box for small qty; Export wooden packing box for large qty. 2. Shipping 1. Fedex/DHL/UPS/TNT for samples, Door-to-Door; 2. By Air or by Sea for batch goods; 3. Customers specifying freight forwarders or negotiable shipping methods; 4. Delivery Time: 3-7 days for samples; 8-25 days for batch goods.

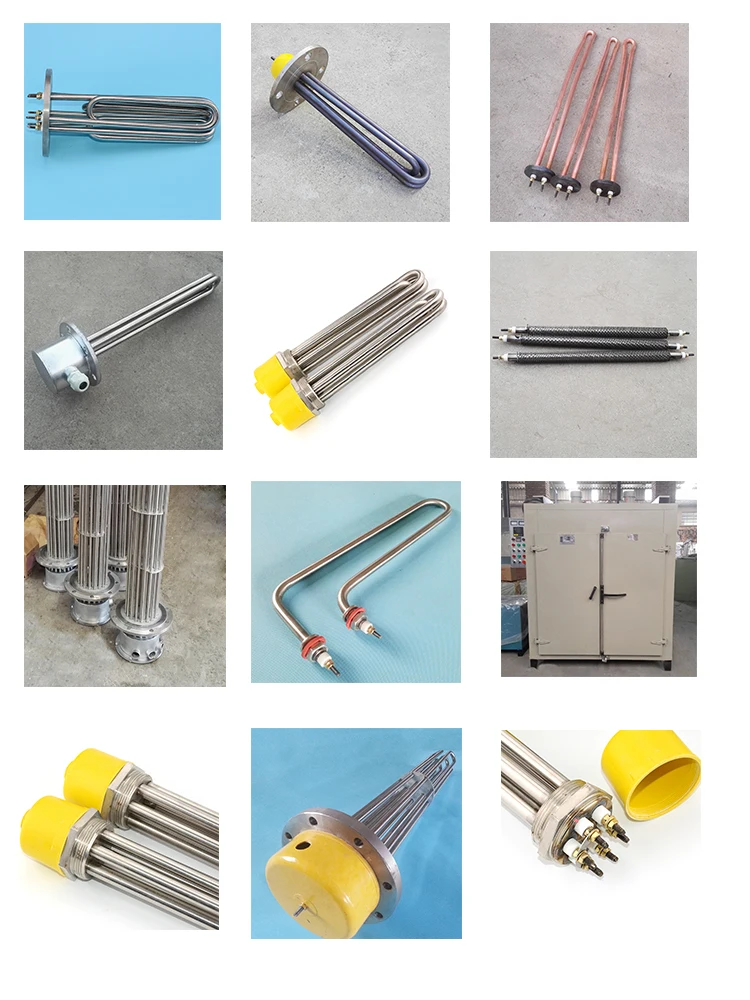

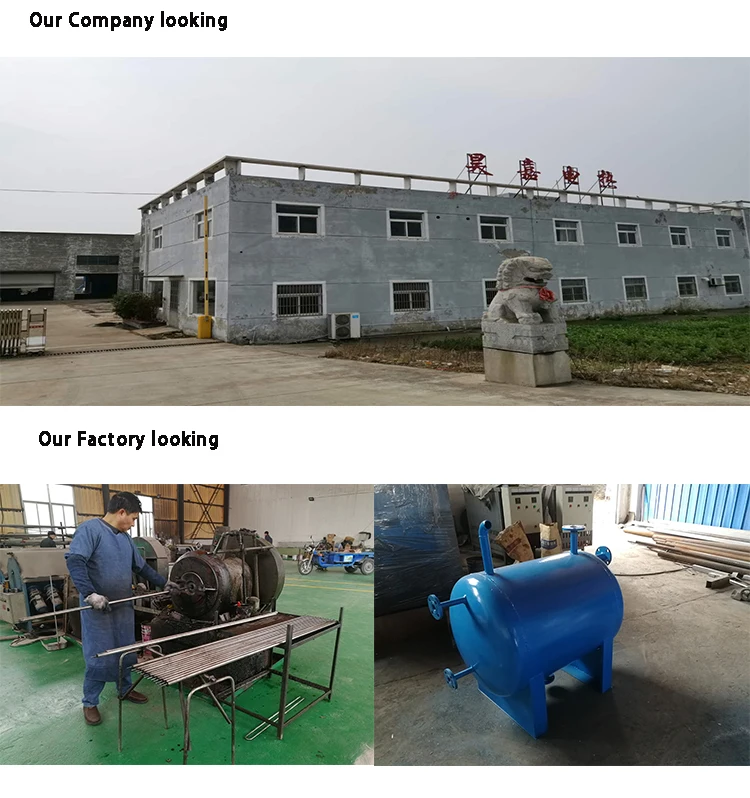

Taizhou haojia electric heating appliance CO., LTD. Is a professional manufacturer and manufacturer of heaters, electric heating tubes, electric heating wires, heating plates, thermocouples, thermal resistors, heat-resistant steel castings, heating rings, electric ovens, ovens and other products, with a complete and scientific quality management system.Taizhou haojia electric appliances co., LTD. Integrity, strength and product quality recognized by the industry.Welcome friends from all walks of life to visit, guidance and business negotiations.

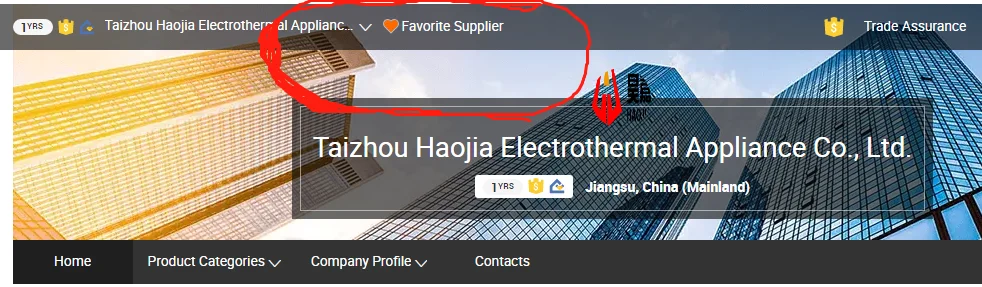

If you like our company's products, click on the red circle collection store in the above picture. New and old customers offer 5 yuan, »»click here to go to our homepage collection
