Product Overview
Description

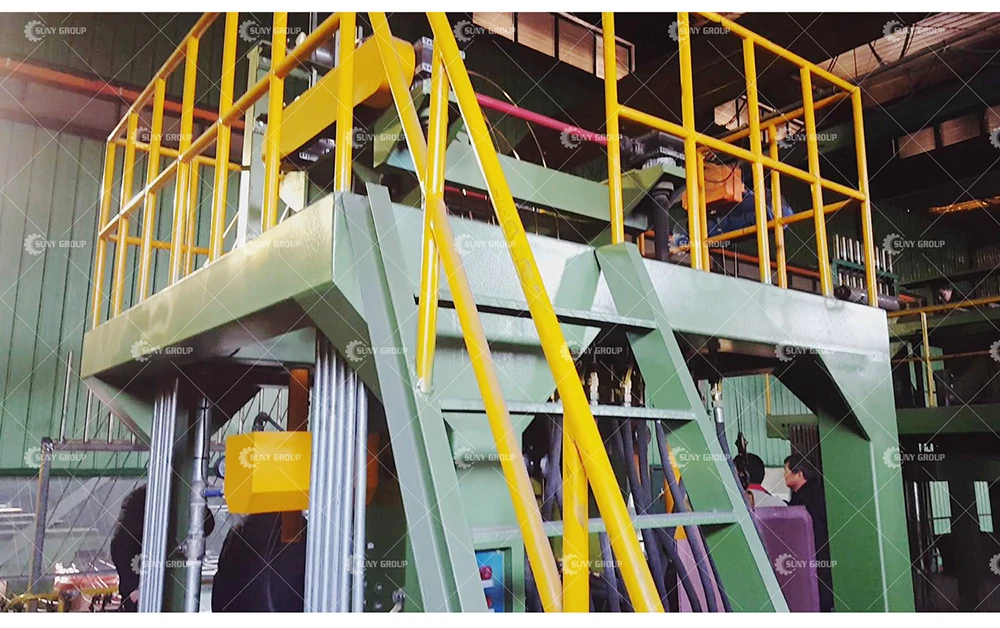

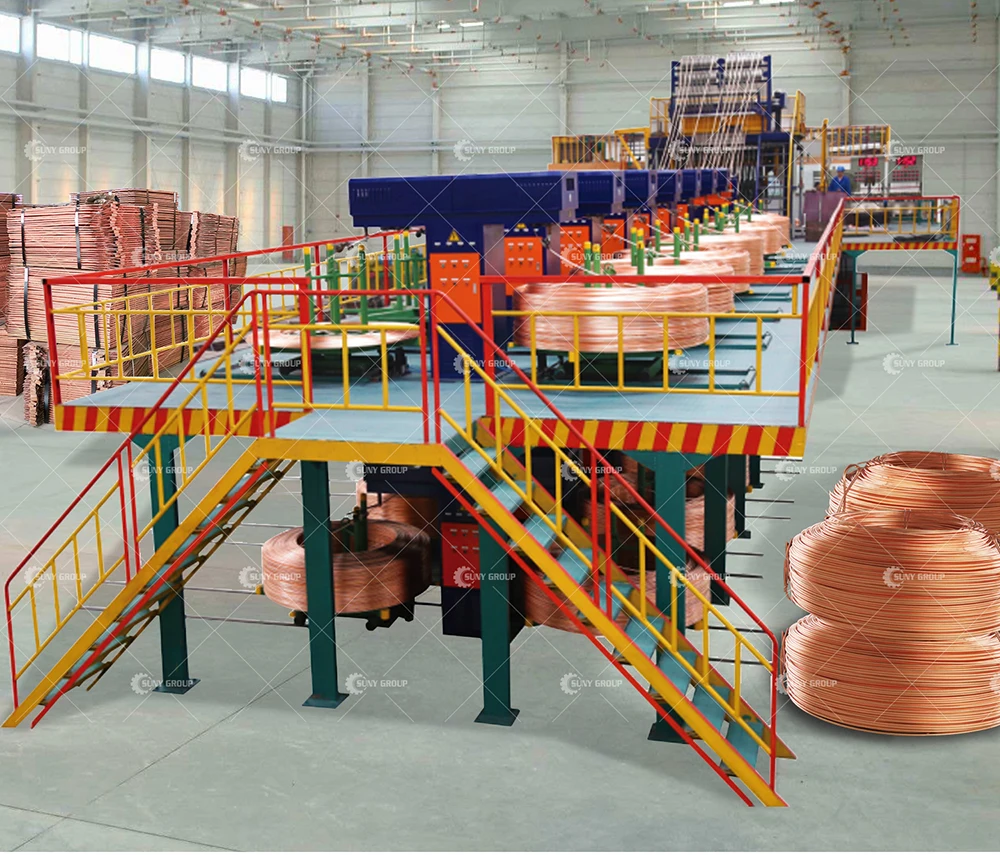

COPPER ROD UPCASTING MACHINE
PRODUCT APPLICATION
Upward Copper Rod Continuous Casting Full Plant is used to produce the long and bright oxygen-free copper rod with the diameter from 8 to 25mm. Large-length bright oxygen-free copper tube blanks and large-length bright oxygen-free copper slabs.
As a conductive material with high conductivity and low oxygen content, the oxygen-free copper rod is widely used in wire, cable,electromagnetic wire and other industries.

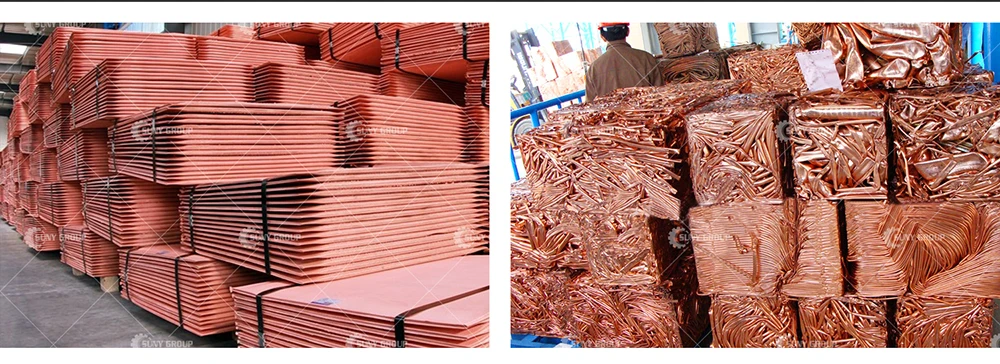

RAW MATERIAL

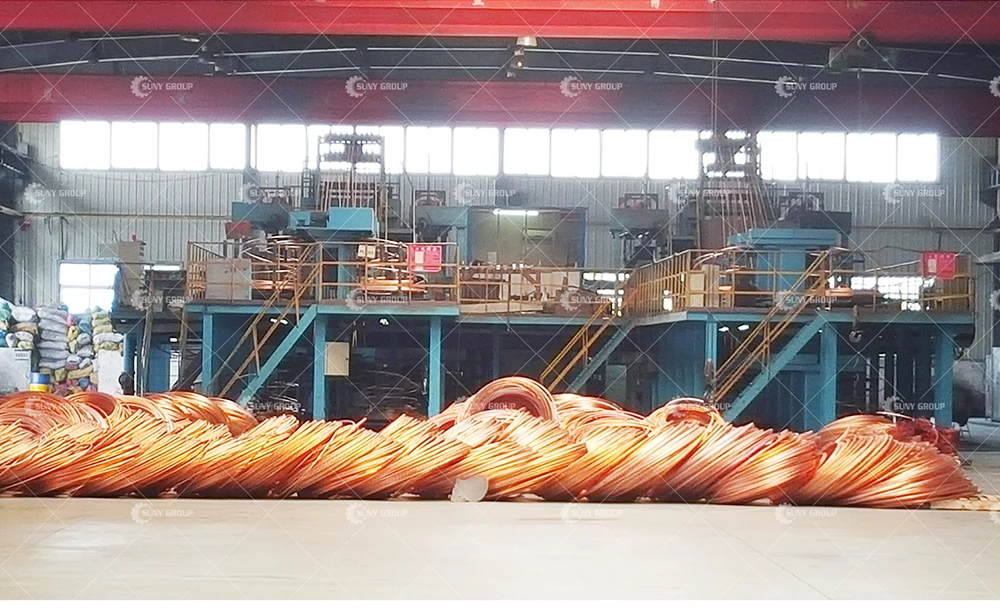

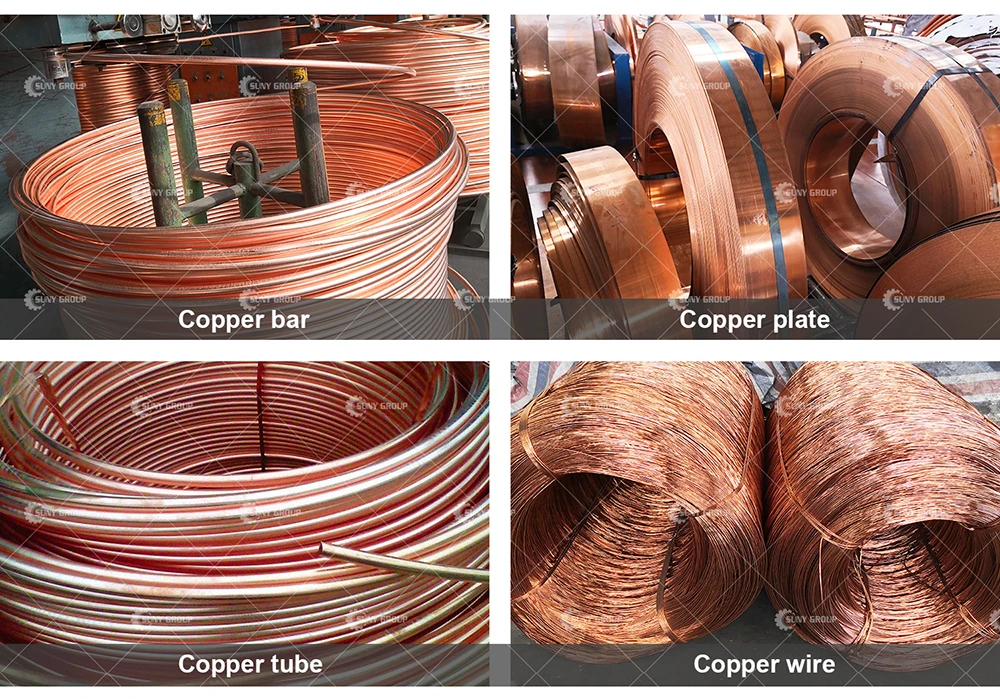

FINAL PRODUCTS
FINAL PRODUCT STANDARD
Raw Materials | The raw materials should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2 |
Battery Cover Remover | 2200*2000*1300 mm |
Copper Rod | Copper rod technical indicators should meet the GB/T3952-2008 standard |
Density | ~8.9Kg/dm3 |
Tensile Strength | >170N/mm2 |
Soft Electrical Conductivity | >100% IACS ( 2m2n Flexble Wire ) |
Soft Electrical Resistivity | >0.15328Ωg/m2 |
Elongation | >37% |
Oxygen Content | ≤20ppm |

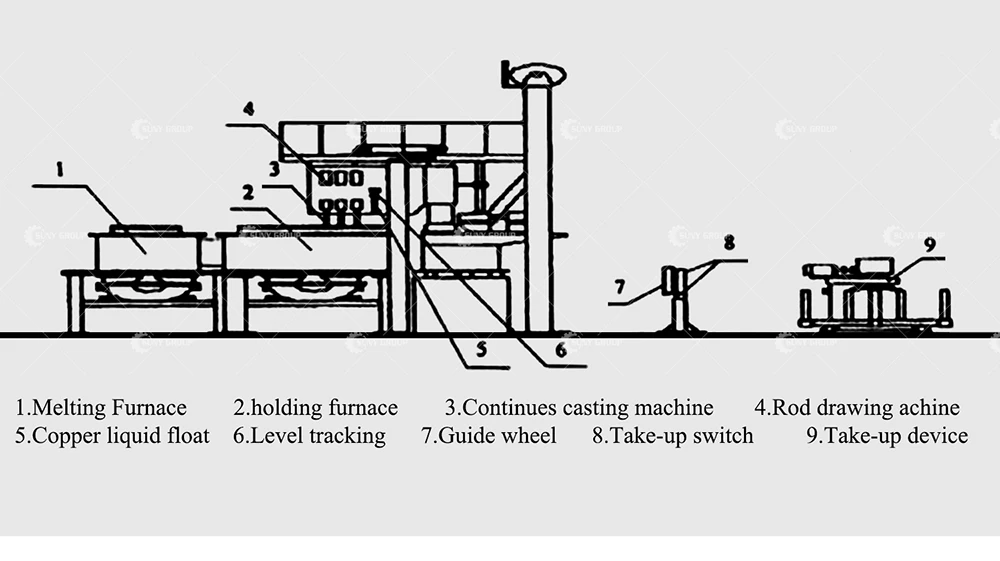

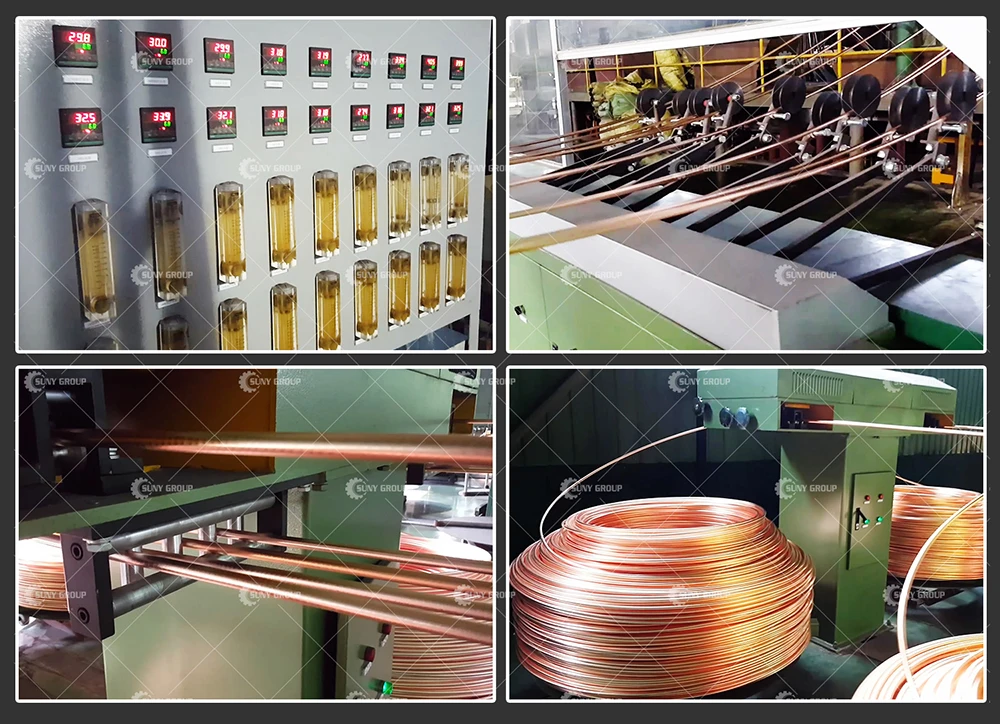

EQUIPMENT STRUCTURE

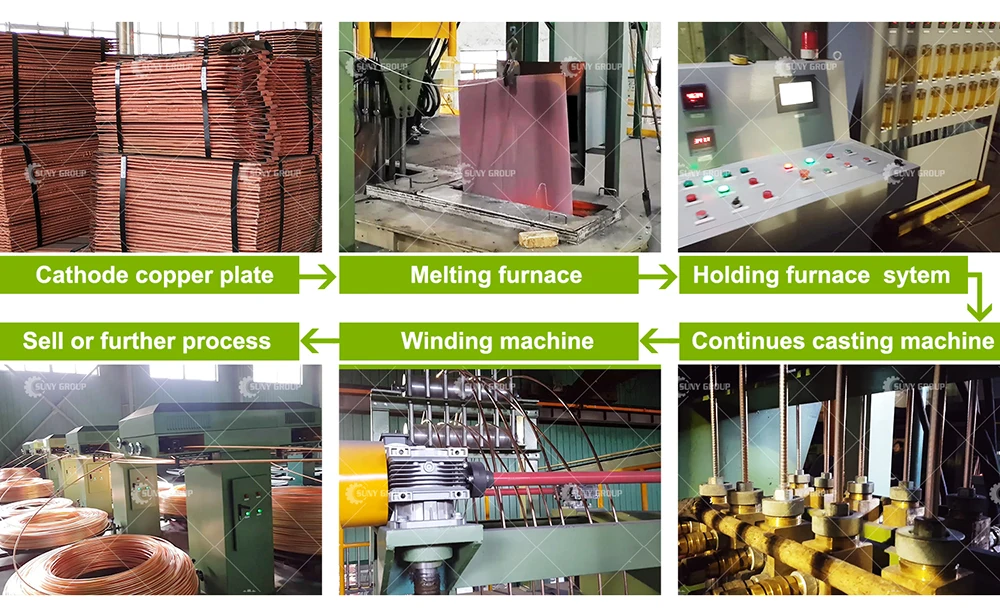

PROCESS DETAILS
2. After melting, the copper liquid will automatically and smoothly overflow into the intermediate holding furnace through the transition chamber;
3. The copper liquid has a stable reduction process by the covered surface of charcoal;
4. After the reduction, the copper liquid is rapidly crystallized into a cast rod through a crystallizer through the continuous casting machine in the holding furnace;

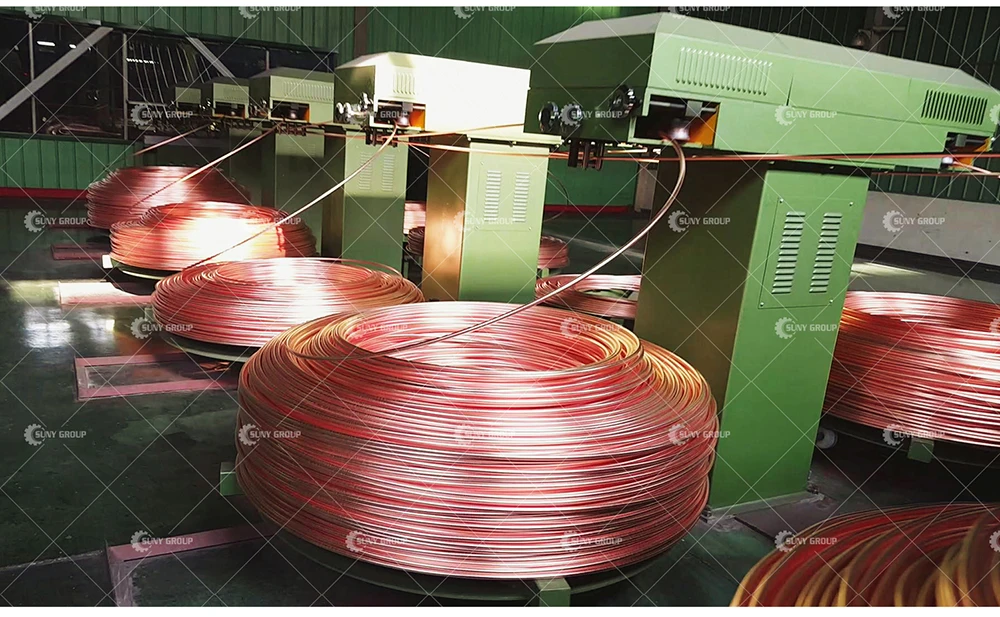

5. Every casting rod is equipped with a controller and a torsion bar machine.The casting rod is led from the continuous casting machine to the controller and the torsion bar through the regulating wheel device to form a circle. After the completion of the circle, the casting rod is cut and hoisted away for the next process.
PRODUCT ADVANTAGE
2). Low energy consumption, single ton energy consumption is 20% lower than similar domestic equipment;
3). Removable sensor, flexible maintenance, short maintenance time;
4). Computer control, servo drive system, man-machine interface;
5). Fully automatic control of rewinding and arranging wire, single reel rewinding weight above 3 tons;
6). Charge with the highest temperature tolerance;
7). Our company independently researched furnace material, temperature resistance level is 1790 degrees, and the temperature resistance level is much higher than 1300 degree temperature resistance level of other manufacturers, so that the service life of the furnace is improved.
TECHNICAL PARAMETERS
Capacity | 3000 - 12000T/Year |
Furnace Number | 2 Melting Furnace+1 Heat Preservation Furnace |
Casting Rod Number | 24 Pcs |
Casting Rob Diameter | φ8mm ~ φ20mm |
Upward Speed | 6.0 ~ 2800mm/min |
Upward Circular Pitch | 3-6mm ( Adjustable ) |
Traction Frequency | 0 ~ 800 times/time |
Traction Way | Servo Motor Tranction |
Winding Specification | φ1000xφ1550x800 ( mm ) |
Voltage | 380V, 50Hz, 3Phase |
Melting Copper Speed | 1550 Kg/H |
Maximum Operating Power | ≤560 Kw |
Power Consumption | ≤330 Kwh/T |

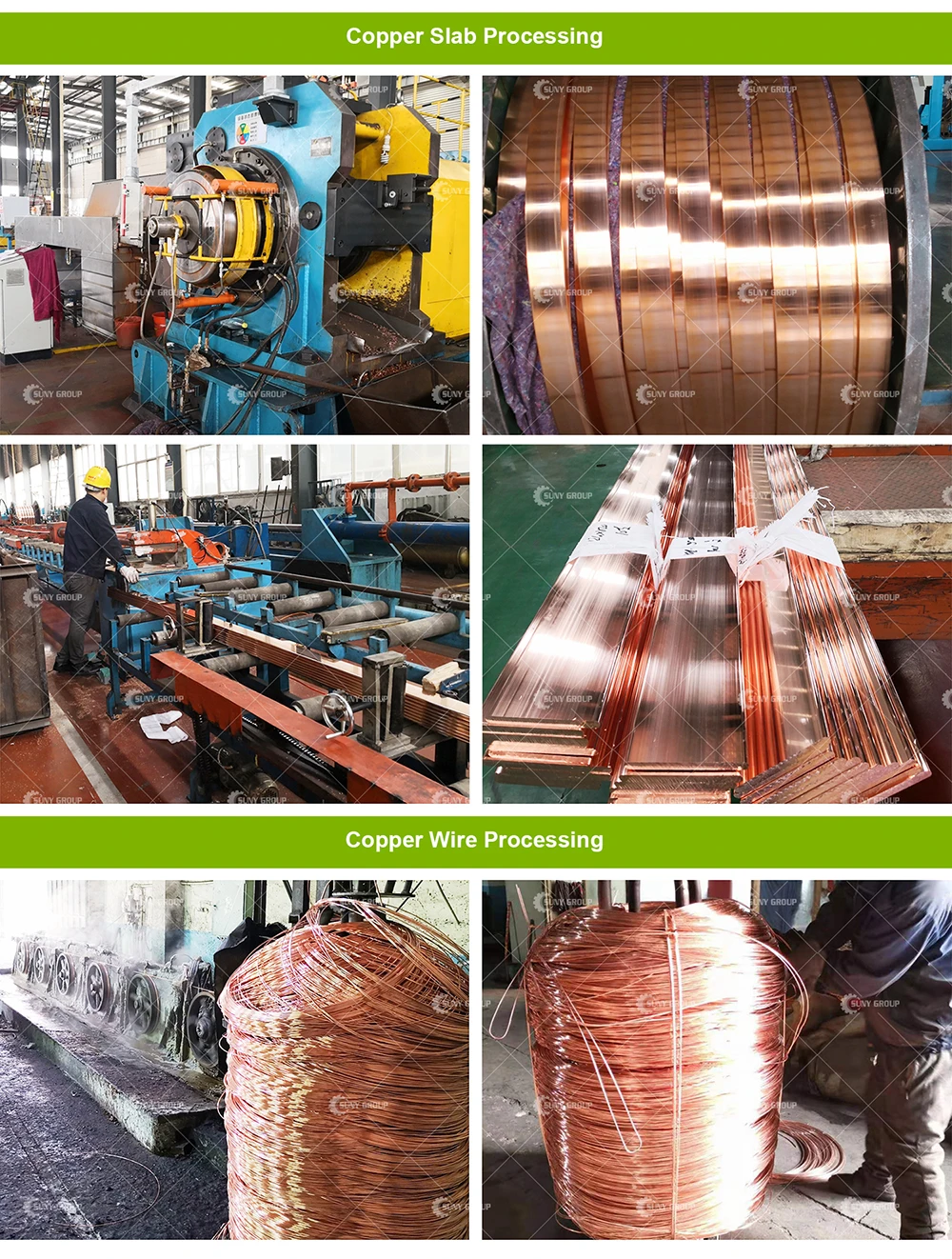

DEEP PROCESSING EQUIPMENT
CUSTOMER COOPERATION
Our company can offer you whole processing solution for the copper, such as copper separator, copper electrolysis, copper bar production line etc, and we will offer you the professional installing and training service, to help you to build a perfect copper recycling factory.
