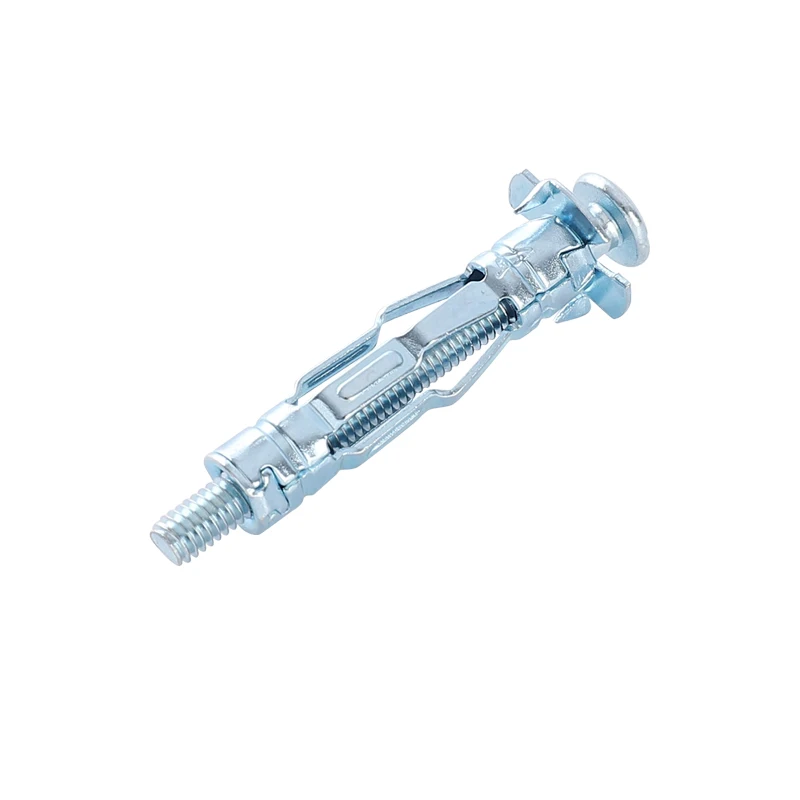

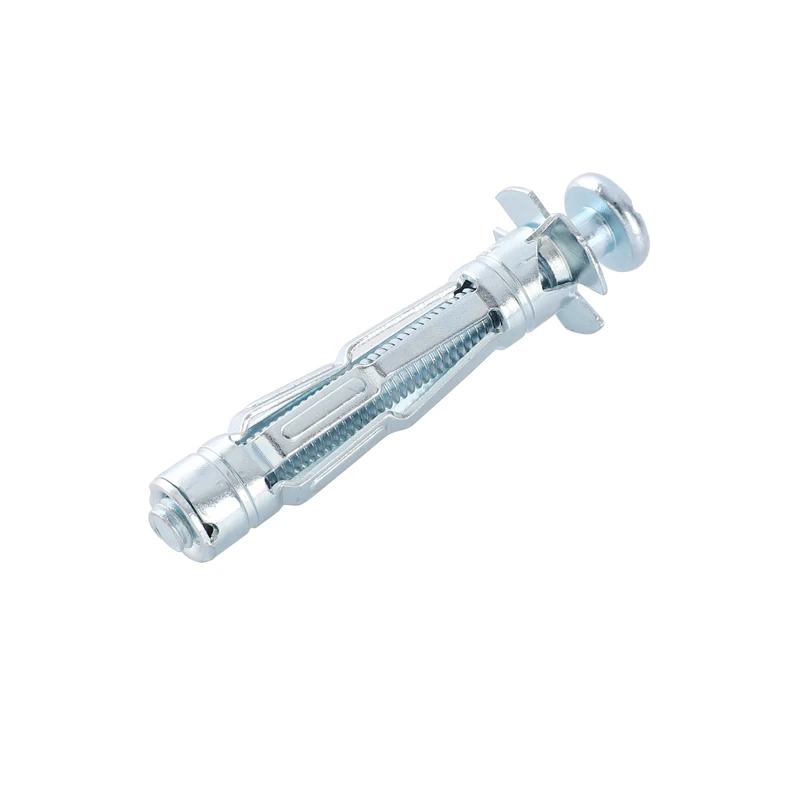

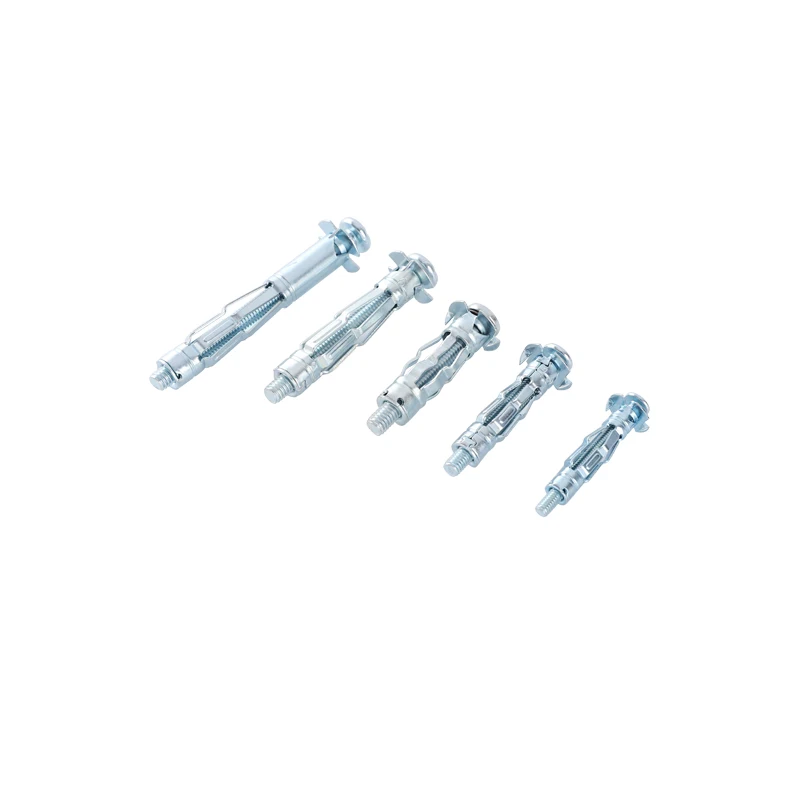

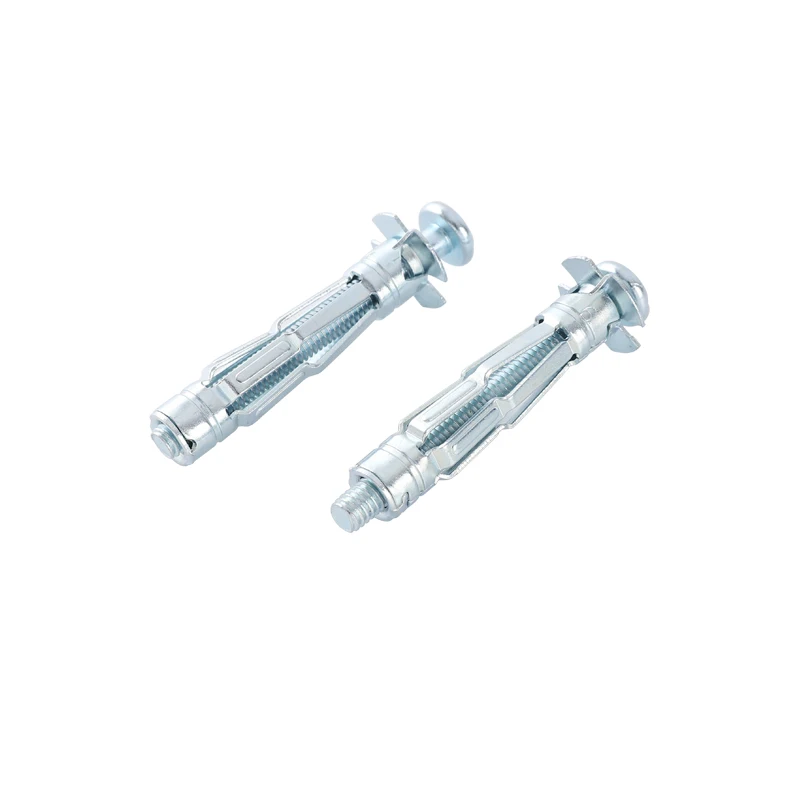

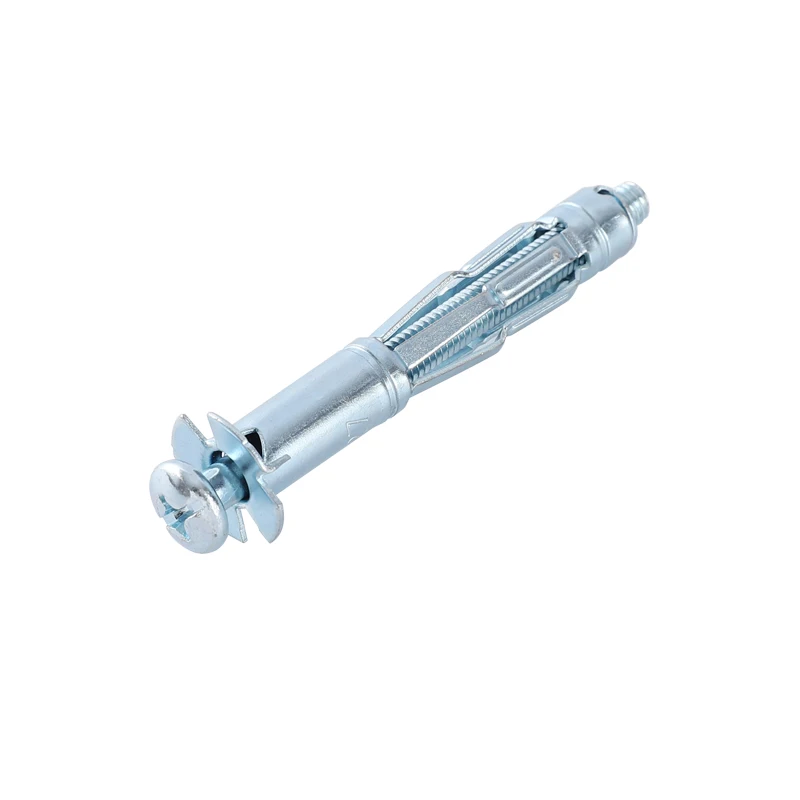

M5x80 hollow wall anchor expansion anchor bolt

Product Overview

Description



Material :Carbon steel

The body of hollow wall anchor is produced by one-piece , all automatic stamping process without welding of the steel body .

Application:    wood lath ,  metal lath ,  wallboard , gypsumior cinder block  , hollow tile. Coat hooks, television brackets ,  curtain rods , towel rails,  wall lights ,  lightweight mirror , electrical fixtures .

Anchor size	imperial size	Grip range	Screw length	Pull out load kgs
M4x21		Up-4	28	30
M4x32	1/8"-S	3-9	41	30
M4x38		8-15	47	30
M4x46	1/8"-SL	3-20	54	30
M4X46	1/8"-L	16-21	54	30
M4X59		34-38	67	30
M5x37		6-13	45	45
M5x50	3/16"-S	3-16	60	45
M5x65	1/16"-L	14-32	74	45
M5x80		28-45	89	45
M6x37		6-13	45	53
M6x50	1/4"-S	3-16	60	53
M6x65	1/4"-L	14-32	74	53
M8x37		6-13	45	65
M8x53		3-16	65	65
M8x65		14-32	75	65
