8 Years Factory Professional Transformer Electronic UV Ballast For 3KW UV Lamp in Flexo Printing
- Category: Industrial Power Supply >>>
- Supplier: Shenzhen,Uwet,Electric,Technologies,Co.,Ltd.
Share on:
Product Overview
Description

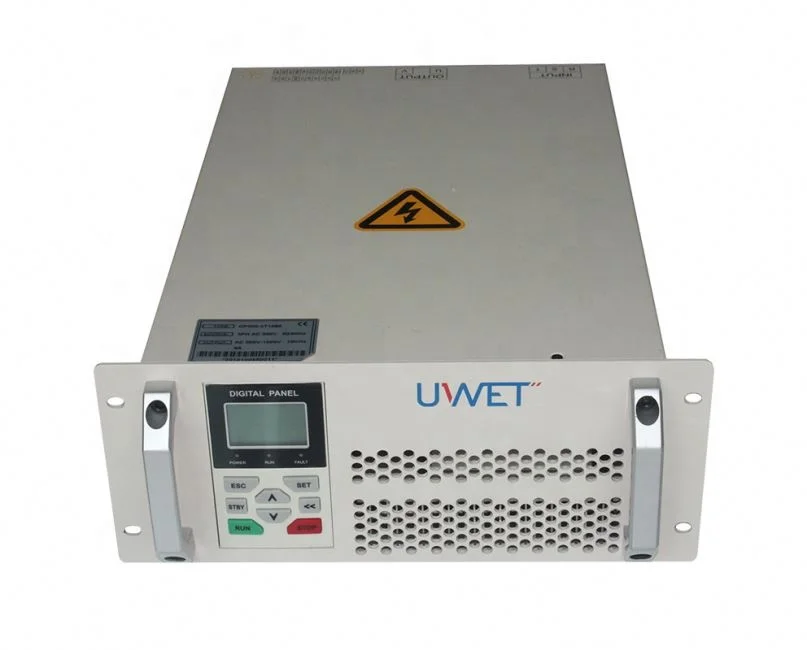

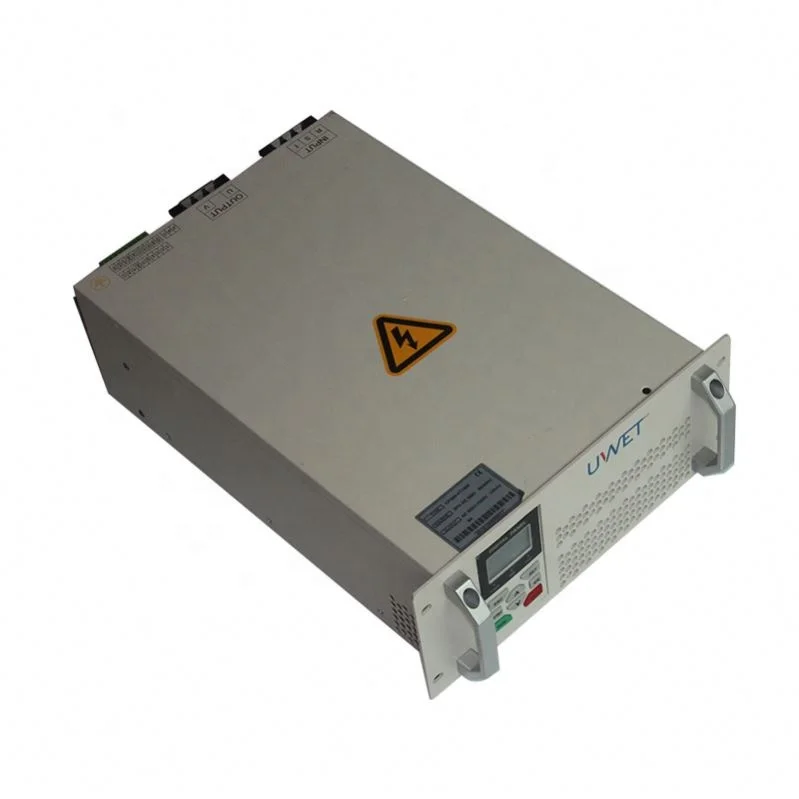

UWET X6000 Transformer Electron Ballast For Uv Lamp Tanning In Water Treatment
Product Introduction
DC long arc xenon lamp is mainly used in xenon lamp aging machine.Xenon lamp aging machine is also called"sunshine radiation protection test device". According to the tectv standards and methods, it can be devided into three kinds:air-cooled xenon lamp,water-cooled xenon lamp and desktop xenon lamp.The difference lies in the temperature, humidity,accuracy and time of testingv.The xenon arc lamp, which can simulate the whole sunlight spectrum, is used to reproduce the destructive light waves in different environments. It can provide corresponding environmental simulation and accelerated test for scientific reserch,product development and quality control.
Features
1)Output characteristics: 10KHz-15KHz high frequency stable square wave
2)High voltage mode:isolated boosting transformer
3)Flexible power regulation modes: digital panel, external analog, RS485 communication, multi-segment power, extended board, etc
4)Supports closed loop control of light intensity probe
5)Rich extended board: TCP/IP network board, CANOPEN board
6)Automatically matches tube pressure:automatically matches tube pressure according to lamp condition(within allowable range)
7)Intelligent detection: when device is standby,it can start Voltage automatic hold to ensure the power recovery quickly
8)Multiple programmable IO, AO, AI channels, real-time transmits of machine status
9)Built-in lamp tube exhaust control, built-in optimized PID control fan frequency converte
10)Control mode: power vector
11)The xenon lamp trigger control driver is intergrated inside, and the trigger automatically
stops when the lamp is turned on.
12)Internal intergrated lamp cooling control logic supports PID temperature control
13)Drawer type cabinet design,small storage convenient rack type installation.
Specifications
Input | Rated voltage,Frequency | three phase(4T#series)380V 50/60Hz | ||
Voltage allowable range | Determined by model | |||
Output | Voltage | Determined by model | ||
Frequency | 3K Hz ~6K Hz | |||
Overload capability | 110% 10min | |||
Control Mode | vector control | |||
Control Characteristic | Resolution | 1% | ||
Current limitation | Power allowable setting | |||
Voltage limitation | 110% of rated lamp tube Voltage | |||
power limitation | Maximum rated output power of the lamp | |||
Under-voltage suppression in operation | Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy. | |||
Typical Function | Standby | sets standby power consumption when equipment is intermittent for energy-saving applications | ||
Working time record
| can read lamp working time in operation | |||
RS485 Communication | Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading | |||
Operation | Using external Dry Contact Control to Start and Stop | |||
Fault analysis
| with function of fault record query and fault cause analysis | |||
Display | Operation panel display | operation Status | Monitor output voltage, output current, set power, output power, etc. | |
parameter setting | Set the relevant parameter values according to actual requirements.
| |||
Protection / Alarm | Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure | |||
environment | Ambient temperature | -10ºC--+50ºC(not frozen) | ||
Ambient humidity | Below 90%(no frost) | |||
Ambient environment | Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
| |||
Altitude | Below 1000m | |||
Structure | degree of protection | IP52 | ||
Cooling method | Independent air-duct design forced air cooling | |||
| Model No. | Applicable Lamp Power | Output Voltage Range | Max. Output Current | Recommended Tube Voltage |
| X6000-4TMS03 | 3KW | 65-160V | 38A | 110V |
| X6000-4TMS04 | 4KW | 85-160V | 38A | 120V |
| X6000-4THC06 | 6KW | 160-260V | 36A | 210V |
Trade Show
Application
1. UV fast ink curing for printing industry
2. UV fast paint curing for woodwork
3. UV fast surface coating curing for rubber and plastic products
4. UV fast surface coating curing for metallic products
5. UV fast surface coating curing for electronic products
6. UV fast surface coating curing for various painting production lines
Certifications
Payment & Shippment
About us
Shenzhen UWET Electric Technologies Co., Ltd. is a high-tech private enterprise specializing in R&D, production, sales and service of UV intelligent power supply. It is located in Longhua District,where there are many high-tech industries. The company's R&D team is strong, and most of the R&D personnel have R&D experience of foreign companies. More than ten top experts in the industry have absorbed advanced technologies such as Italy, Austria, Germany and Japan, combined with the principle of frequency converters and the development of the domestic UV industry.It took three years to develop the company's latest product: UV intelligent variable frequency power supply. The products have completely independent intellectual property rights,and now many technologies are in the leading level in the industry and even in the world.
