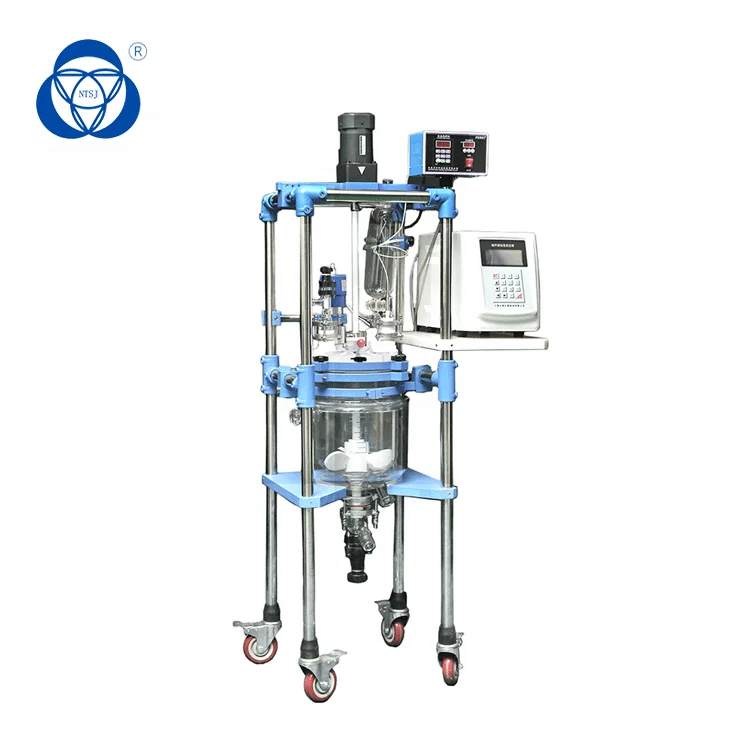

Laboratory reaction vessel high pressure ultrasonic chemical reactor
Glass reactor unit is the key part of the experiment process. It can be jointed with vacuum pump, chilling circulator,heationg circulator.It is adopted in the industry of chemical products, advanced material synthesis experiment,etc.
Model
PGR-50
Reactor volume (L)
50
Neck quantity on lid
6
External diameter of inner vessel (mm)
365
External diameter of outer vessel (mm)
410
Cover diameter (mm)
265
Vessel height (mm)
850

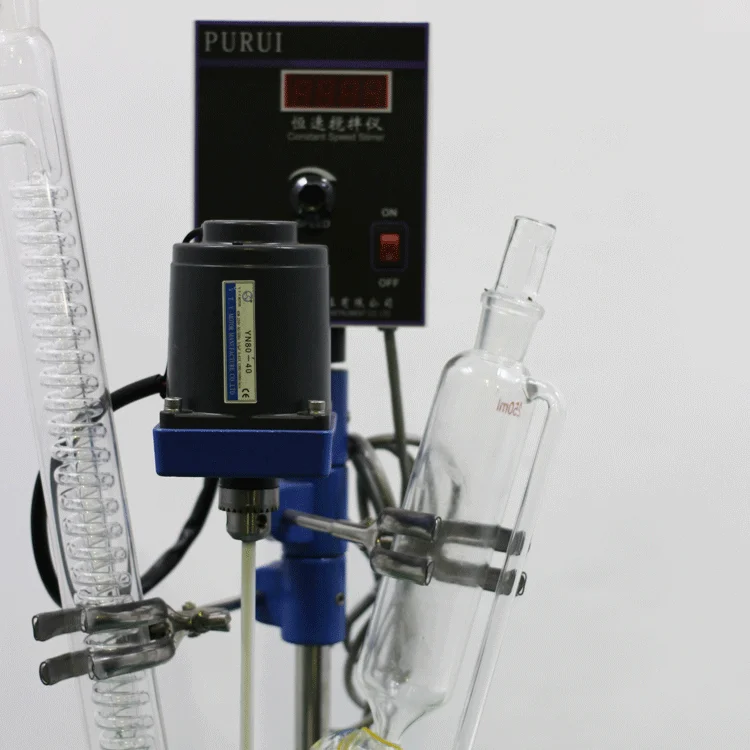

Motor power (W)
180
Rotation speed (rpm)
50-600
Torque (Nm)
2.86
Electrical power (V)
220
Vacuum degree (Mpa)
0.098
L×W×H (mm)
700×500×2300

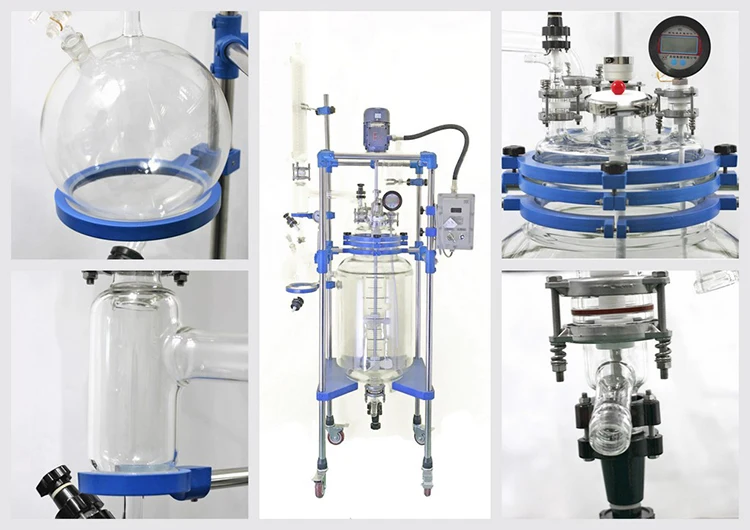

Features

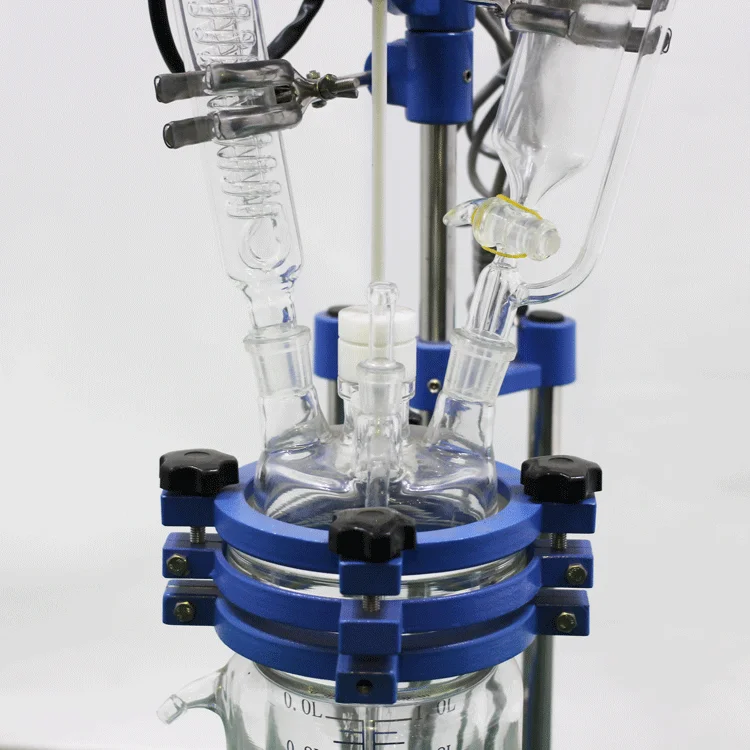

•Machine has a 304 stainless steel frame and moveable design. There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.
•Main reactor body is made by G3.3 borosilicate glass. It can supportchemical reaction temperature from -120 to 300 centigrade.
•Glass reactor can work under vacuum and constant pressure. In quiescent state, vacuum rate of its inner space can reach -0.098MPa.
•Stirring hole of the lid will be sealed by alloy steel mechanical sealing part. Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.
•PT100 temperature sensor, which is a high precision temperature measuring tool.

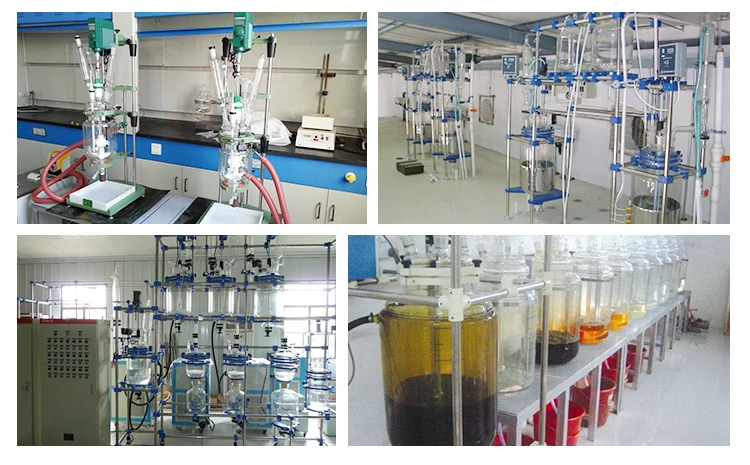

Application
Related Products
Company Information
Sanjing Chemglassis one of the leading and professional manufacturers and traders specialized in research, development and production of chemical glass instrument in China. Main products include high-end customized glass reactor, wiped film evaporator, rotary evaporator, short path molecular distillation and chemical glass accessory which has received the certification of ISO9001, CE and BV. The founder of Sanjing Chemglass Mr. Xing has over 30 years relevant experience.
Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
Sanjing Chemglass is located in Nantong which is very convenient and only takes 2 hour-drive-away from Shanghai Airport. Sanjing Chemglass is the largest scale of production glass factory in China with over forty thousand square meters area. And we have over two hundred employees with high rate capacity utilization.The annual sales figure of Sanjing Chemglasshas reachedtwenty million dollars.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.
If you are interested in any of our product or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world.
