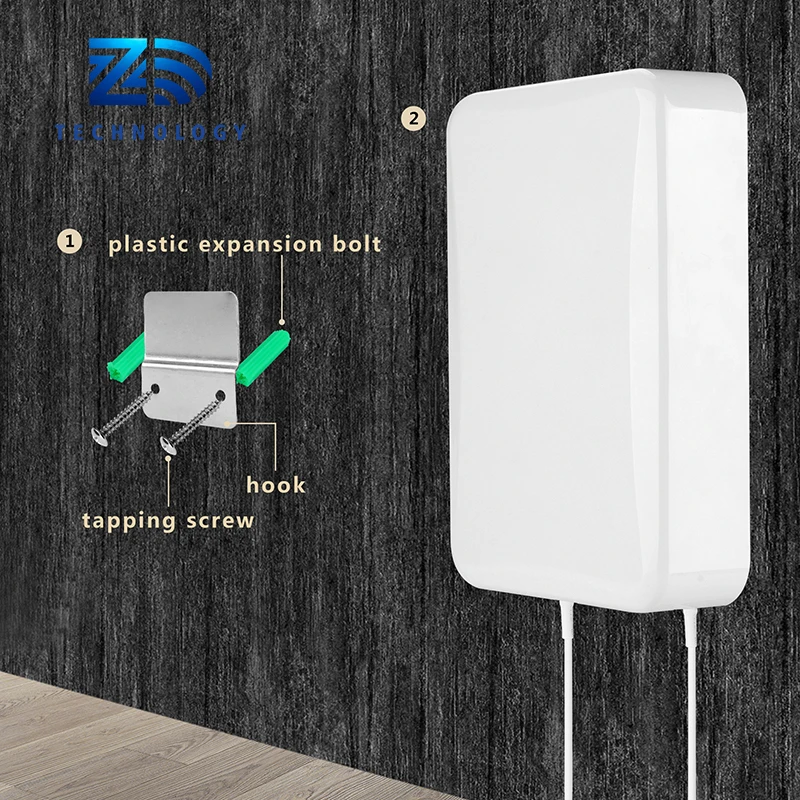

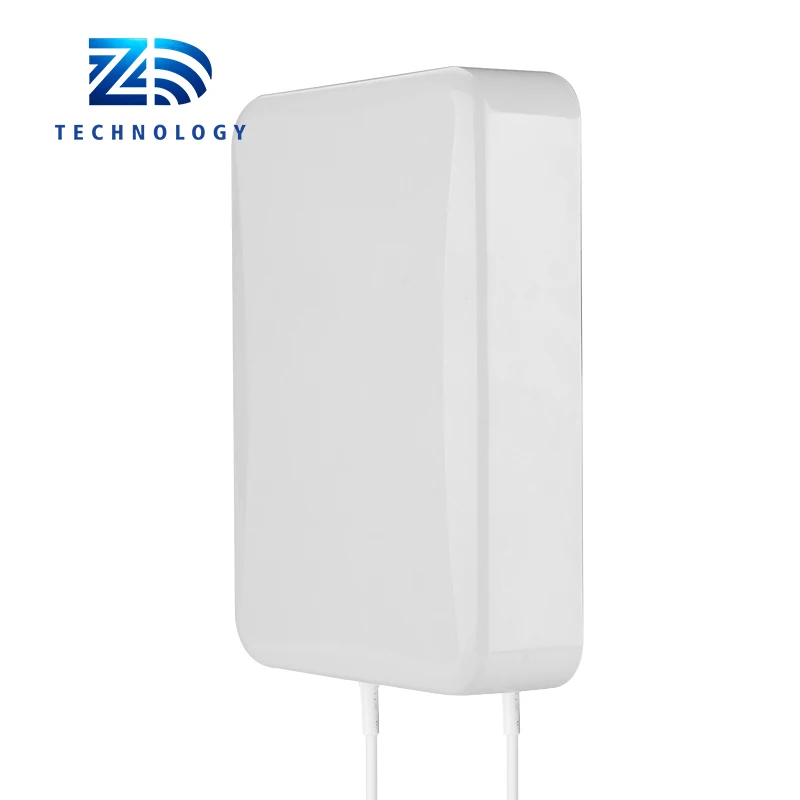

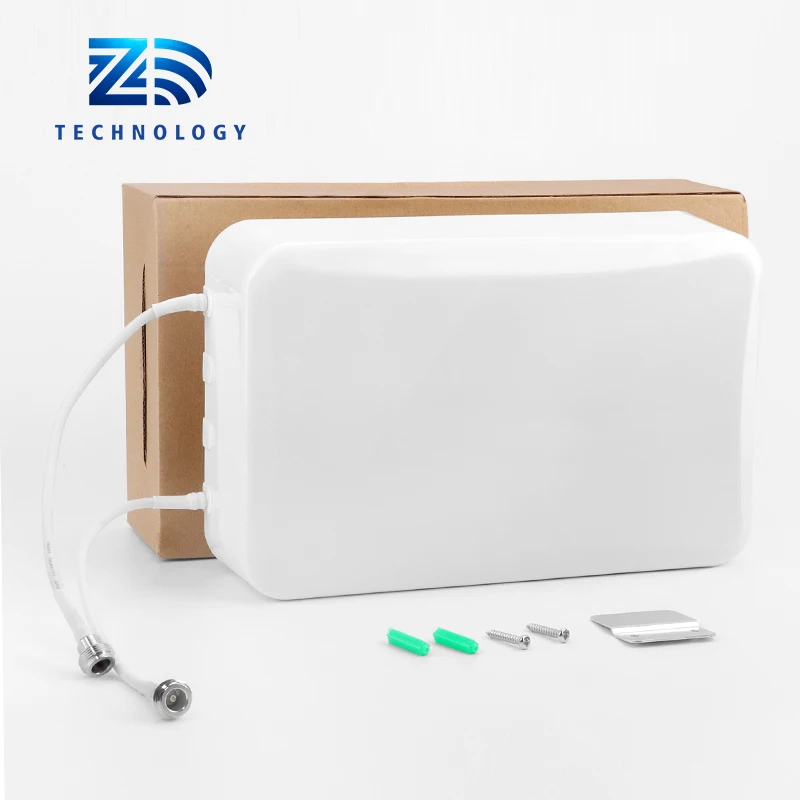

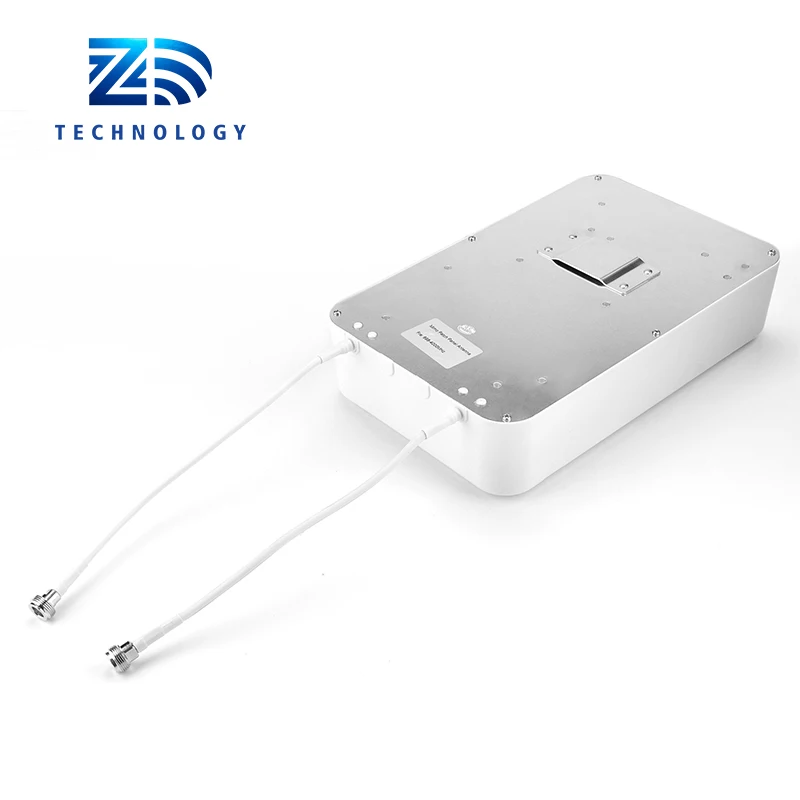

5G Products 2 Port Indoor 7/9dBi MIMO Panel Antenna Omni Antenna Directional Cellular
- Category: >>>
- Supplier: Shenzhen ZD Tech Co. Ltd.
Share on (62154458770):
Product Overview
Description
Electrical parameters | ||||||||
Frequency range(MHz) | 698~864 | 870~960 | 1710~2700 | 3300-4000 | ||||
Gain(dBi) | 5.5 | 6.5 | 8.5 | 7.5 | ||||
VSWR | ≤2.0 | ≤1.8 | ||||||
Polarization | V/H | |||||||
Isolation(dB) | 20 | |||||||
Input Impedance | 50Ω | |||||||
Intermodulation IM3(dBc) | ≤-150 (2 x 33 dBm carrier) | |||||||
Horizontal Beamwidth (°) | 90 | 90 | 65 | 55 | ||||
Vertical Beamwidth (°) | 75 | 70 | 60 | 35 | ||||
Input Power per Port(W) | 50 | |||||||

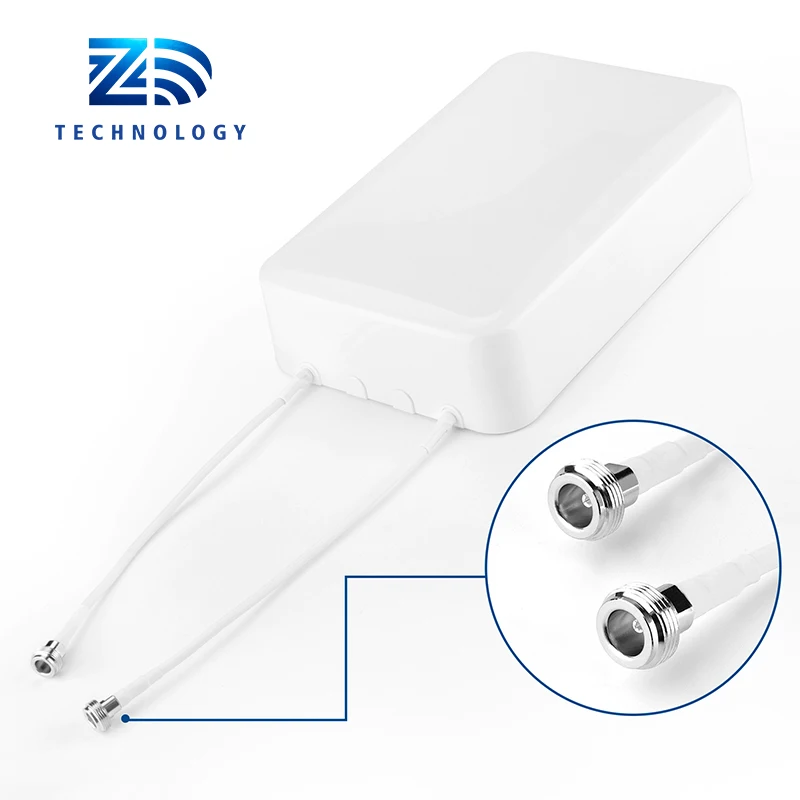

Connector | 2 x N-Female | |||||||
Dimensions(mm) | 295X180X70 | |||||||
Weight(kg) | 0.8 | |||||||
Cover Material | ABS | |||||||
Operating Temperature(°C) | -40～+60 | |||||||
