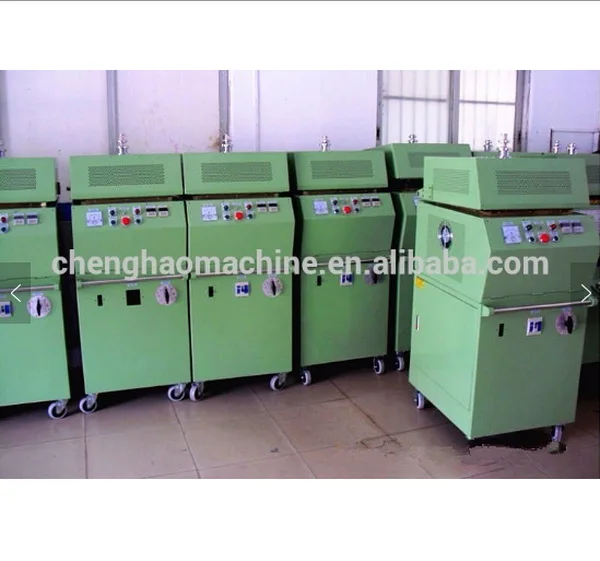

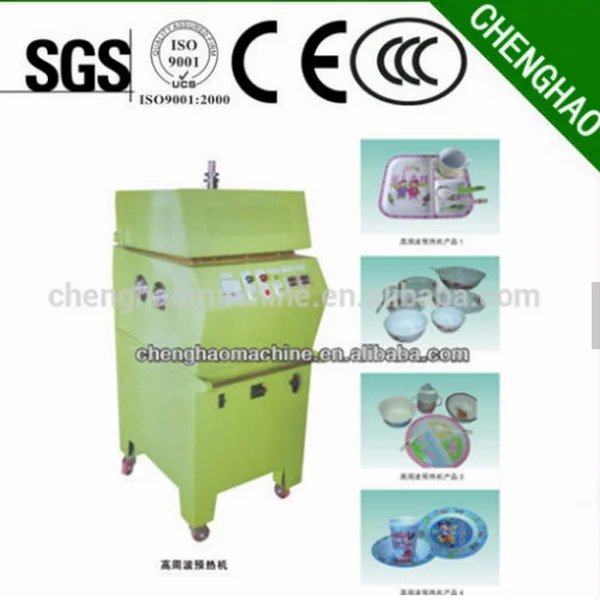

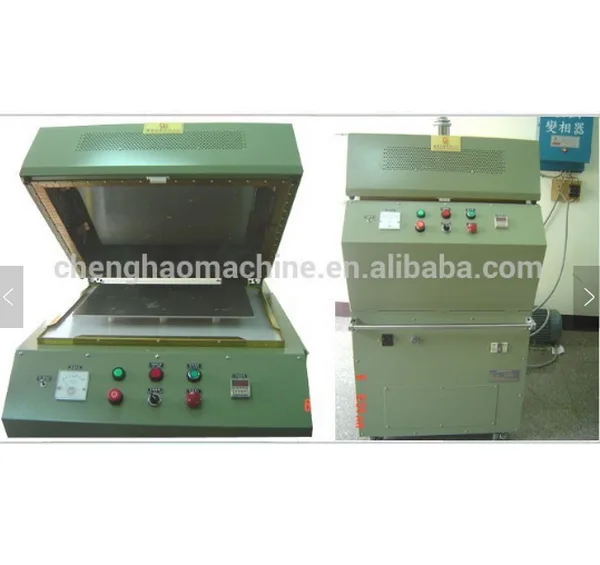

Прочная тарелка и вращающийся электрод, меламиновая посуда 3 5 кВт, высокочастотная машина для предварительного нагрева

Share on (62154879127):


Price:3 600,00 $ - 4 000,00 $

Quantity:


Product Overview

Description


Durable Plate And Rolling Electrode Melamine Tableware 3-5kw High Frequency Preheating Machine



Principle:

Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.

Function:

After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.



Model

ZY-8KW-XSRD

ZY-10KW-XSRD

Output Power

8000W

10000W

Voltage

380V 3P 50/60Hz

380V 3P 50/60Hz

Input Power

15KVA

18KVA

Frequency

27.12Mhz

27.12Mhz

Oscillation Tube

TOSHIBA 7T69RB

TOSHIBA E3069

Anti-Spark System

NL-5557

NL-5557

Max Pressure

10Ton

10Ton

Gap of Eletrode

160MM

160MM

Size of Upper Electrode Size

450*350MM

450*350MM

Working Table Size

600*400MM

600*400MM

Machine Dimension

2160*1450*2250MM

2160*1450*2250MM

Machine Net Weight

1050KG

1150KG

Packing Dimension

950*1450*2250MM

950*1450*2250MM

CH-330
CH-520
Voltage

8000W

10000W

Voltage

380V 3P 50/60Hz

380V 3P 50/60Hz

Input Power

15KVA

18KVA

Frequency

27.12Mhz

27.12Mhz

Oscillation Tube

TOSHIBA 7T69RB

TOSHIBA E3069

Anti-Spark System

NL-5557

NL-5557

Max Pressure

10Ton

10Ton

Gap of Eletrode

160MM

160MM

Size of Upper Electrode Size

450*350MM

450*350MM

Working Table Size

600*400MM

600*400MM

Machine Dimension

2160*1450*2250MM

2160*1450*2250MM

Machine Net Weight

1050KG

1150KG

Packing Dimension

950*1450*2250MM

950*1450*2250MM

220V/380V  3P  50/60Hz
Output Power
3KW
5KW
Input Power
6.5KVA
11KVA
Oscillation Frequency
27.12Mhz
27.12Mhz
Oscillation Tube
TOSHIBA 7T85RB
TOSHIBA 7T69RB
Electrode Size
240*280MM
310*340MM
Gap of Electrode
110MM
110MM
Bakelite Compounds
500G
1200G
Melaimine
500G
1000G
Urea Compounds
500G
1500G
Machine Dimension
500*775*1280MM
600*850*1500MM
Machine Net Weight
180KG
260KG
