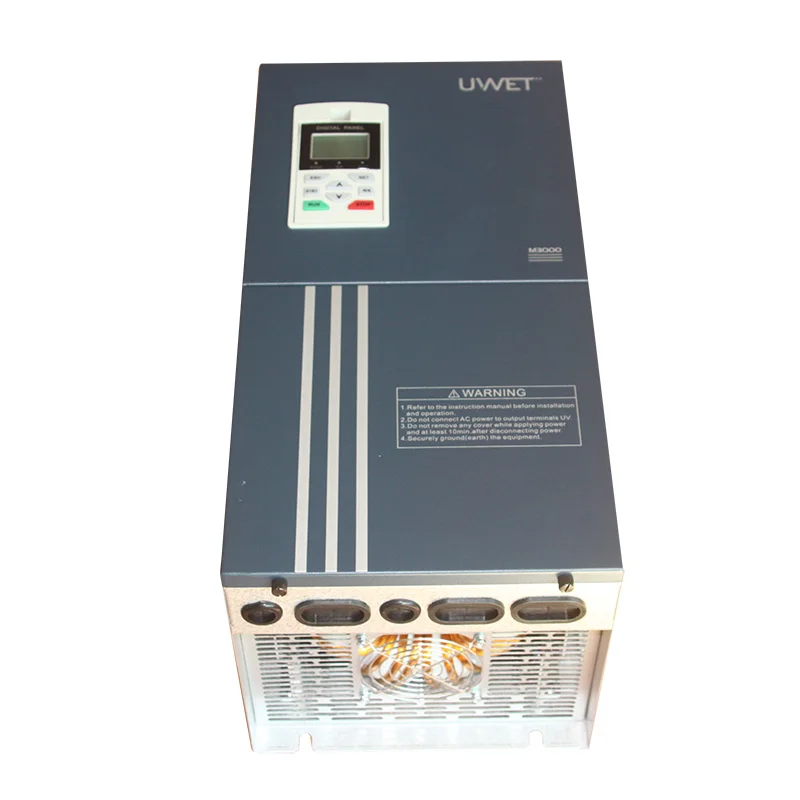

Match UV Curing Lamp 4KW 220V Copper Uv Transformer Ray Pvc Printer Generator

Features

1)Output characteristics: 10K-15KHz high frequency stationary square wave
2)High voltage mode: isolated boosting transformer
3)Flexible power regulation modes: digital panel, external analog, RS485 communication, multi-segment power, extended board, etc
4)Supports closed loop control of light intensity probe
5)Rich extended board: TCP/IP network board, CANOPEN board
6)Automatically matches tube pressure:automatically matches tube pressure according to lamp condition(within allowable range)
7)Automatically holds pressure function: when device is standby at stong pumping mode,it can start using of Voltage automatic hold to ensure teh power recovery quickly
8)Multiple programmable IO, AO, AI channels, real-time transmits of machine status
9)Built-in lamp tube exhaust control, built-in optimized PID control fan frequency converte

10)Control mode: power vector

Specifications

Input	Rated voltage,Frequency			three phase(4T#series)380V 50/60Hz
	Voltage allowable range			Determined by model
Output	Voltage			Determined by model
	Frequency			3K Hz ~20K Hz
	Overload capability			110% 10min
Control Mode				vector control
Control Characteristic	Power setting Resolution			1%
	Current limitation			Power allowable setting
	Voltage limitation			110% of rated lamp tube Voltage
	power limitation			Maximum rated output power of the lamp
	Under-voltage suppression in operation			Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy.
Typical Function	Standby			sets standby power consumption when equipment is intermittent for energy-saving applications
	Working time record			can read lamp working time in operation
	RS485 Communication			Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading
	Operation			Using external Dry Contact Control to Start and Stop
	Fault analysis			with function of fault record query and fault cause analysis
Display	Operation panel display	operation Status	Monitor output voltage, output current, set power, output power, etc.
		parameter setting	Set the relevant parameter values according to actual requirements.
Protection / Alarm				Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure
environment	Ambient temperature			-10ºC--+50ºC(not frozen)
	Ambient humidity			Below 90%(no frost)
	Ambient environment			Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
	Altitude			Below 1000m
Structure	degree of protection			IP52
	Cooling method			Independent air-duct design forced air cooling

Model No.	Applicable Lamp Power	Output Voltage Range	Max. Output Current	Recommended Tube Voltage
M3000-4T0030	3KW(Max.)	500V-850V	7A	750V
M3000-4T1060	6KW(Max.)	800V-1000V	9A	900V
M3000-4T3120	12KW(Max.)	1200V-1700V	10A	1600V
M3000-4T5200	20 KW(Max.)	2100V-2300V	10A	2250V

Trade Show

Application

1. UV fast ink curing for printing industry

2. UV fast paint curing for woodwork

3. UV fast surface coating curing for rubber and plastic products

4. UV fast surface coating curing for metallic products

5. UV fast surface coating curing for electronic products

6. UV fast surface coating curing for various painting production lines
