Sony sensor IMX224 CCTV Dual LVDS 8Bit industrial cmos camera module

industrial cmos camera module

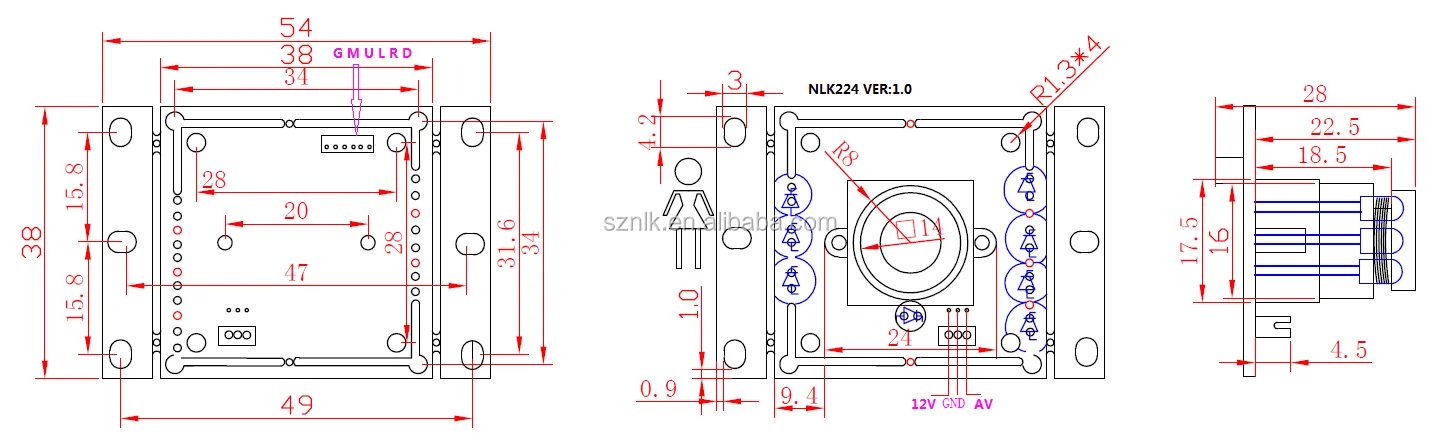

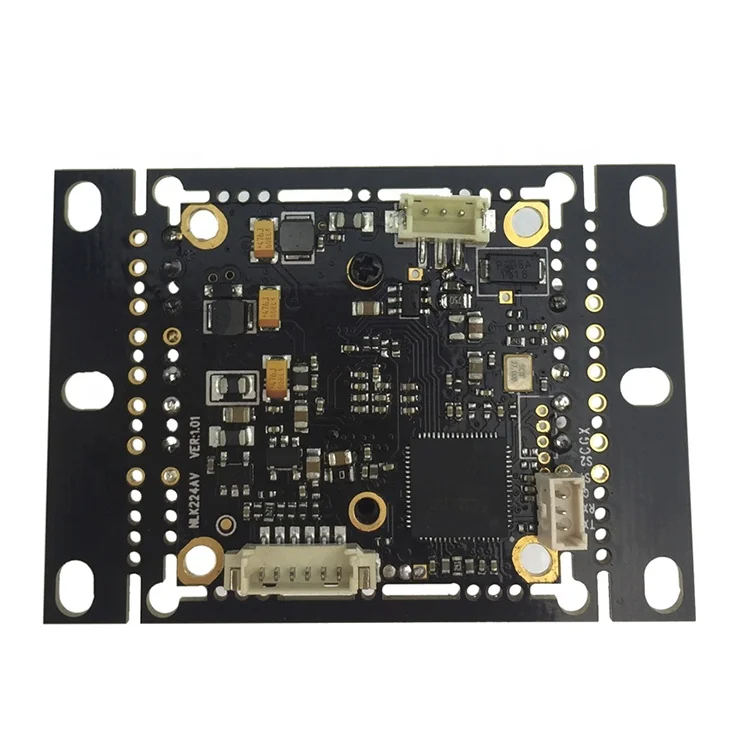

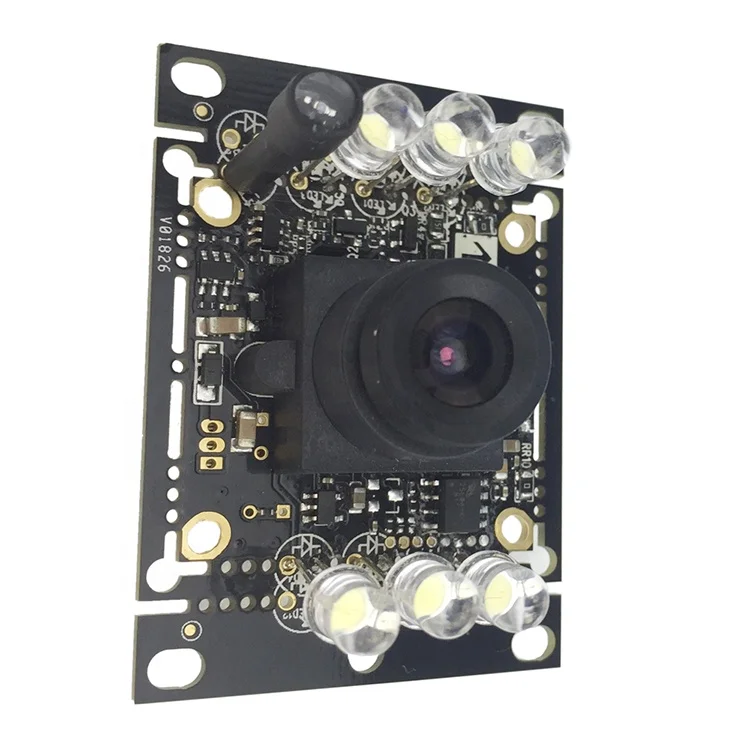

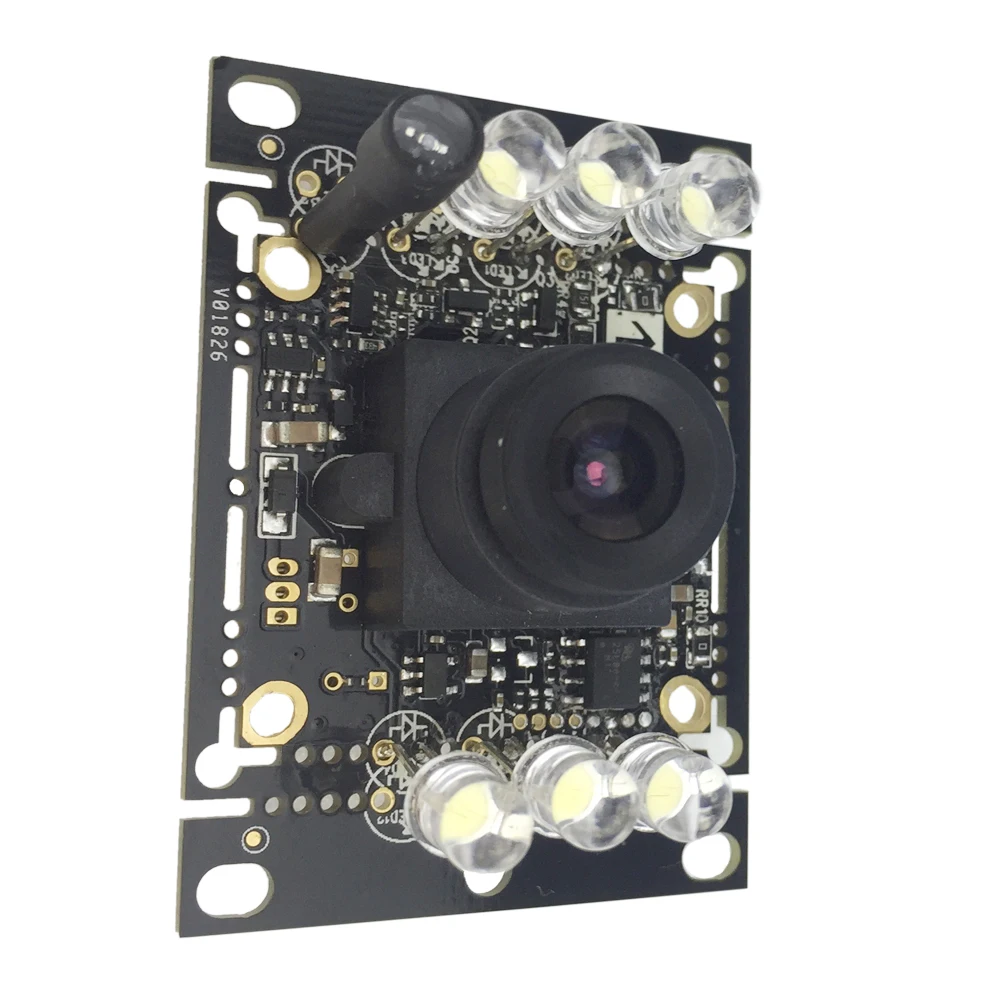

 NLK224AV VER1.0 AHD camera module, use SONY industrial level IMX224 as sensor, 1/3inch CMOS,1.3MP pixel. Apply for difference equipment which need collect video signal. Support CVBS and PAL and NTSC and AHD720P/25/30fps system format, the main advantage is auto compensation for night, and real WDR range.





Electric Parameters

1	Image sensor 1/3inch CMOS Sony IMX224
2	System format PAL,NTSC
3	Effective pixel 1280(H)*960(V)
	6 Pixel size 3.75um*3.75um
4	4 Sync. mode Built-in Sync.
5	Horizontal pixel CVBS:600TVL(16:3 mode)AHD:720P
	Signal switches Menu /key, Long press upper key :AHD, right key: CVBS
	Dynamic range Ultra Wide Dynamic Range, support frame accumulation
6	Menu function 8 languages menu, 5 keys : MENU UP LEFT RIGHT DOWN
7	S/N rate > 65dB (AGC OFF)
8	Min. Lux 0.001LUX(F:1.2)
9	Exposure system Auto white balance/ Backlight compensation/Auto AGC.
10	Electric Shutter 1/25-1/12000S
11	Gamma correct >0.45
12	Video output 1.0±0.2Vp-p/ 75 ohm

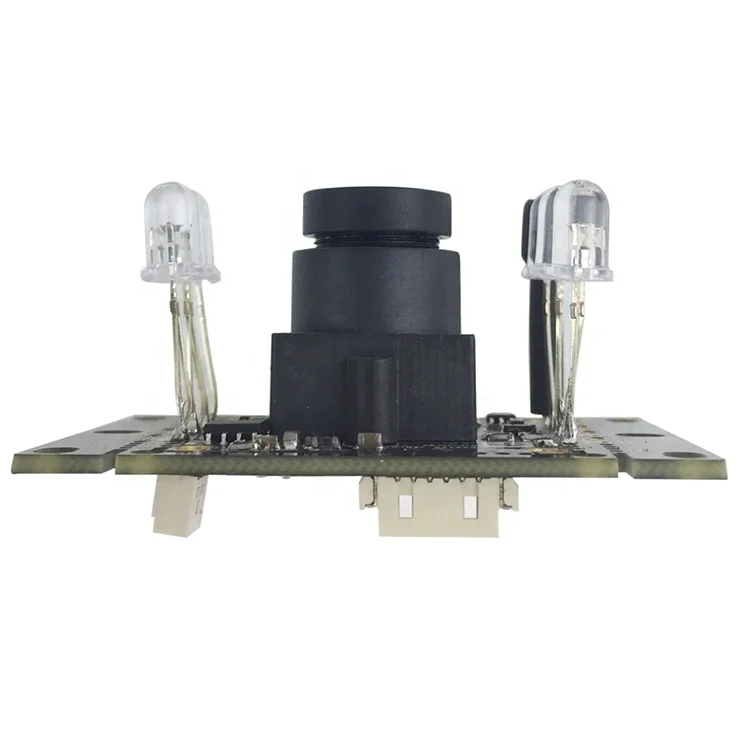

13	Night compensation 6 white LED or IR LED(optional)
14	Frame 25FPS(PAL)/30FPS(NTSC)
15	Input voltage +7V~+15V (Typal:DC12V ±25%)
16	Power DC+12V:80mA±5mA ( it’s 120mA±10mA when with 6 LEDs) Support 940nm IR LED also
17	Working Temperature -20℃ ~ 70 ℃
18	Storage Temp. -30℃ ~ 80℃
19	Humidity 5~95% RH
20	Lens parameters Focus length:3.6mm±5%
	Angle:90 degree±10%
	Distance for focus: 40cm(Close);1.5M(far)
	Relative Distortion:<-28.7%
