Biometric access control Wireless remote control infrared sensing time delay door release exit button with timer relay module

Product Overview

Description

Biometric access control Wireless remote control infrared sensing time delay door release exit button with timer relay module

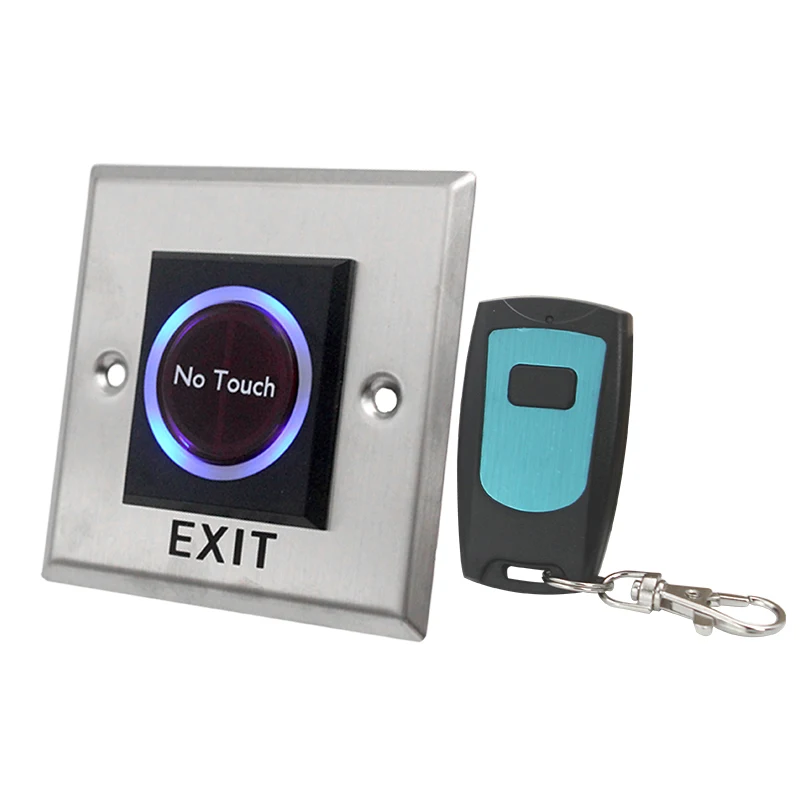

K-RR series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel plate. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years, becoming a classic style.





K-RR series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.

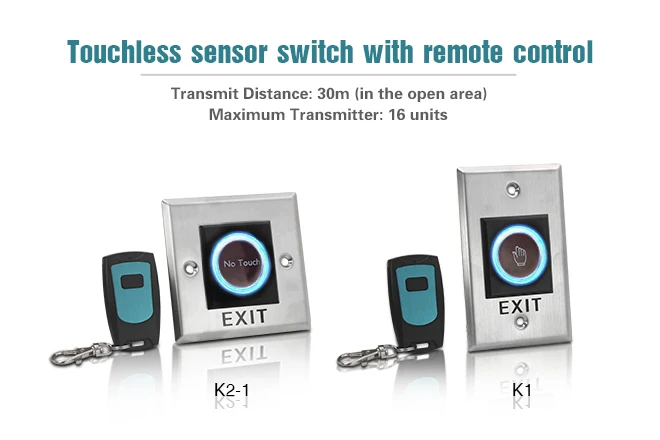

The remote controler could work in 30m in open side.

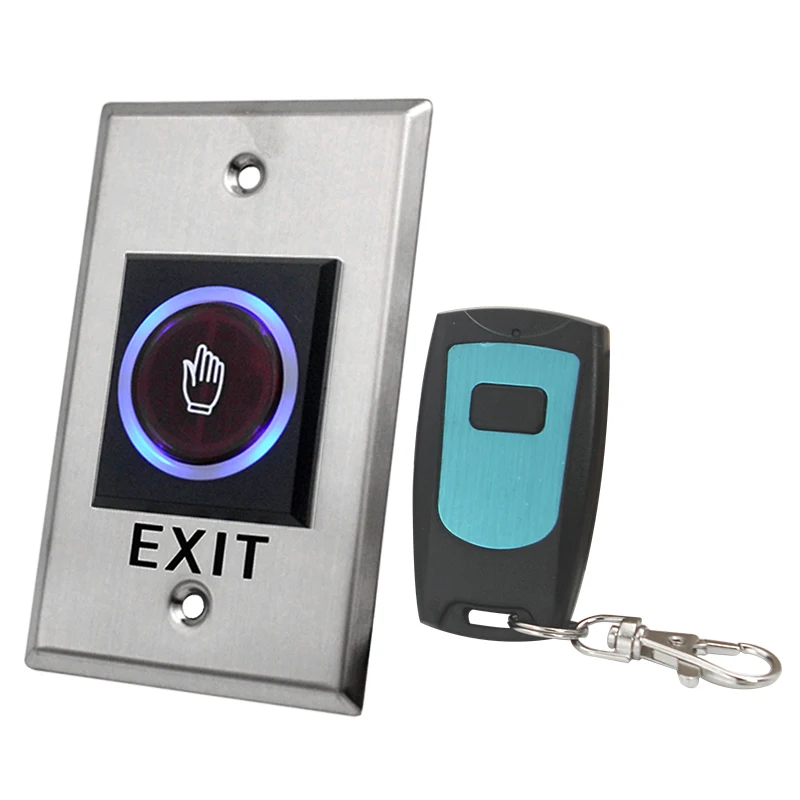

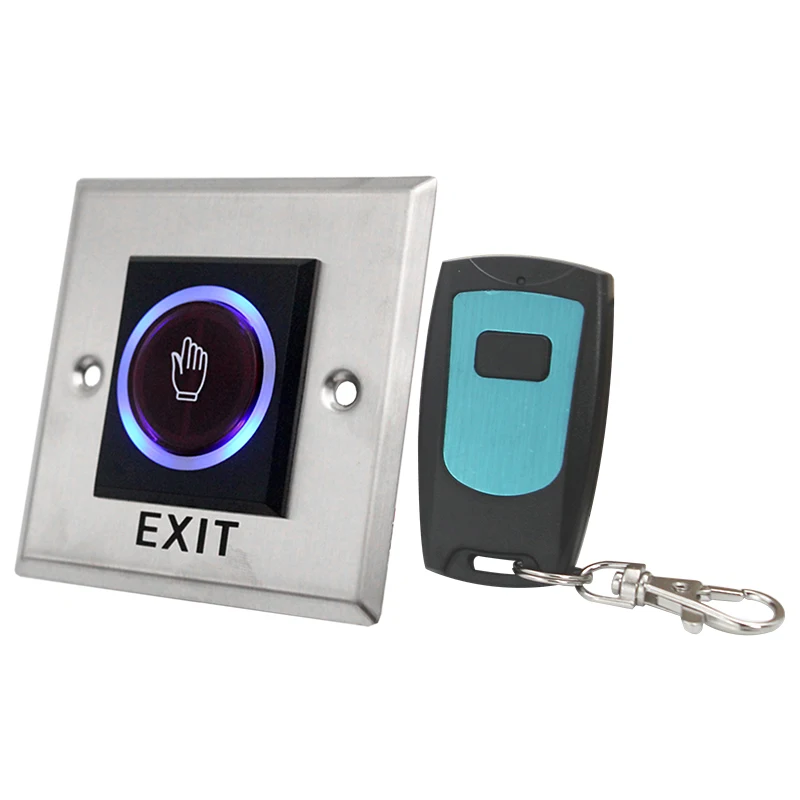

Our standard version is 2 types of switch content for options. Type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.





86*86mm size is popular in European countries, 115*70mm is popular in North and South American countries and some european countries.



Default with one remote controller, could use max 16pcs together.



Special function time delay for door release is available for options: 1-30secs time delay to take action.



Wholesale Wireless remote infrared sensor release exit button/switch push button remote access door entry remote controller pictures as below:





Parameter	Description
Size	86*86mm
Standard Structure	304 Stainless Steel Panel, IR Sensor Button
Panel Material	304 Stainless Steel Panel, Sandblast Finished
Current	3A @ 12V DC, 24V DC Available
Output Contact	NO/NC/COM /LED
Mechanical Life	100,000 tested
Operating Temperature	10-55℃ (14-131F)
Operating Humidity	0-95% (non-condensing)
Weight	0.13kg
Package	100pcs/15kg/51*43*33cm/ctn























Technical Parameter for the remote controller



Model	807M
Working Voltage	12V DC
Max. Quantity of Transmitter	16pcs
Size	80*55*28mm
Working Frequency	433 MHz
Contacts	NO/NC/COM
Transmitting Distance	≥30m in the open area
Accessories	Additional transmitters are available
Standard Package	200pcs/carton/51*46*25cm

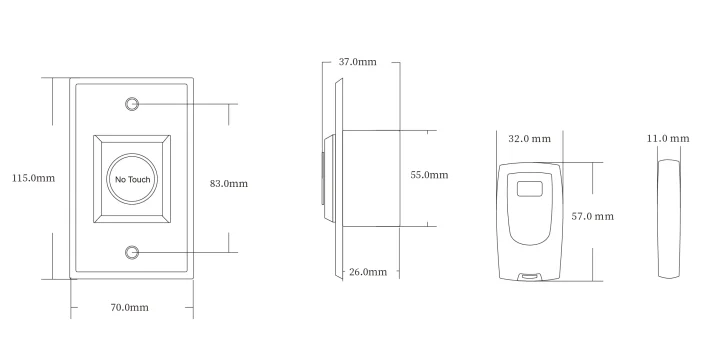

Wholesale Wireless remote infrared sensor release exit button/switch push button remote access door entry product structure

 Wholesale Wireless remote infrared sensor release exit button/switch push button remote access door entry Application







1, Different sizes available for different countries: European size 86*86mm, ANSI Size 115*70mm



2, No Touch sign or Hand Symbol, different facelates to meet different requirements

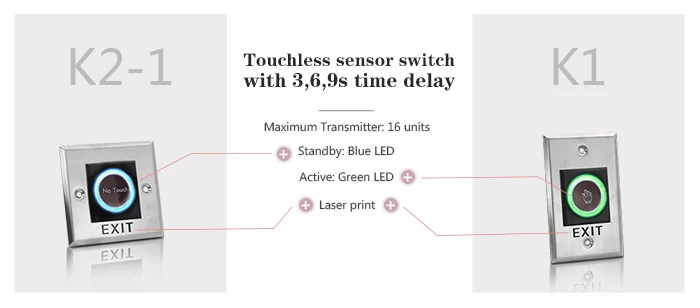

3, Blue and Green colors LED indicator, blue color when standby, green color when actived



4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.



5, CE RoHS Certification, we are honered to provide CE RoHS Certifications



6, 3 years warranty to ensure you after sales service



7. OEM/ODM experiences for top ranking brands, customization available.
