MVSC220 Series Solenoid Valve
- Category: >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (62155258316):
Product Overview
Description
Banner
Product Description
- As a professional solenoid valve manufacturer,AirTOP Pneumatic & hydraulic has a wide range of solenoid valves widely used in many sections of the industrial control systems.
- AirTOP solenoid valve have zero differential valves,plastic solenoid valves,high pressure solenoid valves,etc.

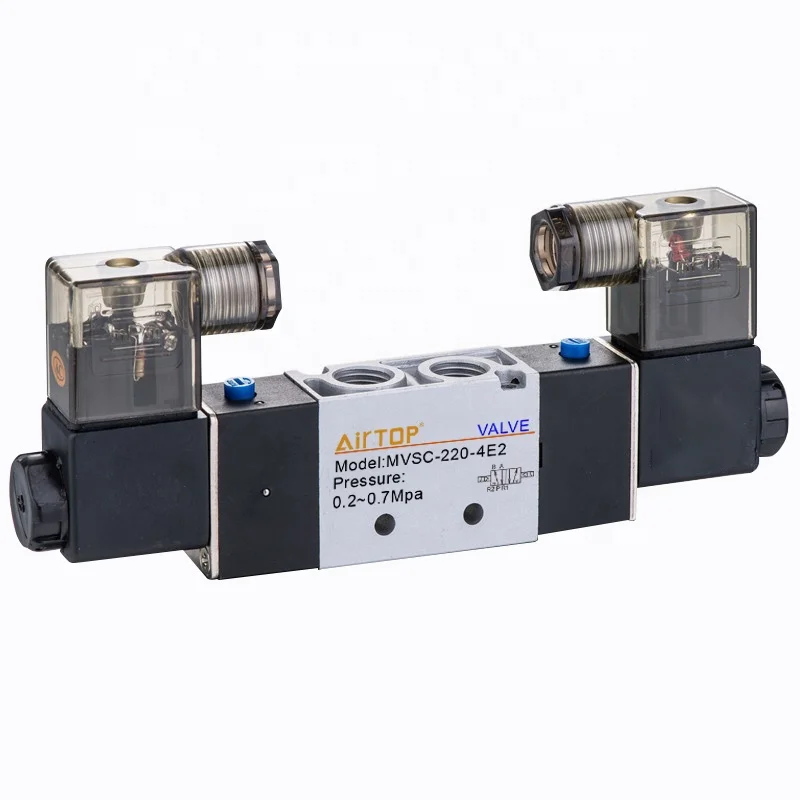

MVSC220 Series Solenoid Valve
Specification
Model | MVSC-220-3E1 | MVSC-220-4E1, E2 | MVSC-220-4E2C.P.R |
Way Number | 3 | 5 | |
Valve Type | 2 Position | 2 Position | 3 Position |
Joint Pipe Bore Size | G1/4 | ||
Operating Fluid | Air | ||
Working-Pressure Range | 2~7kgf/cm2 | 3~7kgf/cm2 | |
Max. Pressure Resistance | 10kgf/cm2 | ||
Effective Section Area | 10mm2 | ||
Answer Time | 30ms | ||
Around Temperature | 5-50℃ | ||
Orientation Voltage | AC110V, 220V (50/60) Hz, DC24V | ||
Power Consumption | AC=6/4.9VA DC=2.5W | ||
Allowed Pressure Range | ±10% | ||
Insulation Class | F Class | ||

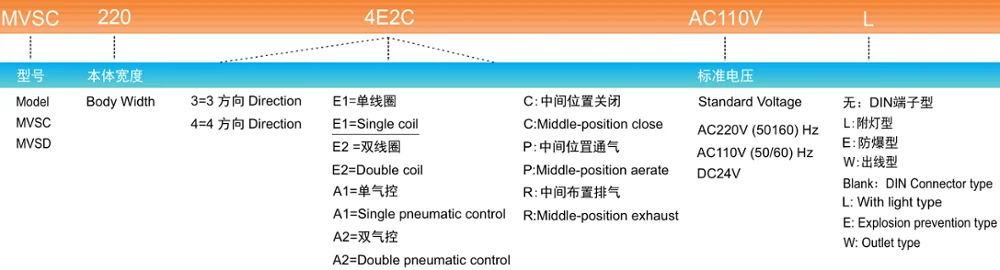

Ordering Code

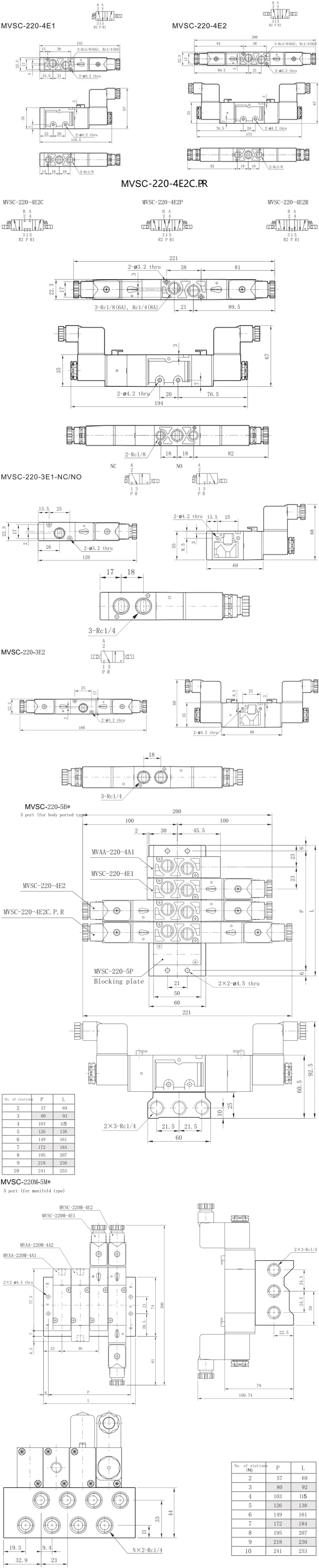

Dimension

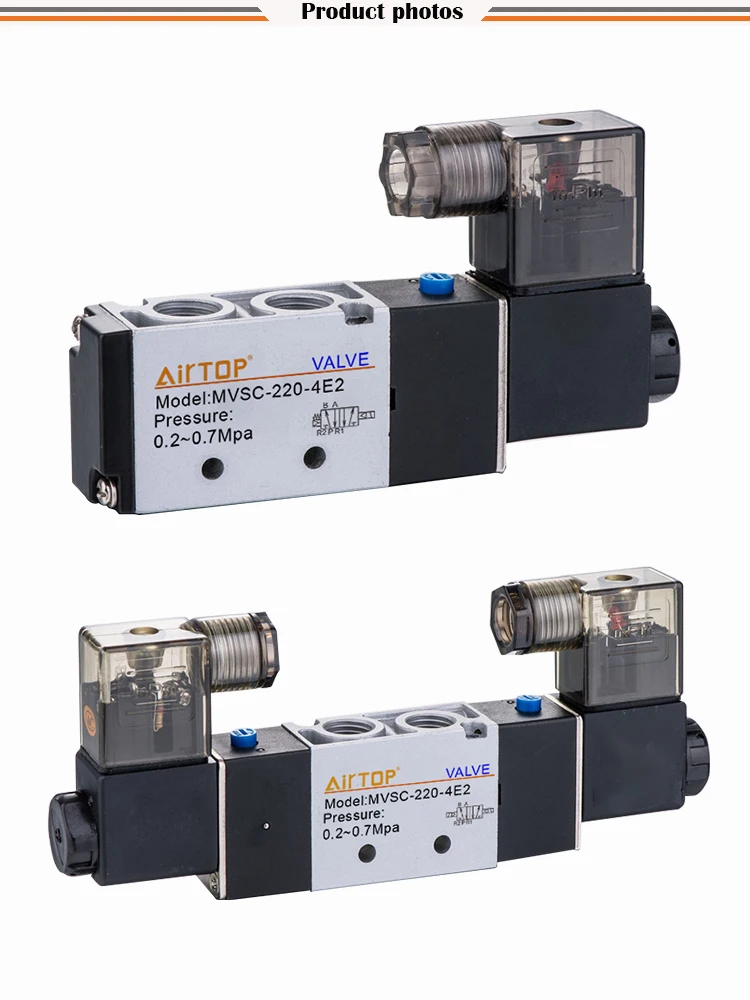

Product Photos
More products
Company Information
Packaging & Shipping
Trade Terms:
- Payment: T/T, L/C,Western Union: 30% deposits, 70% balance before delivery
- Delivery time: Standard samples: 5-7 days, customized samples: 10-15 days,bulk prodution depends on the quantity
Why Choose us?
Best Quality & Best Service with Competitive price.
- Alibaba Assessed 7 years Gold Supplier.
- We have ISO9001:2000 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
- We have imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines.
- AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market. AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
