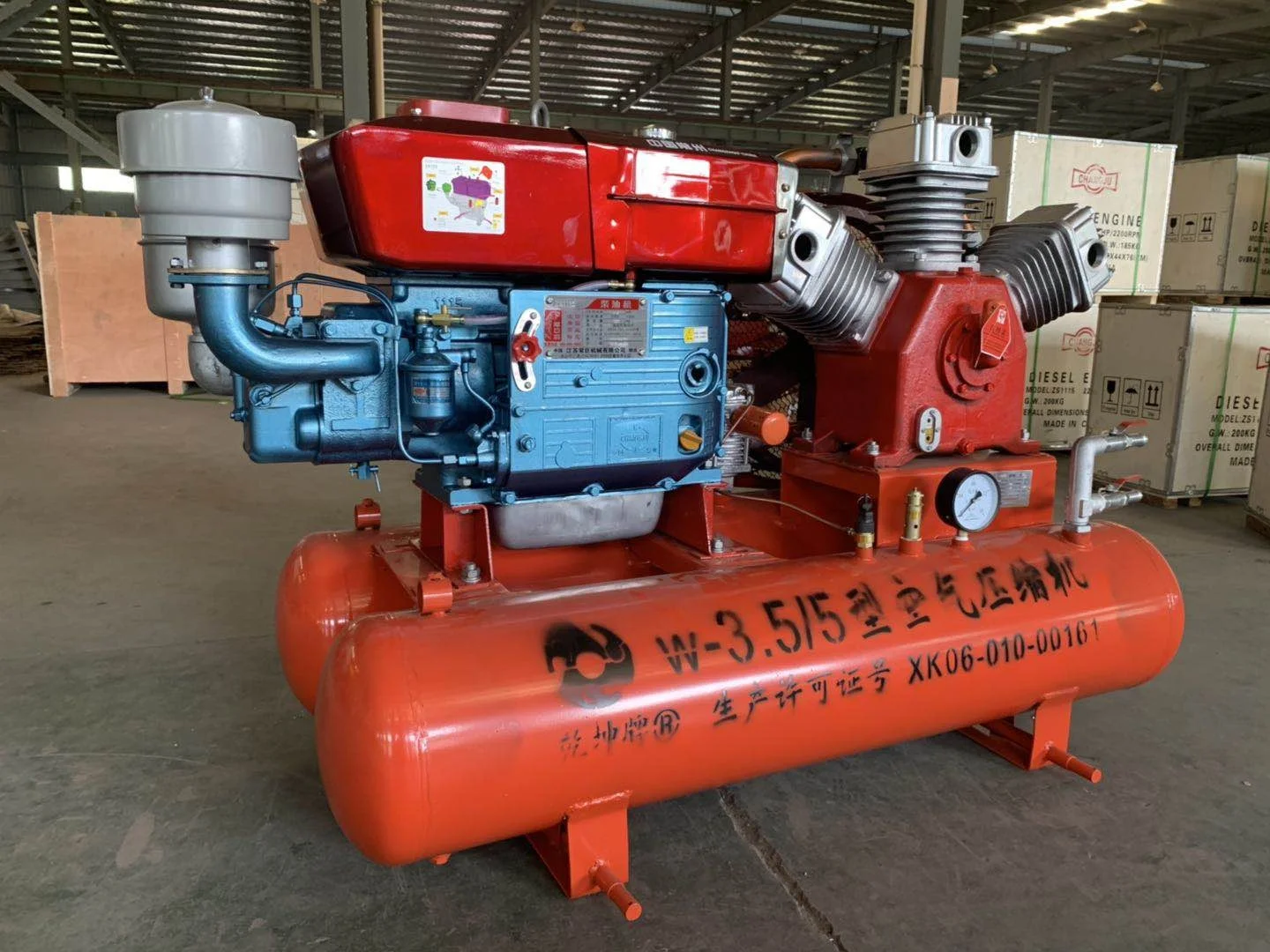

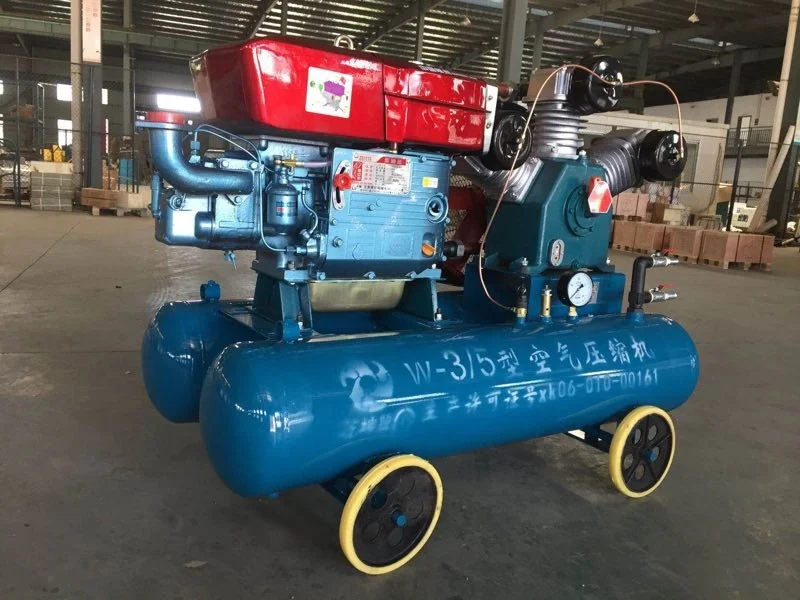

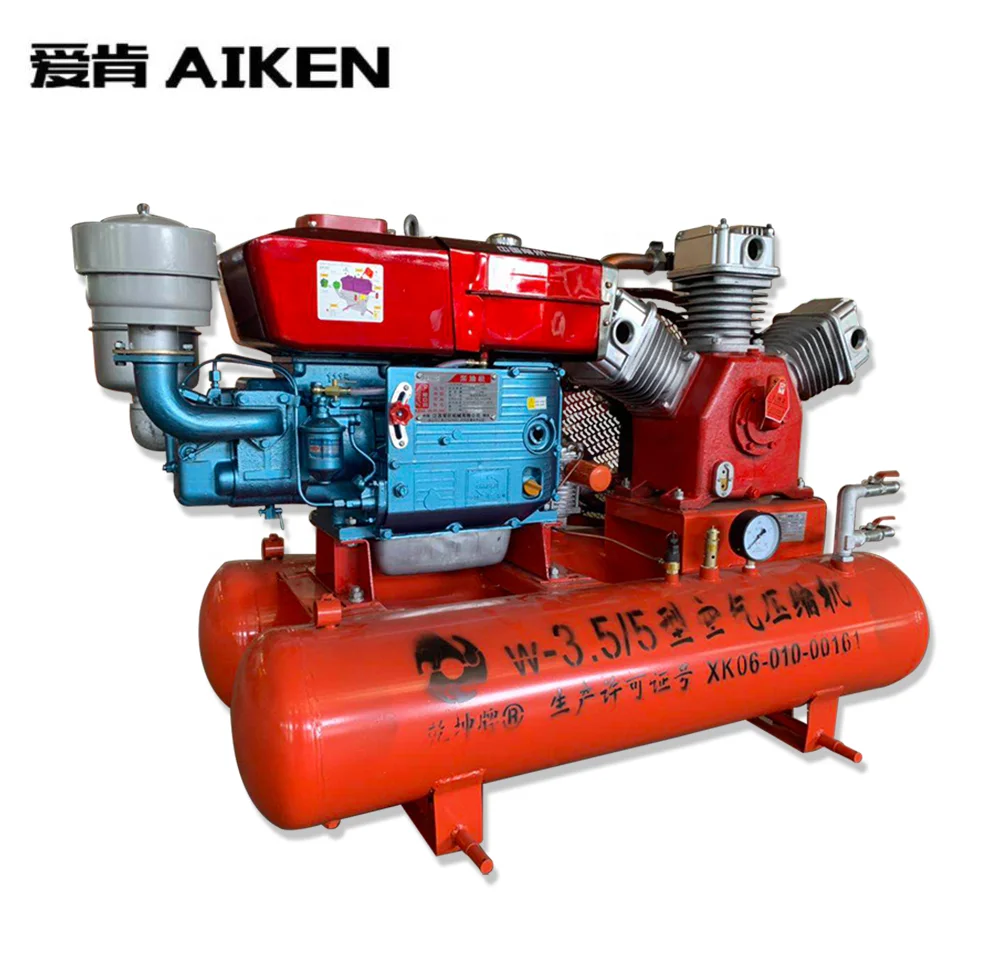

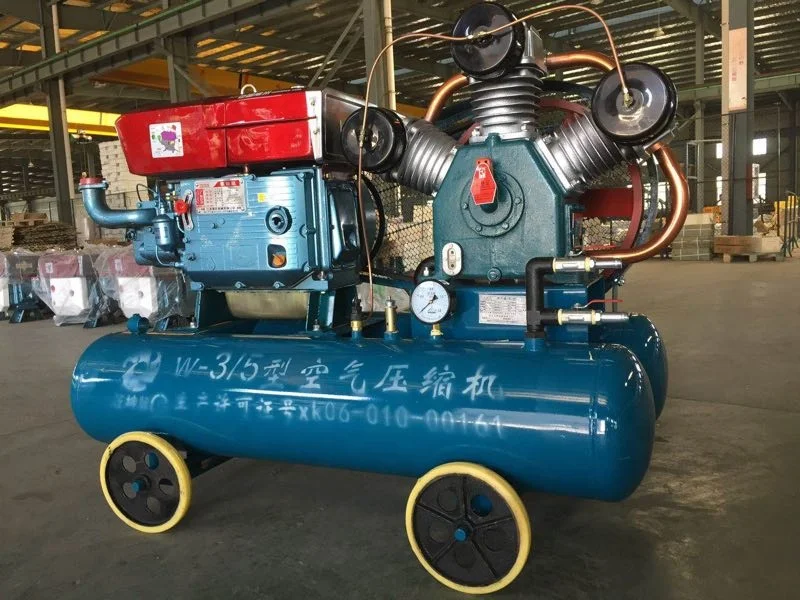

20HP 15KW 30bar Triangle belt piston type air compressor with 300L 350L tank

Name: 20HP 15KW 30bar Triangle belt piston type air compressor with 300L 350L tank
SKU: 62155274907
Availability: InStock

Price:

Quantity:

Product Description

\t Type	\t Single stage compression reciprocating piston type
\t Model number	\t W-1.8/5	\t W-2.6/5	\t W-2.8/5	\t W-3/5	\t W-3.5/5	\t W-3.6/5	\t W-4/5
\t Gas displacement (m3/min)	\t 1.8	\t 2.6	\t 2.8	\t 3.0	\t 3.5	\t 3.6	\t 4.0
\t Rated pressure (Mpa)	\t 0.5(gage pressure)
\t Rotational speed of the main engine (r/min)	\t 1150	\t 1020	\t 1080	\t 1070	\t 1100	\t 1000	\t 1100
\t Cylinder bore*Number of cylinders	\t Ф100x3	\t Ф115x3	\t Ф115x3	\t Ф120x3	\t Ф125x3	\t Ф115x4	\t Ф120x4
\t Travel of piston (mm)	\t 80	\t 100	\t 100	\t 100	\t 100	\t 100	\t 100
\t Type of cooling	\t Forced air cooling
\t Lubricating system	\t Splash lubrication
\t Kind of drive	\t Triangle belt
\t Control mode	\t Overpressure automatic exhaust	\t Overpressure automatic exhaust	\t Inlet load reducing	\t Inlet load reducing	\t Exhaust unloading	\t Exhaust unloading	\t Exhaust unloading
\t Matched power	\t S1100 Diesel engine or 11kW dynamo	\t S1110 Diesel engine or 15kW dynamo	\t S1110 Diesel engine or 15kW dynamo	\t S1115 Diesel engine or 15kW dynamo	\t S1115 Diesel engine or 18.5 kW dynamo	\t S1125Diesel engine or 18.5 kW dynamo	\t S1115Diesel engine or 18.5 kW dynamo
\t Weight (KG)	\t 320	\t 480	\t 480	\t 530	\t 530	\t 600	\t 600
\t Boundary dimension	\t 1700710 1000	\t 1780870 1235	\t 17808701235	\t 17808701235	\t 17808701235	\t 1800900 1300	\t 1800900 1300
