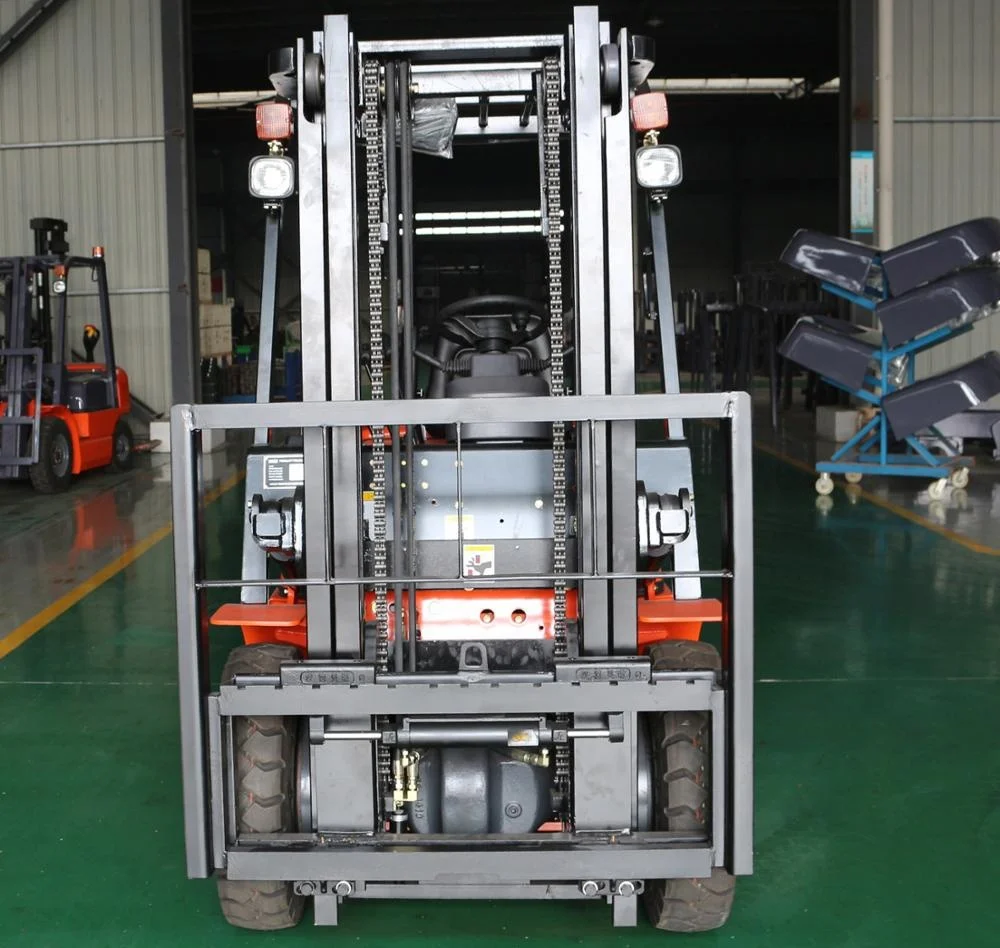

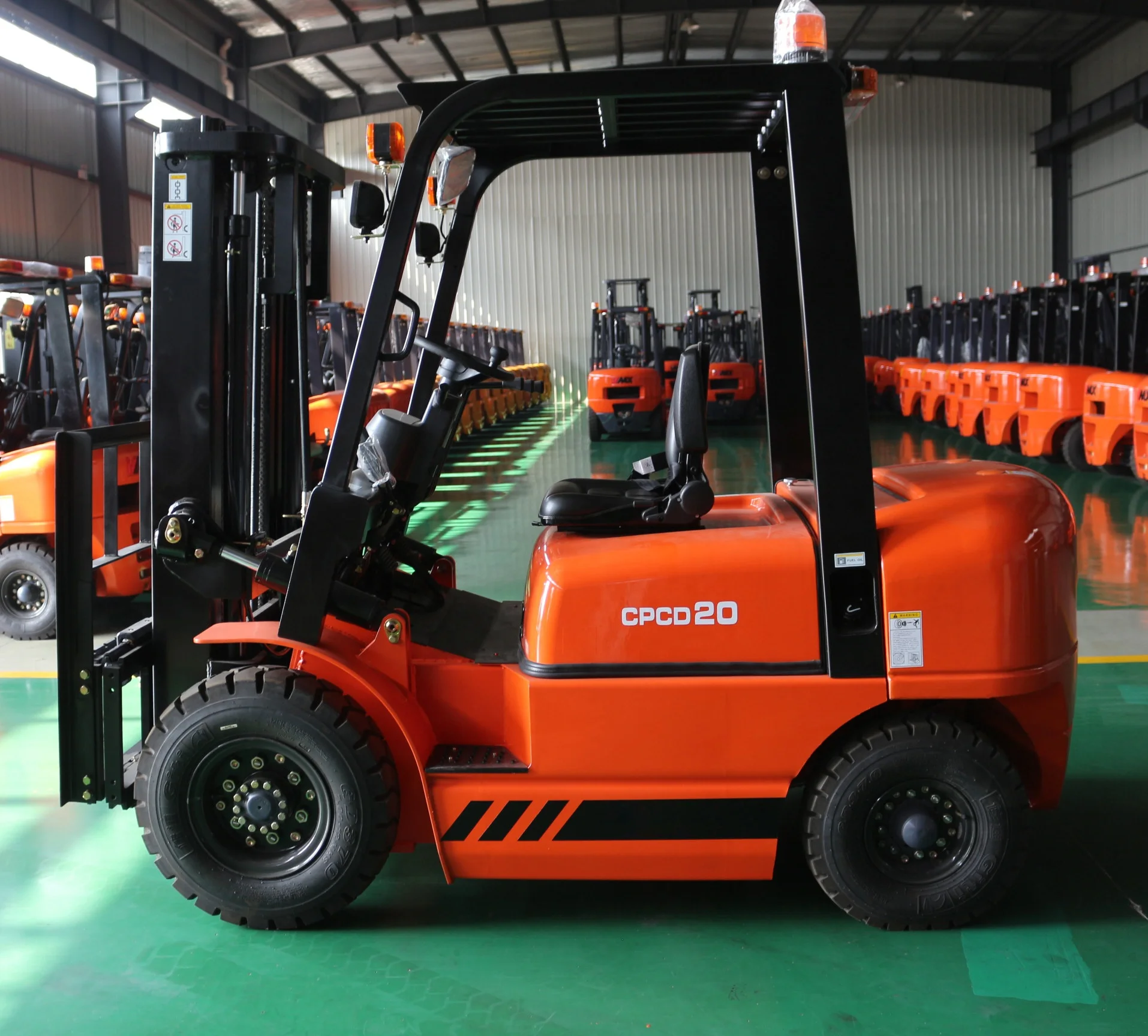

2 ton RC Diesel Forklift 3 Meter Mast CPCD20 Small Fork Lift Truck Xinchai C490 Engine

*Power system: The forklift is equipped with Chinese powerful and reliable engine with excellent environmental performance; Original imported ISUZU, Mitsubishi and Cummins engine are optional.

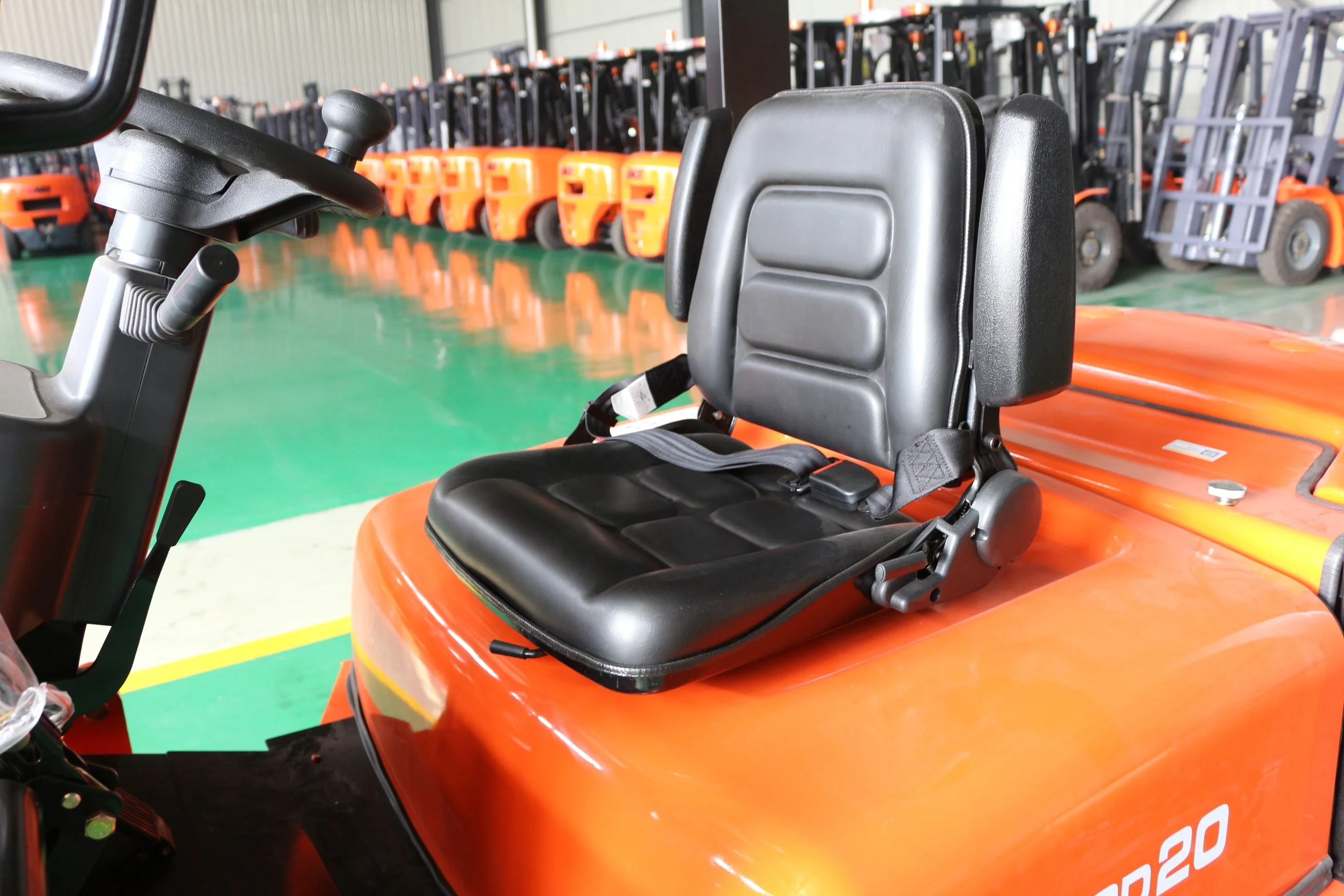

*Security system: Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

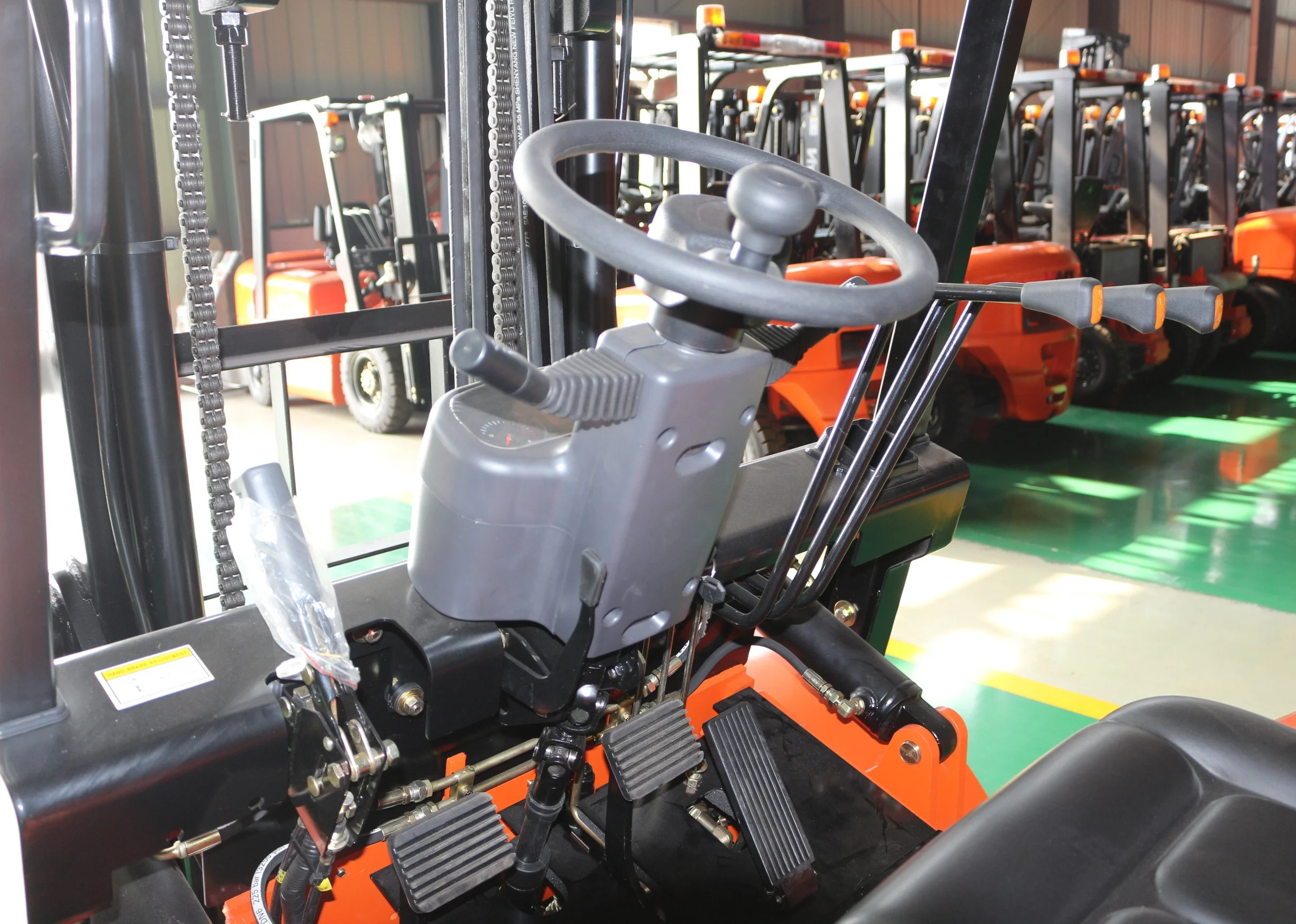

*Electro-hydraulic reversing handle to ensure easy operation, reducing the labor intensity effectively.

*New design overhead guard, enlarging the operation space and expanding visual field, reducing the driving fatigue.

*Original imported German U-steel as optional together with advanced welding process and technology make the mast more stable and durable.

SPECIFICATIONS FOR 2TON DIESEL FORKLIFT TRUCK
BASIC PARAMETER
Model	-	CPCD20
Power type	-	Diesel
Rated capacity	kg	2000
Load center	mm	500
Operator type	-	Drive in seat
SIZE
Max. lift height of mast with load-backrest	mm	4030
Max. lift height of fork(standard)	mm	3000
Height of mast(standard)	mm	1995
Free lift height(standard)	mm	170
Height of load-backrest	mm	1010
Distance from seat to overhead guard	mm	1005
Overhead guard height	mm	2070
Overall length without fork	mm	3480/2560
Front overhang	mm	477
Rear overhang	mm	498
Wheel base	mm	1600
Height of traction pin	mm	290
Min. ground clearance	mm	110
Overall width	mm	1170
Distance between forks	mm	1024/200
Tread(front/rear)	mm	970/970
Min. turning radius(outside)	mm	2170
Min. turning radius(inside)	mm	160
Min. intersecting aisle	mm	2200
Mast tilt angle	deg	6°/12°
Fork size	mm	1070x100x40
PERFORANCE
Max. drive speed(with/without full load)	km/h	18/20
Lifting speed(with/without full load)	mm/s	450/490
Lowering speed(with/without full load)	mm/s	520/490
Max.tractive force(with/without full load)	KN	21/15
Max. grade ability(with/without full load)	%	27/20
WEIGHT
Total weight	kg	3400
Weight distribution full load(front/rear)	kg	4788/532
Weight distribution zero load(front/rear)	kg	1328/1922
WHEELS AND TYRES
Quantity of wheels	-	4
Type of tyres	-	Pneumatic tyres, solid optional
Front tyres	-	7.00-12-12PR
Rear tyres	-	6.00-910PR
Driving brake	-	Hydraumatic pedal
Parking brake	-	Machanical manual
CONTROL DEVICE FOR DRIVING AND TRANSMITTING
Battery	V/AH	12/80
Engine model	-	4D27G31
Rated power	kw/rpm	36.8/2650
Rated torque	N.m/rpm	156/1700~1900
No. of cylinder	-	4-90x105
Displacement	L	2.67
Fuel tank capacity	L	60
No. of speed transmission	-	1-1 hand shift transmission/2-2 power shift transmission
