Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch
Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch

Washing Machine Parts Wireless Pressure Water Level Pressure Sensor Module Water Level Pressure Switch

Share on (62155908355):


Price:$0.80 - $3.00

Quantity:


Product Overview

Description


:







 .png
















APS005








Product Name:

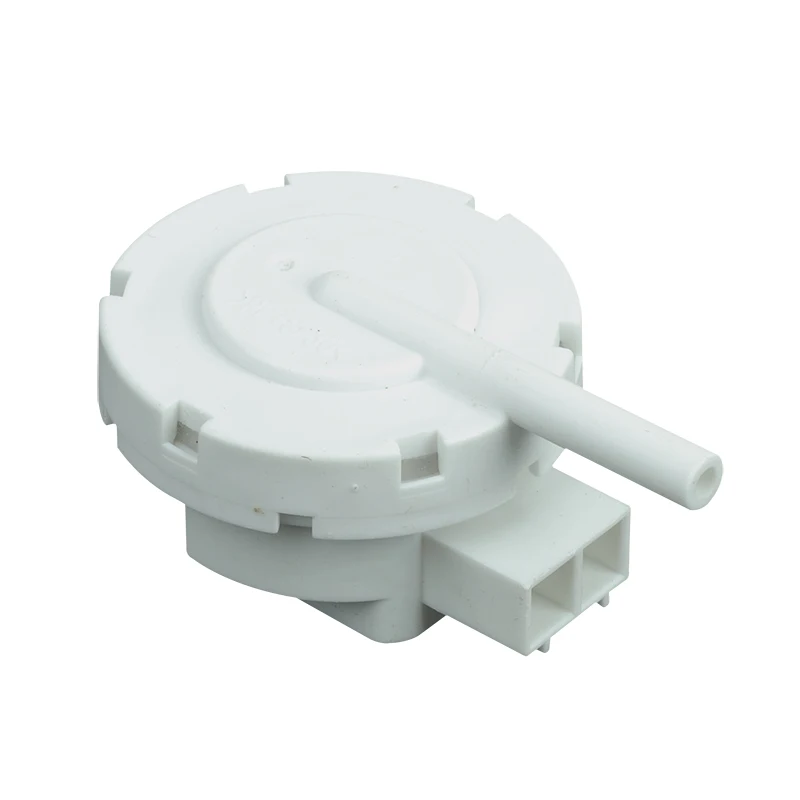

Washing machine parts water level sensor

Type:

Two-plug water level sensor

Structural description:

Without mounting bracket

Operating Voltage:

DC5V

Environment:

-10℃-50℃

Water level range:

0-600mm Water column

Smooth appearance:

uniform color

Water level:

customizable

Inlet strength:

Apply force 49N/min, no air leakage

Air impermeability:

Apply water pressure of 7.5kpa for 1min without air leakage

Destructive water pressure:

≥ 1000nm

Voltage withstandatility:

Apply 1500V/ sec, no breakdown

Insulation resistance:

>20 megohm

Durability test:

Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below

 The experiment of damp and hot:

Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours
















Water level sensor & Inlet valve










1.We will reply your enquiry within 24hours.Fast Online contact response.
2.High quality,Resonable price,Fast delivery.
3.All products will be inspect strictly before packing.
4.Well and proper packing,reduce the damage in the shipping as much as possible.
5.After-sale service:We gurantee 1 year quality warranty.Within one year,if the products come out any quality problem,we promise to make free replacement.

6.Customization: We are accepting customer's design,including the label design,colour box design.

7.Payment terms: T/T; Western Union; 30% TT advance,70% before shipment.
8.Delivery time : 15-30 days after receive the deposit .
