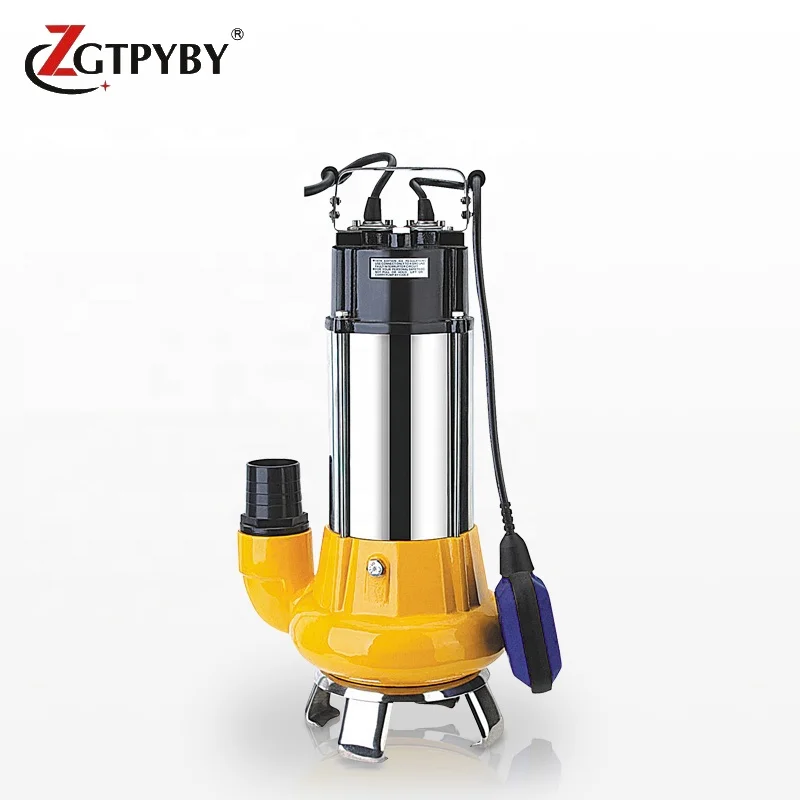

8m3/h flow mini low cost solar submersible dirty water pump centrifugal vertical sand slurry pumps suppliers in philippine

Share on (62155939583):


Price:$48.00 - $78.00

Quantity:


Product Overview

Description



Product Introduction




Model V(WQ) submersible sewage pump, a branch of single phase and three phase drainage pumps, it will be your ideal drainage helper.


The letter "V" which substitutes for the letters "WQ" indicates the distinct design of the filter and the broadness of the high efficient area. It can work safely and efficiently at high flux with the feature of complete heads.


The design is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is about 25~42 mm. The selection of bottom suction structure, stainless steel and special and high resistance of abrasion and corrosion. The float switch can automatically control on and off with the change of the liquid level.


The protector in the motor can automatically cut off the power when it overheated or over-current, thus guarantee the security and reliability of pump's run even in the atrocious environment..

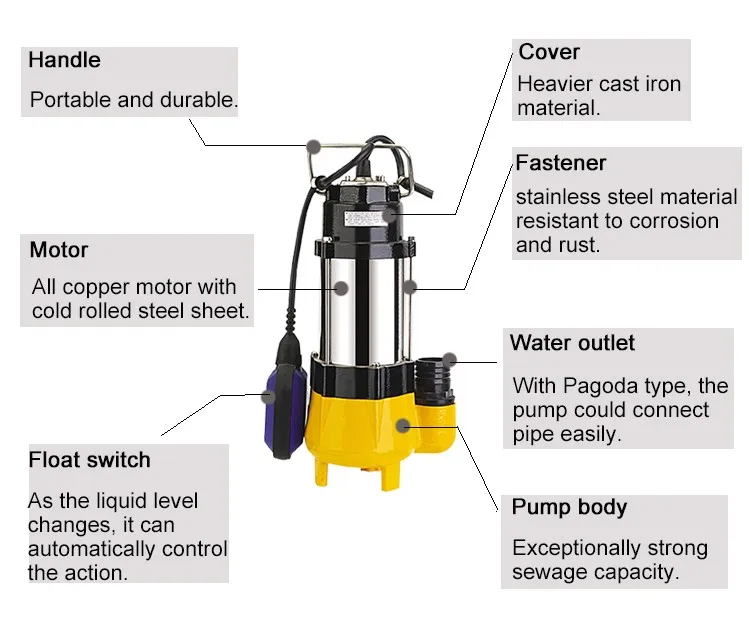

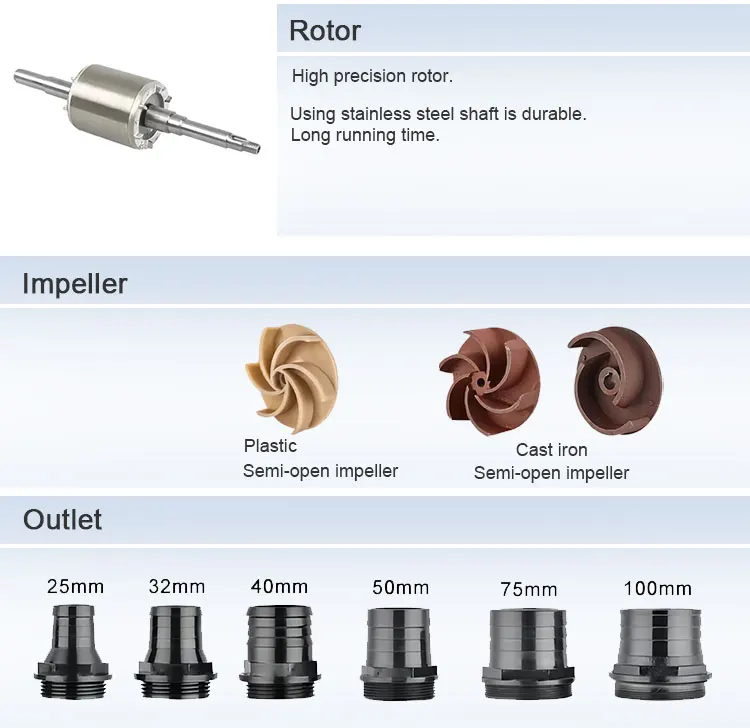

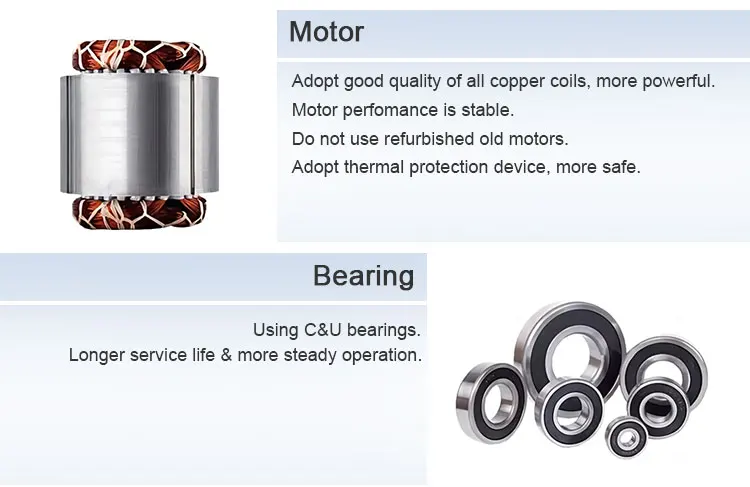

Product Details








Product Paramater




Model
Power
(Kw)
Outlet Diameter
(mm)
Max flow
(L/min)
Max head
(m)
Voltage
(v)
Frequencey
(Hz)
V180F
0.18
40 32 25
133
7
220/380
50/60
V250F
0.25
40 32 25
130
7
220/380
50/60
V450F
0.45
40 50
200
8.5
220/380
50/60
V550F
0.55
40 50
270
8.5
220/380
50/60
V750F-2"
0.75
40 50
300
10
220/380
50/60
V750F-3"
0.75
80
500
11
220/380
50/60
V1100F
1.1
40 50
360
11
220/380
50/60
V1500F-2"
1.5
40 50
340
23
220/380
50/60
V1500F-3"
1.5
80
600
14
220/380
50/60
V2200F-3"
2.2
80
600
15
220/380
50/60
V2200F-4"
2.2
102
800
18
220/380
50/60

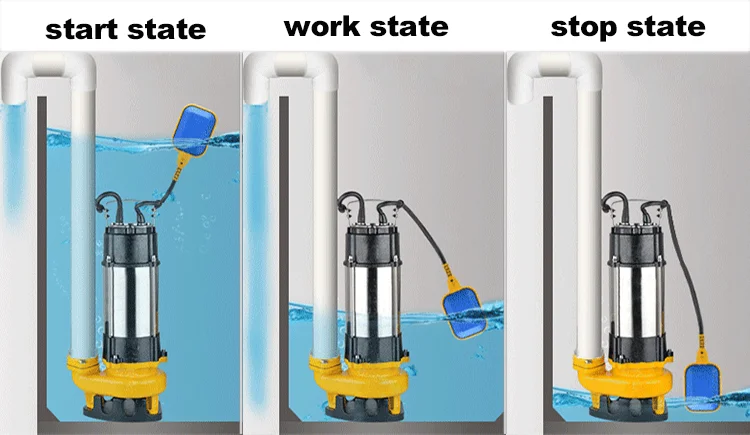

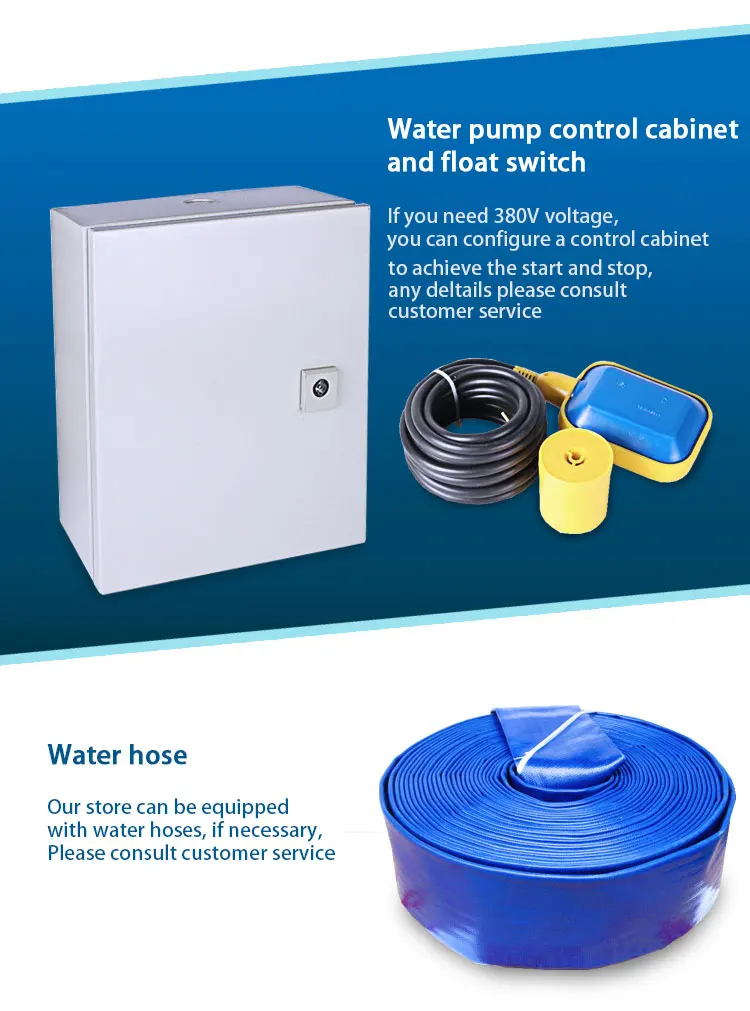

About float switch




Related products

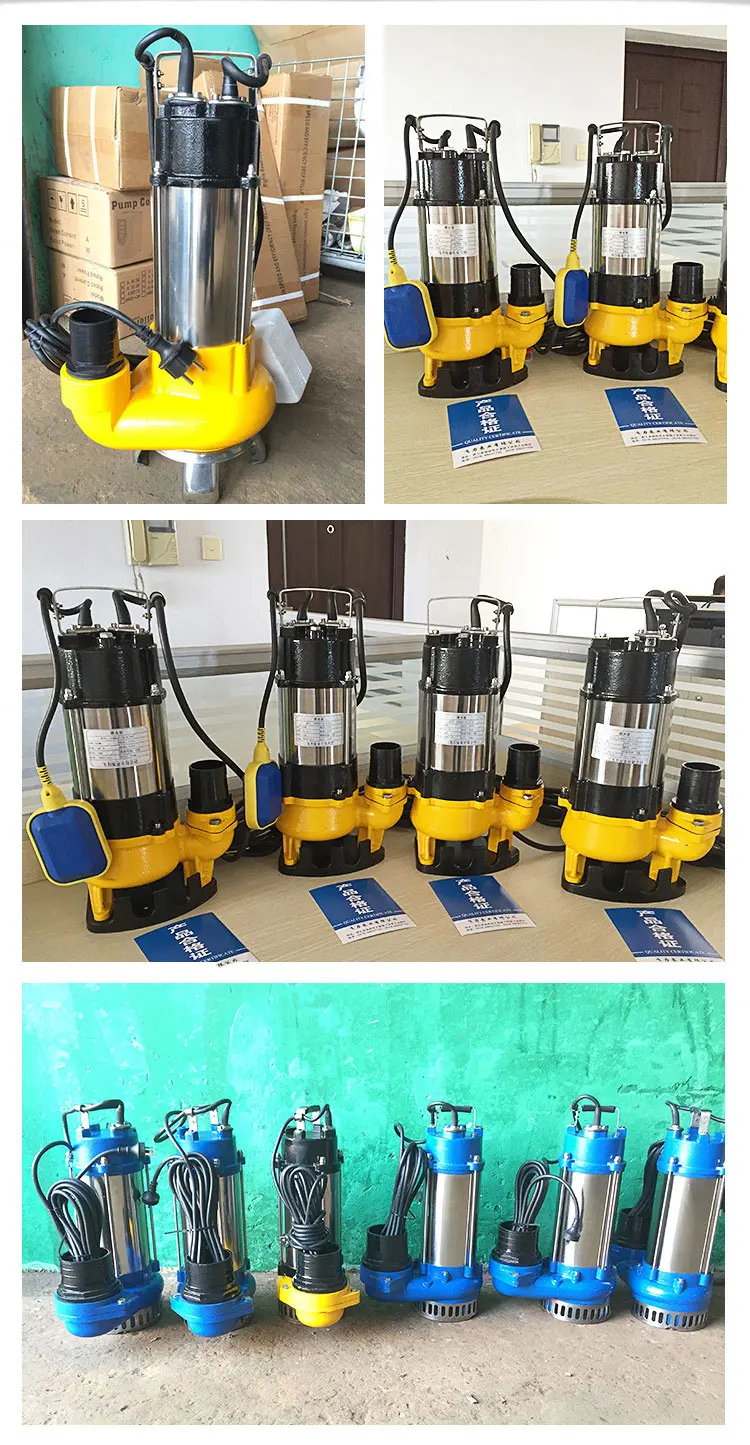

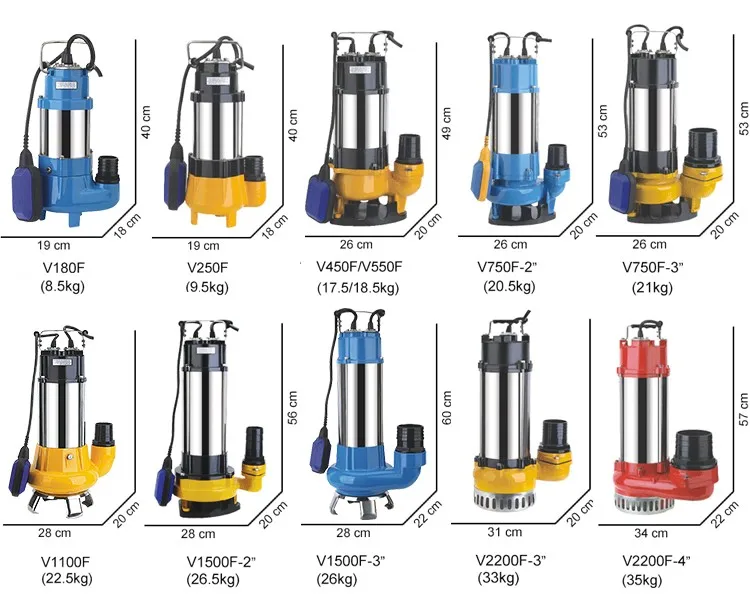

Actual photo display




Application
