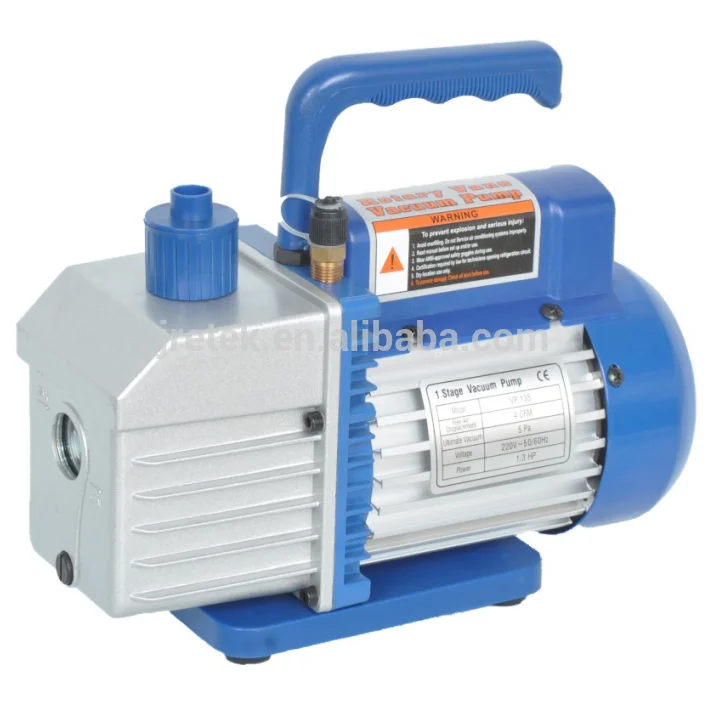

Single Stage High Performance Rotary Vacuum Pump for Refrigerator Parts
- Category: Refrigerator & Freezer Parts >>>
- Supplier: Jinan Retek Industries Inc
Share on (62156023937):
Product Overview
Description
Product Description
Single Stage High Performance Rotary Vacuum Pump for Refrigerator Parts
SINGLE STAGE | DUAL STAGE | |||||
| MODEL | VE135SV | VE145SV | VE160SV | VE235SV | VE245SV | |
| FLOW RATE | 50HZ | 3.5CFM | 4.5CFM | 6.0CFM | 3.5CFM | 4.5CFM |
| 100L/MIN | 128L/MIN | 170L/MIN | 100L/MIN | 128L/MIN | ||
| 60HZ | 4.0CFM | 5.0CFM | 7.0CFM | 4.0CFM | 5.0CFM | |
| 114L/MIN | 142L/MIN | 198L/MIN | 114L/MIN | 142L/MIN | ||
| ULTIMATE VACUUM5PA | 5PA | 5PA | 5PA | 3X10-1PA | 3X10-1PA | |
| 0.05MBAR | 0.05MBAR | 0.05MBAR | 25MICRONS | 25MICRONS | ||
| Power | 1/3HP | 1/3HP | 1/2HP | 1/3HP | 1/2HP | |
| INLET PORT | 1/4&3/8"FLARE | 1/4&3/8"FLARE | 1/4&3/8"FLARE | 1/4&3/8"FLARE | 1/4&3/8"FLARE | |
| OIL CAPACIRY | 310MM | 300MM | 440MM | 350MM | 330MM | |
| DIMENTIONS | 315X124X240MM | 314X124X240MM | 335X138X250MM | 335X138X250MM | 335X138X250MM | |
| WEIGHT | 9.1KG | 9.2KG | 11.5KG | 12.2KG | 12.4KG | |
Packaging & Shipping

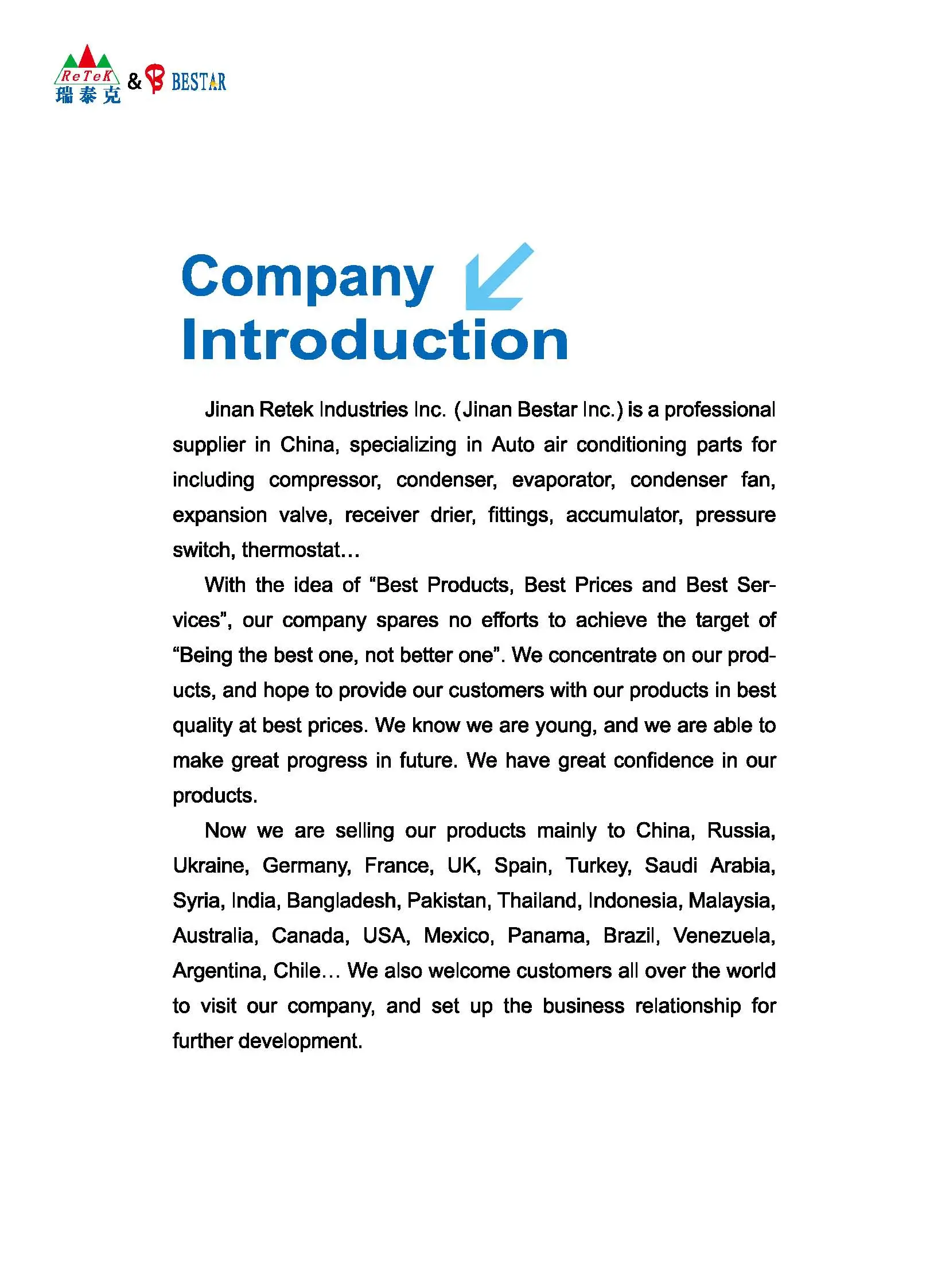

Company Information
